General Information |
|
Summary |

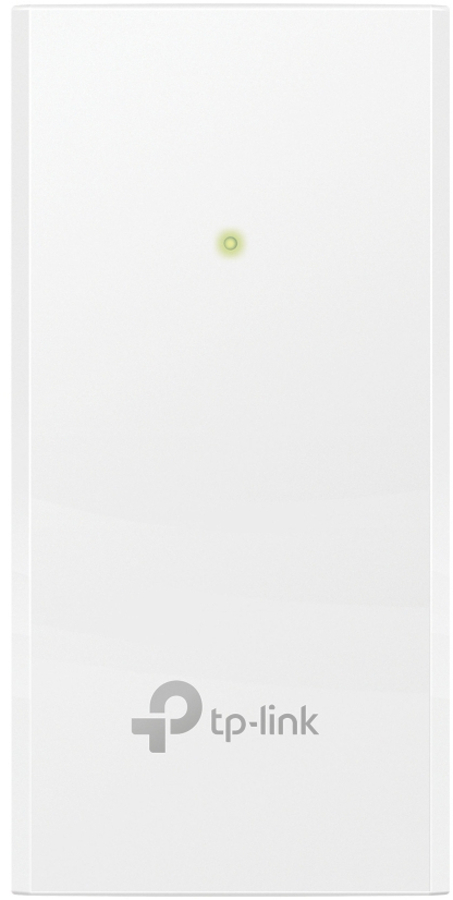

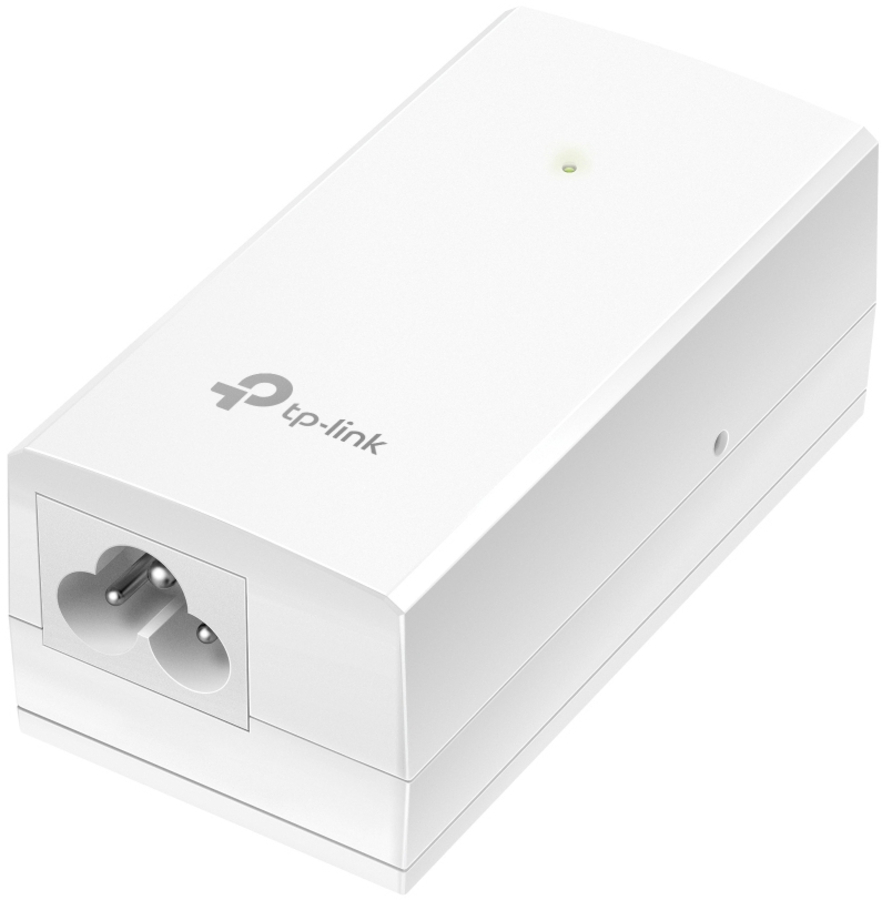

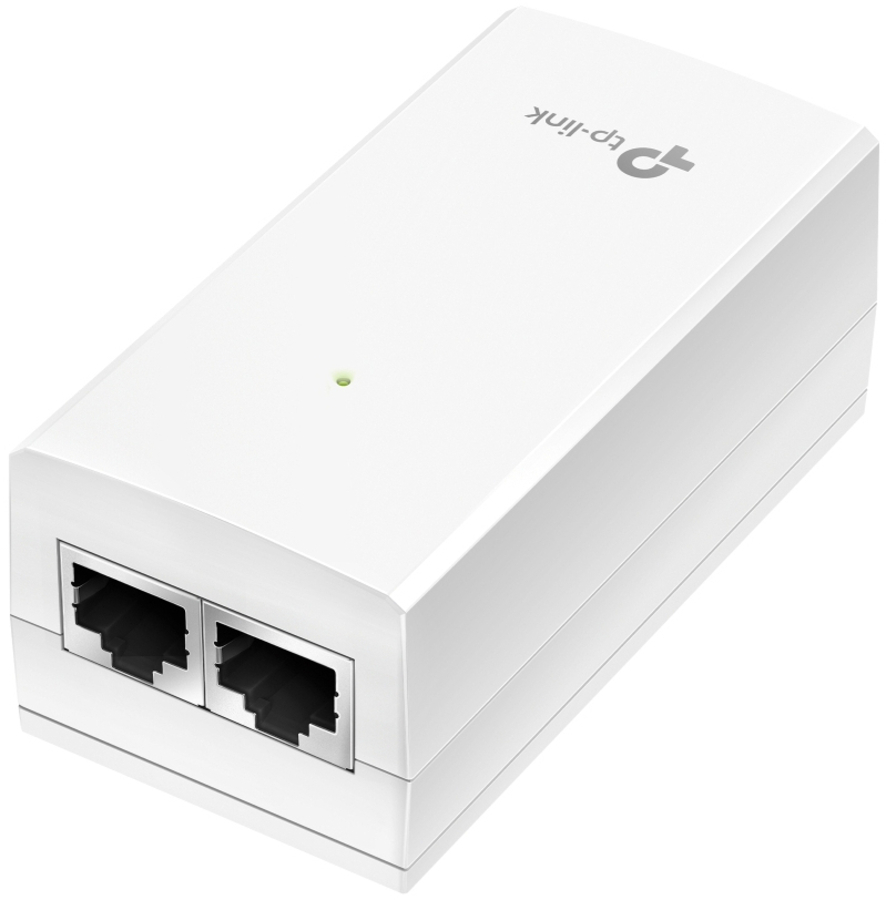

Passive PoE Adapter
Powers TP-Link products that support 48V passive PoE
Power Your Devices
Use the passive PoE adapter POE4818G to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
POE4818G offers a convenient wall-mounting brackets to be easily installed on a wall.
Compatible Devices
POE4818G is recommended to offer power supply to TP-Link’s passive PoE products which as follows. |
|
Network |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Cabling technology |
10/100/1000 |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) type supported |
Passive PoE |
|
Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6 |
|
Features |
|
Product colour |
White |
|
Wall mountable |
Yes |
|
Easy to install |
Yes |
|
Plug and Play |
Yes |
|
Maximum operating distance |
100 m |
|
LED indicators |
Power, Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
RJ-45 input ports |
1 |
|
RJ-45 output ports |
1 |
|
Power |
|
Power over Ethernet (PoE) voltage |
48 V |
|
Output power |
18 W |
|
AC adapter input voltage |
100-240 V |
|
AC adapter frequency |
50-60 Hz |
|
Total Power over Ethernet (PoE) budget |
18 W |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
32 - 104 °F |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Width |
85.8 mm |
|
Depth |
43.9 mm |
|
Height |
35 mm |
|
Packaging content |
|
Number of products included |
1 pc(s) |
|
Power cord included |
Yes |
|
Packaging data |
|
Package type |
Box |
