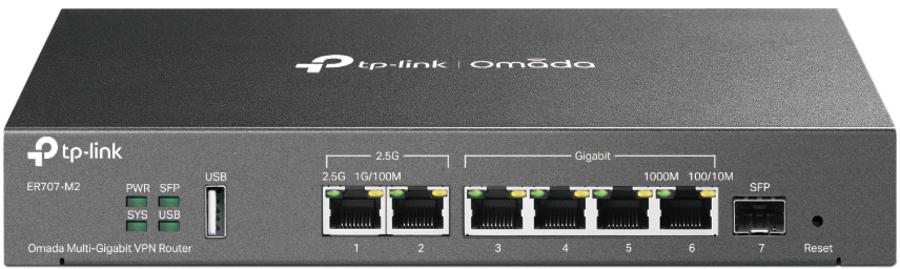

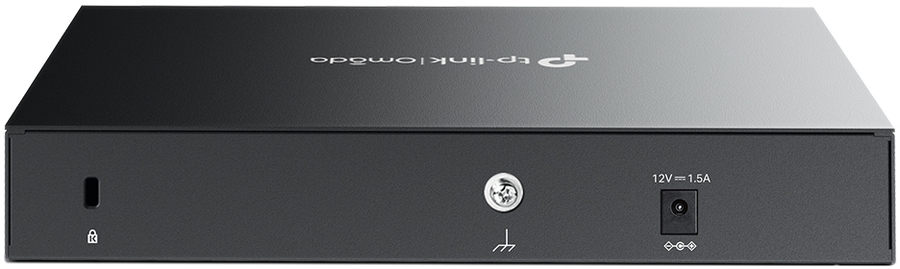

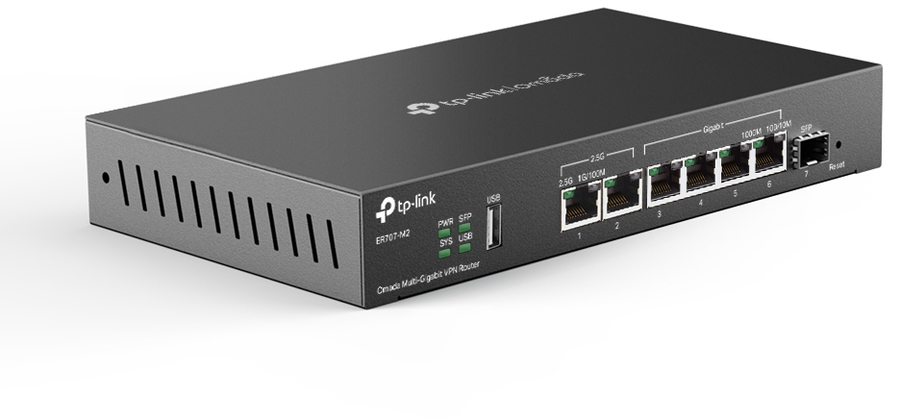

TP-Link Omada Multi-Gigabit VPN Router
|
|
Regularly: $186.00
On Sale: $178.56
Sale Ends:
May 4th, 2025
Manufacturer:
TP-Link
Omada Multi-Gigabit VPN Router, 1 x 2.5G RJ45 WAN, 1 x 2.5G RJ45 WAN/LAN, 1 x Gigabit SFP WAN/LAN, 4 x Gigabit RJ45 WAN/LAN, 1 x USB 2.0
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59452586
|
ER707-M2
|
4895252500745 |
Active
|
Details
|
General Information |
|
Summary |
Dual 2.5 Gbps Ports, Engineered for Dense Environments
Delivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.
6× WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△ Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.
Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.
High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as SSL, GRE§, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.* The router also features a built-in hardware engine to boost VPN performance.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Omada SDN—The Smarter Cloud Solution for Business Networking
As the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. |
|
WAN connection |
|
Ethernet WAN |
Yes |
|
SFP WAN |
Yes |
|
Network |
|
Networking standards |
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x |
|
Ethernet interface type |
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
|
Throughput |
1.44 Gbit/s |
|
Static route |
Yes |
|
VLAN support |
Yes |
|
Policy-based routing |
Yes |
|
Management features |
|
Web-based management |
Yes |
|
Universal Plug and Play (UPnP) |
Yes |
|
Reset button |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
6 |
|
WAN/Ethernet LAN ports quantity |
6 |
|
WAN ports quantity |
1 |
|
Installed SFP modules quantity |
1 |
|
USB ports quantity |
1 |
|
USB version |
2.0 |
|
Protocols |
|
DHCP client |
Yes |
|
DHCP server |
Yes |
|
DMZ support |
Yes |
|
Supported network protocols |
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
|
Security |
|
Security algorithms |
3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3 |
|
URL filtering |
Yes |
|
ICMP attack prevention |
Yes |
|
Access Control List (ACL) |
Yes |
|
Network address translation (NAT) |
Yes |
|
System event log |
Yes |
|
VPN tunnels quantity |
66 |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
|
Sustainability compliance |
Yes |
|
Packaging content |
|
AC adapter included |
Yes |
|
Quick installation guide |
Yes |
|
Features |
|
Flash memory |
128 MB |
|
Internal memory |
1000 MB |
|
Internal memory type |
DDR4 |
|
Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
|
Mac operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Design |
|
Product colour |
Black |
|
Housing material |
Steel |
|
Wall mountable |
Yes |
|
LED indicators |
LAN, Link, Power, Speed, System, USB, WAN |
|
Power |
|
Power source type |
DC |
|
Output voltage |
12 V |
|
Output current |
1.5 A |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Width |
226 mm |
|
Depth |
131 mm |
|
Height |
35 mm |
|
Packaging data |
|
Package width |
242 mm |
|
Package depth |
323 mm |
|
Package height |
73 mm |
|
Package weight |
1.1 kg |
|
