General Information |
|
Summary |
WiFi 6E: A Freer and Faster Future
WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.
Two 10G Multi-gig Ports

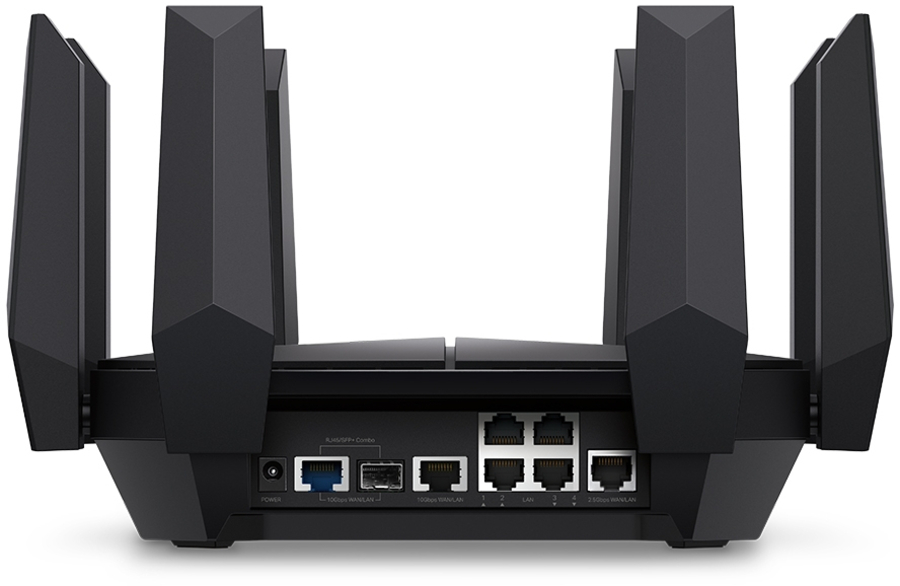

Equipped with two 10G WAN/LAN ports—one RJ45 port and an RJ45/SFP+ combo port—Archer AXE300 provides flexible support for both fibre and copper connections. WAN/LAN options and flexible 10 Gbps, 2.5 Gbps, and 1 Gbps ports make it an ideal solution for future-proofing your home network. Its USB 3.0 port offers up to 10× faster transfer speeds than USB 2.0.
Industry-Leading CPU, Powerful Processing
The state-of-the-art 2.0 GHz quad-core 64-bit CPU with 1 GB RAM handles huge throughput to eliminate lag. Enjoy fast connections and minimal latency even under the heaviest transmission loads.
Massively Expanded Device Capacity
The number of IoT devices today creates greater demands on home networks. Archer AXE300 future-proofs your home WiFi with a higher capacity of up to 200+ devices.
TP-Link OneMesh:
Flexible Create Whole Home WiFi with Archer AXE300
OneMesh™ is a simple way to form a mesh network with a single WiFi name for seamless whole-home coverage. Just connect an OneMesh™ range extender to an OneMesh™ router. No more searching for a stable connection.
Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer AXE300 can run both the VPN and ordinary internet connections simultaneously, delivering security and flexibility.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer axe300 in minutes. The Tether app allows you to manage network settings from Android or iOS devices.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notifications
You will be notified by your phone when new devices connect. Kick-off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrades
Tired of upgrading firmware manually? OTA updates simplify firmware upgrades with a click in the management panel. To keep your security and functions always up to date, just turn on the auto schedule. |
|
WAN connection |
|
Ethernet WAN |
Yes |
|
DSL WAN |
No |
|
SIM card slot |
No |
|
3G/4G USB modem compatibility |
No |
|
WAN connection type |
RJ-45 |
|
Wireless LAN features |
|
Wi-Fi band |
Quad-band (2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz) |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
WLAN data transfer rate (max) |
15600 Mbit/s |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|
WLAN data transfer rate (first band) |
1148 Mbit/s |
|
WLAN data transfer rate (second band) |
4804 Mbit/s |
|
WLAN data transfer rate (third band) |
4804 Mbit/s |
|
WLAN data transfer rate (fourth band) |
4804 Mbit/s |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN interface type |
10 Gigabit Ethernet |
|
Ethernet LAN data rates |
2500 Mbit/s |
|
Cabling technology |
10/100/1000Base-T(X) |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n |
|
Port forwarding |
Yes |
|
Port triggering |
Yes |
|
Dynamic DNS (DDNS) |
Yes |
|
Static route |
Yes |
|
Number of guest networks (2.4 GHz) |
1 |
|
Number of guest networks (5 GHz) |
2 |
|
Number of guest networks (6 GHz) |
1 |
|
Support Samba (storage) |
Yes |
|
Built-in FTP server |
Yes |
|
VPN server |
OpenVPN Server |
|
Media server |
Yes |
|
VPN Passthrough |
Yes |
|
VPN support |
OpenVPN Server
PPTP VPN Server
L2TP VPN Server |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
7 |
|
USB port |
Yes |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
Management features |
|
Web-based management |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Wake-on-LAN ready |
Yes |
|
Reset button |
Yes |
|
WPS push button |
Yes |
|
Security |
|
Security algorithms |
WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
|
Firewall |
Yes |
|
Firewall security |
SPI Firewall |
|
Guest access |
Yes |
|
DoS attack prevention |
Yes |
|
DDoS protection |
Yes |
|
URL filtering |
Yes |
|
DMZ support |
Yes |
|
Network address translation (NAT) |
Yes |
|
Protocols |
|
DHCP client |
Yes |
|
DHCP server |
Yes |
|
Universal Plug and Play (UPnP) |
Yes |
|
Supported network protocols |
IPv4, IPv6 |
|
Design |
|
Product type |
Tabletop router |
|
Product colour |
Black |
|
Wall mountable |
Yes |
|
LED indicators |
Power |
|
On/off switch |
Yes |
|
Certificates |
|
Compliance certificates |
Federal Communications Commission (FCC), RoHS |
|
Packaging content |
|
Cables included |
LAN (RJ-45) |
|
AC adapter included |
Yes |
|
Quick installation guide |
Yes |
|
Antenna |
|
Antenna design |
External |
|
Antennas quantity |
8 |
|
Detachable antenna(s) |
Yes |
|
Transmit power |
FCC: < 30 dBm (2.4 GHz), < 30 dBm (5 GHz), ≤ 25 dBm (6 GHz) |
|
Features |
|
Built-in processor |
Yes |
|
Processor frequency |
2000 MHz |
|
Processor cores |
4 |
|
Firmware upgradeable |
Yes |
|
Power |
|
Power source type |
DC |
|
Output voltage |
12 V |
|
Output current |
5 A |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width |
232 mm |
|
Depth |
232 mm |
|
Height |
68 mm |
|
Packaging data |
|
Number of products included |
1 pc(s) |
|
Sustainability |
|
Sustainability compliance |
Yes |
