General Information |
|
Summary |

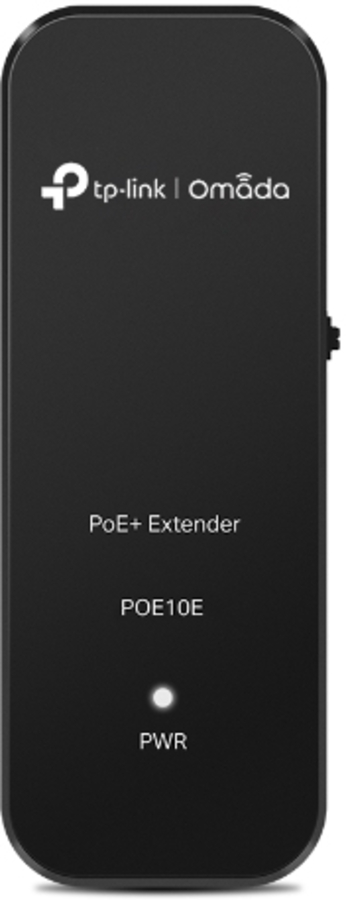

The Fast Ethernet PoE+ Extender TL-POE10E extends a PoE/PoE+ network connection an additional 100m – 250m (10 Mbps Mode) from the PoE power source equipment. TL-POE10E expands network deployment with 802.3af/at PoE compliant devices, making it ideal for remote cabling requirements in surveillance scenarios. Distance will no longer be a barrier to network deployment.
|
|
Performance |
|
Type |
Network repeater |
|
Maximum transfer distance |
250 m |
|
Data transfer rate |
100 Mbit/s |
|
Cable types supported |
Cat5e |
|
Ethernet LAN data rates |
10,100 Mbit/s |
|
Auto-negotiation |
Yes |
|
Plug and Play |
Yes |
|
Network |
|
Cabling technology |
10/100Base-T(X) |
|
Networking standards |
IEEE 802.3i, IEEE 802.3u |
|
Ports & interfaces |
|
Host interface |
RJ-45 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
Power over Ethernet (PoE) ports quantity |
2 |
|
RJ-45 input ports |
1 |
|
RJ-45 output ports |
1 |
|
Design |
|
Product colour |
Black |
|
Housing material |
Plastic |
|
LED indicators |
Power |
|
Quantity per pack |
1 pc(s) |
|
Certification |
FCC, CE, RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Width |
71 mm |
|
Depth |
26 mm |
|
Height |
16 mm |
|
Technical details |
|
Sustainability compliance |
Yes |
|
Sustainability certificates |
Federal Communications Commission (FCC), RoHS |
|
Packaging content |
|
Quick start guide |
Yes |
