WAN connection |
|
Ethernet WAN |
Yes |
|
DSL WAN |
No |
|
SIM card slot |
No |
|
3G/4G USB modem compatibility |
No |
|
WAN connection type |
RJ-45 |
|
Wireless LAN features |
|
Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
WLAN data transfer rate (max) |
2402 Mbit/s |
|
Wi-Fi standards |
802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|
WLAN data transfer rate (first band) |
2402 Mbit/s |
|
WLAN data transfer rate (second band) |
4802 Mbit/s |
|
WLAN data transfer rate (third band) |
574 Mbit/s |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN interface type |
2.5 Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|
Port forwarding |
Yes |
|
Port triggering |
Yes |
|
Dynamic DNS (DDNS) |
Yes |
|
Number of guest networks (2.4 GHz) |
1 |
|
Number of guest networks (5 GHz) |
1 |
|
Number of guest networks (6 GHz) |
1 |
|
Support Samba (storage) |
Yes |
|
VPN server |
OpenVPN Server, PPTP VPN Server, L2TP VPN Server |
|
Media server |
Yes |
|
VPN support |
OpenVPN Server
PPTP VPN Server
L2TP VPN Server
Open VPN Client
PPTP VPN Client
L2TP VPN Client |
|

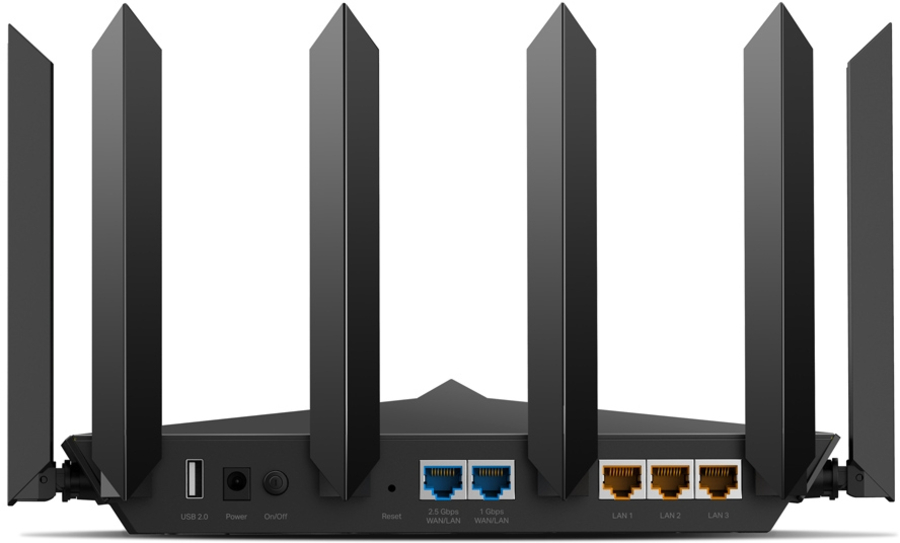

Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
5 |
|
USB port |
Yes |
|
USB 2.0 ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
DC-in jack |
Yes |
|
Management features |
|
Quality of Service (QoS) support |
Yes |
|
Reset button |
Yes |
|
MU-MIMO technology |
Yes |
|
Cloud-managed |
Yes |
|
Security |
|
Security algorithms |
WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
|
Firewall |
Yes |
|
Firewall security |
SPI Firewall |
|
Guest access |
Yes |
|
Stateful Packet Inspection (SPI) |
Yes |
|
Parental control |
Yes |
|
DDoS protection |
Yes |
|
Filtering |
Yes |
|
IGMP snooping |
Yes |
|
DMZ support |
Yes |
|
Network address translation (NAT) |
Yes |
|
NAT functionality |
Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server |
|
Protocols |
|
DHCP client |
Yes |
|
Universal Plug and Play (UPnP) |
Yes |
|
Management protocols |
Tether App, Webpage |
|
Supported network protocols |
IPv4, IPv6 |
|

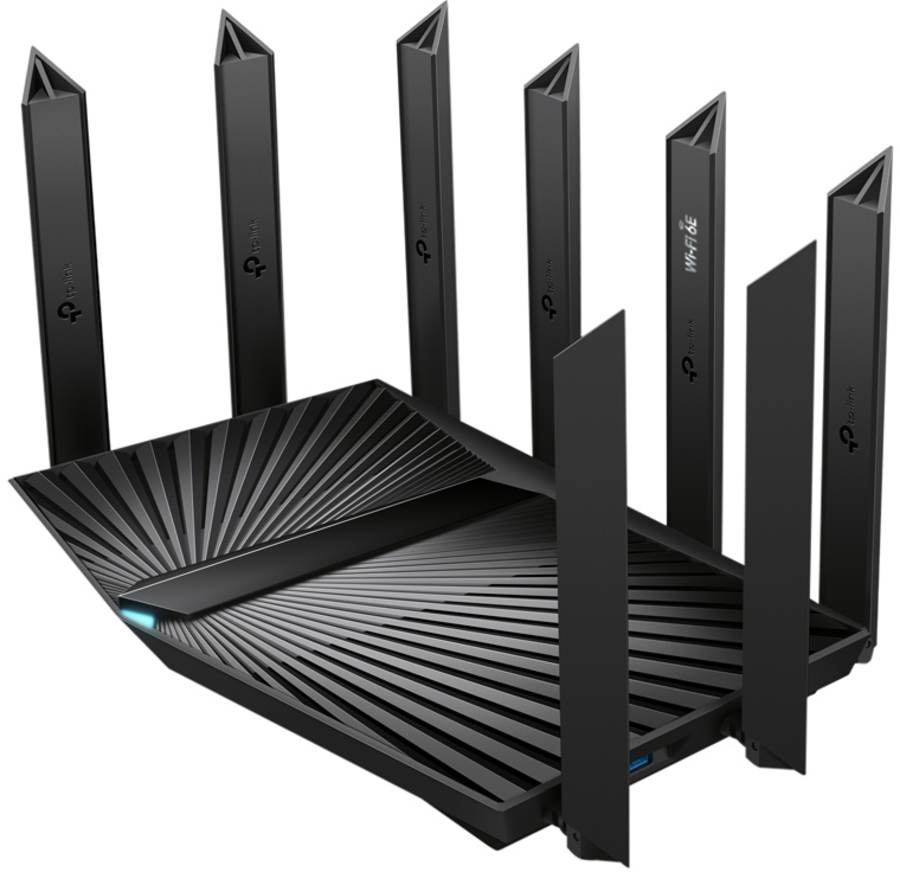

Design |
|
Product type |
Tabletop router |
|
Product colour |
Black |
|
On/off switch |
Yes |
|
Certificates |
|
Certification |
FCC, RoHS |
|
Packaging content |
|
Cables included |
LAN (RJ-45) |
|
AC adapter included |
Yes |
|
Quick installation guide |
Yes |
|
Packaging content |
Wi-Fi Router Archer AXE95
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
|
Antenna |
|
Antenna design |
External |
|
Antennas quantity |
8 |
|
Features |
|
Built-in processor |
Yes |
|
Processor frequency |
1700 MHz |
|
Processor cores |
4 |
|
Firmware upgradeable |
Yes |
|
Power |
|
Power source type |
DC |
|
Output voltage |
12 V |
|
Output current |
3.3 A |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width |
311 mm |
|
Depth |
207 mm |
|
Height |
174 mm |
