General Information |
|
Summary |
7 x PCIe Gen4 Slots
Supports 7 PCIe gen4 slots to deliver all the performance of PCIe 4.0 to your GPU and add-on cards. Fulfill all the professional design, deep learning, simulation and rendering applications.
Various Storage Interface Selection
Provides multiple interface for storage devices including mini-SAS HD connector, SATA3, and M.2 Key-M slot that can support PCIe3.0 x4 & SATA type M.2 SSD.
2 Front USB 3.2 Gen2 Type-C Ports
This motherboard supports 2 USB 3.2 Gen2x2 Type-C providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Dual 10GbE LAN
equipped with the latest 10GbE controller. The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. It offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.
Aspeed® AST2500 BMC Controller
AST2500 provides customer the best performance server management solution. In additional to the advanced BMC(Baseboard Management Controller) features, the on chip PCIe 2D VGA provides server systems with local display capability without adding extra cost for VGA add-on card. The embedded ARM11 and DDR4 1600Mbps meet the increasing performance requirements of the server system. |
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 4189 |
|
Compatible processor series |
Intel® Xeon® |
|
Maximum number of SMP processors |
1 |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Number of memory slots |
8 |
|
Maximum internal memory |
256 GB |
|
Memory slots type |
DIMM |
|
Supported memory clock speeds |
1866,2133,2400,2666,2933,3200 MHz |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
|
Supported storage drive types |
HDD & SSD |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
On-board graphics card |
Yes |
|
Graphics card |
AST2500 |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
2 |
|
Number of SATA III connectors |
2 |
|
ATX Power connector (24-pin) |
Yes |
|
Peripheral (Molex) power connectors (4-pin) |
1 |
|
EPS power connector (8-pin) |
Yes |
|
Number of COM connectors |
1 |
|
TPM connector |
Yes |
|

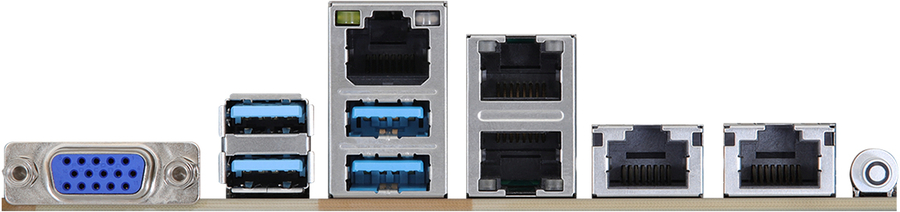

Rear panel I/O ports |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
Ethernet LAN (RJ-45) ports |
5 |
|
VGA (D-Sub) ports quantity |
1 |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
10 Gigabit Ethernet, Gigabit Ethernet |
|
LAN controller |
Intel I210, Intel X710-AT2 |
|
Features |
|
Component for |
Workstation |
|
Motherboard form factor |
ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel C621A |
|
Expansion slots |
|
PCI Express x16 (Gen 4.x) slots |
4 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
256 Mbit |
|
ACPI version |
5.0 |
|
System Management BIOS (SMBIOS) version |
2.3 |
|
Weight & dimensions |
|
Width |
305 mm |
|
Depth |
244 mm |
