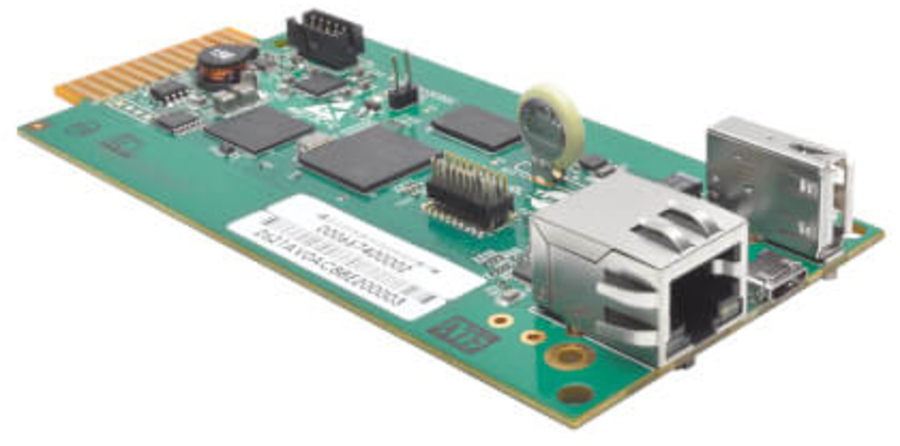

Tripp Lite WEBCARDLX Network Card for Select UPS Systems and PDUs
|
|
Price: $591.00
Manufacturer:
Tripp Lite
Network Management Card for Select UPS Systems, TAA
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59462715
|
WEBCARDLXE
|
37332282743 |
Active
|
Details
|
General Information |
|
Summary |
Allows Any Compatible UPS System to Function as a Managed Network Device
WEBCARDLXE turns a compatible UPS system into a managed device on your network. By inserting the network management card into an accessory slot and using an SNMP network management platform, web browser, SSH or Telnet, you can access, monitor, control and reboot the managed device from almost anywhere at any time. WEBCARDLXE’s HTML5-based interface means Java isn’t needed to interact with the mobile-friendly PowerAlert® Device Manager.
Remotely Monitor and Reboot Network Equipment from Anywhere 24/7
You can remotely monitor and log site electrical data, UPS self-tests, alerts and power events like blackouts, brownouts and overvoltage conditions. You can also reboot locked network equipment without an on-site visit or disruption of power to other loads (when used with controllable outlets or remotely switchable outlets on select devices).
Control Access and Stay Informed with Event Notifications
You can assign users different levels of access from full administrator to view-only operator. Multiple user support allows viewing by more than one user simultaneously. In addition, you can create an encrypted connection using your web browser’s SSL setting. Based on your preferences, the WEBCARDLXE can notify you of events and power conditions with email messages or SNMP traps. It can also automatically shut down remote operating systems over your network. Real-time clock support maintains current day and date, even after a UPS shutdown.
Check Environmental Data with an Optional EnviroSense2
When connected to EnviroSense2 modules (sold separately), the WEBCARDLXE can control digital outputs and monitor temperature, humidity and contact closure state (features vary by module). Up to three EnviroSense2 modules may be daisy-chained together and mounted magnetically to your rack.
Save Time with Mass Configurations
the software-based maintenance of WEBCARDLXE. Its discovery engine identifies supported network solutions to concurrently apply a source configuration to multiple target devices, as well as update firmware on multiple devices.
Hassle-Free Compatibility
The WEBCARDLXE supports multiple protocols, including IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, FTP and DHCP. 10/100 Mbps auto-sensing ensures optimal communication compatibility with the current 10/100 Base-T network. DHCP/Manual configuration support permits network settings to be assigned automatically or manually. |
|
Features |
|
Product type |
Network management card |
|
LED indicators |
Yes |
|
Performance |
|
Management protocols |
IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, FTP, DHCP |
|
Ports & interfaces |
|
Interface type |
RJ-45 |
|
USB ports quantity |
2 |
|
USB connector type |
Micro-USB B, USB Type-A |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Ethernet interface type |
Fast Ethernet |
|
Ethernet LAN data rates |
10,100 Mbit/s |
|
Security algorithms |
SNMP, SNMPv2, SNMPv3 |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, Trade Agreements Act (TAA), UKCA |
|
Certification |
EN 55032; EN 55035; ICES (Canada); IEC/EN 63000, CE (Europe); FCC Part 15 Class B (USA); REACH; RoHS3; Trade Agreements Act (TAA); UKCA |
|
Weight & dimensions |
|
Width |
132.1 mm |
|
Depth |
59.9 mm |
|
Weight |
50 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Manual |
Yes |
|
Packaging data |
|
Package width |
160 mm |
|
Package depth |
175.3 mm |
|
Package height |
57.9 mm |
|
Package weight |
390 g |
|
Logistics data |
|
Products per master (outer) case |
5 pc(s) |
|
Master (outer) case width |
172.7 mm |
|
Master (outer) case length |
177.8 mm |
|
Master (outer) case height |
304.8 mm |
|
Master (outer) case gross weight |
1.45 kg |
|
Country of origin |
Taiwan |
|
