Synology SA3400D 12-bay Active/Active Dual Controller SAN
|
|
Regularly: $13260.00
On Sale: $12729.60
Sale Ends:
May 10th, 2024
Manufacturer:
Synology
12-Bay 3.5", 2x GbE/1x 10GbE, Intel Xeon D-1541, 8GB RAM, RPSU, 2U
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59469595
|
UC3400
|
4711174725205 |
Active
|
Details
|
General Information |
|
Summary |
Reliability and High Availability
Active-active dual controllers work simultaneously to ensure zero downtime in the event of a controller failure while the non-transparent bridge (NTB) enables inter-domain communication to maximize the protection of in-flight data.
Active-Active SAN with enterprise-class performance
Designed for mission-critical environments, UC3400 is a high-availability SAN solution supporting Fibre Channel (FC) and iSCSI protocols. With over 180,000 4K random write IOPS, it supports a wide range of demanding workloads.
Virtualization-ready
Full certification for VMware, vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments
Support for Windows Offloaded Data Transfer (ODX), VMware vSphere Storage APIs Array Integration (VAAI), and ALUA ensure optimized and efficient storage operations
OpenStack® Cinder support enables UC3400 to become a block-based storage component
Flexible network options

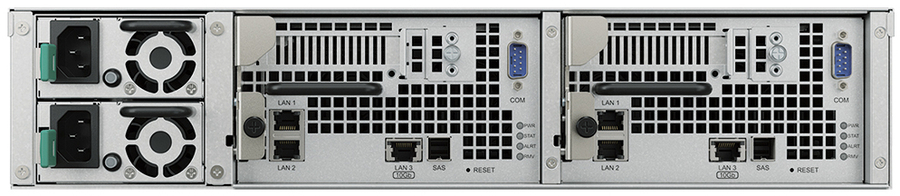

Boost network from 10GbE and dual 1GbE RJ-45 ports to 10/25 Gb Ethernet cards or 16 Gb Fibre channel host bus adapters on each controller.
Built-in data protection and security
Maximize service uptime for critical services and enhance data security with snapshot protection and self-encrypting drive support in UC3400.
Storage expansion
Simple capacity expansion of up to 576 TB of raw storage is available with two Synology RXD1219sas Expansion Units.
Performance backed by Synology drives
Leverage high sustained performance and reliability with enterprise-grade drives with built-in protection designed for Synology systems. |
|
Storage |
|
Storage drives installed |
No |
|
Number of storage drives supported |
12 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
Storage drive interface |
Serial Attached SCSI (SAS) |
|
RAID support |
Yes |
|
Storage drive sizes supported |
2.5,3.5" |
|
RAID levels |
0, 1, 5, 10, JBOD |
|
Hot-swap drive bays |
Yes |
|
Supported file systems |
BTRFS, ext4 |
|
Processor |
|
Processor family |
Intel® Xeon® D |
|
Processor manufacturer |
Intel |
|
Processor model |
D-1541 |
|
Processor frequency |
2.1 GHz |
|
Processor boost frequency |
2.7 GHz |
|
Processor cores |
8 |
|
Processor cache |
12 MB |
|
CPU configuration (max) |
1 |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
64 GB |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000,10000 Mbit/s |
|
Supported network protocols |
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
|
Link aggregation |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
3 |
|
USB port |
No |
|
Design |
|
Chassis type |
Rack (2U) |
|
Cooling type |
Active |
|
Number of fans |
2 fan(s) |
|
Fan diameter |
6 cm |
|
Performance |
|
Type |
NAS |
|
Backup function |
Yes |
|
Snapshot |
Yes |
|
Access Control List (ACL) |
Yes |
|
Reset button |
Yes |
|
Power |
|
Power supply unit (PSU) capacity |
500 W |
|
Number of power supply units |
2 |
|
Redundant power supply (RPS) support |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Weight & dimensions |
|
Width |
482 mm |
|
Depth |
724 mm |
|
Height |
88 mm |
|
Weight |
19.7 kg |
|
Processor special features |
|
Intel Secure Key Technology version |
1.00 |
|
Intel TSX-NI version |
1.00 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
