General Information |
|
Summary |

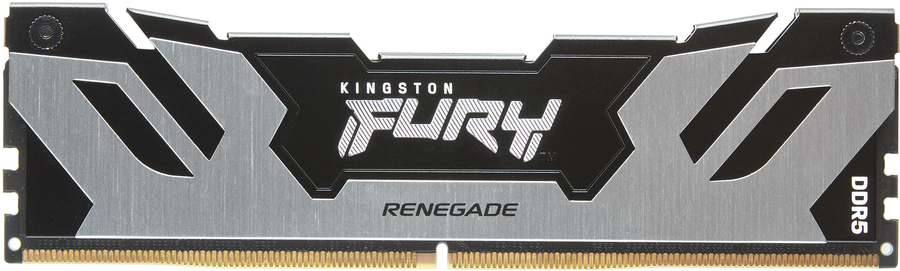

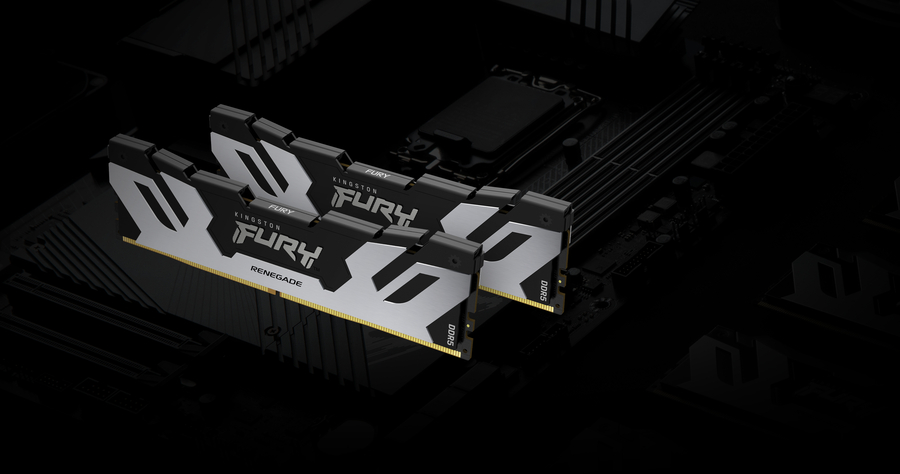

Push the limits like never before with Kingston FURY™ Renegade DDR5 memory, designed for extreme performance on next-gen DDR5 platforms. Enhance your system with UDIMM or CUDIMM module types for the boost it needs to stay on top with ultra-fast memory up to 8000MT/s with UDIMMs and at 8400MT/s* with CUDIMMs. Kingston FURY Renegade DDR5 features sleek, newly designed aluminum heat spreaders in either black & silver or white & silver to complement the look of the latest PC builds by system builders and DIY PC enthusiasts. Available in single module capacities up to 48GB and Dual Channel kits of 2 with capacities up to 96GB.
Engineered to maximise performance
With UDIMM speeds up to 8000MT/s and CUDIMM speed of 8400MT/s, Kingston FURY Renegade DDR5 features enhanced overclocking performance with improved stability at higher speeds for AI PC workloads and other rigorous computing demands.
Tap into extreme overclocking potential
DDR5 ushers in a whole new era of memory technology to make extreme overclocking a more stable option than previous generations. On-die ECC delivers more reliable DRAM components, an on-board PMIC balances power when and where it’s needed, and two independent 32-bit subchannels provide dramatic increases in data efficiency for multi-core processors.

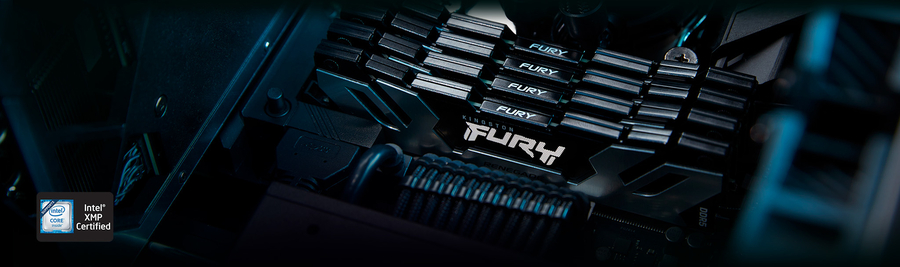

Intel® XMP 3.0 certified
Intel Extreme Memory Profile technology makes overclocking a breeze with advanced pre-optimised factory timings, speeds and voltages for overclocking performance. Kingston FURY Renegade DDR5 features a programmable PMIC for XMP 3.0, supporting up to two customisable profiles to optimise your own unique timings, speeds and voltages saved directly to the DIMM.
Qualified by the world’s leading motherboard manufacturers**

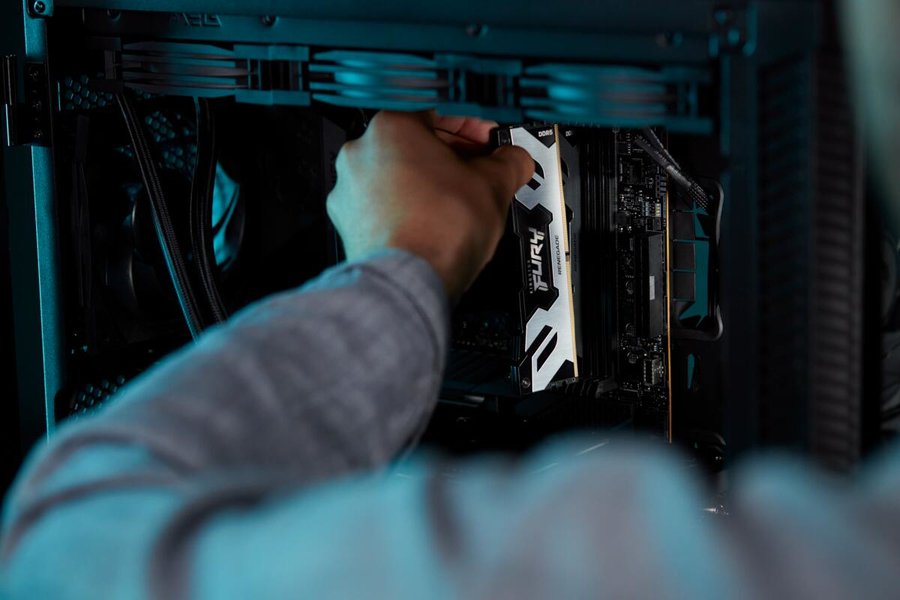

Tested and trusted for your preferred motherboard so you can build with confidence.

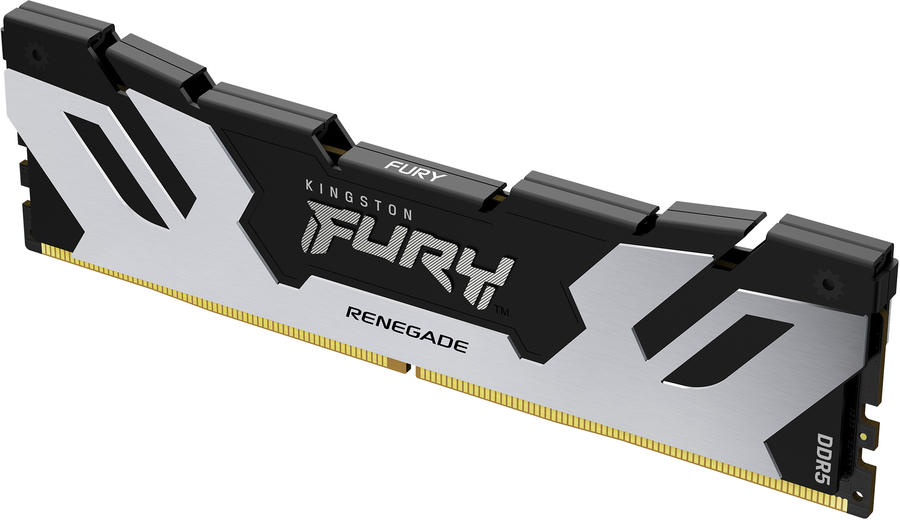

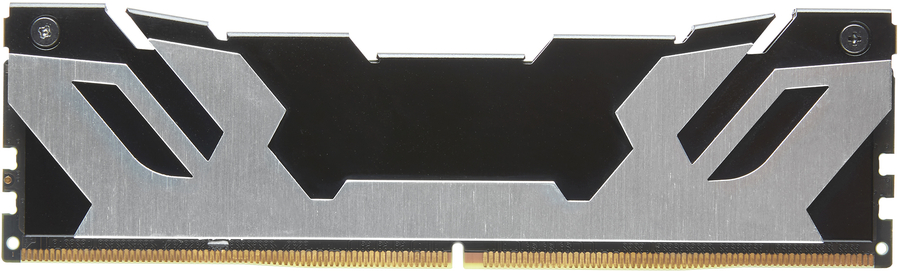

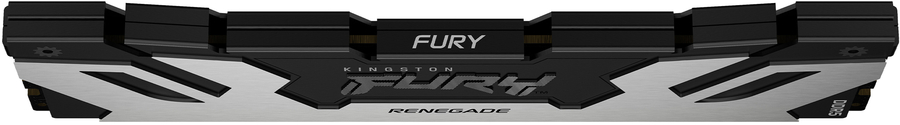

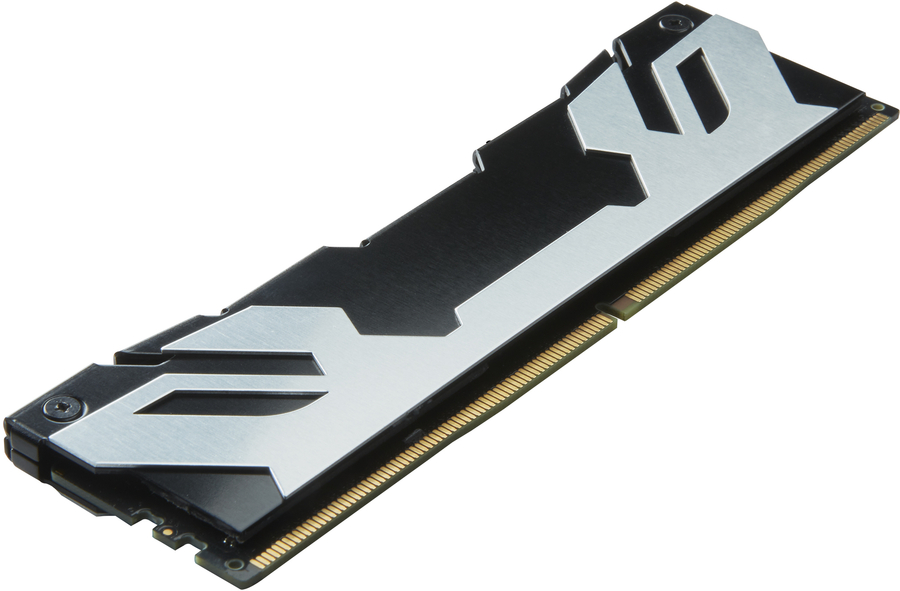

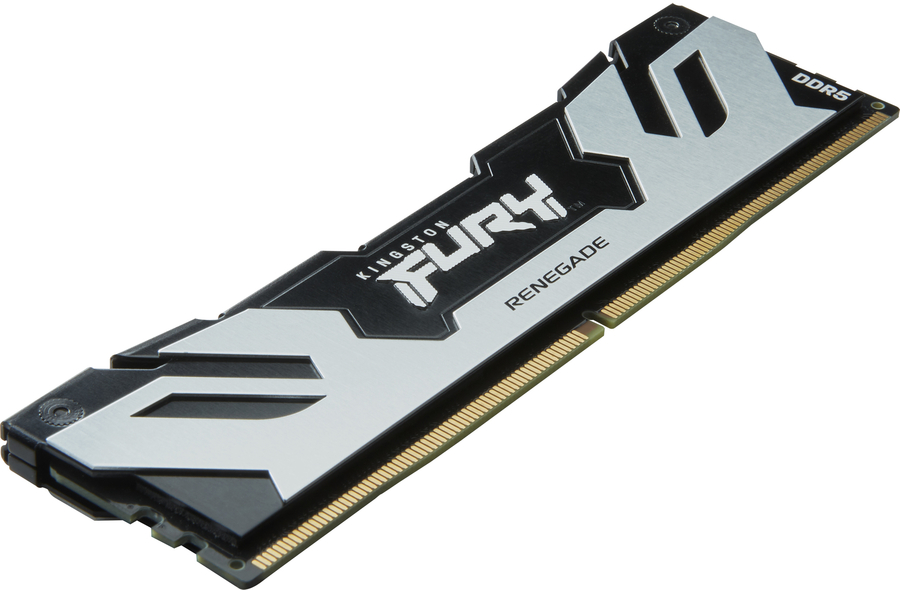

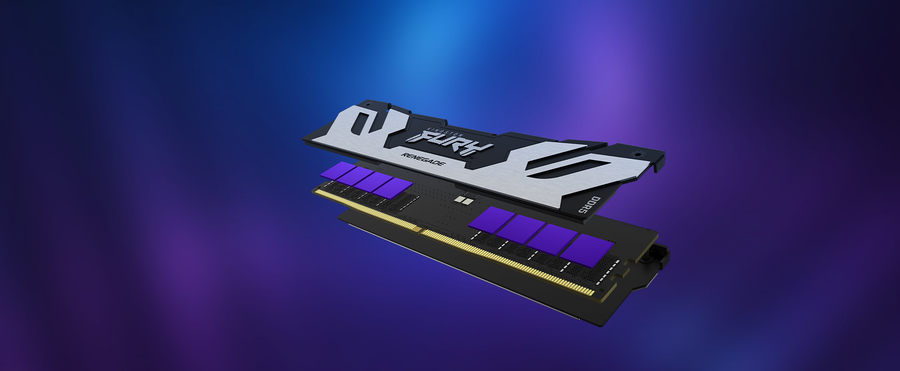

Aggressive aluminium heat spreader design

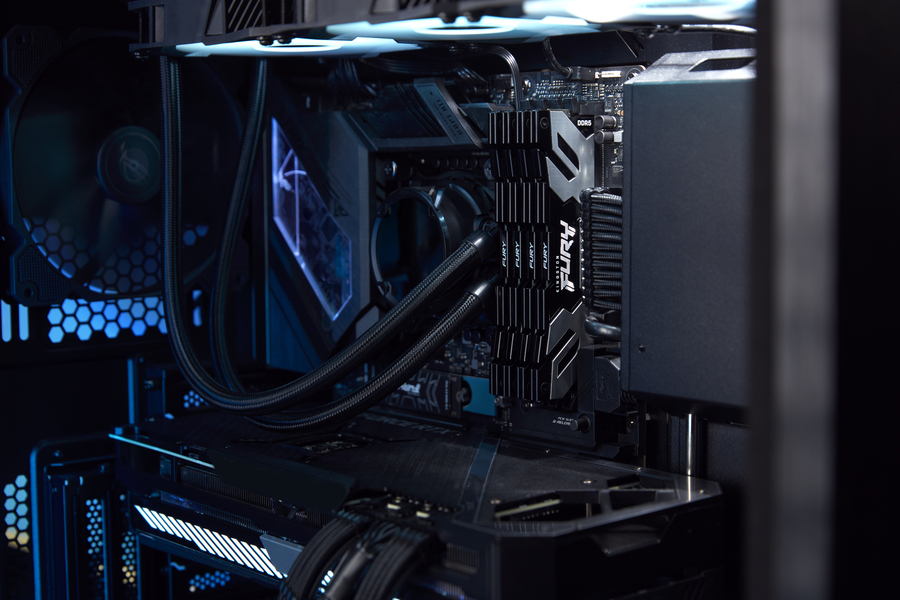

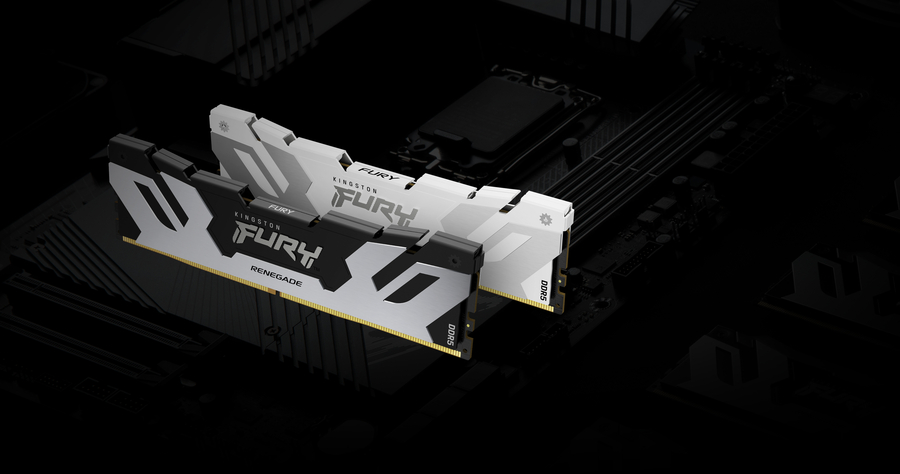

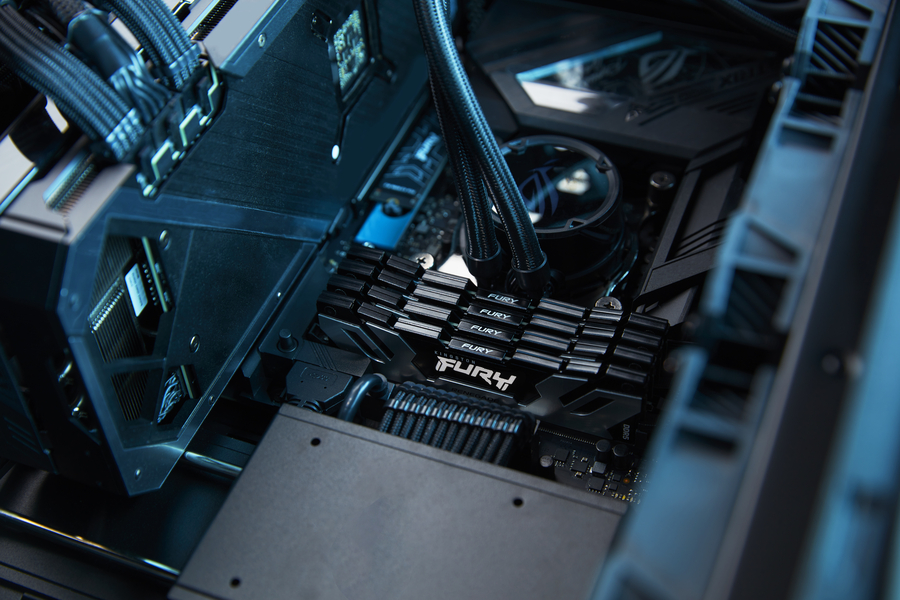

Newly designed black & silver and white & silver aluminium heat spreaders with black PCB keep your rig running – and looking – cool to complement the look of your latest PC build. |
|
Features |
|
Internal memory |
16 GB |
|
Memory layout (modules x size) |
1 x 16 GB |
|
Internal memory type |
DDR5 |
|
Component for |
PC |
|
Memory form factor |
288-pin DIMM |
|
ECC |
No |
|
Buffered memory type |
Unregistered (unbuffered) |
|
On-Die ECC |
Yes |
|
CAS latency |
38 |
|
Memory data transfer rate |
7600 MT/s |
|
Memory ranking |
1 |
|
Memory voltage |
1.45 V |
|
Module configuration |
2048M x 64 |
|
Row cycle time |
48 ns |
|
Refresh row cycle time |
295 ns |
|
Row active time |
32 ns |
|
Intel Extreme Memory Profile (XMP) |
Yes |
|
Intel Extreme Memory Profile (XMP) version |
3.0 |
|
SPD profile |
Yes |
|
Programming power voltage (VPP) |
1.8 V |
|
Country of origin |
China, Taiwan |
|
Cooling type |
Heatsink |
|
Lead plating |
Gold |
|
Backlight |
No |
|
JEDEC standard |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 85 °C |
|
Storage temperature (T-T) |
-55 - 100 °C |
|
Weight & dimensions |
|
Width |
7.66 mm |
|
Depth |
133.3 mm |
|
Height |
39.2 mm |
|
Weight |
45.2 g |
|
Packaging data |
|
Package width |
129.5 mm |
|
Package depth |
16 mm |
|
Package height |
171.4 mm |
|
Package weight |
100.13 g |
|
Logistics data |
|
Master (outer) case width |
181.6 mm |
|
Master (outer) case length |
254 mm |
|
Master (outer) case height |
147.3 mm |
|
Master (outer) case gross weight |
1.69 kg |
|
Products per master (outer) case |
15 pc(s) |
