StarTech 6-Foot 8K 60Hz, 4K 144Hz, HDR10, USB Type-C to HDMI 2.1 Video Converter Cable
|
|
Price: $58.00
Manufacturer:
StarTech

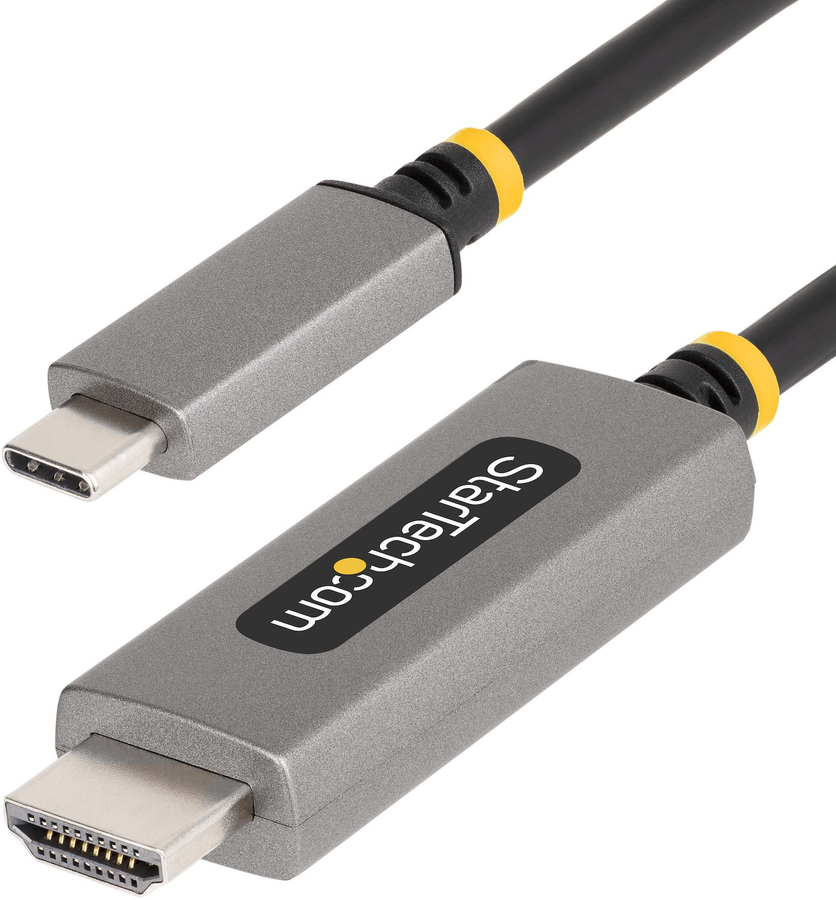

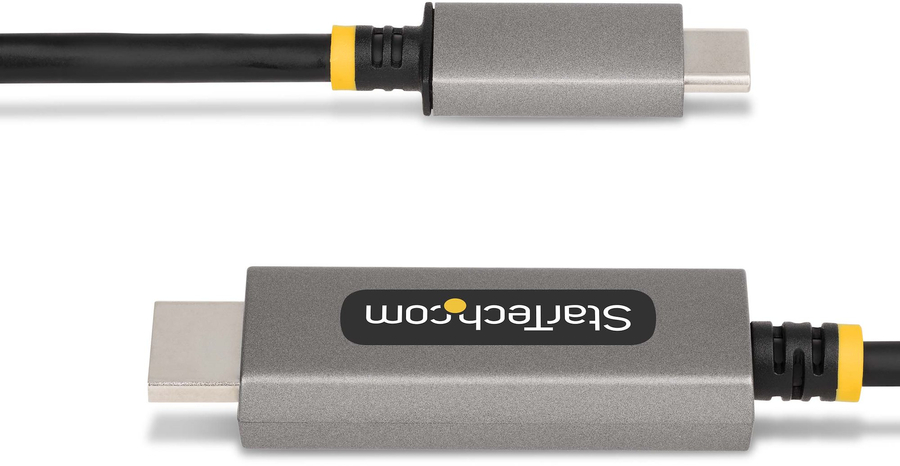

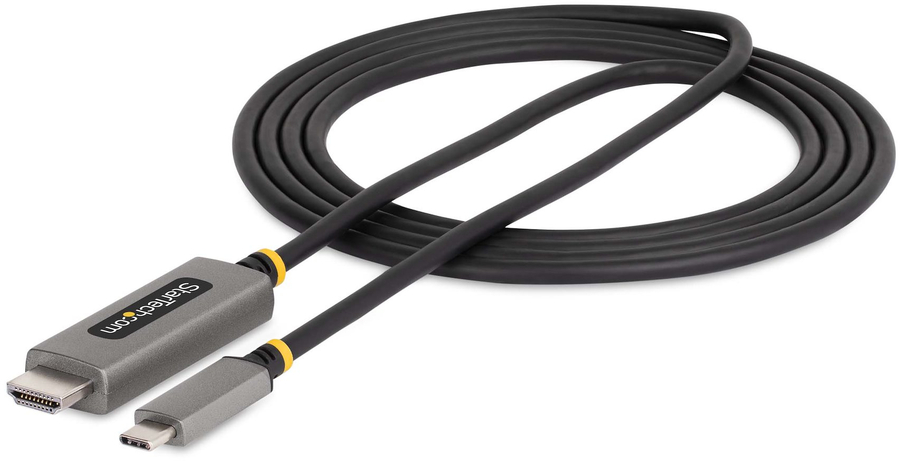

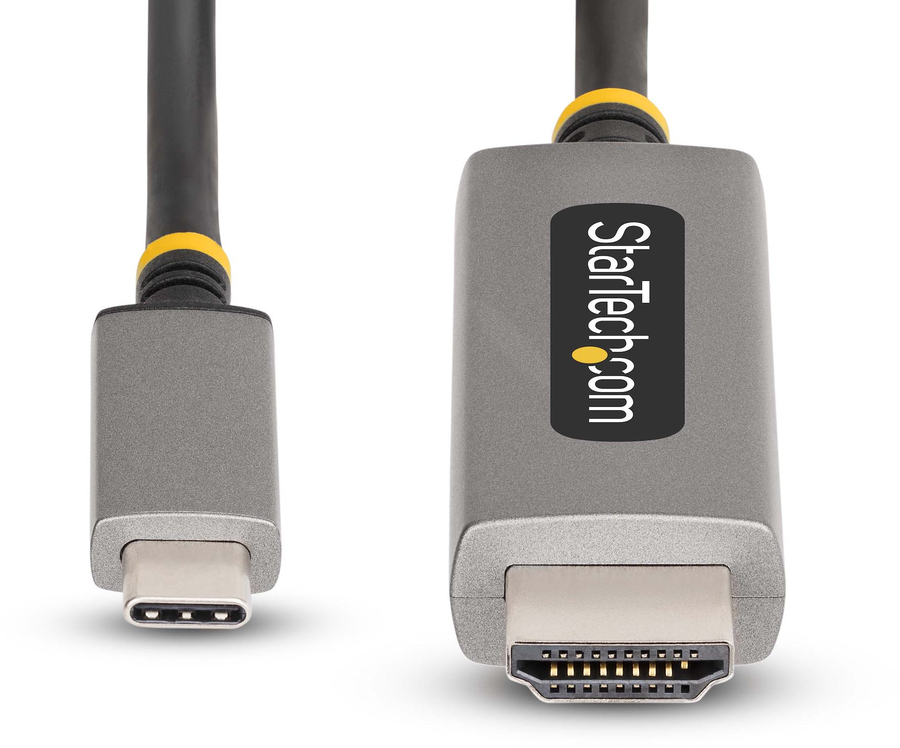

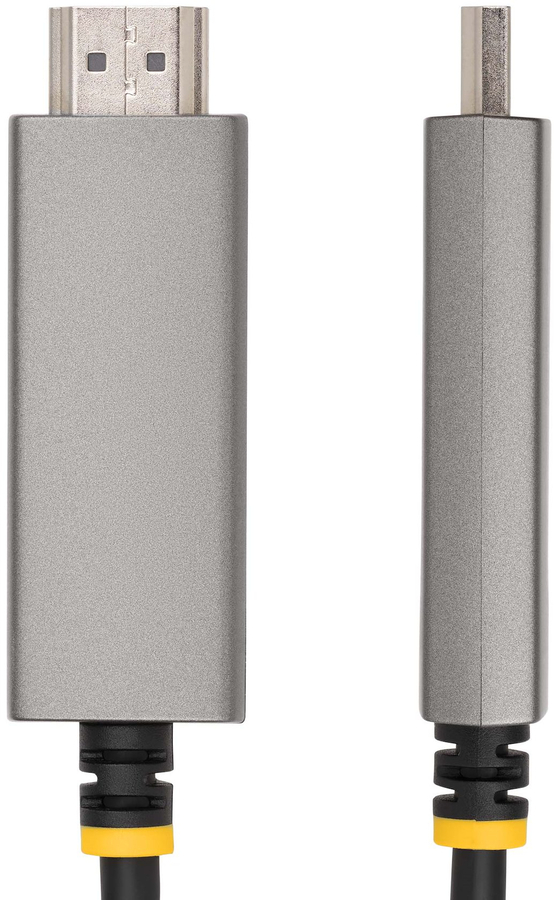

StarTech.com 6ft (2m) USB-C to HDMI Adapter Cable, 8K 60Hz, 4K 144Hz, HDR10, USB Type-C to HDMI 2.1 Video Converter Cable, USB-C DP Alt Mode/USB4/Thunderbolt 3/4 Compatible (135B-USBC-HDMI212M)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59480239
|
135B-USBC-HDMI212M
|
65030897419 |
Active
|
Details
|
General Information |
|
Summary |
Connect a DP Alt Mode enabled USB-C source to an HDMI monitor, located up to 6.6ft (2m) away, with support for HDR video and resolutions up to 8K 60Hz

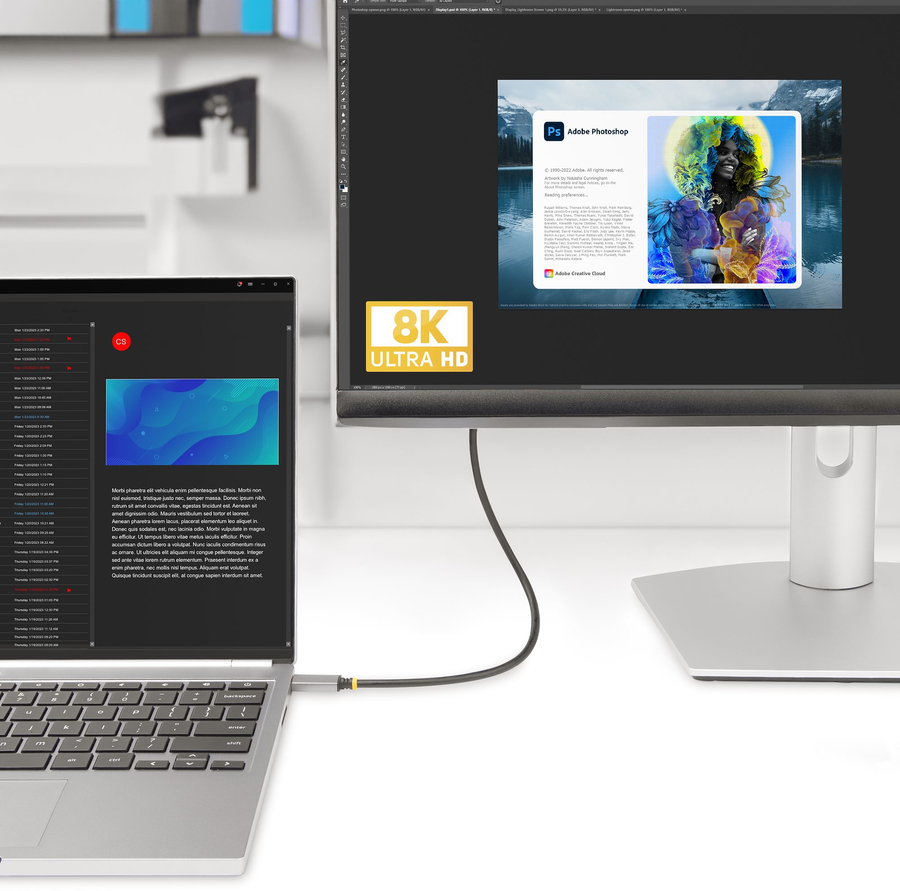

Connect an 8K 60Hz or a 4K 144Hz HDMI display to a DP Alt Mode-enabled USB Type-C source, at a distance of up to 6.6ft (2m), using this USB-C to HDMI Adapter Cable.
High-Resolution HDR Video
This USB-C to HDMI Cable enables resolutions of up to 8K 60Hz and is HDMI 2.1 FRL complaint. It supports HDR10, HDCP 1.x/2.2/2.3, and DSC 1.1/1.2a. The adapter cable supports 7.1 channel audio with Dolby Atmos and DTS:X.
Hardware Platform
Single Monitor
DisplayPort Alt Mode
Intel 11 th Gen & Later Processors
8K 60Hz or 4K 144Hz*
DisplayPort 1.4
Nvidia RTX3000 and AMD RX6000 or later
8K 60Hz or 4K 144Hz
DisplayPort 1.4
Intel 10th Gen & Earlier
4K 60Hz
DisplayPort 1.4
Apple M1/M2/M3 + Pro & Max
4K 60Hz**
DisplayPort 1.4
*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or later
**Apple MacBook's with M1/M2 silicon can only support up to 4K 60Hz through HDMI
Universal Compatibility
The USB-C to HDMI Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to HDMI Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Note: Apple M1/M2/M3 devices, including MacBook Pro, can only support up to 4K 60Hz over USB-C DP Alt Mode and cannot achieve 8K 60Hz.
Thoughtfully Designed
Combining a video adapter and cable minimizes potential points of failure and signal loss. Adaptive receiver equalization optimizes the input signal and amplifies the output signal to ensure compatibility with high-resolution monitors. The cable is equipped with cage shielding to prevent Electromagnetic Interference (EMI).
The StarTech.com Advantage
|
|
Features |
|
Cable length |
2 m |
|
Connector 1 |
USB Type-C |
|
Connector 2 |
HDMI Type A (Standard) |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
HDMI version |
2.1 |
|
HDCP |
Yes |
|
HDCP version |
1.4/2.2/2.3 |
|
USB Type-C DisplayPort Alternate Mode |
Yes |
|
High Dynamic Range (HDR) supported |
Yes |
|
Maximum resolution |
7680 x 4320 pixels |
|
Supported graphics resolutions |
3840 x 2160, 2560 x 1440, 5120 x 1440, 7680 x 4320, 1920 x 1080 (HD 1080) |
|
Maximum refresh rate |
144 Hz |
|
Refresh rate at maximum resolution |
60 Hz |
|
Product colour |
Grey |
|
Chipset |
VMM7100 |
|
Jacket material |
Polyvinyl chloride (PVC) |
|
Cable type |
Round cable |
|
Connector housing material |
Plastic |
|
Supported audio channels |
7.1 |
|
Plug and Play |
Yes |
|
Converter type |
Active video converter |
|
High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10) |
|
Dolby technologies |
DTS:X, Dolby Atmos |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
0 - 75 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Certificates |
|
Compliance certificates |
RoHS, CE |
|
Weight & dimensions |
|
Cable diameter |
4.8 mm |
|
Weight |
87 g |
|
Packaging data |
|
Package width |
200 mm |
|
Package depth |
220 mm |
|
Package height |
12 mm |
|
Package weight |
98.7 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Master (outer) case width |
415 mm |
|
Master (outer) case length |
435 mm |
|
Master (outer) case height |
420 mm |
|
Products per master (outer) case |
120 pc(s) |
|
Sustainability |
|
Sustainability compliance |
Yes |
|
