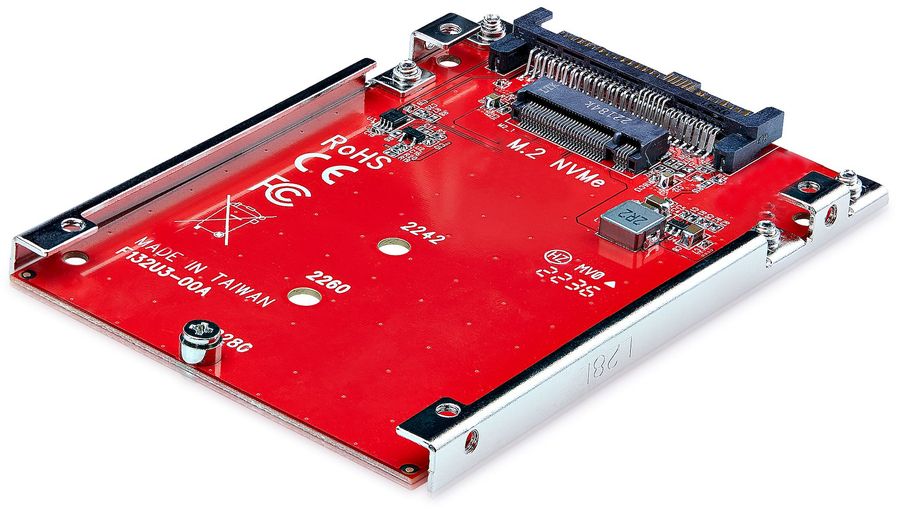

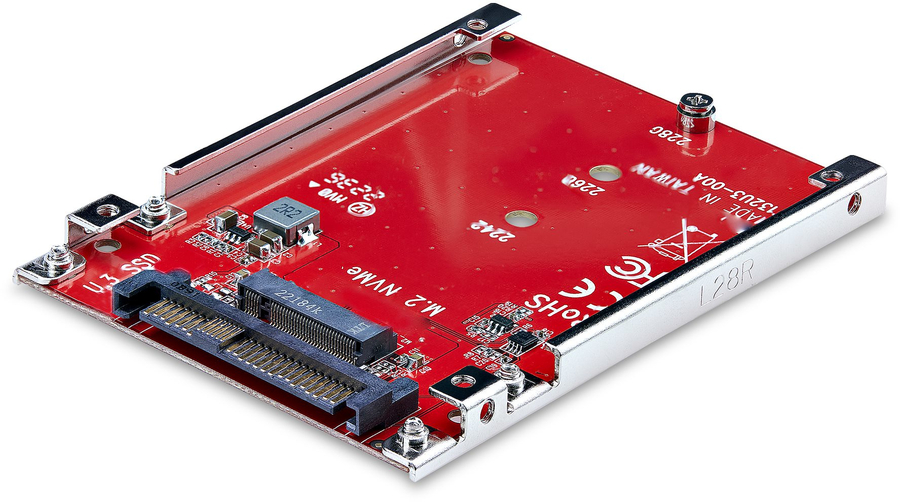

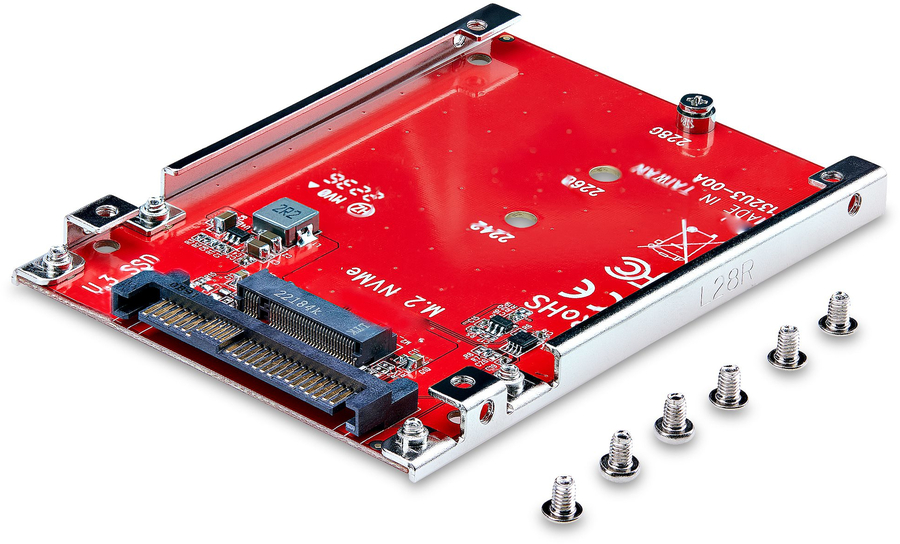

Connect an M.2 NVMe drive to a 2.5-inch U.3 (SFF-TA-1001) drive bay

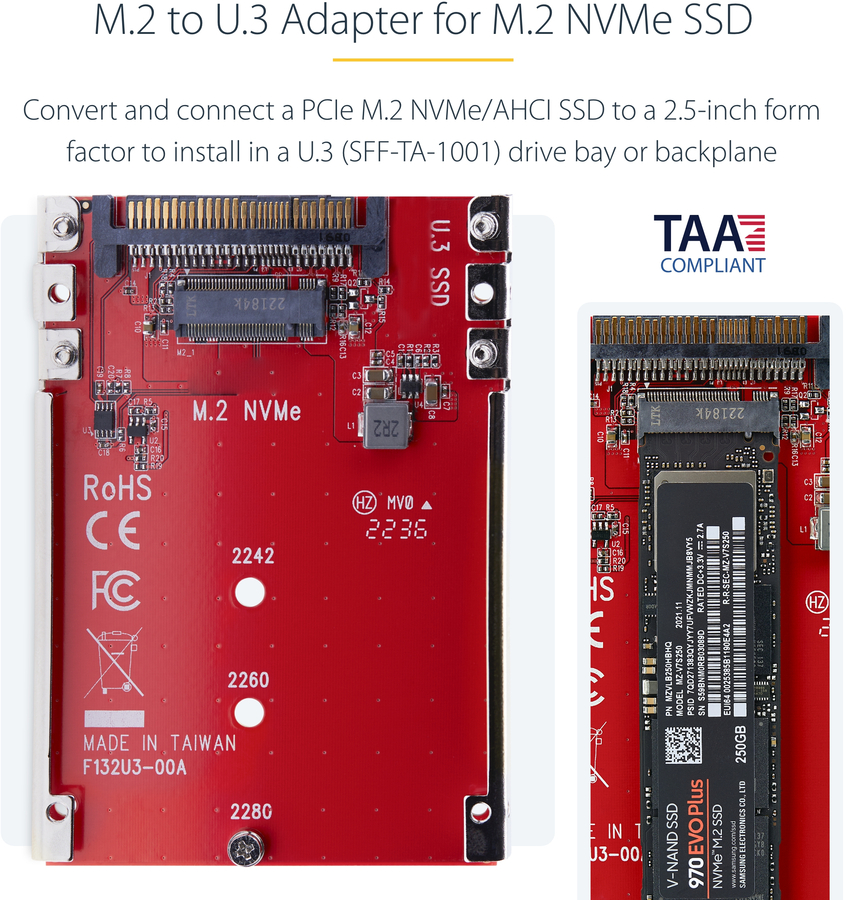

Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane.
Adapt While Retaining Performance

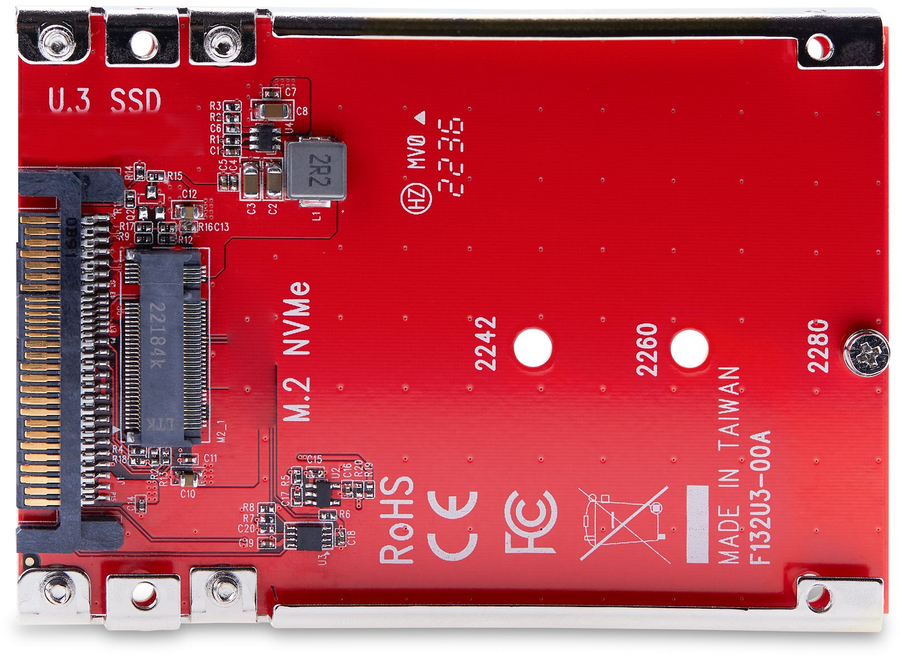

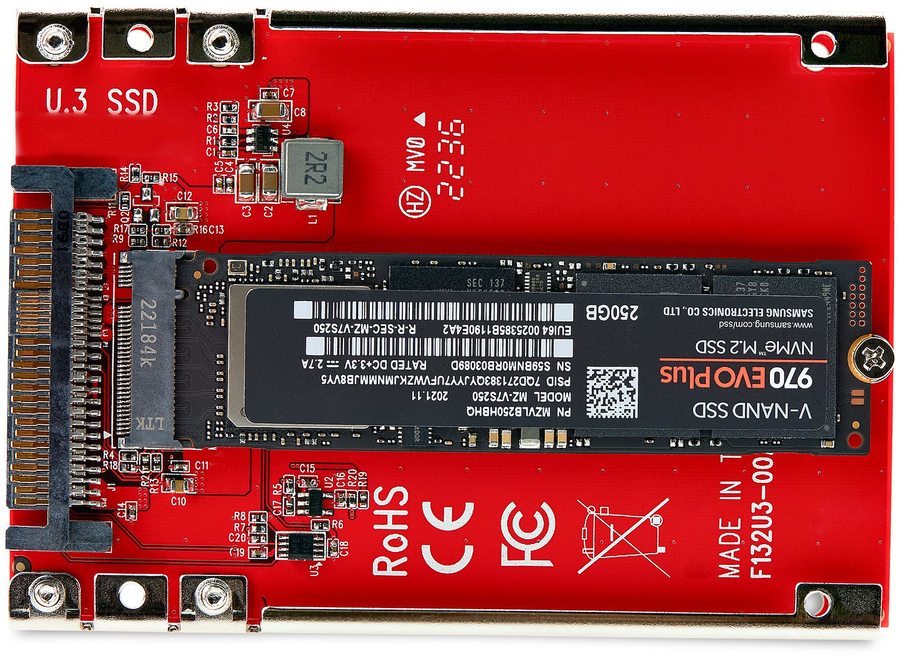

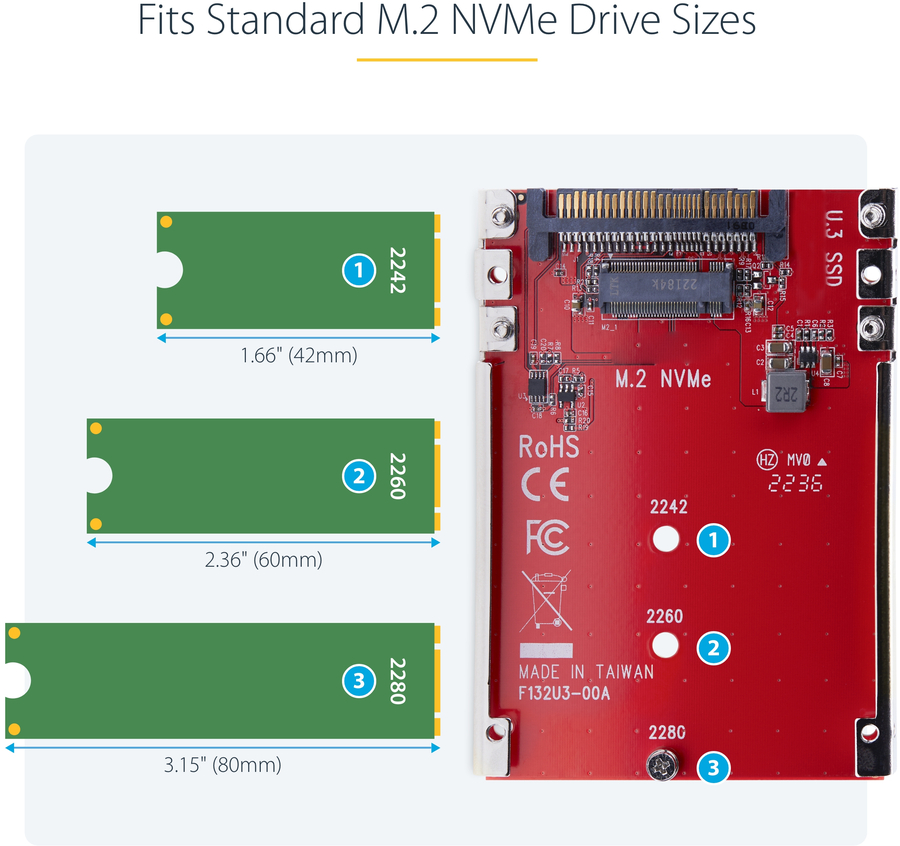

Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor.
Hassle-Free Setup

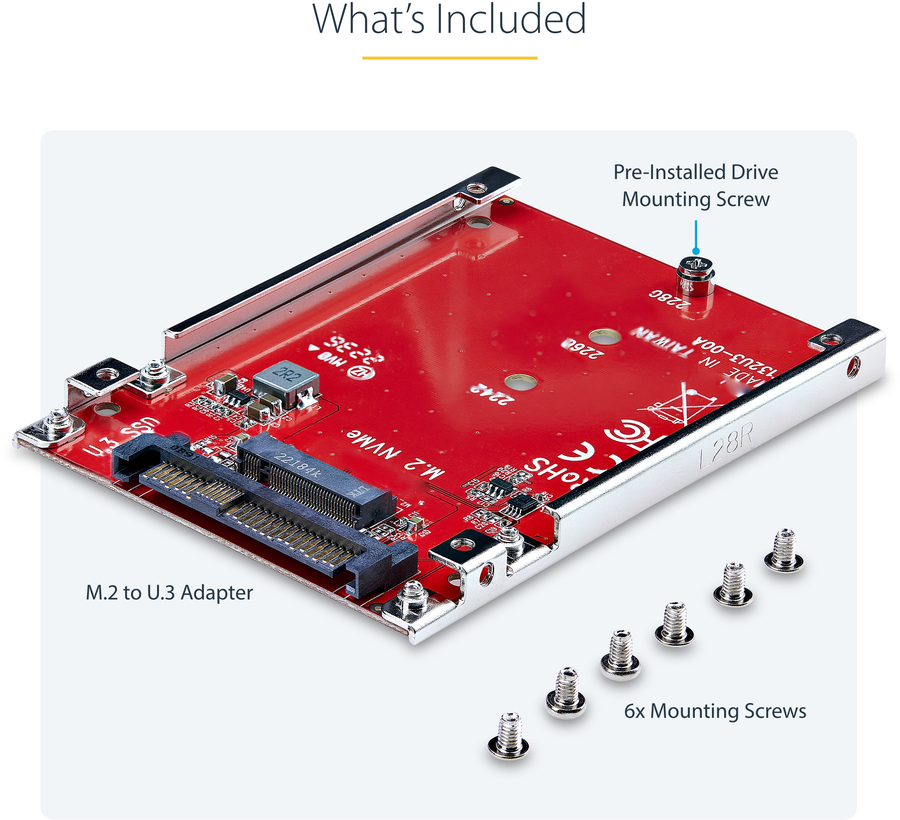

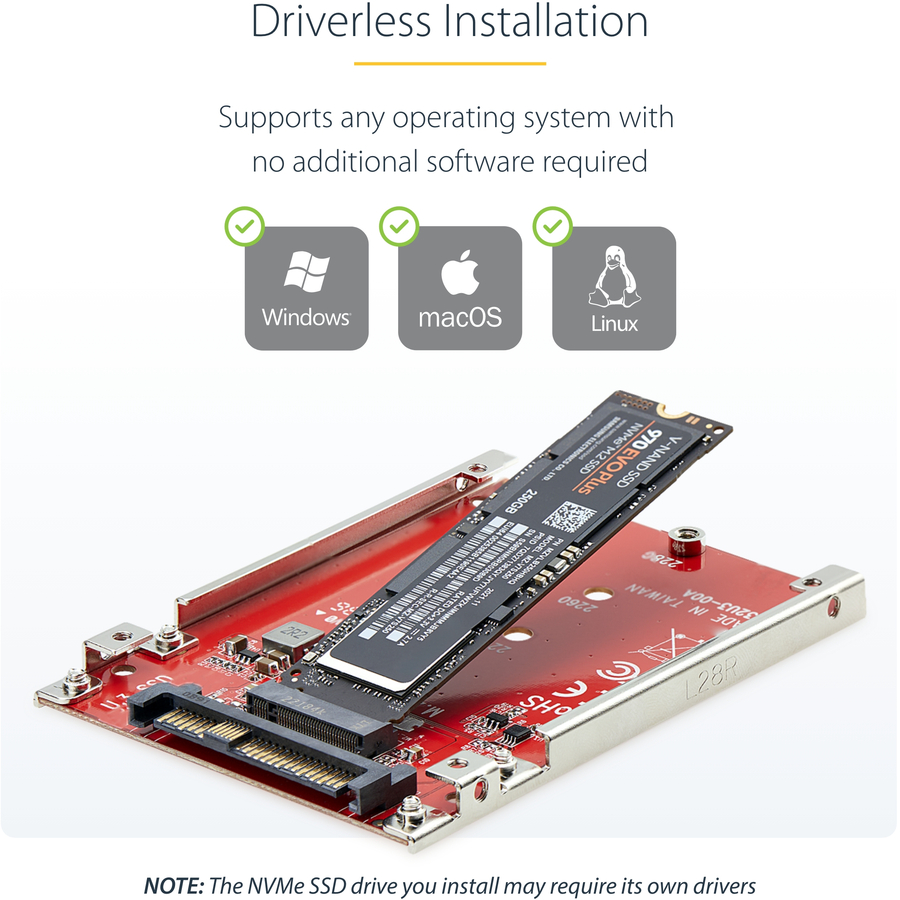

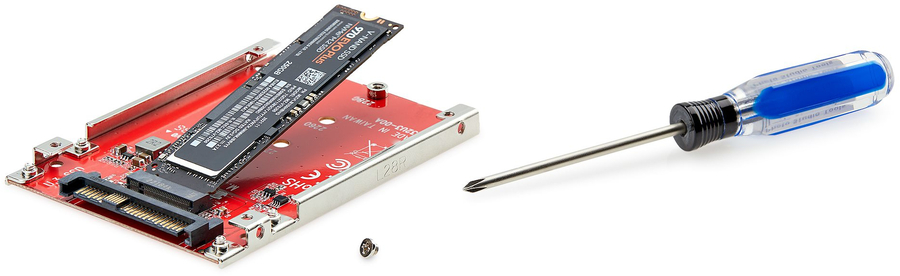

The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware.
Compatibility

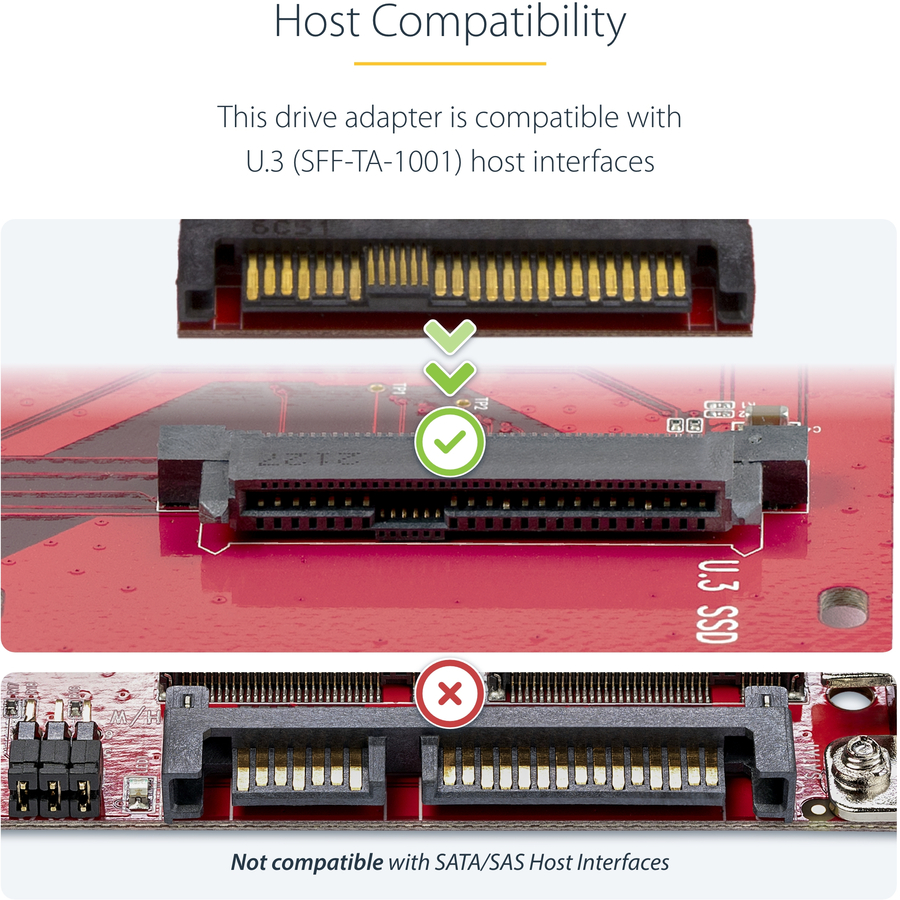

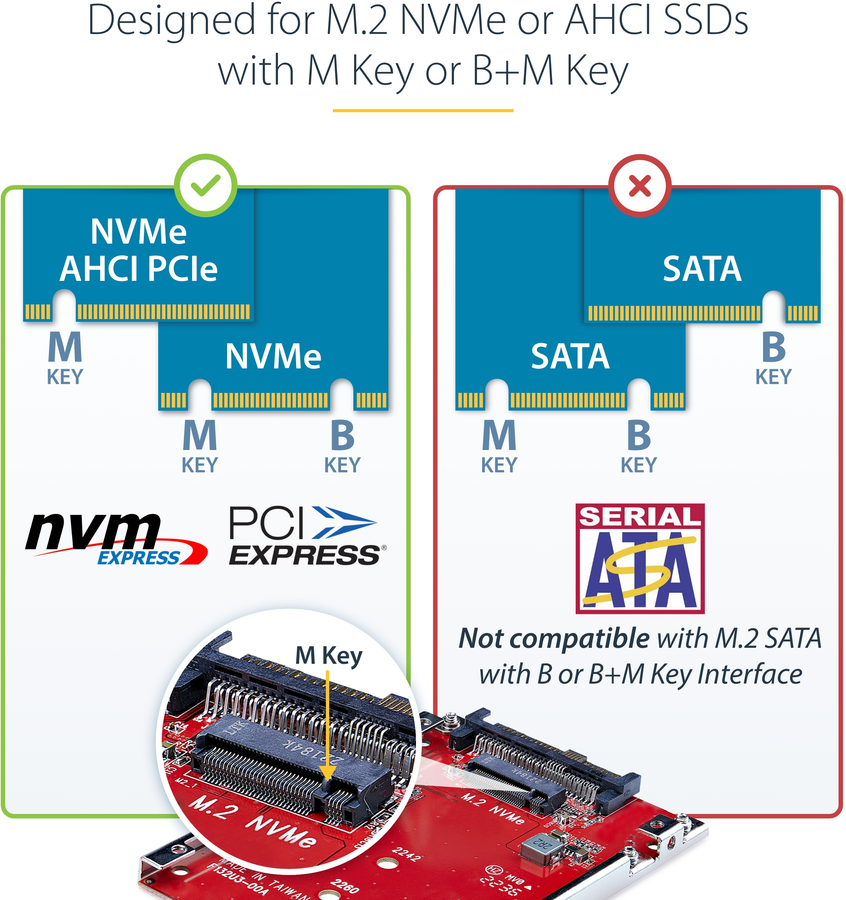

The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces.
The StarTech.com Advantage
|
|
Ports & interfaces |
|
Host interface |
U.3 |
|
Output interface |
M.2 |
|
Design |
|
Internal |
Yes |
|
Product colour |
Red |
|
Purpose |
PC |
|
Mean time between failures (MTBF) |
12368734 h |
|
Features |
|
S.M.A.R.T. support |
Yes |
|
Plug and Play |
Yes |
|
Power |
|
Output voltage |
3.3 V |
|
Output current |
5 A |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
15 - 90% |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Mac operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Technical details |
|
Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
|
Sustainability compliance |
Yes |
|

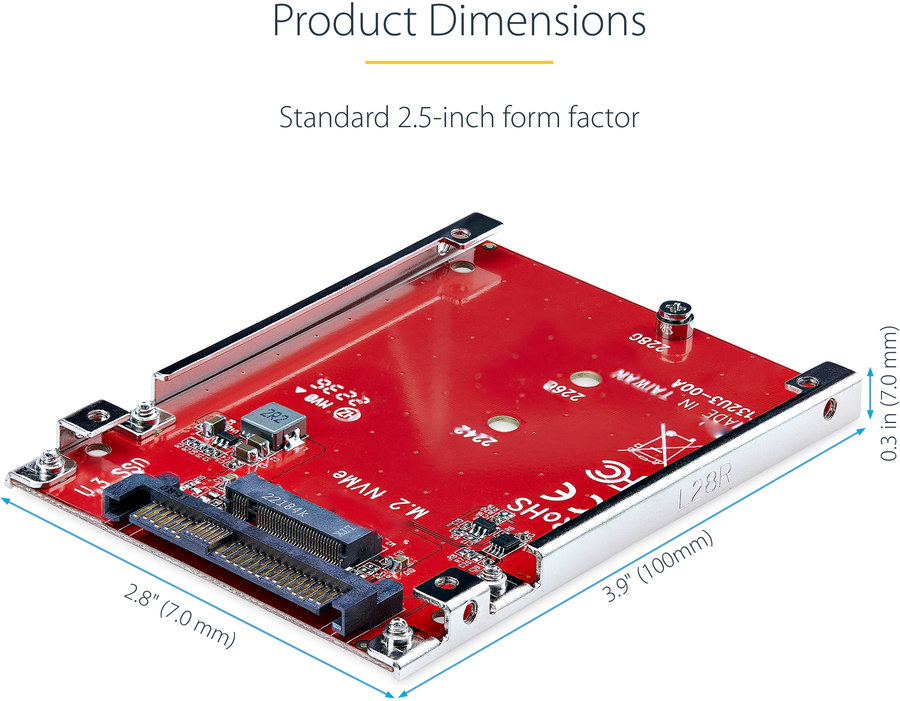

Weight & dimensions |
|
Width |
70 mm |
|
Depth |
100 mm |
|
Height |
7 mm |
|
Weight |
37 g |
|
Packaging data |
|
Quick installation guide |
Yes |
|
Package width |
142 mm |
|
Package depth |
175 mm |
|
Package height |
30 mm |
|
Package weight |
100 g |
|
Logistics data |
|
Products per master (outer) case |
60 pc(s) |
|
Master (outer) case width |
490 mm |
|
Master (outer) case length |
381 mm |
|
Master (outer) case height |
312 mm |
