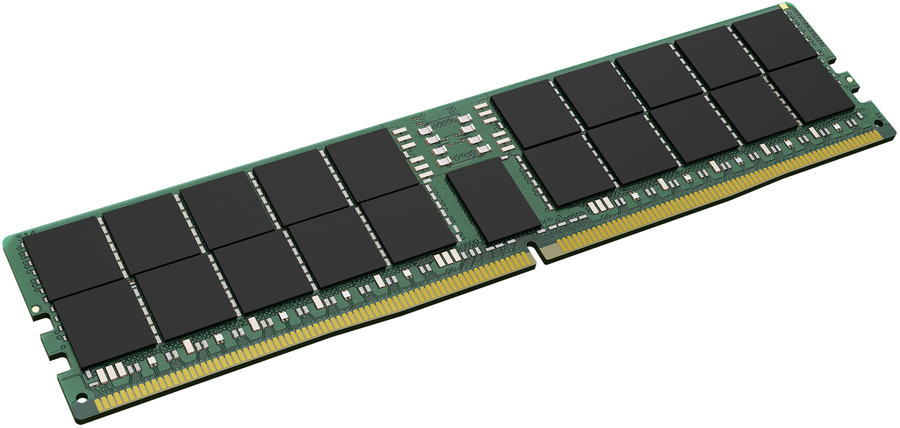

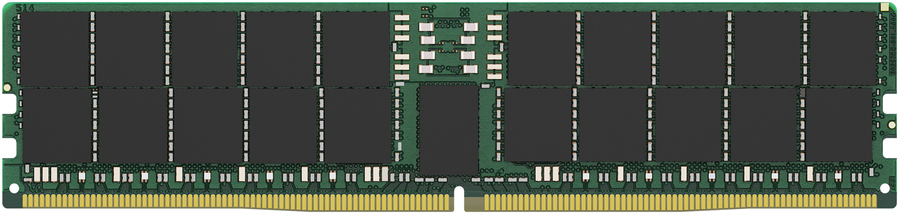

Kingston 96GB 5600 CL46 ECC 2Rx4 DDR5 Memory Module
|
|
Price: $749.00
Manufacturer:
Kingston
96GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin, 24Gbit, Micron B IDT/Renesas
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59498797
|
KSM56R46BD4PMI-96MBI
|
740617340266 |
Active
|
Details
|
General Information |
|
Summary |
Kingston's KSM56R46BD4PMI-96MBI is a 12G x 80-bit (96GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. |
|
Features |
|
Internal memory |
96 GB |
|
Memory layout (modules x size) |
1 x 96 GB |
|
Internal memory type |
DDR5 |
|
Memory data transfer rate |
5600 MT/s |
|
Component for |
PC/Server |
|
Memory form factor |
288-pin DIMM |
|
ECC |
Yes |
|
Buffered memory type |
Registered (buffered) |
|
On-Die ECC |
Yes |
|
CAS latency |
46 |
|
Memory ranking |
2 |
|
Memory voltage |
1.1 V |
|
Module configuration |
12288M x 80 |
|
Row cycle time |
48 ns |
|
Refresh row cycle time |
295 ns |
|
Row active time |
32 ns |
|
SPD profile |
Yes |
|
Programming power voltage (VPP) |
1.8 V |
|
Lead plating |
Gold |
|
Backlight |
No |
|
JEDEC standard |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 95 °C |
|
Storage temperature (T-T) |
-55 - 100 °C |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Sustainability |
|
Doesn't contain |
Halogen |
|
Sustainability compliance |
Yes |
|
Weight & dimensions |
|
Width |
133.3 mm |
|
Height |
31.2 mm |
|
