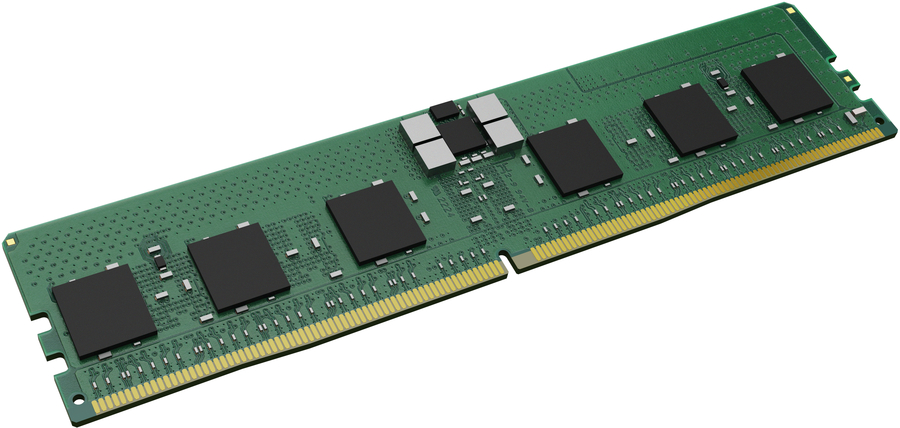

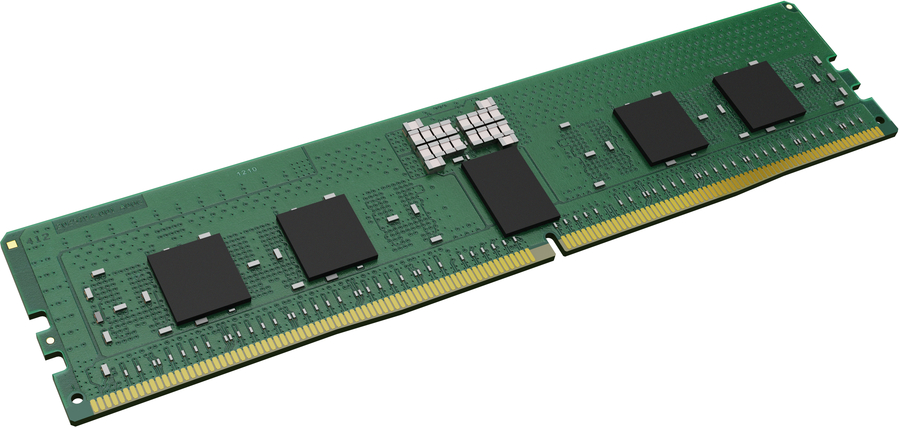

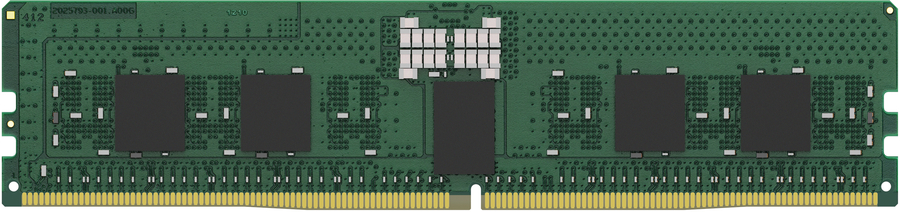

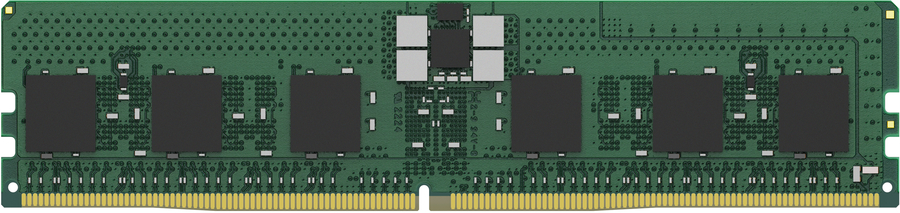

Kingston 16GB 5600 CL46 ECC 1Rx8 DDR5 Memory Module
|
|
Price: $174.00
Manufacturer:
Kingston
16GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 1RX8, 1.1V, 288-pin, 16Gbit
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59498802
|
KSM56R46BS8PMI-16HAI
|
740617337228 |
Active
|
Details
|
Features |
|
Internal memory |
16 GB |
|
Memory layout (modules x size) |
1 x 16 GB |
|
Internal memory type |
DDR5 |
|
Memory data transfer rate |
5600 MT/s |
|
Component for |
PC/Server |
|
Memory form factor |
288-pin DIMM |
|
ECC |
Yes |
|
Buffered memory type |
Registered (buffered) |
|
On-Die ECC |
Yes |
|
CAS latency |
46 |
|
Memory ranking |
1 |
|
Memory voltage |
1.1 V |
|
Module configuration |
2048M x 80 |
|
Row cycle time |
48 ns |
|
Refresh row cycle time |
295 ns |
|
Row active time |
32 ns |
|
Row Precharge Time (TRP) |
16 |
|
SPD profile |
Yes |
|
Programming power voltage (VPP) |
1.8 V |
|
Cooling type |
Heatsink |
|
Lead plating |
Gold |
|
JEDEC standard |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 95 °C |
|
Storage temperature (T-T) |
-55 - 100 °C |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Sustainability |
|
Doesn't contain |
Halogen |
|
Sustainability compliance |
Yes |
|
Weight & dimensions |
|
Width |
133.3 mm |
|
Height |
31.2 mm |
|
