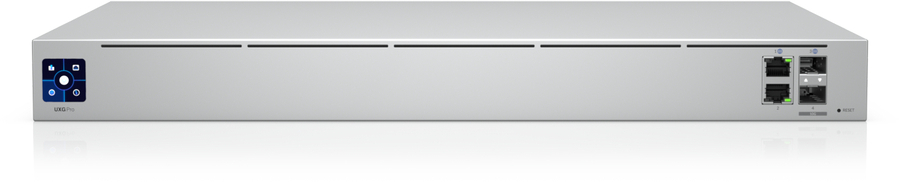

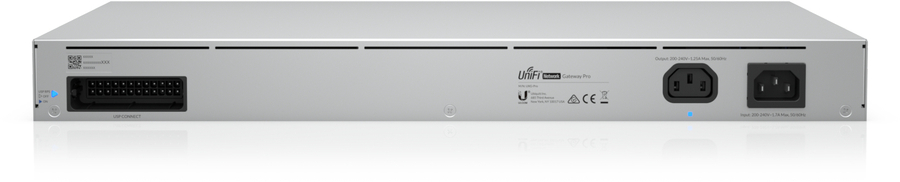

Ubiquiti UXG-Pro Next-Generation Gateway Pro
|
|
Price: $694.00
Manufacturer:
Ubiquiti
1.3" touchscreen, Ethernet, 2x LAN, 2x WAN, Quad-core ARM Cortex-A57 at 1.7 GHz, 2GB DDR4, 1U rack, AC/DC, internal, 50W
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59507046
|
UXG-PRO-US
|
810010074911 |
Active
|
Details
|
General Information |
|
Summary |
Next-generation Gateway Pro. Dual-WAN security gateway designed to protect medium to large-sized networks with enterprise-class firewall configuration and threat management features. The UniFi Next-generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks. The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications. It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration. The UXG Pro can be paired with a Cloud Key Gen2 Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile). |
|
Design |
|
Product colour |
Grey |
|
Rack capacity |
1U |
|
Enclosure material |
Aluminium |
|
Mounting type |
Rack mounting |
|
LED indicators |
Yes |
|
Performance |
|
Control display unit |
Yes |
|
Built-in processor |
Yes |
|
Processor manufacturer |
ARM |
|
Processor model |
Cortex-A57 |
|
Processor frequency |
1700 MHz |
|
Number of processors installed |
1 |
|
Internal memory |
2048 MB |
|
Network |
|
Ethernet LAN data rates |
1000 Mbit/s |
|
Ports & interfaces |
|
Interface |
Ethernet |
|
Ethernet LAN (RJ-45) ports |
2 |
|
WAN connection |
Ethernet (RJ-45), SFP |
|
Management features |
|
Reset button |
Yes |
|
Power |
|
Power consumption (max) |
30 W |
|
Input voltage |
125 V |
|
Input frequency |
60 Hz |
|
Input current |
2.7 A |
|
Power supply |
50 W |
|
DC input voltage |
11.5 V |
|
Weight & dimensions |
|
Width |
442.4 mm |
|
Depth |
285.6 mm |
|
Height |
43.7 mm |
|
Weight |
3.42 kg |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC) |
|
Display |
|
Touchscreen |
Yes |
|
Display diagonal |
3.3 cm (1.3") |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
Sustainability |
|
Sustainability compliance |
Yes |
|
