General Information |
|
Summary |
In an era of the ever-evolving security landscape, small- and medium-sized businesses (SMB) face large challenges when it comes to defending their networks, data and reputation. Keeping up with changes in technology can be as difficult as tracking the growing number of threats.

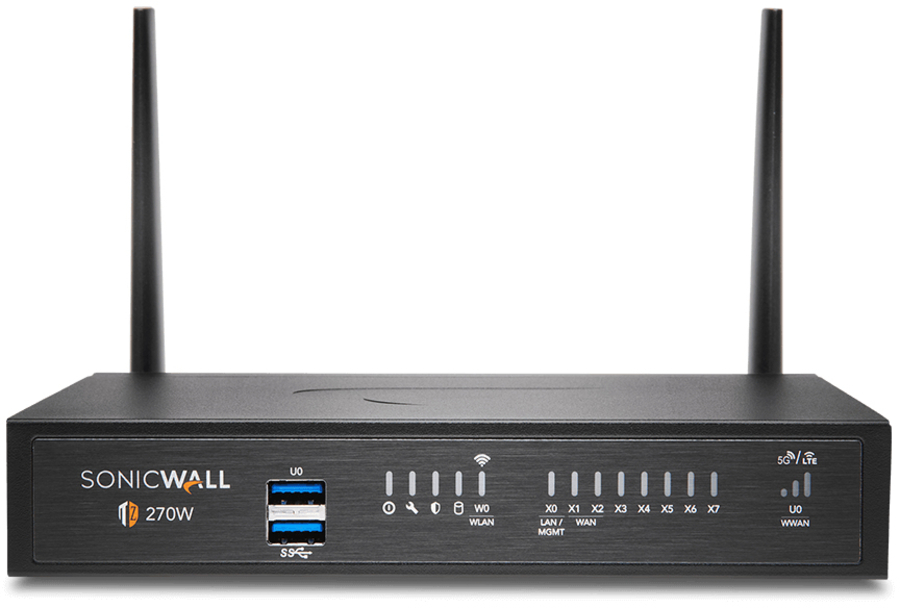

The SonicWall TZ series of firewalls is designed specifically for the needs of SMBs and branch locations, delivering enterprise-class security without the enterprise-grade complexity.
With Zero-Touch Deployment and simplified centralized management, installation and operation is easy. Detect sophisticated threats, including encrypted attacks, with advanced networking and security features, like the multi-engine Capture Advanced Threat Protection (ATP) cloud-based sandbox service with patent-pending Real-Time Deep Memory Inspection (RTDMI™). With optional features like PoE/PoE+ support and 802.11ac Wi-Fi, create a unified security solution for wired and wireless networks.
Simply plug in and enjoy the advanced protection of the cost-effective SonicWall TZ series firewall without worrying about complex management — or the next threat. |
|
Data transmission |
|
Firewall throughput |
2 Gbit/s |
|
VPN throughput |
0.75 Gbit/s |
|
IPS/IDS throughput |
1000 Mbit/s |
|
Maximum connections (DPI) |
150000 |
|
Maximum connections (SPI) |
750000 |
|
Maximum firewall connections per second |
6000 |
|
VoIP |
Yes |
|
Load balancing |
Yes |
|
Network |
|
VPN tunnels quantity |
50 |
|
Static route |
Yes |
|
DHCP server |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Security |
|
DDoS protection |
Yes |
|
Deep Packet Inspection (DPI) |
Yes |
|
Firewall security |
Y |
|
Stateful Packet Inspection (SPI) |
Yes |
|
Protocols |
|
Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS |
|
Management features |
|
LED indicators |
Yes |
|
URL filtering |
Yes |
|
Ports & interfaces |
|
Connectivity technology |
Wireless |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
8 |
|
Ethernet LAN data rates |
1000 Mbit/s |
|
Number of console ports |
1 |
|
Power |
|
AC input frequency |
50 - 60 Hz |
|
Input current |
3 A |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
35 mm |
|
Depth |
135 mm |
|
Height |
190 mm |
|
Other features |
|
Firewall throughput |
2000 Mbit/s |
|
VPN throughput |
750 Mbit/s |
