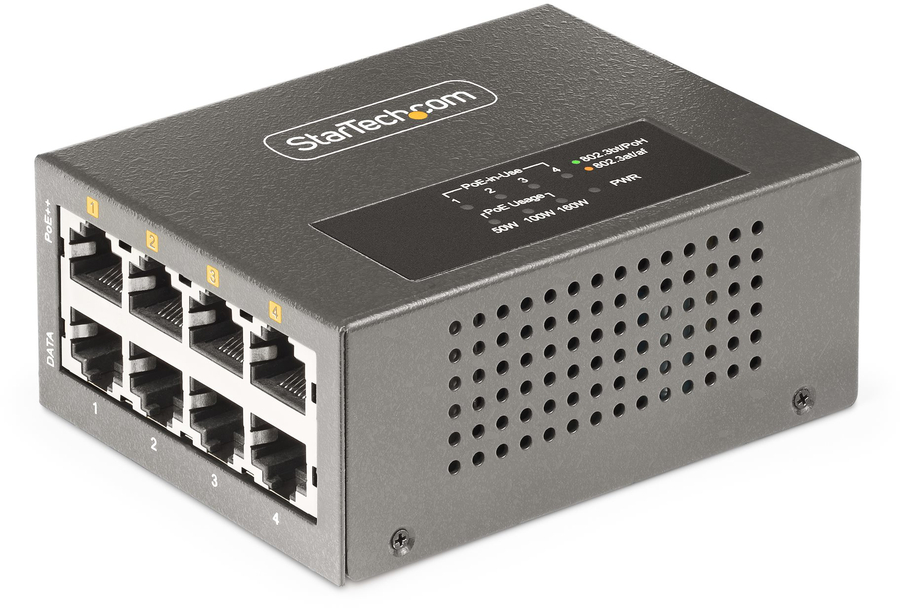

StarTech 4-port Multi-Gigabit Poe Injector

Home :: Networking ::

Regularly: ~~$587.00~~
On Sale: $563.52 Sale Ends: May 10th, 2024

Manufacturer: StarTech

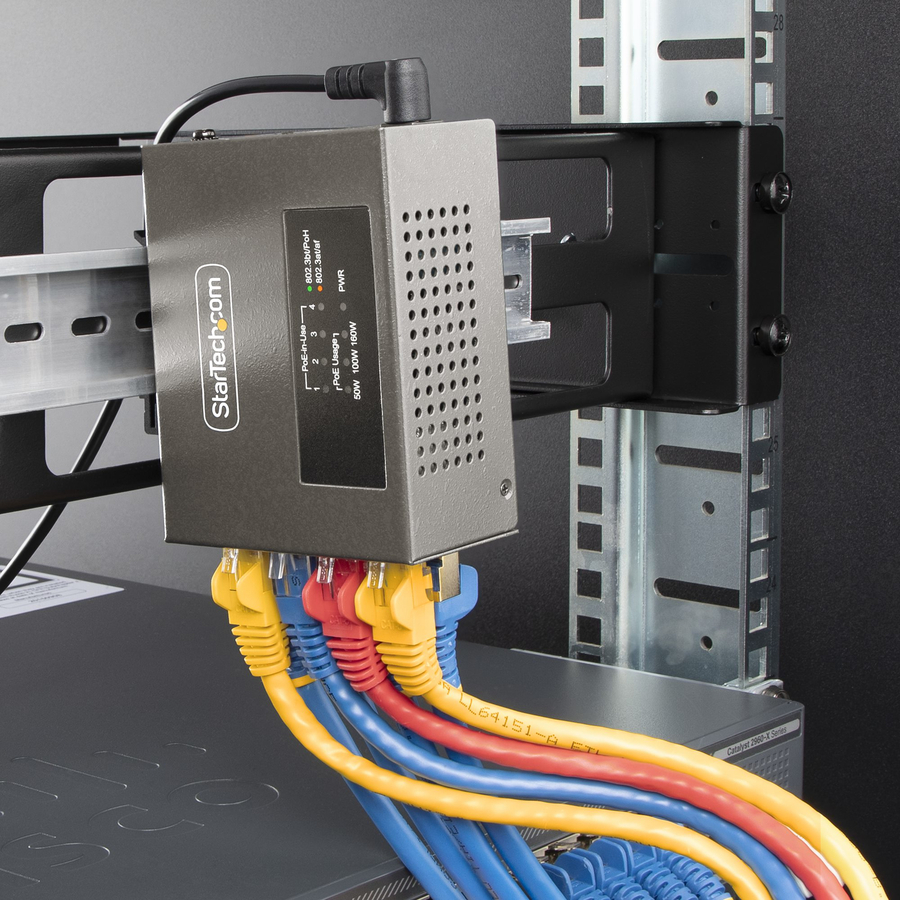

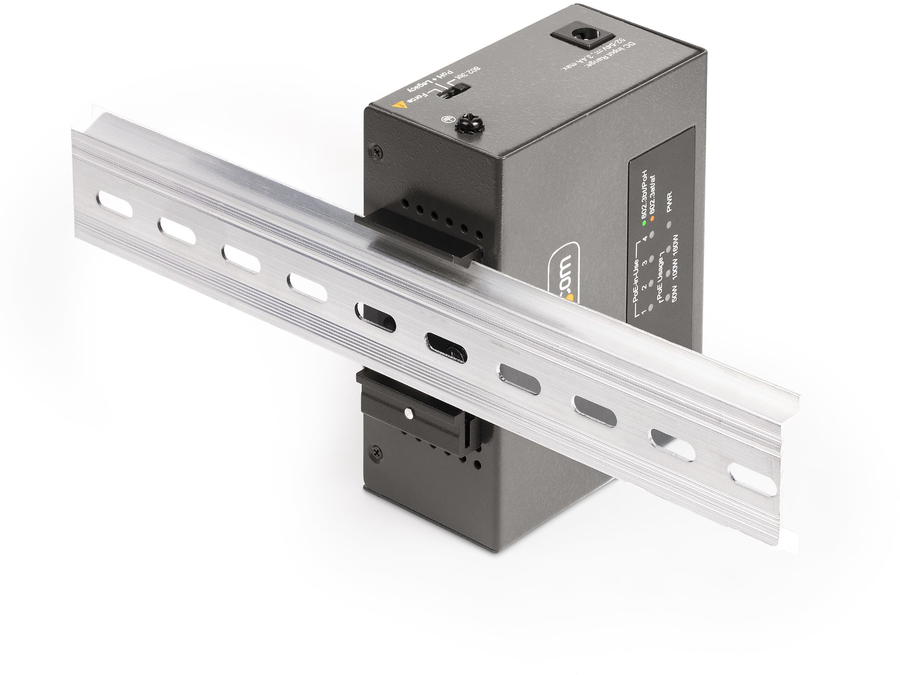

StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++, Wall/DIN Rail Mountable

Availability
Ottawa Store: Inquire Online Here National Warehouse (Shipping Availability): Usually Ships in 24-48 Hours

Product #	Manufacturer #	UPC #	Status
59523901	AS445C-POE-INJECTOR	65030900928	Active

Details

General Information
Summary	Supply power and data to up to four remote Powered Devices (PDs) with this PoE/PoE+/PoE++ injectorThis 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports. This mid/end-span injector is capable of transmitting network data and power up to 328ft (100m) for remote installations. The PoE, PoE+, PoE++ compatibility and selectable power output ensure seamless compatibility with Powered Devices (PD). The TAA-compliant injector includes a Universal Power Adapter for different regions (NA/JP, EU, UK, and ANZ).Versatile PoE InjectorMultiport PoE Injector supports the IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) standards for Power Sourcing Equipment (PSE), delivering up to 52V DC and 95Watts. This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks (POSs), wireless access points, PoE lighting, and digital signage.Experience streamlined cable management with all network cables routed from one side of the unit for a clean and organized setup.Flexible Power OptionsTailor the power output to the specific needs of the device using the Power Output Switch. The options include 90W, 95W PoH, or legacy 60W (for UPoE/UPoE+) for all the ports on the PoE Injector Adapter.The Level-4 ESD protection (15kV air and 8kV contact) enhances device safety and reduces EMI for stable operation, minimizing the risk of downtime and hardware failures.Increased Network SpeedsThe unmanaged PoE Injector with NBASE-T technology provides access to an increased bandwidth up to 5Gbps, significantly reducing network slowdowns during data-intensive applications such as streaming high-definition video feeds, high-speed Internet, access local network resources, online or local network backups, and FTP access.The StarTech.com Advantage
Network
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500,5000 Mbit/s
Power over Ethernet (PoE)	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Auto MDI/MDI-X	Yes
Cable types supported	Cat5e, Cat6, Cat6a
Chipset	Microsemi - PD69208T4, Microsemi - PD69200R
Features
Product colour	Grey
Housing material	Metal

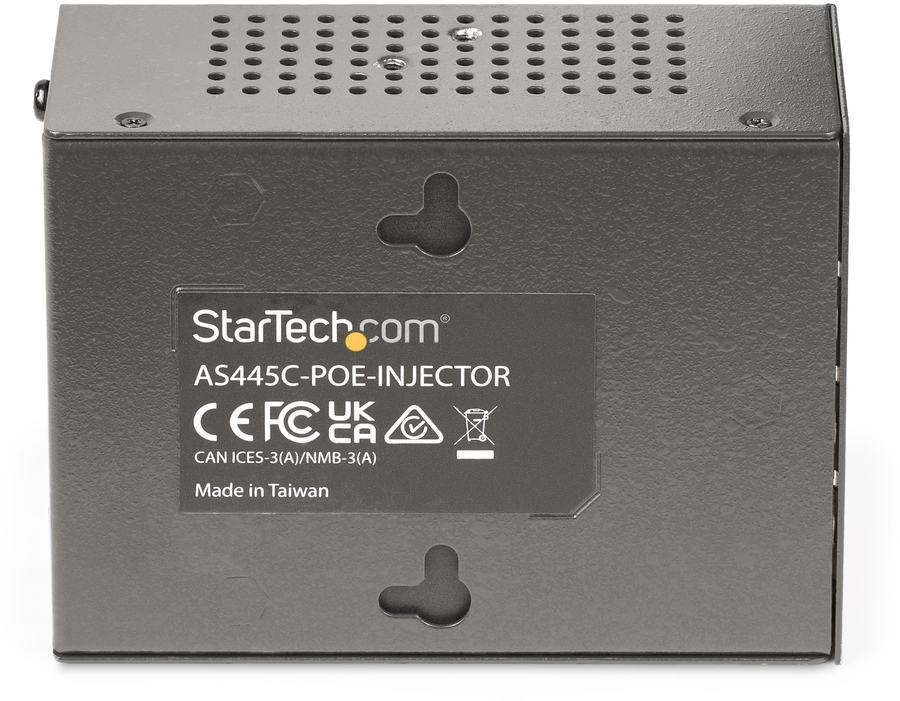

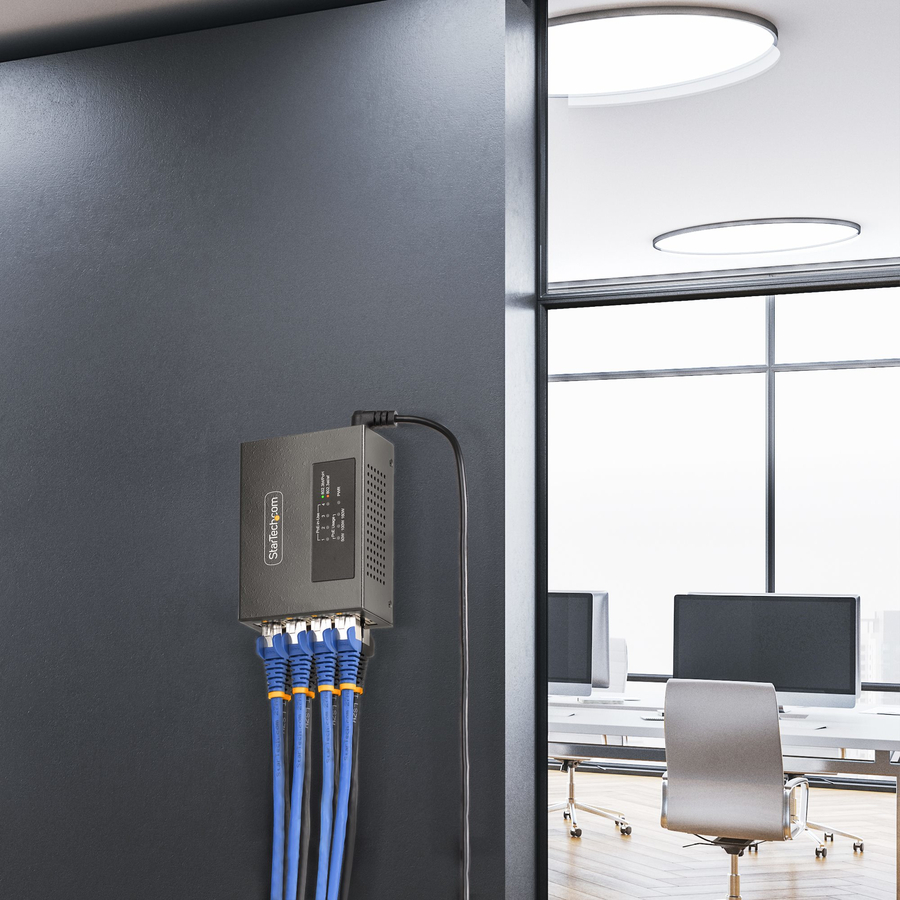

Wall mountable	Yes
Maximum operating distance	100 m

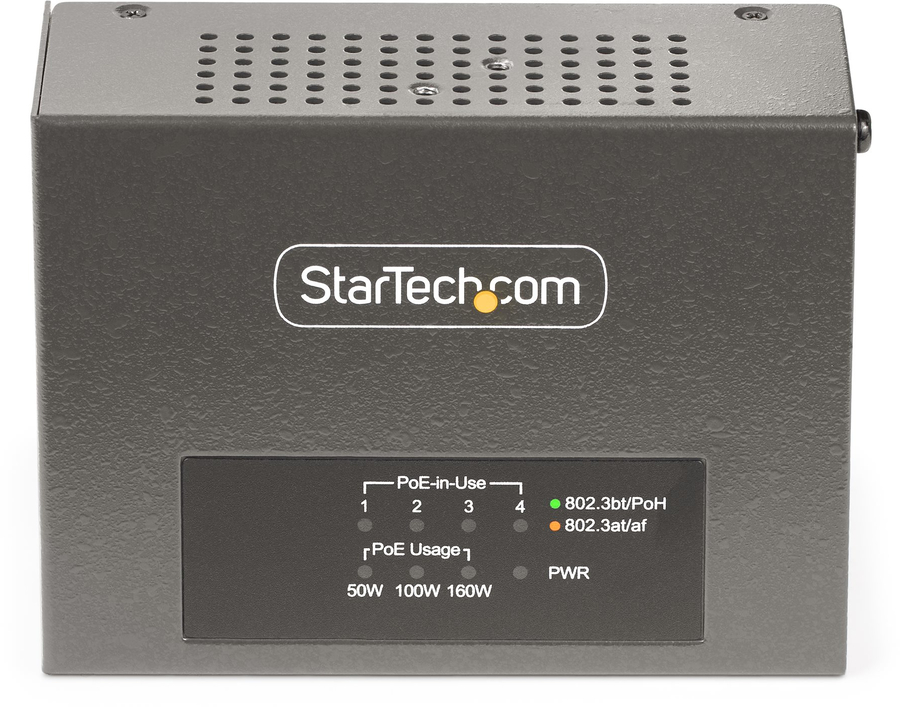

LED indicators	Status
Jumbo frames support	Yes
Jumbo frames	9000
Ports & interfaces

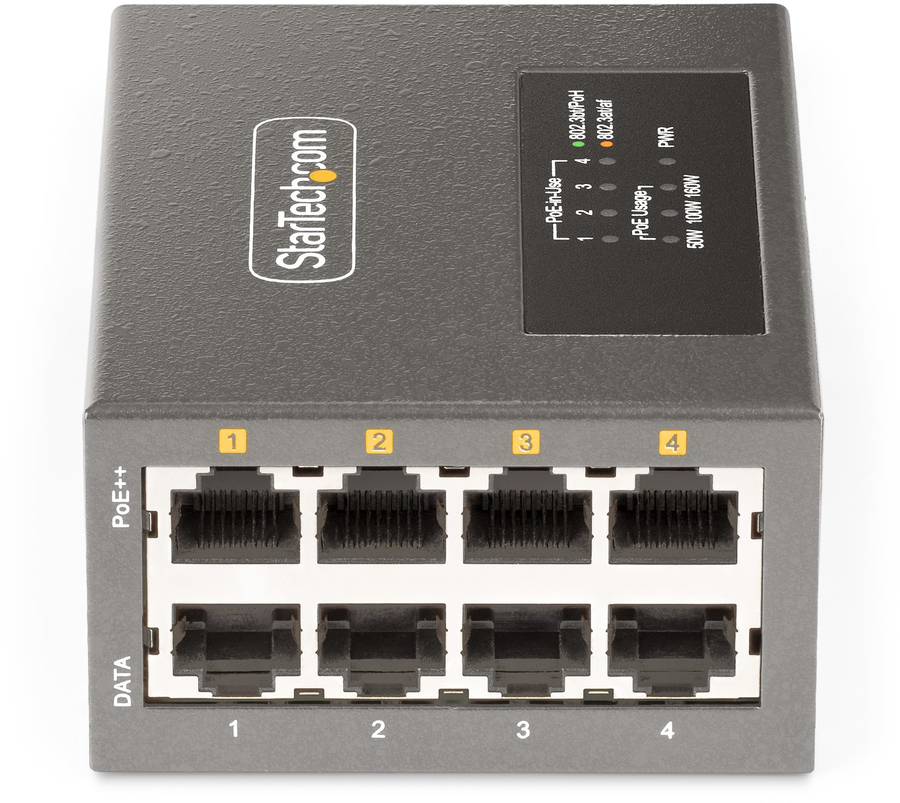

Ethernet LAN (RJ-45) ports	8
RJ-45 input ports	4
RJ-45 output ports	4

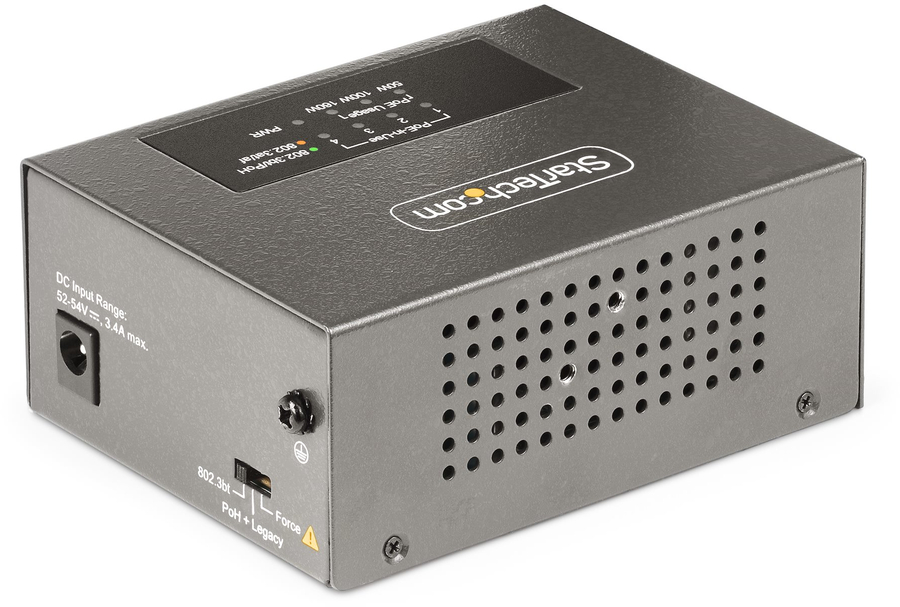

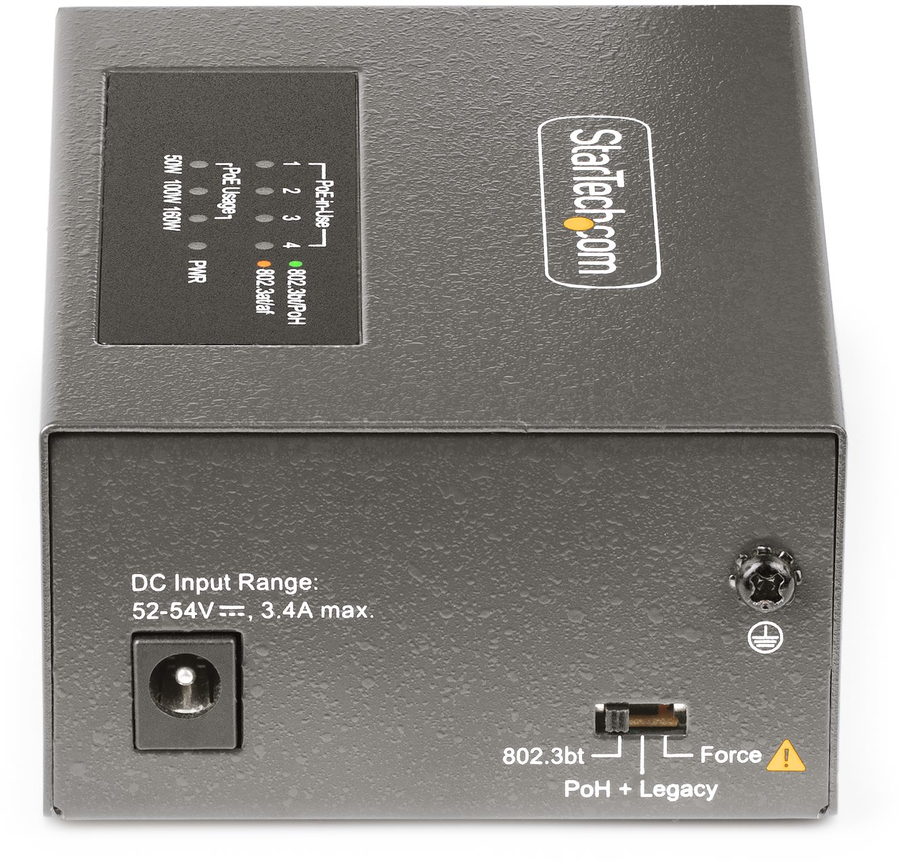

DC-in jack	Yes
Power
AC adapter input voltage	100 - 240 V
Input current	2.5 A
AC adapter output voltage	54 V
Output current	3.3 A
Total Power over Ethernet (PoE) budget	160 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	70 mm
Depth	94 mm
Height	39 mm
Weight	278 g
Packaging data
Package width	170 mm
Package depth	300 mm
Package height	90 mm
Package weight	1.7 kg
Packaging content
Number of products included	1 pc(s)
AC adapter included	Yes
Quick installation guide	Yes
Technical details
Sustainability compliance	Yes
Sustainability certificates	CE, Federal Communications Commission (FCC), UKCA
Logistics data
Master (outer) case width	475 mm
Master (outer) case length	370 mm
Master (outer) case height	325 mm
Products per master (outer) case	10 pc(s)
