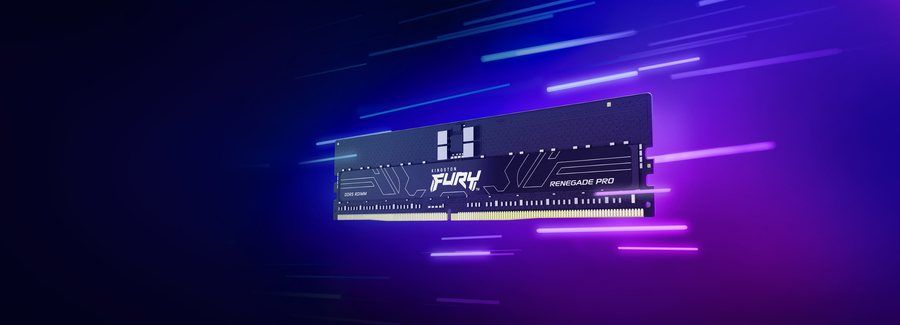

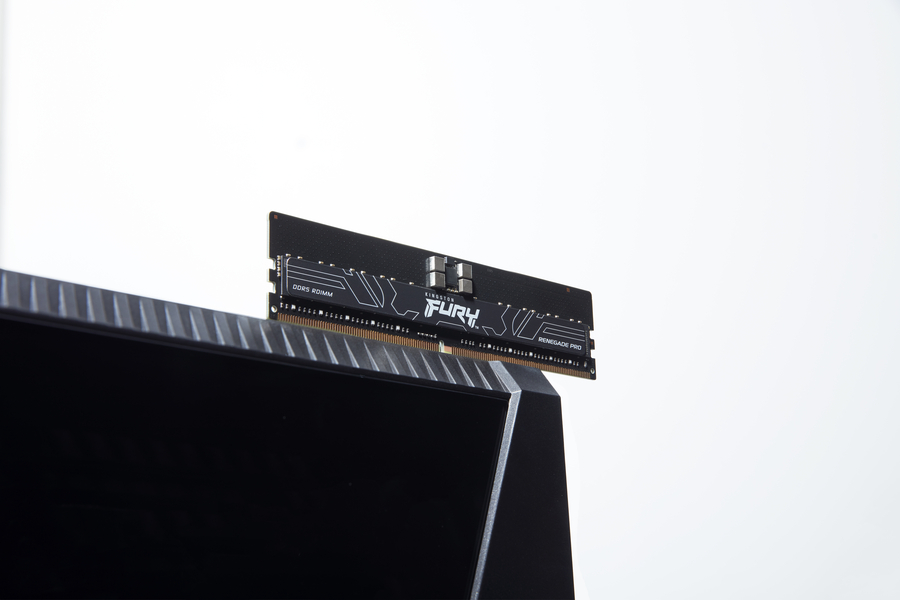

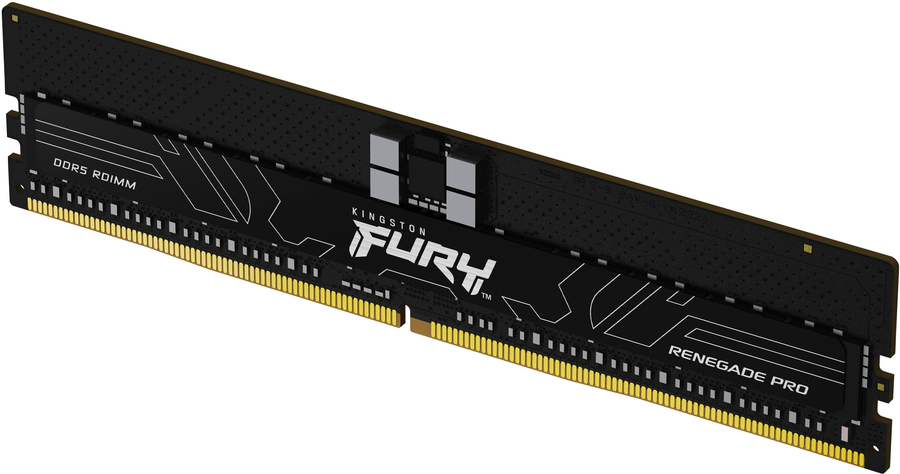

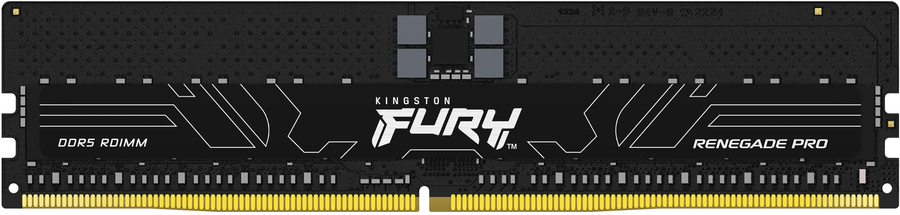

Kingston FURY Renegade Pro EXPO 16GB 5600 CL28 ECC/Reg DDR5 Memory Module

Home :: Memory :: Server Memory ::

Price: $126.00

Manufacturer: Kingston

16GB 5600MT/s DDR5 ECC Reg CL28 DIMM FURY Renegade Pro EXPO

Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
59523919 KF556R28RBE-16 740617340402 Active


General Information
Summary With over three decades of building reliable, high quality memory modules for the world’s largest data centers, Kingston proudly introduces a new line of overclockable server-class memory, Kingston FURY™ Renegade Pro DDR5 RDIMM. To meet the computing demands of next-gen Intel® or AMD workstation and high-end desktop platforms requiring the use of DDR5 Registered DIMMs, Kingston FURY Renegade Pro DDR5 RDIMM provides creators, engineering and data science professionals with high performance memory normally reserved for gamers, without sacrificing the data integrity features and superior quality grade of Registered DIMMs.

DDR5 Registered DIMMs support ECC, capable of detecting and correcting multi-bit errors. This is in addition to On-Die ECC, featured on all DDR5 DRAM components, which perform single bit error detection and correction to mitigate system lockups and data corruption.

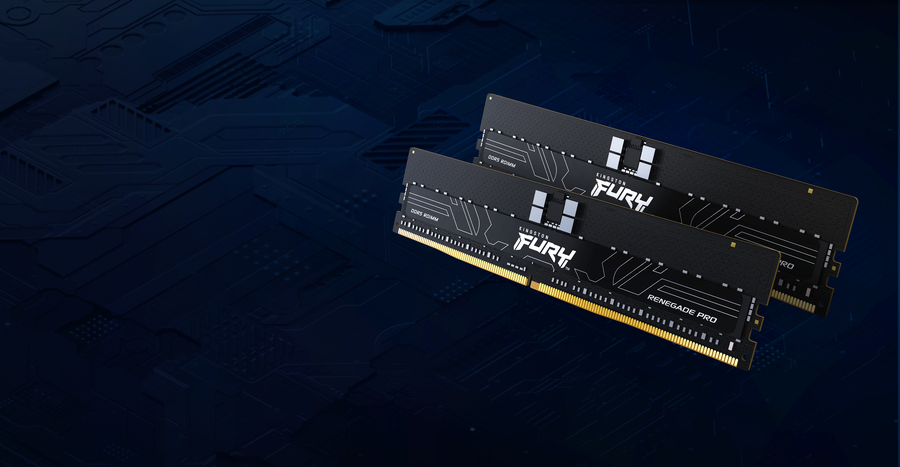

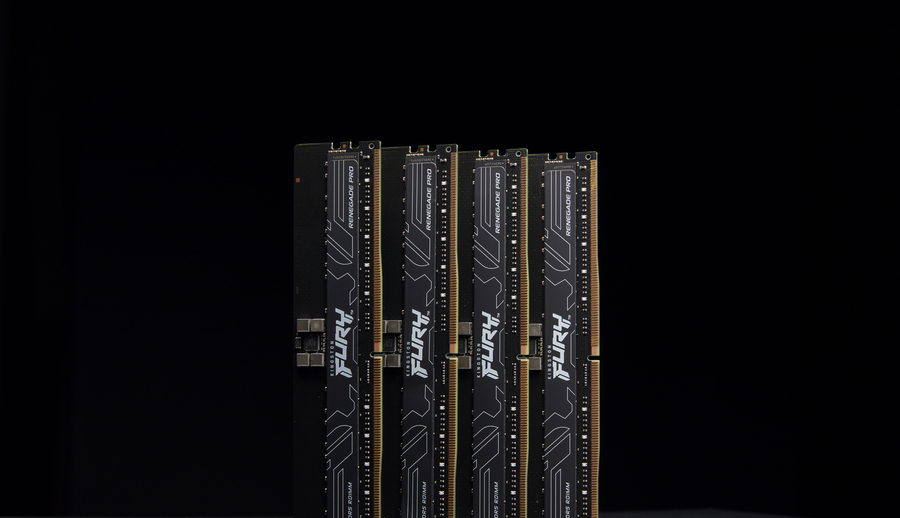

Power users can automatically get the most out of their systems with Kingston FURY Renegade Pro DDR5 RDIMM, or choose one of the built-in profiles for optimum timings, speeds, and voltage. Available in single-module capacities up to 32GB, kits of 4 up to 128GB, and kits of 8 up to 256GB.

Overclocking with ECC
Maintain data integrity while pushing the limits of DDR5 performance.

Increased efficiency
With double the banks and burst lengths, keep up with the demands of the latest programs and applications with improved efficiency and lower latencies.

Intel® XMP 3.0 certified
Select one of the built-in profiles to maximise memory performance with advanced pre-optimised timings, speeds and voltage.

AMD EXPO™ Certified
AMD’s Extended Profiles for Overclocking to achieve high performance speeds.

Plug N Play**
Kingston FURY Renegade Pro DDR5 RDIMM modules automatically overclock to the highest listed speed.
Internal memory 16 GB
Memory layout (modules x size) 1 x 16 GB
Internal memory type DDR5
Component for PC/Server
Memory form factor 288-pin DIMM
Buffered memory type Registered (buffered)
On-Die ECC Yes
CAS latency 28
Memory data transfer rate 5600 MT/s
Memory channels Dual-channel
Memory ranking 1
Memory voltage 1.35 V

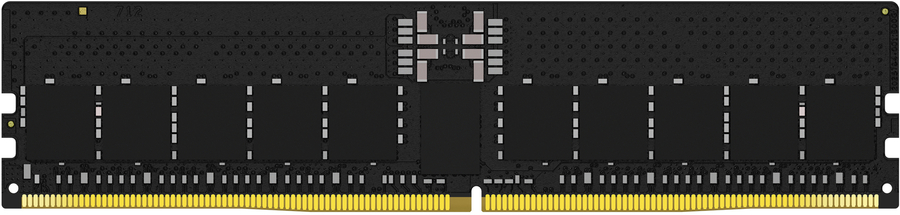

Module configuration 2048M x 80
Row cycle time 48 ns
Refresh row cycle time 295 ns
Row active time 32 ns
AMD Extended Profiles for Overclocking (EXPO) Yes
AMD Extended Profiles for Overclocking (EXPO) version 1.1
SPD profile Yes
Programming power voltage (VPP) 1.8 V
Country of origin China, Taiwan
Product colour Black
Cooling type Heatsink
Lead plating Gold
JEDEC standard Yes
Operational conditions
Operating temperature (T-T) 0 - 95 °C
Storage temperature (T-T) -55 - 100 °C
Technical details
Compliance certificates RoHS
Sustainability certificates RoHS
Doesn't contain Halogen
Sustainability compliance Yes
Weight & dimensions
Width 31.2 mm
Depth 133.3 mm
Height 3.8 mm
Weight 19.17 g

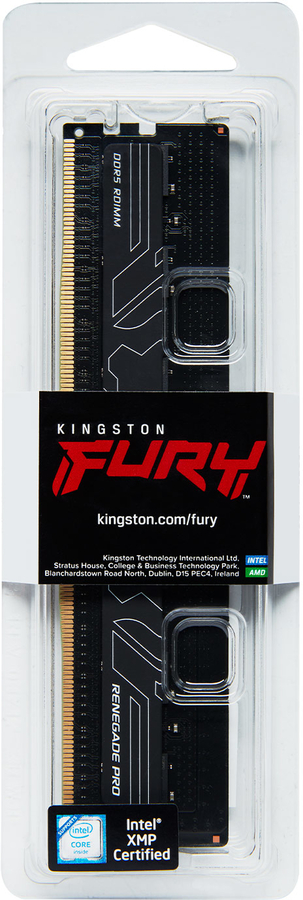

Packaging data
Package width 95.3 mm
Package depth 14 mm
Package height 171.5 mm
Package weight 40.28 g
Logistics data
Master (outer) case width 196.9 mm
Master (outer) case length 311.2 mm
Master (outer) case height 61 mm
Master (outer) case gross weight 1.15 kg
Products per master (outer) case 25 pc(s)
