General Information |
|
Summary |

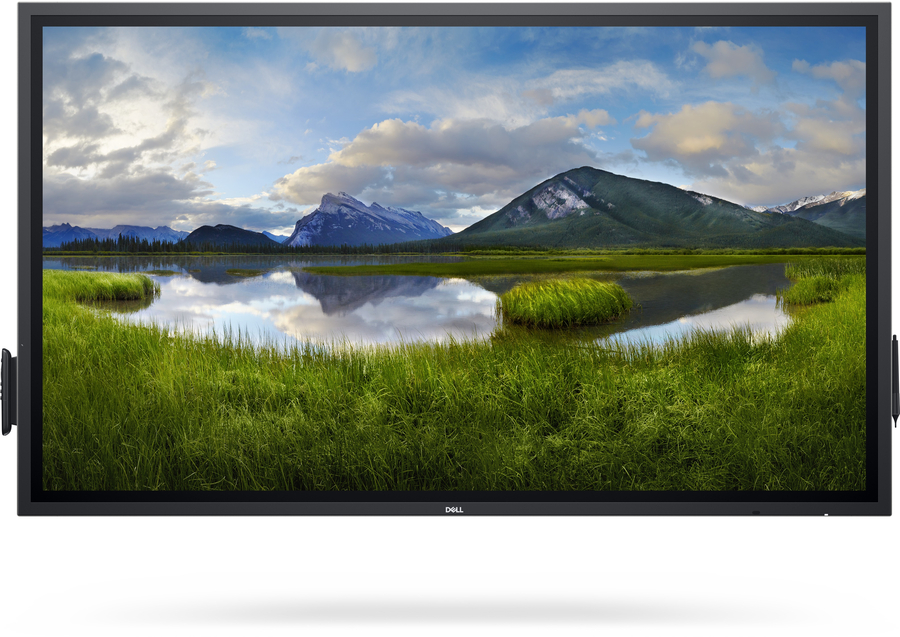

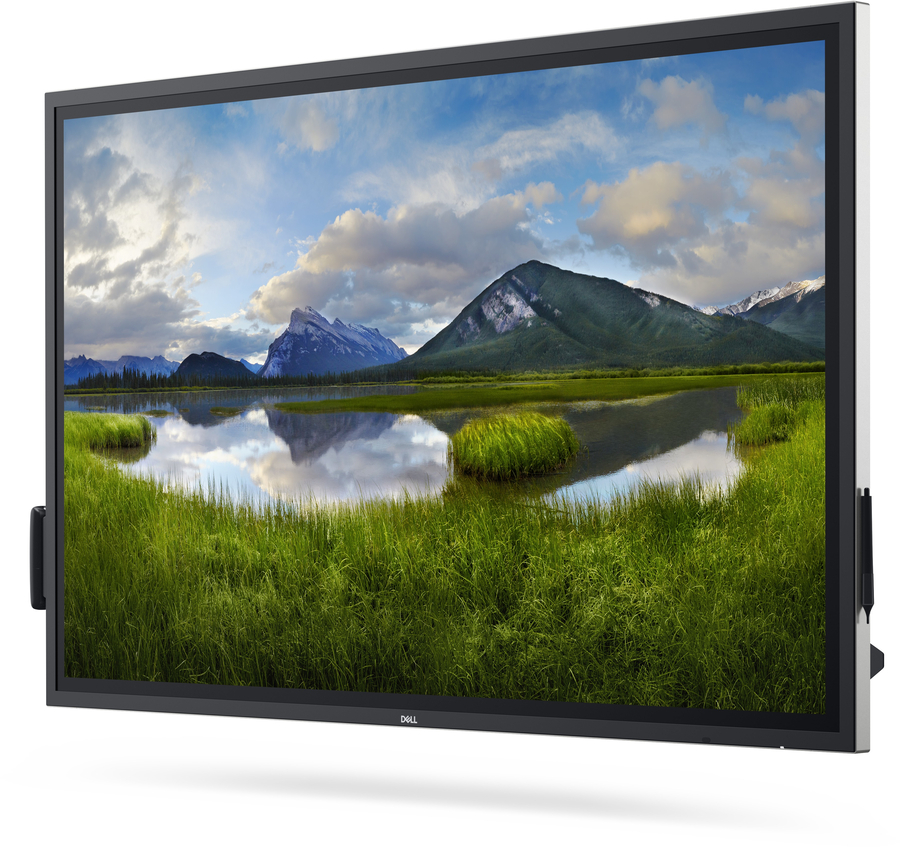

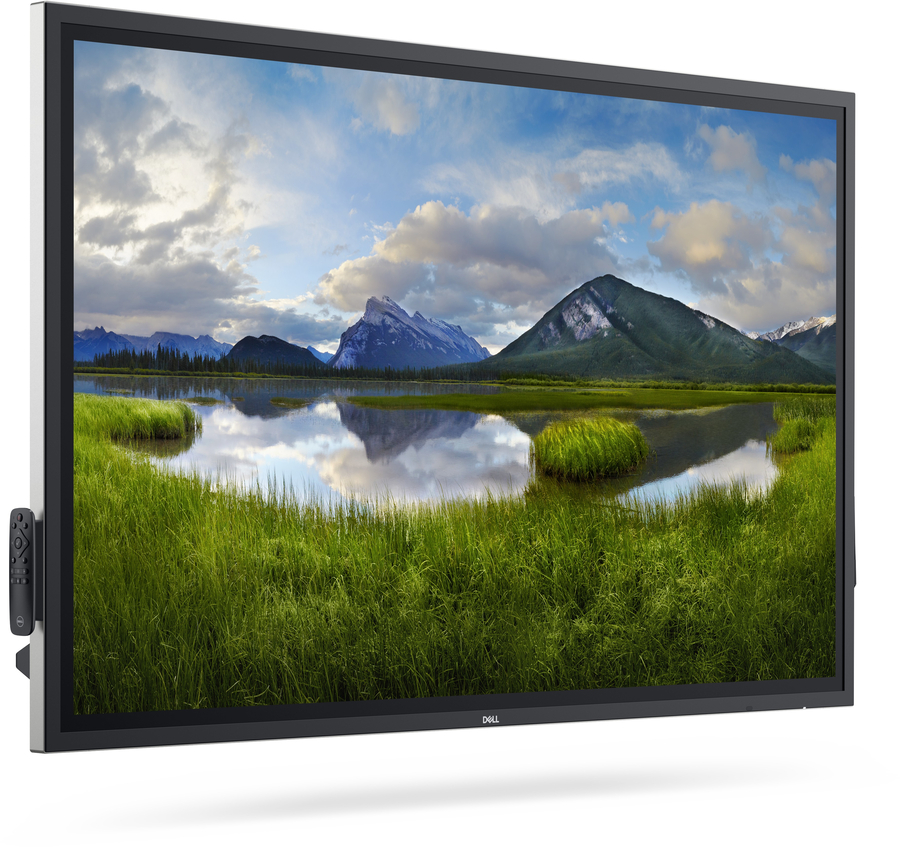

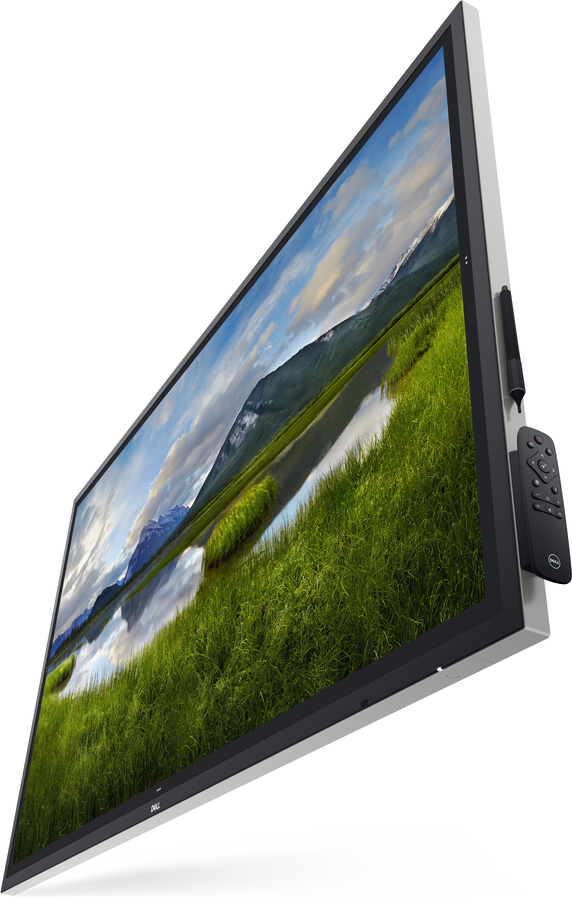

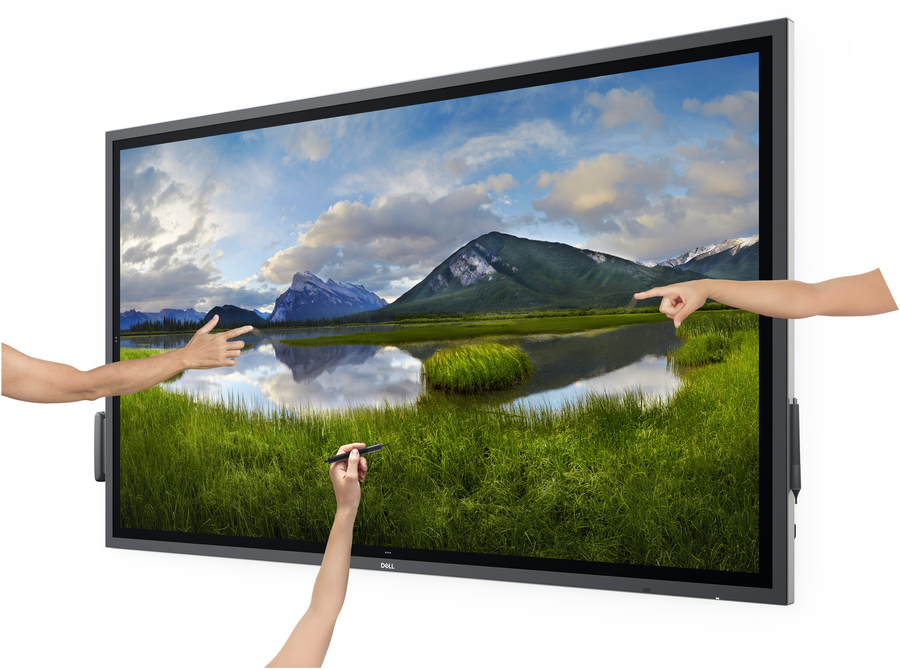

Bring the team together, whether they are in the room or remote, with this brilliant 65" 4K UHD large format monitor with 20-point touch, palm-rejection, USB-C connectivity and built-in dual 20W speakers. |
|
Display |
|
Display diagonal |
163.9 cm (64.5") |
|
Display technology |
LCD |
|
Display resolution |
3840 x 2160 pixels |
|
Display brightness |
350 cd/m² |
|
HD type |
4K Ultra HD |
|
Touchscreen |
Yes |
|
Panel type |
IPS |
|
LED backlight |
Yes |
|
Number of simultaneous touchpoints |
20 |
|
Multi-touch |
Yes |
|
Native aspect ratio |
16:9 |
|
Response time |
9 ms |
|
Contrast ratio (typical) |
1300:1 |
|
Viewing angle, horizontal |
178° |
|
Viewing angle, vertical |
178° |
|
Display number of colours |
1.07 billion colours |
|
Pixel pitch |
0.372 x 0.372 mm |
|
Display diagonal (metric) |
163.906 cm |
|
Horizontal scan range |
30 - 140 kHz |
|
Vertical scan range |
24 - 75 Hz |
|
Supported graphics resolutions |
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800, 1600 x 1200, 1920 x 1080 (HD 1080), 2048 x 1152, 2560 x 1440, 3840 x 2160 |
|
Supported video modes |
480p, 576p, 720p, 1080i, 1080p, 2160p |
|
Hardness |
7H |
|
Native refresh rate |
60 Hz |
|
RGB colour space |
NTSC |
|
Colour gamut |
72% |
|

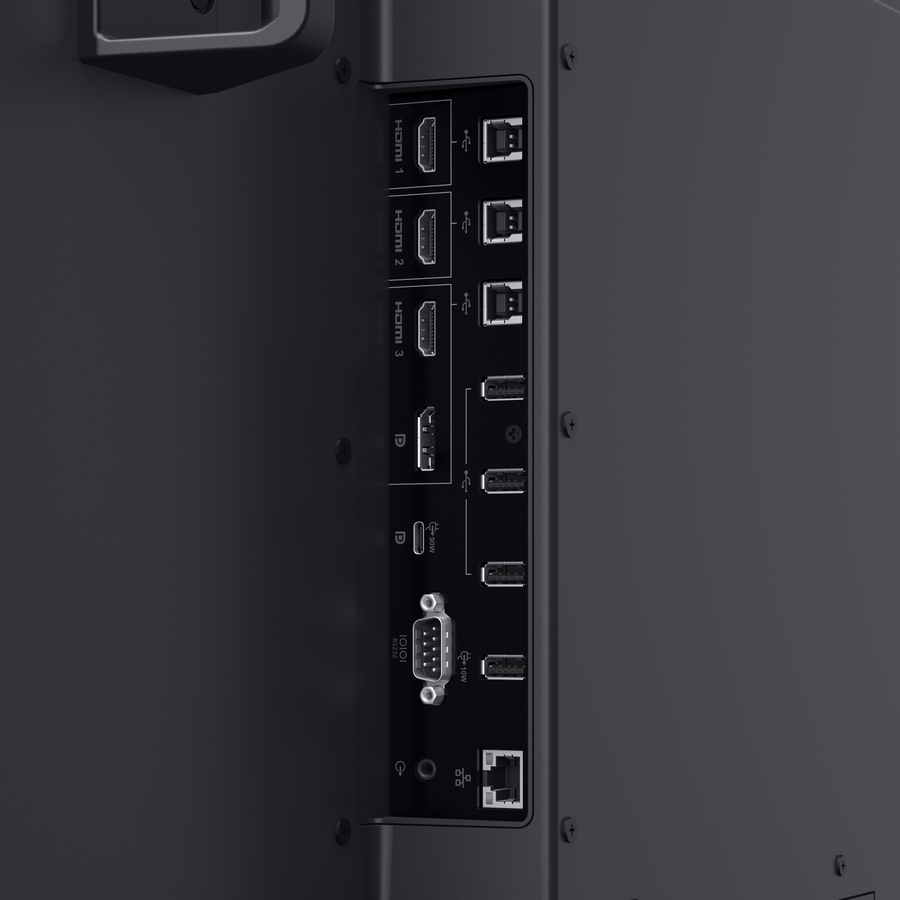

Ports & interfaces |
|
HDMI ports quantity |
3 |
|
DVI port |
No |
|
DisplayPorts quantity |
1 |
|
USB port |
Yes |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
No |
|
HDMI version |
2.0 |
|
USB ports quantity |
8 |
|
USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
|
USB connector type |
USB Type-A |
|
USB 2.0 Type-B ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
USB Power Delivery (USB PD) |
Yes |
|
USB Power Delivery up to |
90 W |
|
USB Type-C DisplayPort Alternate Mode |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Audio (L/R) out |
1 |
|
RS-232 interface |
Yes |
|
Audio |
|
Built-in speaker(s) |
Yes |
|
Number of built-in speakers |
2 |
|
RMS rated power |
40 W |
|
Speaker impedance |
8 Ω |
|
Speaker frequency range |
120 - 20000 Hz |
|
Design |
|
Product design |
Interactive flat panel |
|
Product colour |
Black |
|
Placement supported |
Indoor |
|

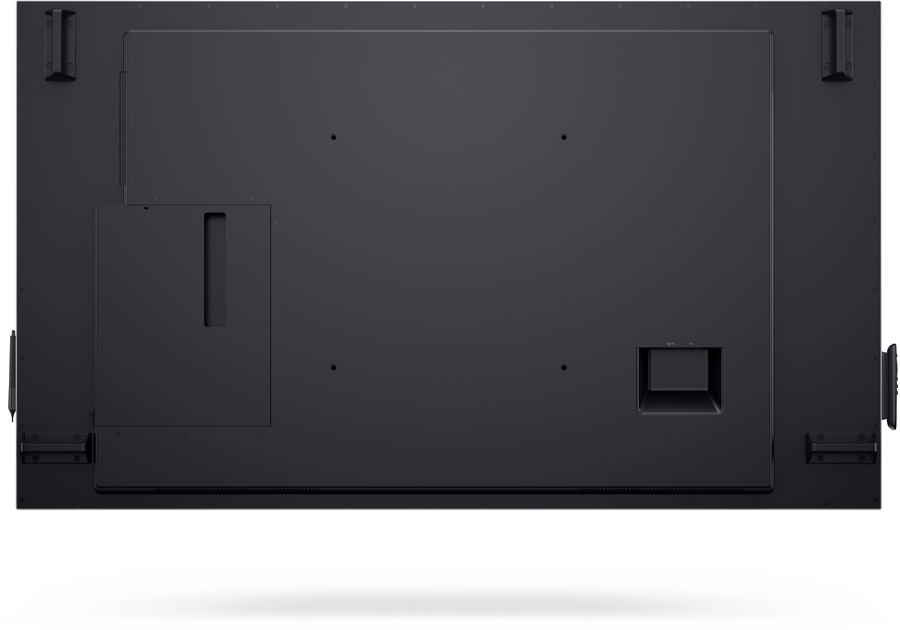

VESA mounting |
Yes |
|
Screen shape |
Flat |
|
Panel mounting interface |
400 x 400 mm |
|
Bezel width (bottom) |
4.47 cm |
|
Bezel width (side) |
4.47 cm |
|
Bezel width (top) |
4.47 cm |
|
Anti-glare screen |
Yes |
|
Performance |
|
Purpose |
Corporate |
|
On Screen Display (OSD) |
Yes |
|
Power |
|
Power consumption (typical) |
101 W |
|
Power consumption (standby) |
0.4 W |
|
Power consumption (off) |
0.3 W |
|
Power consumption (max) |
370 W |
|
Energy efficiency class (SDR) |
F |
|
Energy efficiency class (HDR) |
Not available |
|
Energy consumption (SDR) per 1000 hours |
101 kWh |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Heat dissipation |
344.63 BTU/h |
|
Energy efficiency scale |
A to G |
|
Computer system |
|
Windows operating systems supported |
Windows 7 Professional, Windows 7 Ultimate, Windows 8, Windows 8.1 |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan |
|
Linux operating systems supported |
Yes |
|
Weight & dimensions |
|
Display width |
1517.9 mm |
|
Display depth |
78.7 mm |
|
Display height |
892.9 mm |
|
Display weight |
45.2 kg |
|
Packaging data |
|
Package weight |
55.3 kg |
|
Packaging content |
|
Remote control included |
Yes |
|
Stylus pen |
Yes |
|
Number of stylus pens |
2 |
|
Cables included |
DisplayPort, HDMI, USB, USB Type-C |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
10 - 80% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Operating altitude |
0 - 5000 m |
|
Non-operating altitude |
0 - 12192 m |
|
Carbon footprint |
|
Total carbon footprint (kg of CO2e) |
1805 |
|
Total carbon emissions, standard deviation (kg of CO2e) |
493 |
|
Carbon emissions, manufacturing (kg of CO2e) |
768.21 |
|
Carbon emissions, logistics (kg of CO2e) |
265.08 |
|
Carbon emissions, energy usage (kg of CO2e) |
739.84 |
|
Carbon emissions, end-of-life (kg of CO2e) |
31.85 |
|
Total carbon emissions, w/o use phase (kg of CO2e) |
1065.16 |
|
PAIA version |
1.3.2, 2022 |
|
Features |
|
Heat dissipation (max) |
1262.49 BTU/h |
|
Technical details |
|
Sustainability certificates |
ENERGY STAR |
|
Doesn't contain |
Arsenic, Mercury, PVC/BFR |
|
Compliance certificates |
RoHS |
|
Sustainability compliance |
Yes |
|
Other features |
|
Quick start guide |
Yes |
|
Cable lock slot |
Yes |
|
LED indicators |
Yes |
|
On/off switch |
Yes |
|
Viewable size diagonal |
16.4 cm |
|
Viewable size, horizontal |
142.8 cm |
|
Viewable size, vertical |
80.3 cm |
|
Power supply type |
Internal |
|
Cable management |
Yes |
|
Response time |
9 s |
|
Plug and Play |
Yes |
