General Information |
|
Summary |
Bring the team together, whether they are in the room or remote, with this brilliant 75" 4K UHD large format monitor with 20-point touch, palm-rejection and built-in dual 20W speakers. |
|
Display |
|
Display diagonal |
189.3 cm (74.5") |
|
Display technology |
LCD |
|
Display resolution |
3840 x 2160 pixels |
|
HD type |
4K Ultra HD |
|
Touchscreen |
Yes |
|
Native aspect ratio |
16:9 |
|
Panel type |
IPS |
|
LED backlight |
Yes |
|
Display brightness |
350 cd/m² |
|
Number of simultaneous touchpoints |
20 |
|
Multi-touch |
Yes |
|
Native refresh rate |
60 Hz |
|
Response time |
8 ms |
|
Contrast ratio (typical) |
1200:1 |
|
Viewing angle, horizontal |
178° |
|
Viewing angle, vertical |
178° |
|
Display number of colours |
1.07 billion colours |
|
sRGB coverage (typical) |
72% |
|
Pixel pitch |
0.429 x 0.429 mm |
|
Display diagonal (metric) |
189.273 cm |
|
Anti-glare screen |
Yes |
|
Audio |
|
Built-in speaker(s) |
Yes |
|
Number of built-in speakers |
2 |
|
RMS rated power |
40 W |
|
Design |
|
Product colour |
Black |
|
VESA mounting |
Yes |
|
Screen shape |
Flat |
|
Panel mounting interface |
400 x 400 mm |
|
Bezel width (bottom) |
4.67 cm |
|
Bezel width (side) |
4.27 cm |
|
Bezel width (top) |
4.28 cm |
|

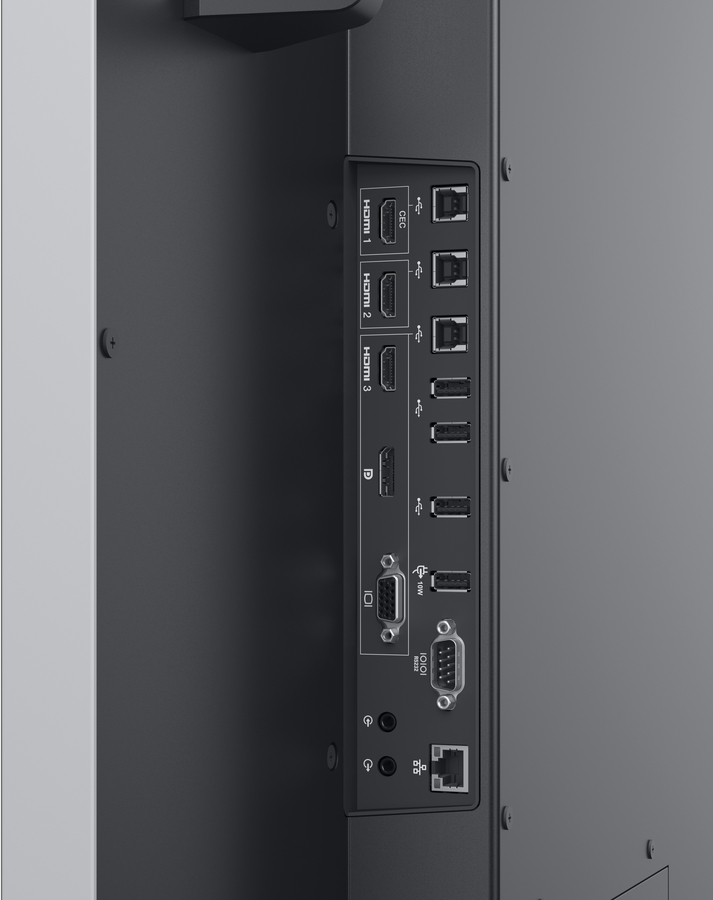

Ports & interfaces |
|
HDMI ports quantity |
3 |
|
DVI port |
No |
|
USB port |
Yes |
|
HDMI version |
2.0 |
|
VGA (D-Sub) input ports |
1 |
|
DisplayPorts quantity |
1 |
|
USB ports quantity |
7 |
|
USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
|
USB connector type |
Mini-USB A |
|
Number of USB Type-B upstream ports quantity |
3 |
|
USB Type-A downstream ports quantity |
4 |
|
Audio (L/R) in |
1 |
|
Audio (L/R) out |
1 |
|
RS-232 interface |
Yes |
|
USB Type-C DisplayPort Alternate Mode |
Yes |
|
USB charging port |
Yes |
|
USB charging current |
2 A |
|
Computer system |
|
Windows operating systems supported |
Windows 7 Professional, Windows 7 Ultimate, Windows 8, Windows 8.1 |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan |
|
Linux operating systems supported |
Yes |
|
Performance |
|
On Screen Display (OSD) |
Yes |
|
Power |
|
Energy efficiency class (SDR) |
G |
|
Energy consumption (SDR) per 1000 hours |
140 kWh |
|
Power consumption (typical) |
140 W |
|
Power consumption (max) |
290 W |
|
Power consumption (standby) |
0.5 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Energy efficiency scale |
A to G |
|
Power supply type |
Internal |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 80% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Display width |
1735 mm |
|
Display depth |
79.1 mm |
|
Display height |
1017.4 mm |
|
Display weight |
64 kg |
|
Packaging data |
|
Package weight |
102 kg |
|
Packaging content |
|
Remote control included |
Yes |
|
Stylus pen |
Yes |
|
Number of stylus pens |
2 |
|
Cables included |
AC, DisplayPort, HDMI, USB, VGA |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR |
|
Sustainability compliance |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
No |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Carbon footprint |
|
Total carbon footprint (kg of CO2e) |
2325 |
|
Total carbon emissions, standard deviation (kg of CO2e) |
671 |
|
Carbon emissions, manufacturing (kg of CO2e) |
881.84 |
|
Carbon emissions, logistics (kg of CO2e) |
369.33 |
|
Carbon emissions, energy usage (kg of CO2e) |
1029.89 |
|
Carbon emissions, end-of-life (kg of CO2e) |
44.22 |
|
Total carbon emissions, w/o use phase (kg of CO2e) |
1295.11 |
|
PAIA version |
1.3.2, 2022 |
