Antec A30 NEO 92mm PWM Fan
|
|
Price: $20.00
Manufacturer:
Antec
92 x 92 mm, Intel/AMD, 2000 RPM, 43.82 CFM
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59534497
|
A30 NEO
|
- |
Active
|
Details
|
General Information |
|
Summary |
PWM Fan
The fan blades feature a unique wave-like texture on the surface, providing a stunning visual effect. The 4-pin PWM fan achieves a balance between cooling and silence. With a maximum airflow of 43.82 CFM, it delivers efficient cooling performance to your CPU.
EASY
INSTALLATION
Easy-install bilateral
snap-on buckle.

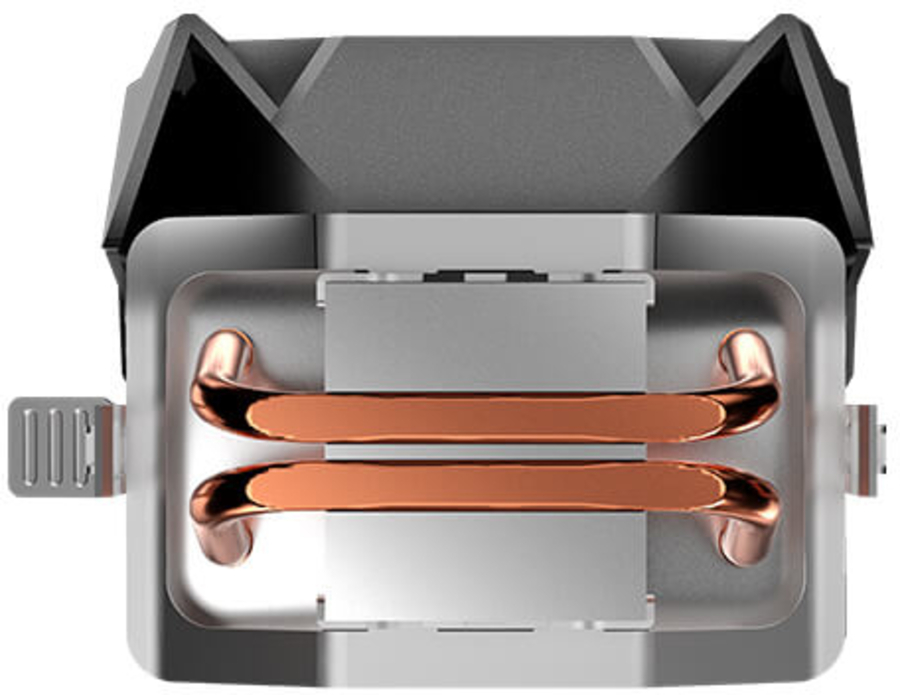

2 Direct-Touch Copper Heat Pipes
The direct-touch heat pipe base enhances heat conductivity
and provides superior cooling performance.
Universal CPU Socket Compatibility
Universal Retention Module compatible with both Intel and AMD CPU sockets.
Overall
Dimension
Compact size makes it compatible with most PC cases.
98 x 86 x 146mm (DWH)
|
|
Performance |
|
Suitable location |
Processor |
|
Type |
Air cooler |
|
Fan diameter |
9.2 cm |
|
Supported processor sockets |
LGA 1200 (Socket H5), LGA 1700, LGA 775 (Socket T), Socket AM3, Socket AM4, Socket AM5 |
|
Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5 |
|
Rotational speed (min) |
800 RPM |
|
Rotational speed (max) |
2000 RPM |
|
Maximum airflow |
43.82 cfm |
|
Maximum air pressure |
2.11 mmH2O |
|
Fan noise level (max) |
23.2 dB |
|
Design |
|
Product colour |
Black |
|
Fins material |
Aluminium |
|
Number of heat pipes |
2 |
|
Illumination LED |
No |
|
Fan connector |
4-pin |
|
Power |
|
Rated voltage |
12 V |
|
Rated current |
0.2 A |
|
Weight & dimensions |
|
Width |
86 mm |
|
Depth |
98 mm |
|
Height |
146 mm |
|
Weight |
360 g |
|
Fan dimensions (W x D x H) |
92 x 92 x 25 mm |
|
Heat pipes diameter |
6 mm |
|
Package weight |
460 g |
|
