General Information |
|
Summary |
Bye-bye Gigabit, hello 2.5GbE.
Gigabit Ethernet isn’t fast enough to unleash your 2.5G LAN and WAN devices. Upgrade to a 2.5G switch now!
ISPs offer Multi-Gig internet for homes
Many ISPs have started delivering multi-gigabit fiber to the home (FTTH) customers, providing speeds exceeding that of standard gigabit ethernet.
Multi-Gig enables Wi-Fi 6
Wi-Fi 6 (802.11ax) routers or APs require multi-gig network devices to unleash optimal wireless performance.
PC / laptops adopt 2.5G ports
Modern PCs and laptops have adopted 2.5G ports to fulfill high-bandwidth demands of streaming, video calls, gaming, and other modern web services.
Make your work and life smooth with the high-speed Switch and NAS
QNAP helps you upgrade to a high-speed network and data storage center in your home or office, providing a full 2.5G network experience.
Why 2.5G? Cost-effective high-speed option.
If you can’t budget a 10GbE upgrade at this time, the more affordable 2.5GbE provides a notable improvement in current Ethernet speeds. Use existing CAT5e cables to upgrade 2.5GbE network without stretching your budget.
Why QNAP 2.5G solution? More cost-effective solution.
The lack of consumer-grade switches has made it hard for home and personal users to adopt 2.5GbE/5GbE networking. QNAP now offers cost-effective 2.5GbE switches, helping you to transform your home network at a wallet-friendly price.
Why now? The most cost-effective timing.

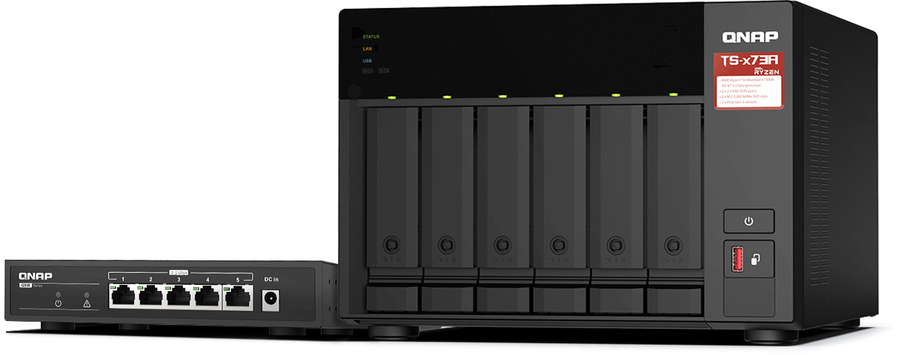

QNAP now hosts a flash sale for the 2.5GbE NAS and Switch Bundle. Buy now!

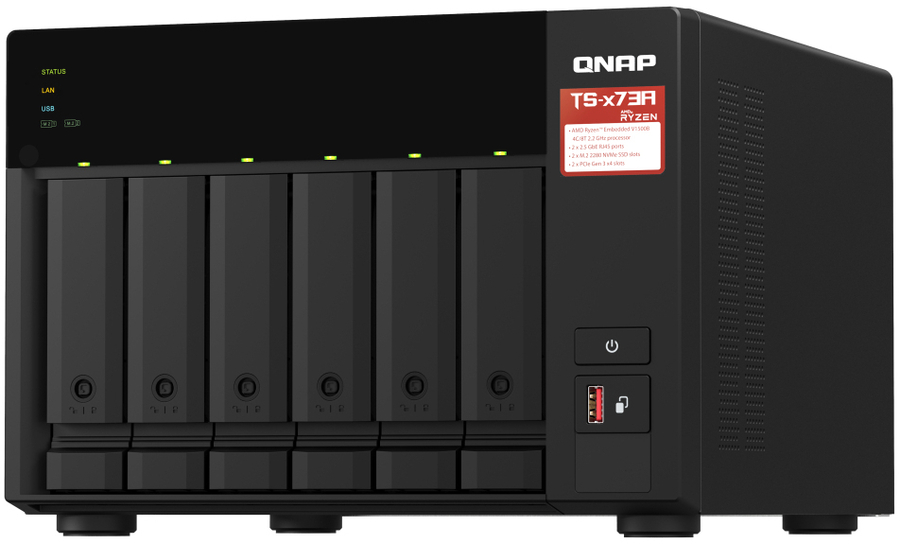

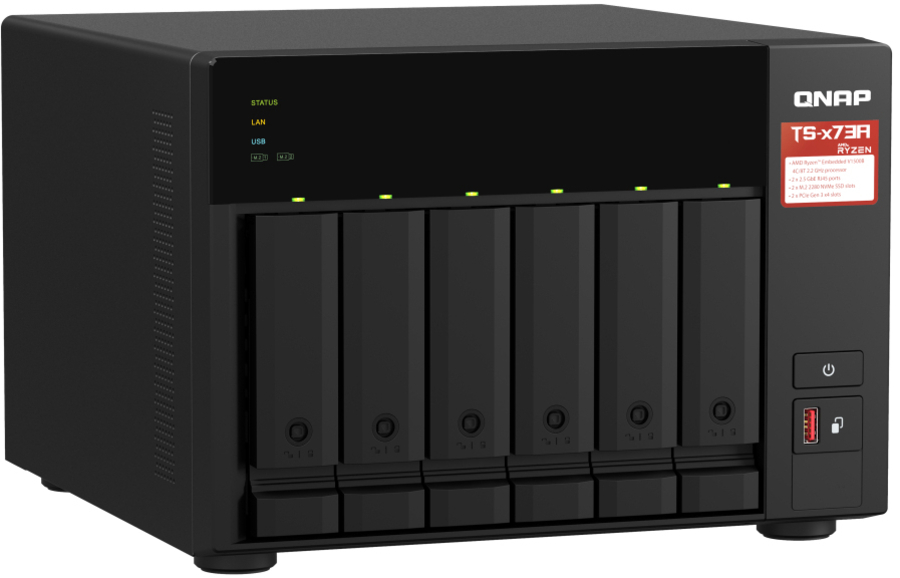

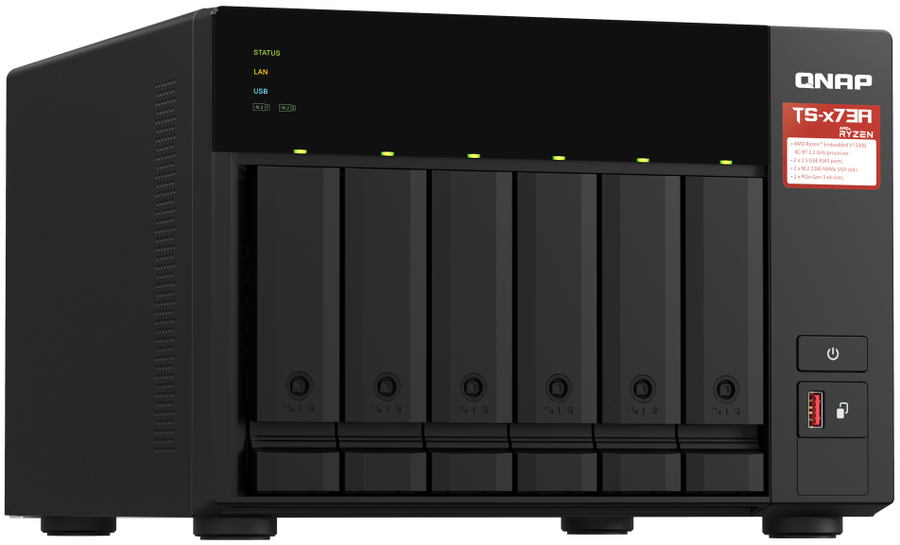

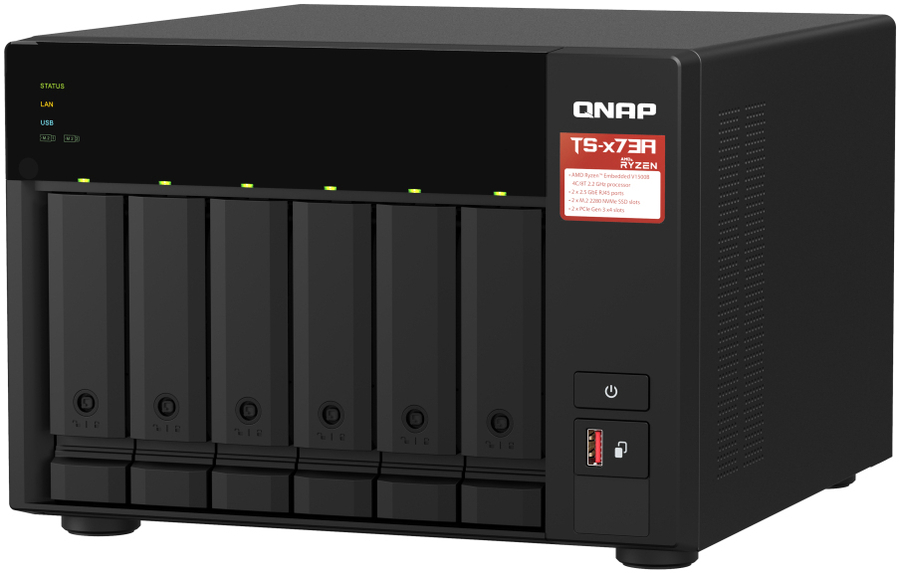

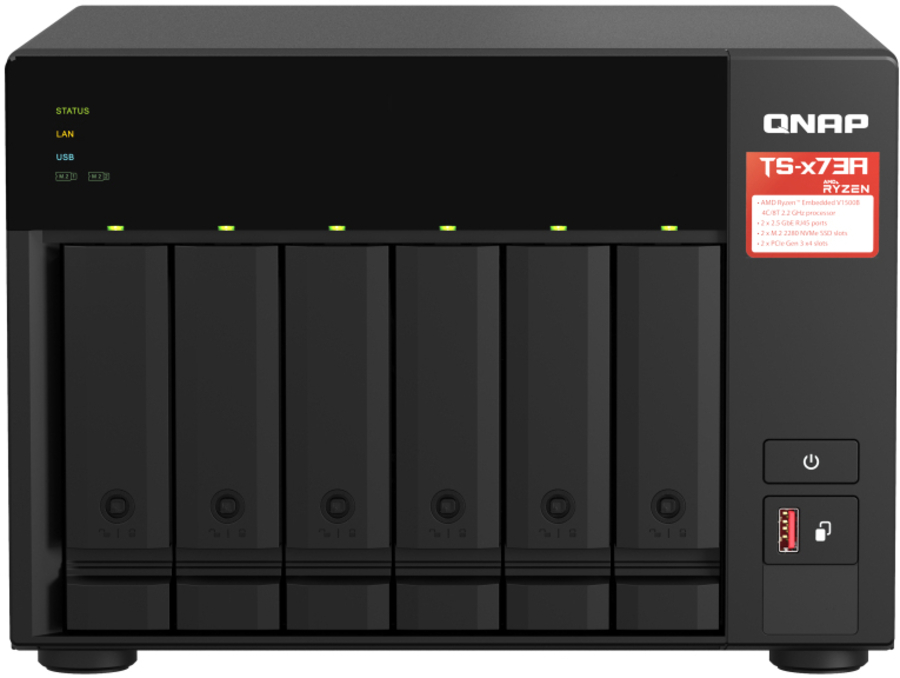

TS-673A
AMD Ryzen™ Quad-core multi-tasking 2.5GbE NAS
TS-673A not only provides a secure and reliable storage solution for backing up all your files, but also supports running multiple VMs and containers for diverse applications.
QTS 5 empowers VM, surveillance and cybersecurity deployment
The QTS 5 operating system provides a next-generation data storage usage experience with optimized user interface.
Run VMs and containers
By running multiple virtual machines and containers on the TS-673A, you can deploy multi-tenant environments and applications to increase management efficiency and reduce hardware costs.
Predict drive life with AI
QNAP’s AI-based drive health analysis technology, and automatic RAID disk replacement with spares, ensures a reliable storage environment.
All-in-one surveillance
QNAP’s integrated surveillance NAS solution offers a subscription licensing solution or perpetual licensing solution for flexible deployment based on your needs.
Enhanced data security
QVPN Service enables secure virtual private network (VPN) connections between NAS and devices. Snapshots, QuFirewall and Malware Remover ensure optimal NAS protection against threats like malware and hackers.

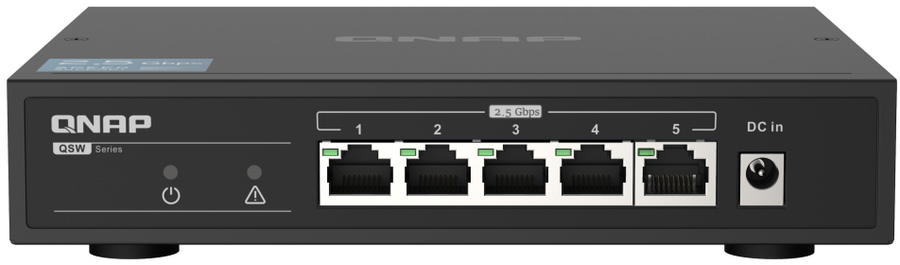

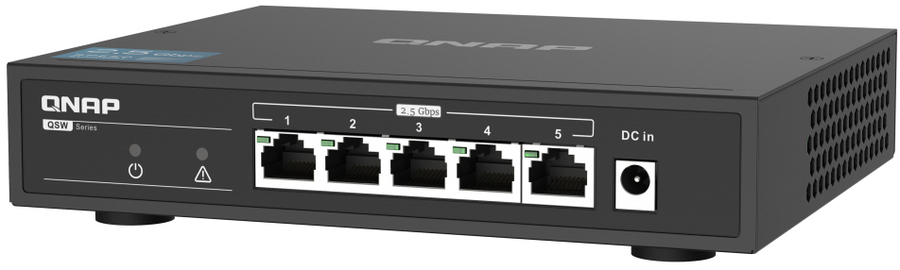

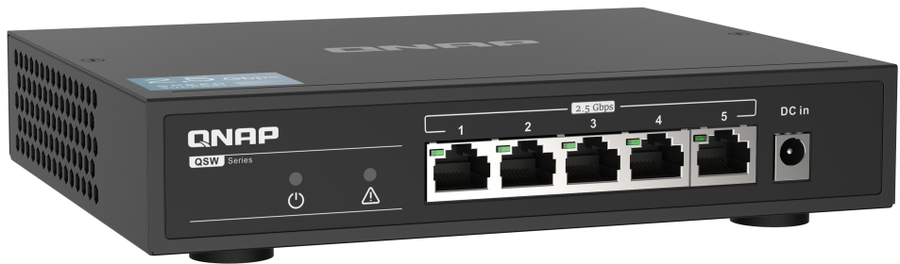

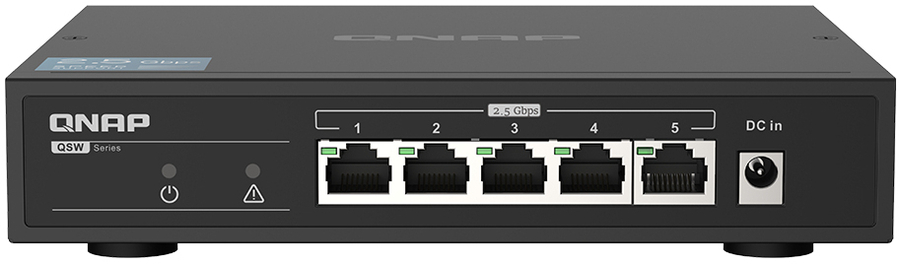

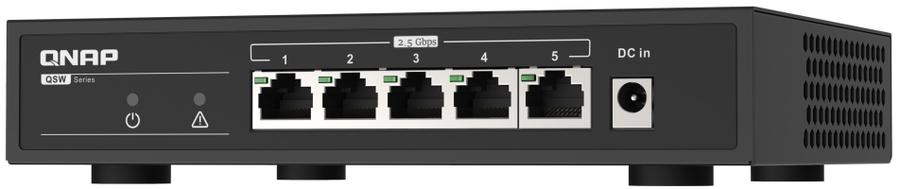

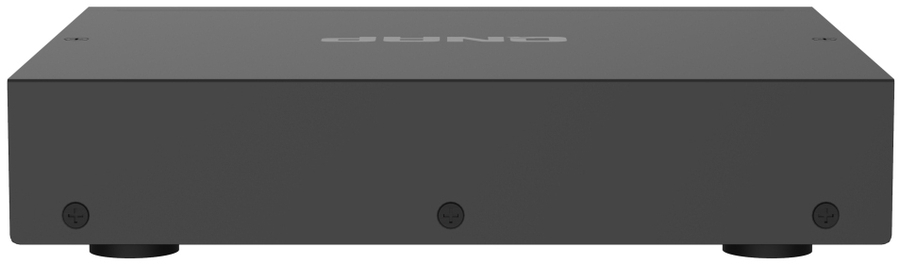

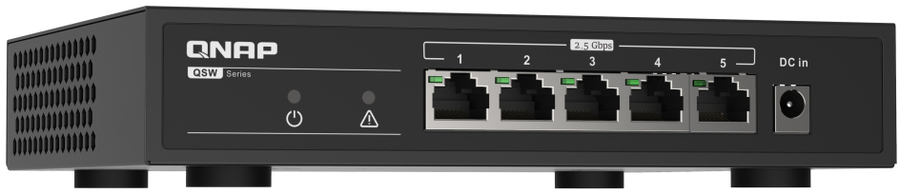

QSW-1105-5T
Affordable 5-port 2.5G switch
Enjoy 2.5x high-speed transmission by connecting more 2.5G devices, such as, NAS, Wi-Fi 6 Router/AP, PC/laptop, etc.
- Five 2.5G NBASE-T ports for unleashing LAN/WAN 2.5Gbps potential
- Supports auto-negotiation, backward compatible with 1GbE devices
- Use existing Cat 5e cables
- Hassle free plug and play
- Fanless design with ventilated construction for near-silent operation
- Automatic loop detection and blocking to ensure continuous network operation
Enjoy 5Gbps speeds without an extra network card
Enable SMB Multichannel on TS-673A NAS to combine two 2.5GbE ports for up to 5Gbps transmission speed. This increased bandwidth greatly accelerates large file transfer/backup and video editing applications.
Deploy 2.5GbE network environment to boost application efficiency
Faster Backup and Restore
Increased transfer speeds help save time when backing up files to NAS, or when backing up using HBS (Hybrid Backup Sync).
High-quality Video Streaming
Higher bandwidth improves the playback quality of 4K/8K videos.
Gaming Storage
Mount an iSCSI LUN from a 2.5GbE NAS to your computer to store your vast game collection. Gaming x 2.5GbE NAS Solution
Smooth Video Calls
In the era of remote working and classes, a faster network provides high-quality live streams for video calls and online courses.
|
|
Storage |
|
Storage drives installed |
No |
|
Total installed storage capacity |
0 TB |
|
Number of storage drives installed |
0 |
|
Number of storage drives supported |
6 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
Storage drive capacity |
0 GB |
|
RAID support |
Yes |
|
Supported storage drive interfaces |
M.2, Serial ATA |
|
Storage drive sizes supported |
2.5,3.5,M.2 |
|
RAID levels |
0, 1, 5, 6, 10, 50, 60, JBOD |
|
Online RAID migration |
Yes |
|
Online RAID expansion |
Yes |
|
Hot-swap drive bays |
Yes |
|
Supported file systems |
FAT32, HFS+, exFAT, ext3, ext4 |
|
Disk roaming |
Yes |
|
Processor |
|
Processor family |
Ryzen Embedded |
|
Processor manufacturer |
AMD |
|
Processor model |
V1500B |
|
Processor frequency |
2.2 GHz |
|
Processor generation |
AMD Ryzen Embedded V1000 Series |
|
Processor cores |
4 |
|
Processor threads |
8 |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
64 GB |
|
Memory slots |
2 |
|
Memory form factor |
SO-DIMM |
|
ECC |
Yes |
|
Flash memory |
5000 MB |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
2500 Mbit/s |
|
DHCP server |
Yes |
|
Jumbo frames support |
Yes |
|
iSCSI support |
Yes |
|
Wake-on-LAN ready |
Yes |
|
Load balancing system |
Yes |
|
Dynamic DNS (DDNS) |
Yes |
|
WLAN adapter supported |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
USB port |
Yes |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
|
Concurrent connections |
2000 |
|
PCI Express x4 (Gen 3.x) slots |
2 |
|
Design |
|
Chassis type |
Tower |
|
Cooling type |
Active |
|
Product colour |
Black |
|
Number of fans |
3 fan(s) |
|
Fan diameter |
9.2 cm |
|
Fan diameter 2 |
6 cm |
|
LED indicators |
HDD, LAN, Power, SSD, Status, USB |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Performance |
|
Type |
NAS |
|
Device class |
Small & Medium Business |
|
Backup function |
Yes |
|
Backup features |
Cloud, USB drive, iSCSI LUN |
|
Buzzer |
Yes |
|
Number of users |
4096 user(s) |
|
Third-party support |
Yes |
|
Snapshot |
Yes |
|
Management protocols |
SNMPv2/3 |
|
Web-based management |
Yes |
|
Share folder access right management |
Yes |
|
Security algorithms |
256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH |
|
Access Control List (ACL) |
Yes |
|
Reset button |
Yes |
|
On/off switch |
Yes |
|
Built-in FTP server |
Yes |
|
Browser supported |
Apple Safari (latest version), Google Chrome (latest version), Microsoft Edge (latest version), Mozilla Firefox (latest version) |
|
System log |
Yes |
|
Hot spare |
Yes |
|
Disk scan |
Yes |
|
S.M.A.R.T. support |
Yes |
|
Share folder |
512 |
|
Software |
|
Operating system installed |
QNAP QTS |
|
Operating system version |
5.2.5 |
|
Windows operating systems supported |
Windows 10, Windows 11, Windows 7, Windows 8 |
|
Linux operating systems supported |
CentOS 7.0, SUSE Linux Enterprise Desktop 12, Ubuntu 14.04 |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite |
|
Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
|
Other operating systems supported |
Citrix, Solaris 10, UnixWare |
|
Power |
|
Power consumption (typical) |
45.898 W |
|
Power consumption (HDD standby) |
21.9 W |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50/60 Hz |
|
Weight & dimensions |
|
Width |
264.3 mm |
|
Depth |
279.6 mm |
|
Height |
188.2 mm |
|
Weight |
6.4 kg |
|
Package width |
255 mm |
|
Package depth |
383 mm |
|
Package height |
345 mm |
|
Package weight |
8.11 kg |
|
Packaging content |
|
Cables included |
LAN (RJ-45) |
|
Power cables quantity |
2 |
|
Number of screws |
36 |
|
Package type |
Box |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Other features |
|
Warranty period |
2 year(s) |
