General Information |
|
Summary |
2x Fans. 2x Fun.

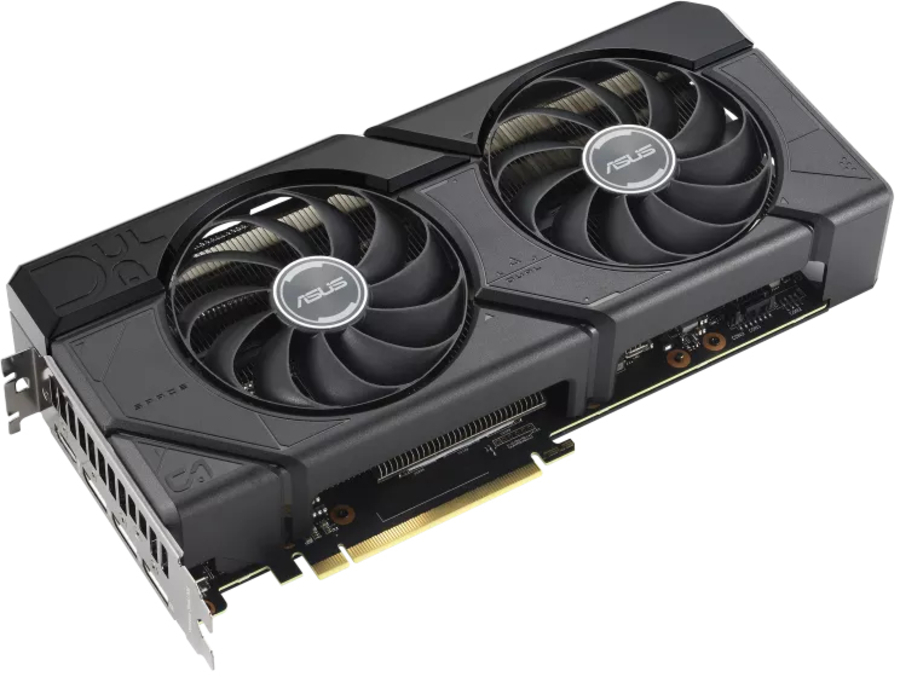

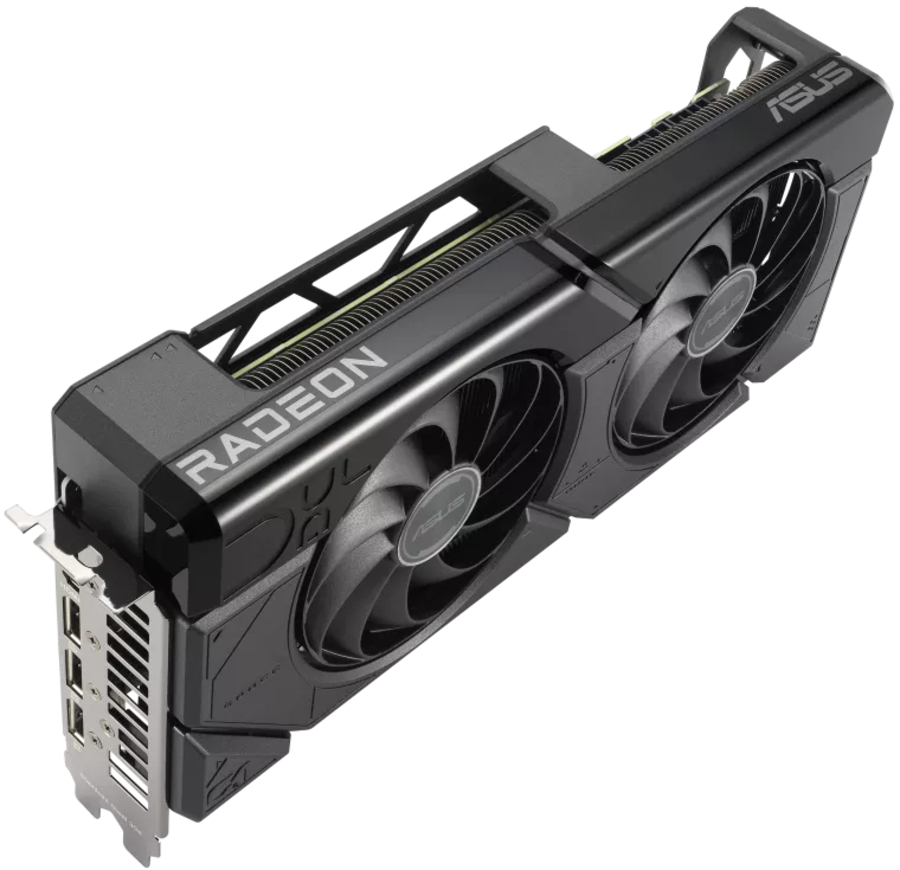

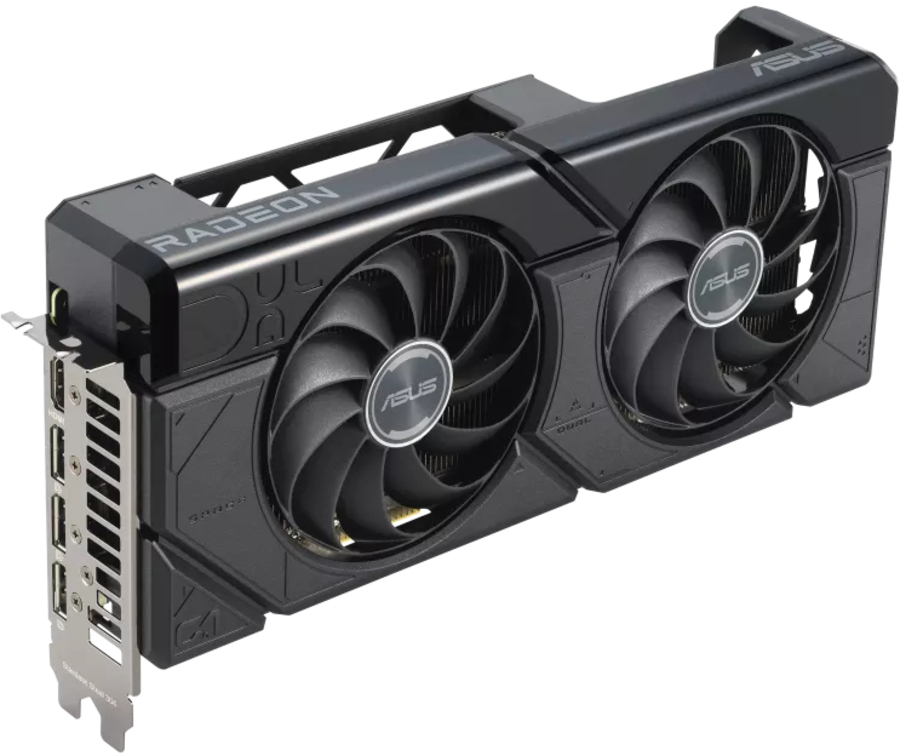

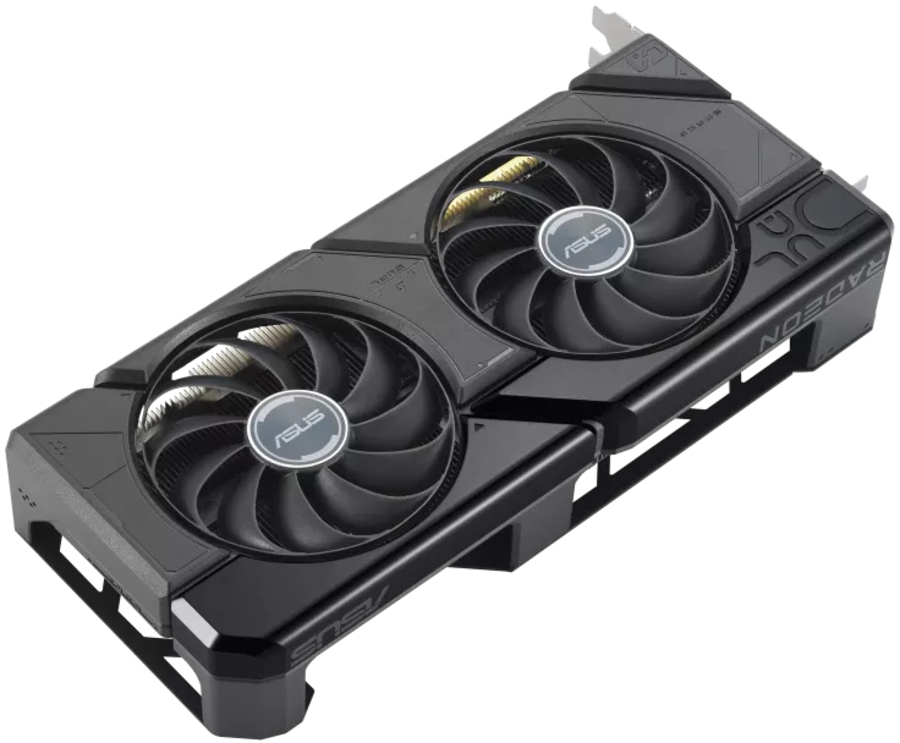

Delivering the latest AMD RDNA™ 3 architecture experience in its purest form, the ASUS Dual Radeon™ RX 7800 XT OC Edition melds performance and simplicity like no other. Leveraging advanced cooling technologies derived from flagship graphics cards, the Dual opts for substance over style, the perfect choice for a well-balanced build. Buckle up and engage cutting-edge gaming prowess.

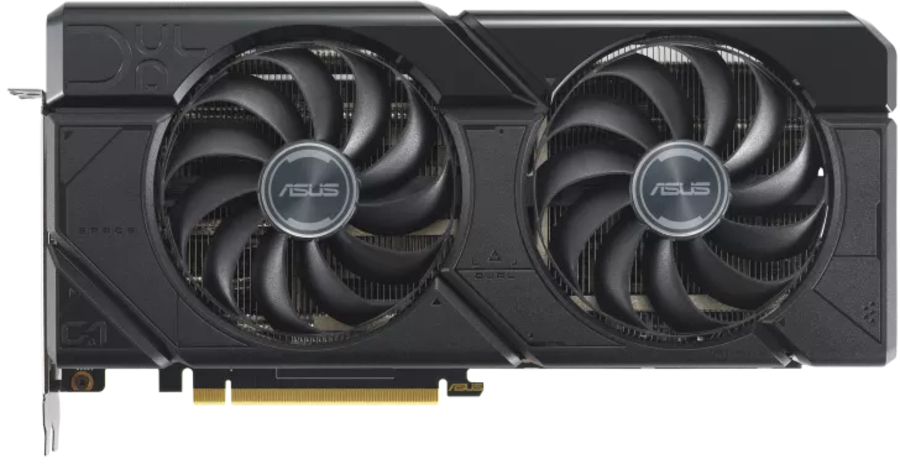

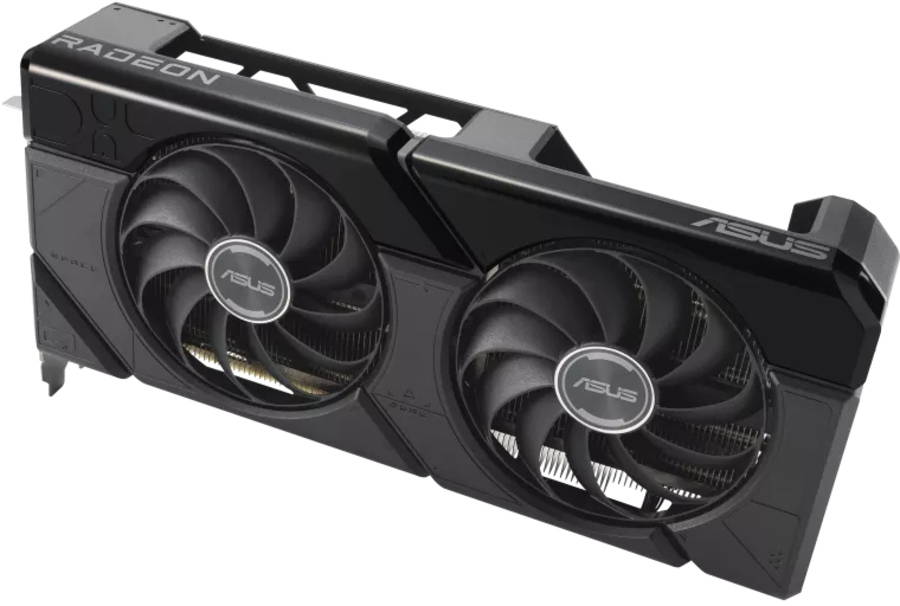

Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU TWEAK III
Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
Pair with a PSU
Use our wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG Thor, ROG Loki or ROG Strix AURA power supply for ultimate performance. |
|
Processor |
|
Graphics processor family |
AMD |
|
Graphics processor |
Radeon RX 7800 XT |
|
Maximum resolution |
7680 x 4320 pixels |
|
Parallel processing technology support |
Not supported |
|
Processor boost clock speed |
2475 MHz |
|
Processor boost clock speed (OC mode) |
2520 MHz |
|
Processor boost clock speed (Gaming mode) |
2169 MHz |
|
Stream processors |
3840 |
|
Maximum displays per videocard |
4 |
|
Memory |
|
Discrete graphics card memory |
16 GB |
|
Graphics card memory type |
GDDR6 |
|
Memory bus |
256 bit |
|
Data transfer rate |
19.5 Gbit/s |
|

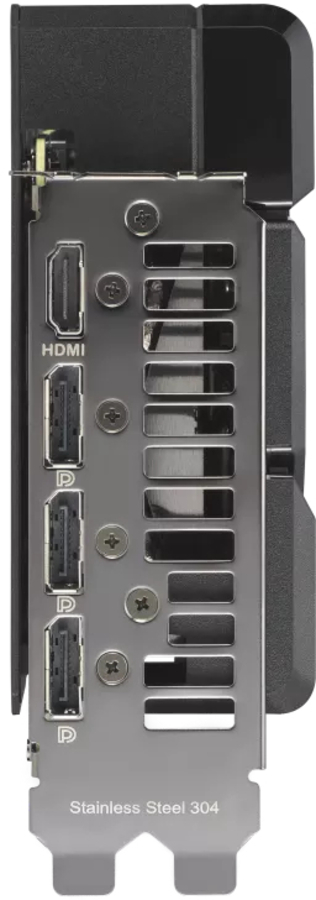

Ports & interfaces |
|
Interface type |
PCI Express 4.0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|
DisplayPorts quantity |
3 |
|
Thunderbolt 3 ports quantity |
0 |
|
Mini HDMI ports quantity |
0 |
|
HDMI version |
2.1 |
|
Mini DisplayPorts quantity |
0 |
|
DisplayPort version |
2.1 |
|
Performance |
|
TV tuner integrated |
No |
|
OpenGL version |
4.6 |
|
Dual Link DVI |
No |
|
HDCP |
Yes |
|
HDCP version |
2.3 |
|
Design |
|
Cooling type |
Active |
|
Cooling technology |
ASUS Axial-tech |
|
Number of fans |
2 fan(s) |
|
Number of slots |
2.47 |
|
Product colour |
Black |
|
Power |
|
Minimum system power supply |
750 W |
|

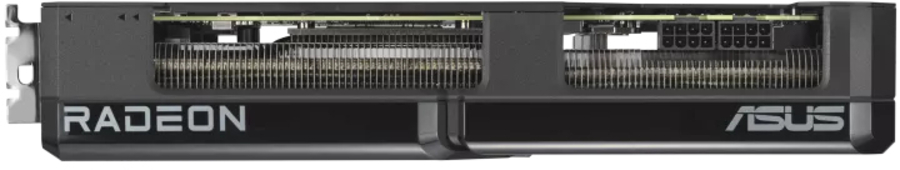

Supplementary power connectors |
2x 8-pin |
|
Weight & dimensions |
|
Weight |
933 g |
|
Length |
279.9 mm |
|
Depth |
49.3 mm |
|
Height |
133.9 mm |
|
Packaging data |
|
Package width |
405 mm |
|
Package depth |
233 mm |
|
Package height |
88.5 mm |
|
Package weight |
1.7 kg |
|
Package type |
Box |
|
Packaging content |
|
Manual |
Yes |
