StarTech 4-Bay Backplane for U.2 Drives
|
|
Regularly: $613.00
On Sale: $588.48
Sale Ends:
August 16th, 2025
Manufacturer:
StarTech
StarTech.com 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) NVMe SSDs, Includes Mini-SAS HD Cables/Removeable Trays (4U2525-SAS-BACKPLANE)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59593794
|
4U2525-SAS-BACKPLANE
|
65030900133 |
Active
|
Details
|
General Information |
|
Summary |
Install four 2.5in U.2 (SFF-8639) NVMe drives into one 5.25in bay, with removable drive trays

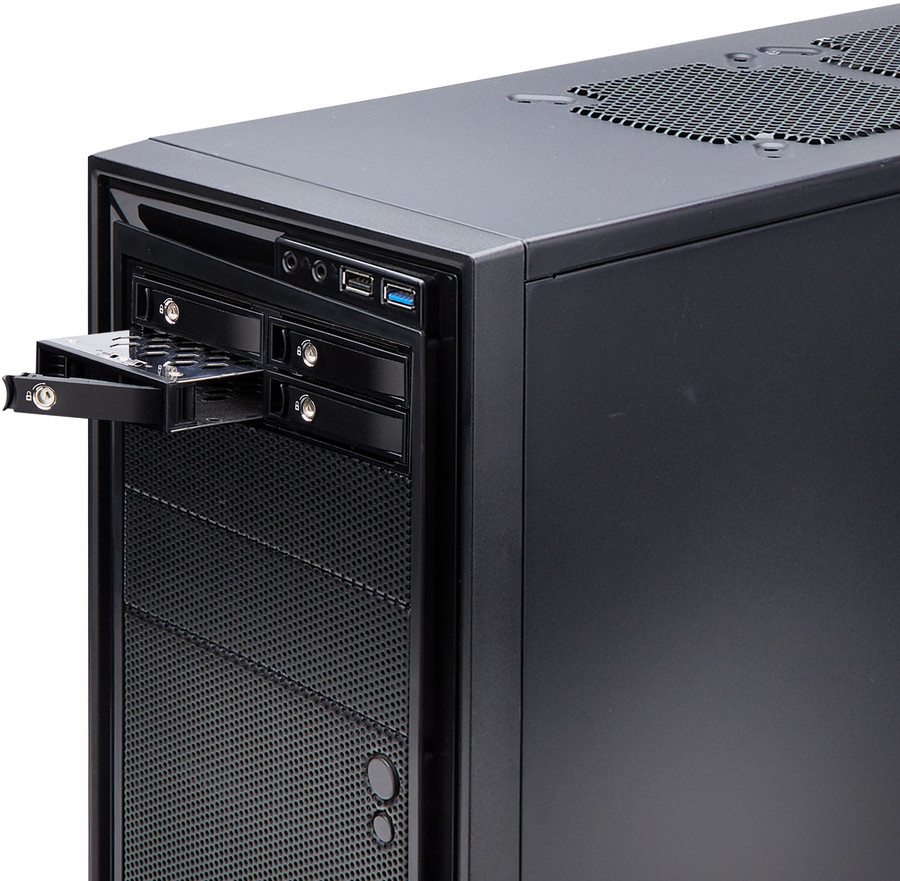

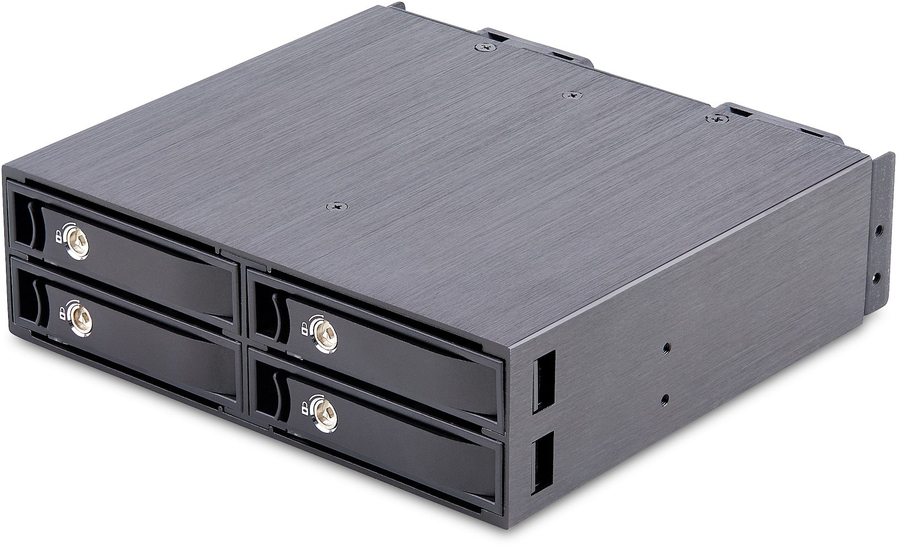

This 4-Bay Drive Backplane or Mobile Rack facilitates the installation of up to four 2.5-inch U.2 (SFF-8639) NVMe SSD/HDDs within a single 5.25-inch bay.
Secure Design

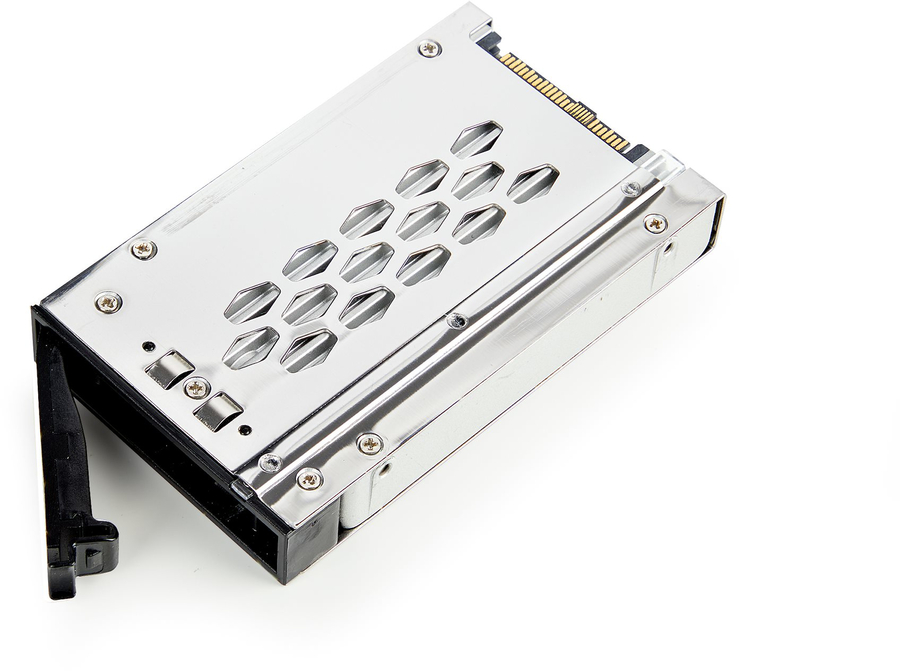

Enhance security and stability with lockable drive trays, providing an additional layer of protection while preventing accidental hot swaps*. The LEDs provide a visual indication of individual drive status and activity.
*Hot swap support is dependent on host computer PCIe hot swap capability.
Well-Vented

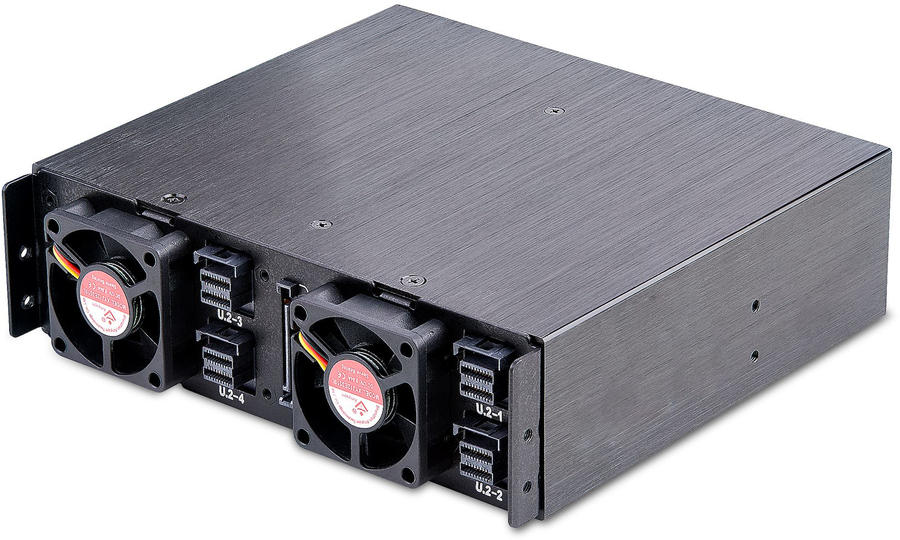

The Aluminum body is designed to facilitate heat dissipation ensuring optimal temperatures for the drives. Two rear cooling fans provide two adjustable airflow settings, ensuring reliable and sustained performance.
Hassle-Free Setup

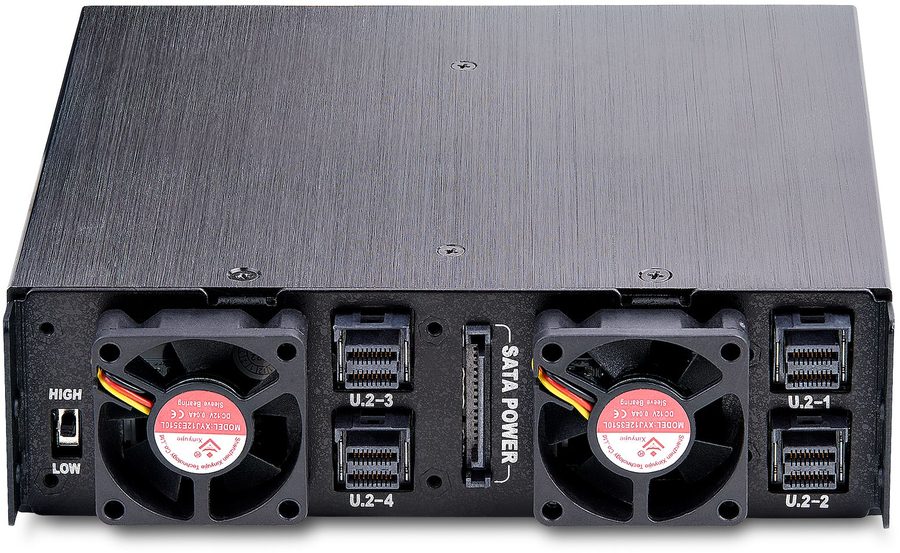

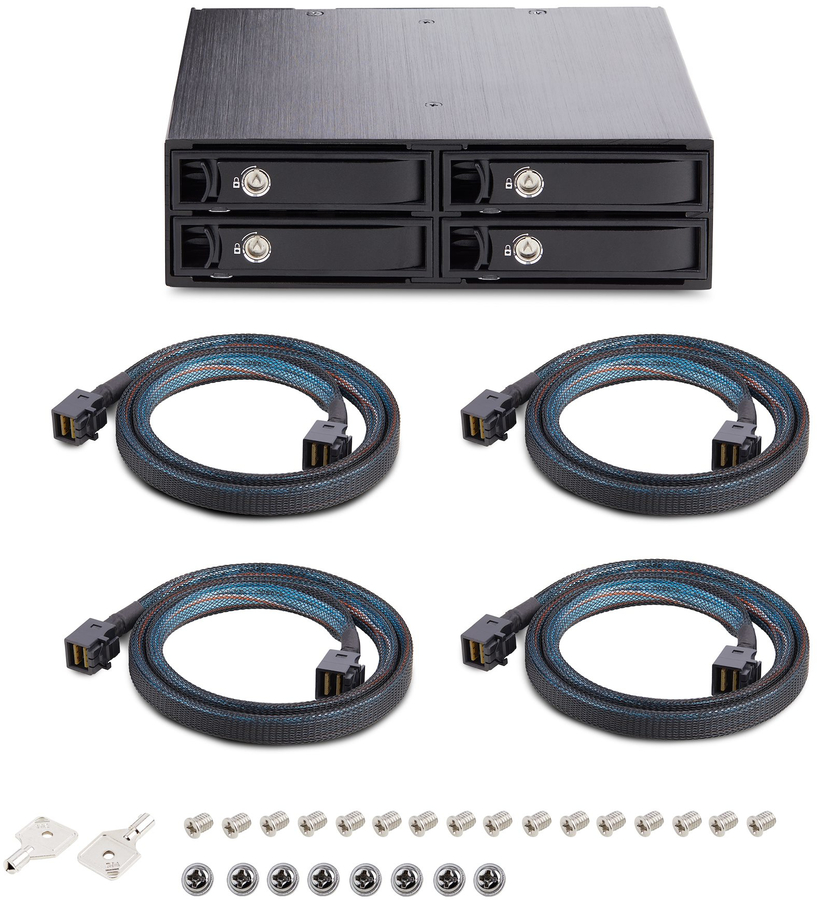

This mobile rack includes four 2ft (61cm) Mini-SAS HD Cables, and drive/backplane mounting screws. Power the drives through a single SATA Power connection from the desktop/server power supply.
The StarTech.com Advantage
|
|
Features |
|
Size (imperial) |
13.3 cm (5.25") |
|
Type |
Storage drive tray |
|
Product colour |
Black |
|
Number of SSDs supported |
4 |
|
SSD form factor |
U.2 |
|
Material |
Aluminium |
|
Number of cycles |
500 |
|
Supported storage drive heights |
7,9.5,12.5,15 mm |
|
Hot-swap |
Yes |
|
Airflow (imperial) |
2.47 cfm |
|
Noise level |
21.3 dB |
|
Number of fans |
2 fan(s) |
|
Fan diameter |
3.5 cm |
|
Data transfer rate |
32 Gbit/s |
|
LED indicators |
Yes |
|
Key lock |
Yes |
|
Bearing type |
Sleeve bearing |
|
Mean time between failures (MTBF) |
30000 h |
|
Ports & interfaces |
|
Port multiplier |
No |
|
Packaging data |
|
Package width |
212 mm |
|
Package depth |
180 mm |
|
Package height |
133 mm |
|
Package weight |
1.1 kg |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Quick start guide |
Yes |
|
Cables included |
MiniSAS |
|
Screws included |
Yes |
|
Number of lock keys included |
2 pc(s) |
|
Number of screws |
24 |
|
Operational conditions |
|
Storage temperature (T-T) |
0 - 55 °C |
|
Operating temperature (T-T) |
-20 - 55 °C |
|
Operating relative humidity (H-H) |
5 - 65% |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Products per master (outer) case |
6 pc(s) |
|
Master (outer) case width |
445 mm |
|
Master (outer) case length |
420 mm |
|
Master (outer) case height |
200 mm |
|
Sustainability |
|
Sustainability compliance |
Yes |
|
