Ubiquiti PowerBeam AC PBE-5AC-620 5GHz, 29dBi, 620mm
|
|
Regularly: $278.00
On Sale: $269.66
Sale Ends:
November 16th, 2025
Manufacturer:
Ubiquiti
PBE-5AC-620 - 5GHz, 29dBi, 620mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59620211
|
PBE-5AC-620
|
810354022593 |
Active
|
Details
|
General Information |
|
Summary |

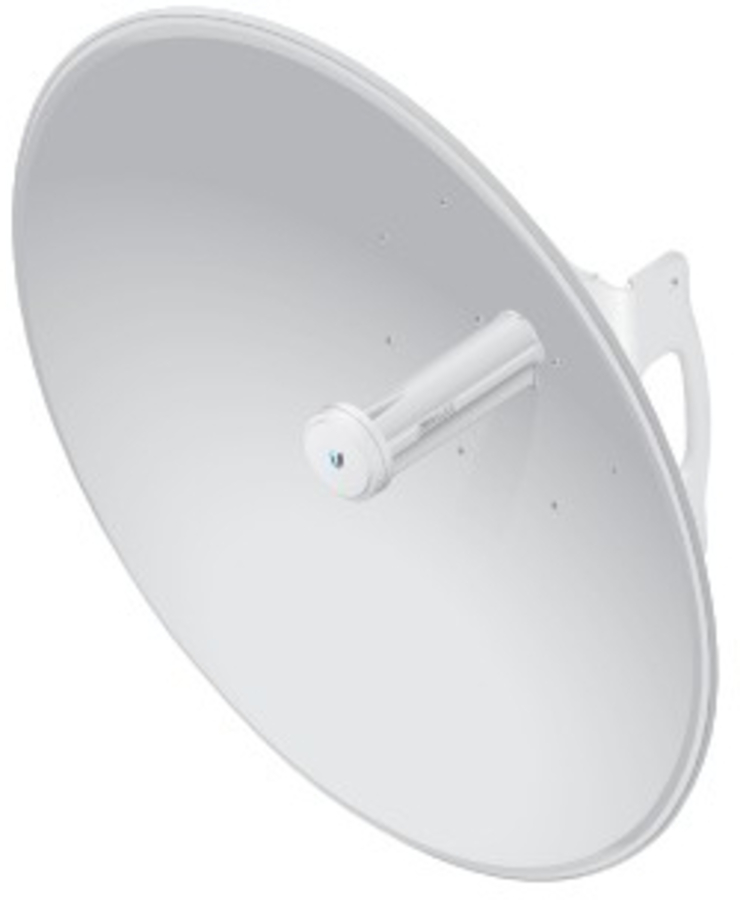

Ubiquiti PBE-5AC-620 PowerBeam AC High-Performance airMAX Bridge. The PBE-5AC-620 PowerBeam ac High-Performance airMAX Bridge from Ubiquiti Networks is suitable for CPE deployments requiring maximum performance. A dish reflector design with proprietary airMAX ac technology, offers improved latency, noise immunity, scalability, and significantly increased throughput performance of up to 450+ Mb/s and also offers wide range of 19+ mi (30+ km). The InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance while eliminating cable losses. Ubiquiti's airMAX engine with custom IC improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. |
|
Data transmission |
|
Maximum data transfer rate |
1000 Mbit/s |
|
Antenna |
|
Antenna gain level (max) |
29 dBi |
|
Wireless LAN features |
|
Frequency band |
5 GHz |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Features |
|
LED indicators |
LAN, Power, WLAN |
|
Internal memory |
136 MB |
|
Power |
|
Power consumption (typical) |
8.5 W |
|
Power over Ethernet (PoE) |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Certificates |
|
Certification |
FCC, IC, CE |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
620 x 620 x 386 mm |
|
Weight |
6.4 kg |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
