Engineering that’ll take your breath away

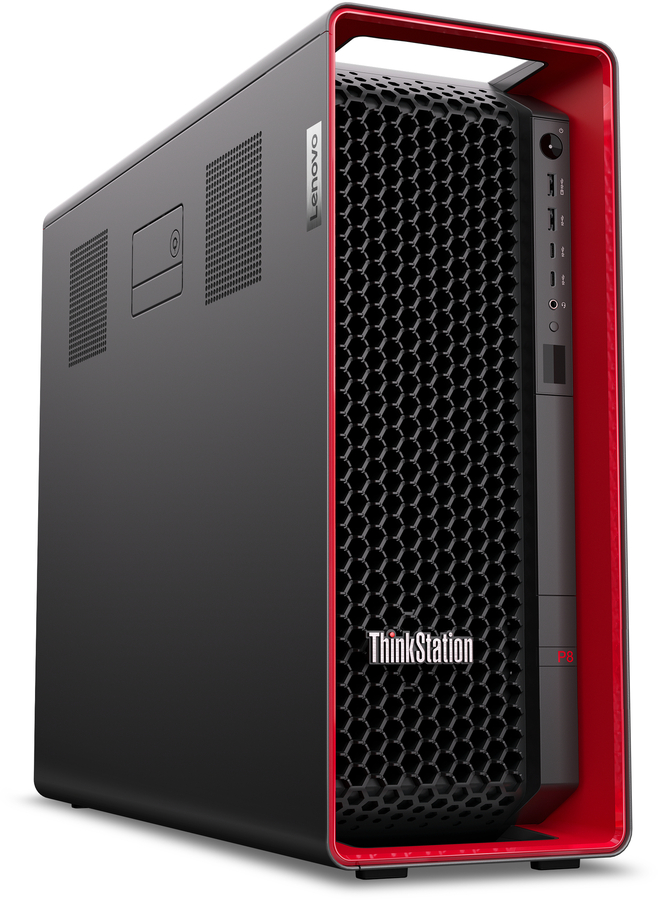

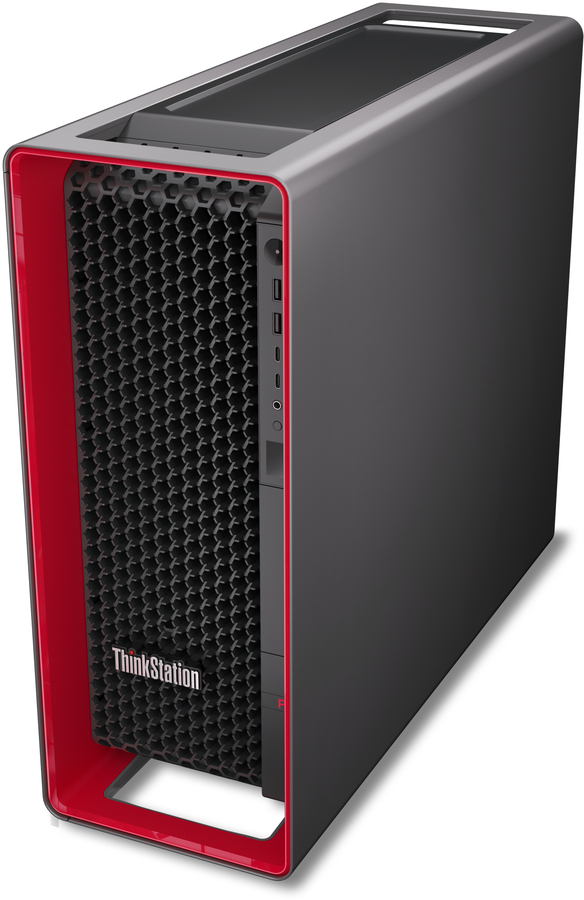

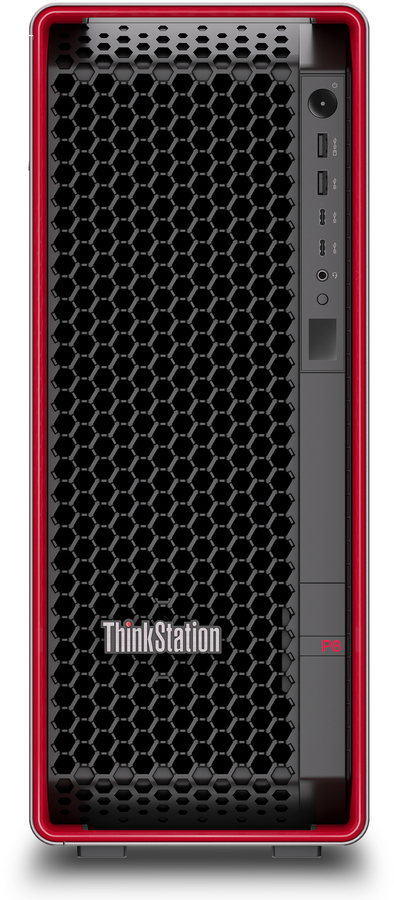

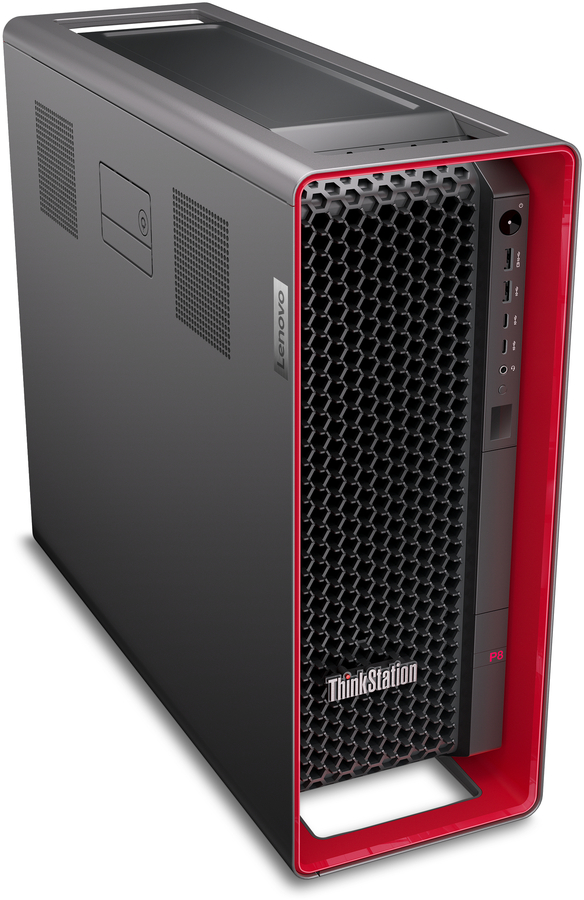

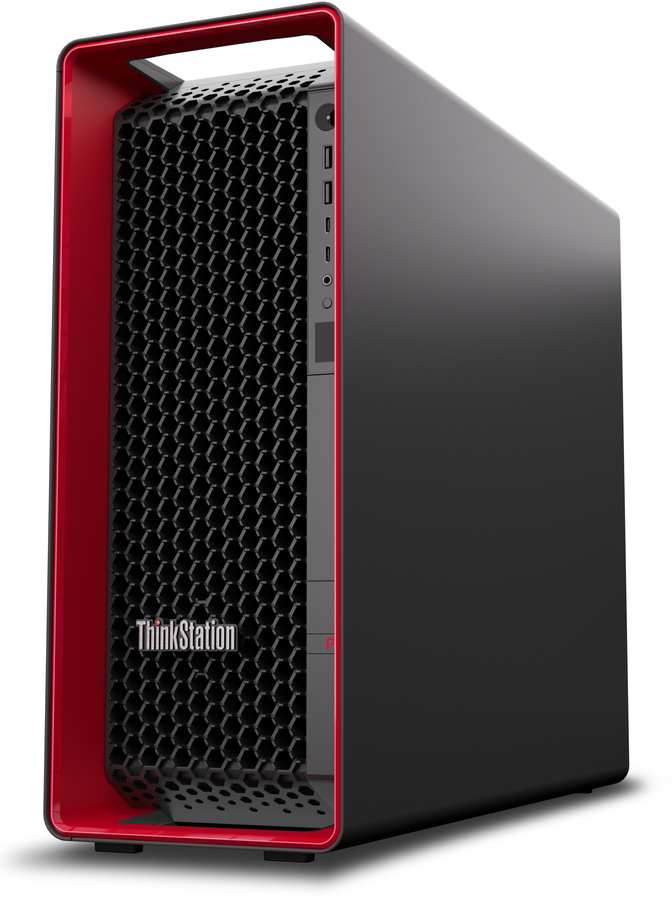

Meet the leading AMD Ryzen™ Threadripper™ PRO-powered workstation. With all its power, speed, and performance, the Lenovo ThinkStation P8 breezes through labor-intensive workflows and high-end applications, including AR/VR, AI modeling, and data science. Packed with state-of-the-art cooling, storage, and memory it boasts an iconic modular Aston Martin-inspired chassis that lets you swap components and expand this beast of a machine with ease.
The performance you need, when you need it
When it comes to Aston Martin, the iconic luxury British sports car manufacturer, and ThinkStation there are two key qualities that they share. Namely, high performance and ergonomic design - both of which you'll find on the ThinkStation P8. With its tool-less chassis, as well as front-drive access and hot-swap drives, this modular workstation is a breeze to customize and upgrade. What's more, the CPU cores and memory are scalable based on your workload needs - with multiple options for power supply and storage capacity.
A true force to be reckoned with
Whether it's on a desk or in the data center, the scalable rack-optimized ThinkStation P8 workstation packs a punch. For starters, it has the most cores in a single-socket workstation (up to a staggering 96). It boasts a breakthrough computer architecture with enhanced cooling and acoustics to maximize and streamline performance. It also supports up to three NVIDIA RTX™ graphics cards for unprecedented heavy-duty graphics, 3D rendering, game development, and more.
Durable, reliable, & sustainable
Each ThinkStation P8 undergoes stringent Lenovo tests to ensure it delivers maximum uptime, essential for mission-critical environments. A host of independent software vendors (ISVs)* also assess it to check that it can zip through compute-intensive, multithreaded tasks. It also comes with a number of energy efficiency and sustainable registrations and certifications, including EPEAT® Gold and TCO 9.0. What's more, its packaging is composed of recycled, biobased, and/or sustainably forested content.
*See the complete list of ISV certifications
Taking the guesswork out of security
At the heart of every ThinkStation P8 lies ThinkShield—a suite of essential hardware and software security solutions that work together to safeguard your workstation and your data. It includes the Trusted Platform Module (TPM) to encrypt your passwords and data. Smart USB protection prevents unauthorized access to the USB ports, of which the P8 has many. It also has a self-healing BIOS feature should the system becomes corrupt or is maliciously attacked. And there's a Kensington Security Slot™ to physically secure the PC.
Specifications may vary depending upon region / model. |
|
Processor |
|
Processor family |
AMD Ryzen Threadripper PRO |
|
Processor manufacturer |
AMD |
|
Processor model |
7985WX |
|
Processor frequency |
5.1 GHz |
|
Processor generation |
AMD Ryzen Threadripper PRO 7000 WX-Series |
|
Processor cores |
64 |
|
Processor threads |
128 |
|
Processor boost frequency |
3.2 GHz |
|
Processor cache |
256 MB |
|
Processor cache type |
L3 |
|
Number of processors installed |
1 |
|
Processor socket |
Socket sTR5 |
|
Memory |
|
Internal memory |
128 GB |
|
Maximum internal memory |
1 TB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory layout (slots x size) |
4 x 32 GB |
|
Memory slots |
8x DIMM |
|
Memory clock speed |
4800 MHz |
|
ECC |
Yes |
|
Memory channels |
Octa-channel |
|
Storage |
|
Total storage capacity |
4 TB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Number of storage drives installed |
1 |
|
Total SSDs capacity |
4 TB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
4 TB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Card reader integrated |
Yes |
|
Graphics |
|
Discrete graphics card |
Yes |
|
On-board graphics card |
No |
|
Discrete graphics card model |
NVIDIA RTX 5000 Ada |
|
On-board graphics card model |
Not available |
|
Discrete graphics card memory |
32 GB |
|
Performance |
|
Product type |
Workstation |
|
Motherboard chipset |
AMD WRX90 |
|
Password protection |
Yes |
|
Password protection type |
BIOS, Power on, Supervisor |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Built-in speaker(s) |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
1000,10000 Mbit/s |
|
Cabling technology |
10/100/1000Base-T(X) |
|
LAN controller |
Marvell AQC113, Realtek RTL8111EP |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
|
WLAN controller manufacturer |
AMD |
|
WLAN controller model |
AMD RZ616 |
|
Antenna type |
2x2 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|

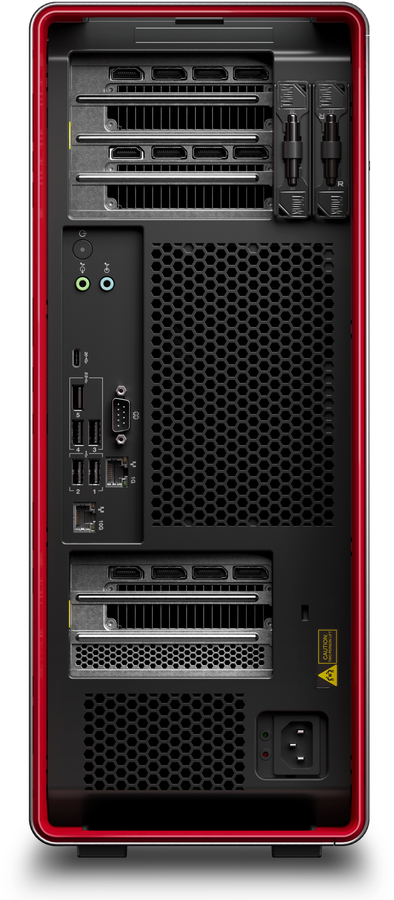

Ports & interfaces |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Thunderbolt 3 ports quantity |
0 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
3 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
Combo headphone/mic port |
Yes |
|
Line-out |
Yes |
|
Line-in |
Yes |
|
Number of rear USB ports |
6 |
|
Number of front USB ports |
4 |
|
Number of front audio ports |
1 |
|
Number of rear audio ports |
2 |
|
Power |
|
Power supply |
1400 W |
|
80 PLUS certification |
80 PLUS Platinum |
|
Design |
|
Chassis type |
Tower |
|
Product colour |
Black |
|
Volume |
39 L |
|

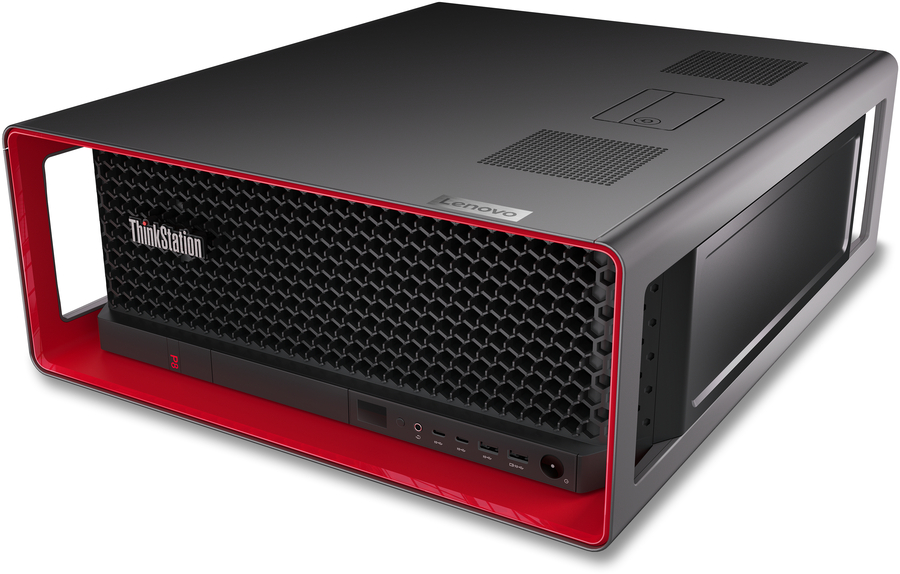

Placement supported |
Horizontal/Vertical |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Operating system language |
English |
|
Display |
|
Display included |
No |
|
Audio |
|
Audio chip |
Realtek ALC897-Q |
|
Audio system |
High Definition Audio |
|
Number of speakers |
1 |
|
Operational conditions |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Storage temperature (T-T) |
-40 - 60 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Operating altitude |
0 - 3048 m |
|
Non-operating altitude |
0 - 12192 m |
|
Weight & dimensions |
|
Width |
175 mm |
|
Depth |
508 mm |
|
Height |
434.4 mm |
|
Weight |
22.7 kg |
|
Packaging content |
|
Mouse included |
Yes |
|
Mouse connectivity |
Wired |
|
Keyboard included |
Yes |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR, EPEAT Gold, GREENGUARD, TCO |
|
Keyboard |
|
Keyboard connectivity |
Wired |
