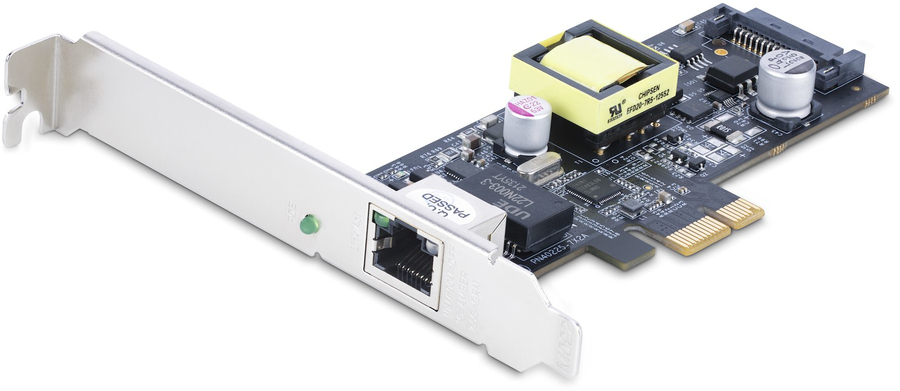

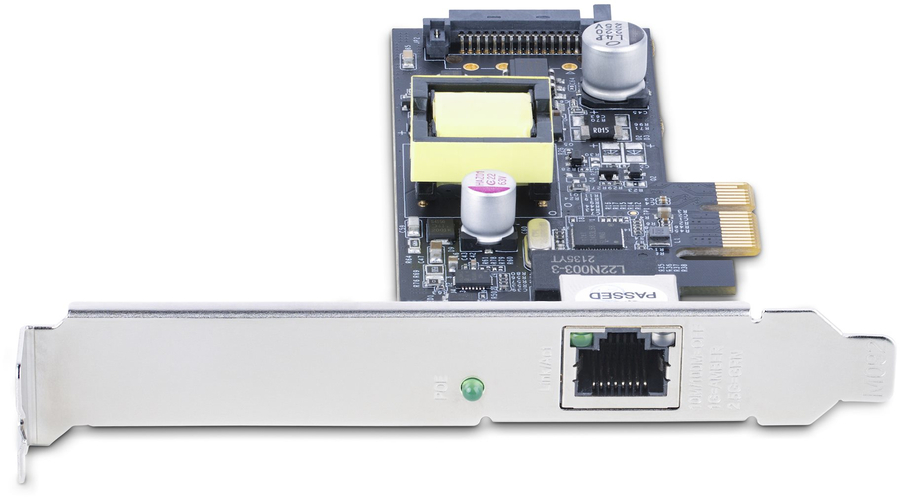

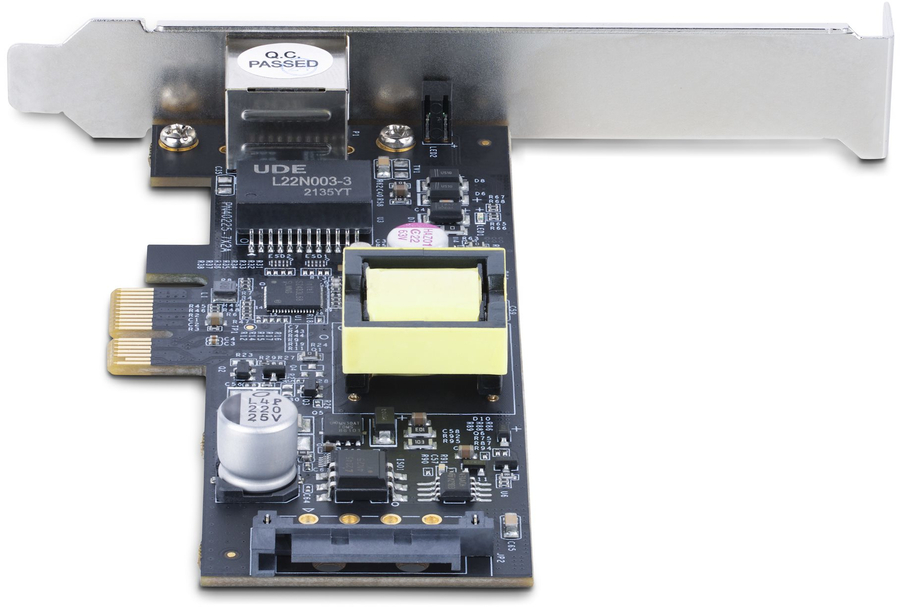

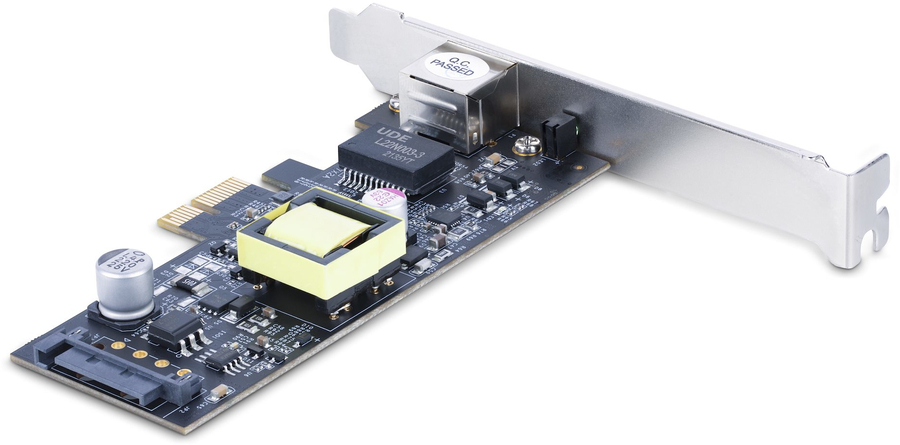

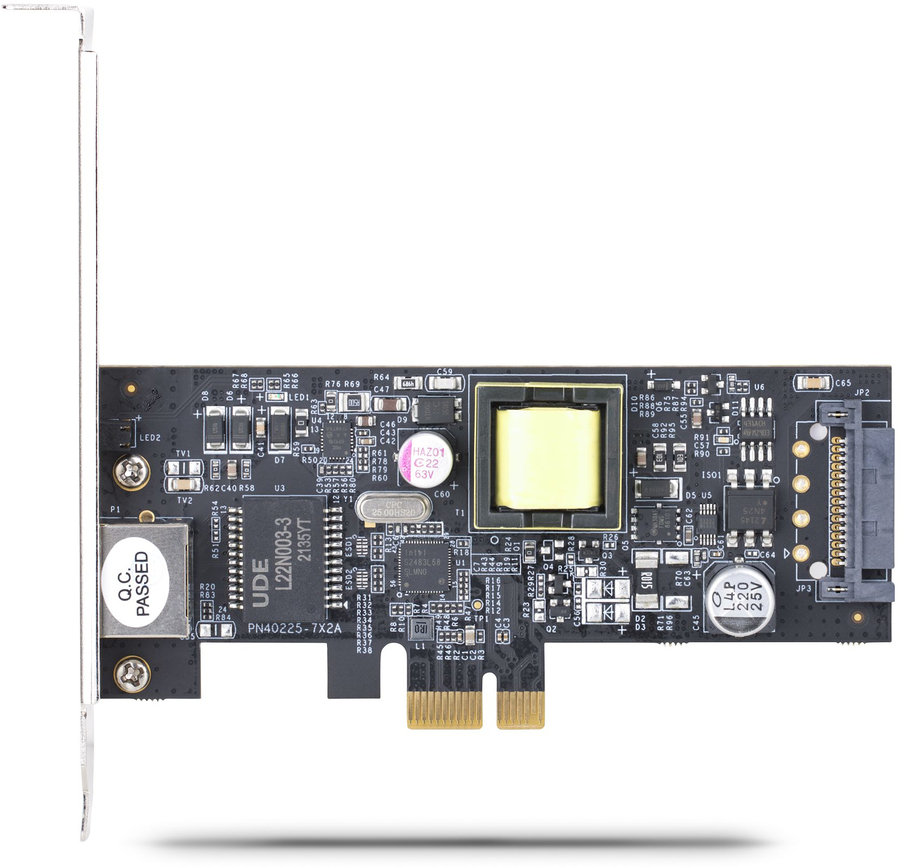

StarTech 1-Port 2.5Gbps NBASE-T PoE Network Card
|
|
Regularly: $175.00
On Sale: $168.00
Sale Ends:
May 10th, 2024
Manufacturer:
StarTech
StarTech.com 1-Port 2.5Gbps NBASE-T PoE Network Card, Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, SATA Powered Desktop Ethernet Interface - Supports Windows, Linux, VMware ESXI
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59638858
|
PR12GIP-NETWORK-CARD
|
65030903493 |
Active
|
Details
|
General Information |
|
Summary |
This 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.
Power Over Ethernet
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48V DC and 25.5W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power supply or Power Over Ethernet injector for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware

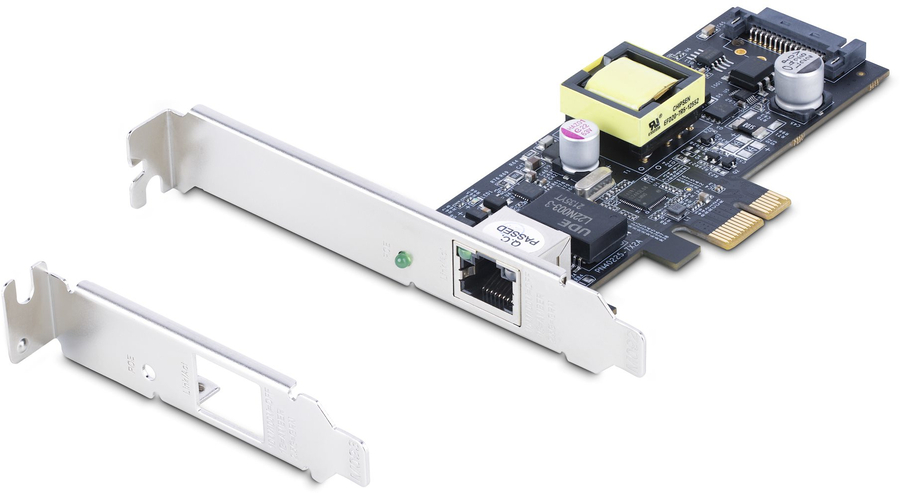

The network interface card connects via an available x1 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.
This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology. |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
PCI Express |
|
Interface |
Ethernet |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Power over Ethernet (PoE) ports quantity |
1 |
|
PCI version |
2.0 |
|
Network |
|
Maximum data transfer rate |
2500 Mbit/s |
|
Networking standards |
IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
|
Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
|
Wake-on-LAN ready |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Design |
|
Internal |
Yes |
|
Component for |
PC/Server |
|
Product colour |
Black |
|
Chipset |
Intel I225-V |
|
LED indicators |
Yes |
|
Power |
|
Output voltage |
48 V |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
|
Linux operating systems supported |
Yes |
|
Other operating systems supported |
VMware vSphere ESXi |
|
Server operating systems supported |
Windows Server 2019, Windows Server 2022 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 55 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Sustainability |
|
Sustainability compliance |
Yes |
|
Sustainability certificates |
RoHS |
|
Weight & dimensions |
|
Width |
54 mm |
|
Depth |
119 mm |
|
Height |
16 mm |
|
Weight |
62 g |
|
Packaging data |
|
Package width |
142 mm |
|
Package depth |
170 mm |
|
Package height |
30 mm |
|
Package weight |
70 g |
|
Packaging content |
|
Quick installation guide |
Yes |
|
Other features |
|
Number of SATA power connectors |
1 |
|
