General Information |
|
Summary |

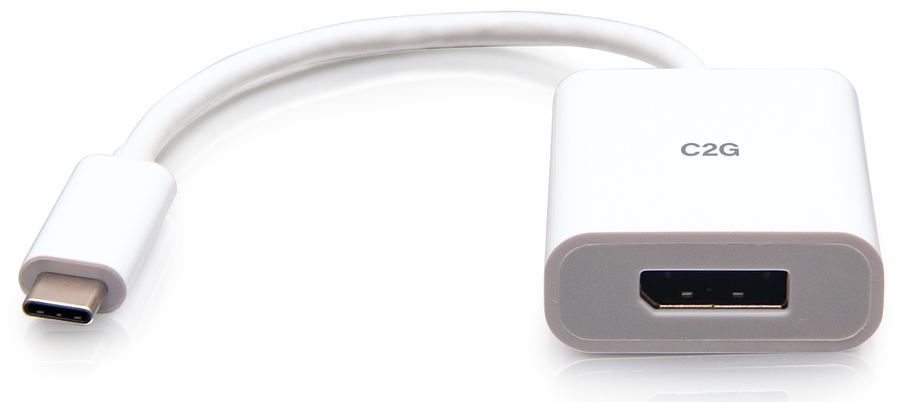

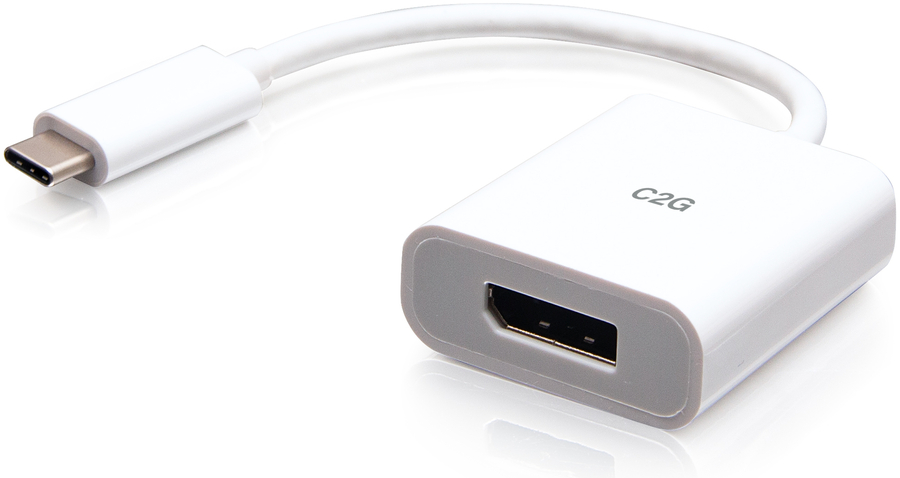

This USB-C to DisplayPort Adapter Converter is ideal for showing presentations, pictures, or other audio/video content from the USB-C port of a laptop or tablet to the DisplayPort input of a monitor, projector, or HDTV. This adapter supports up to a 4K (3840 x 2160) at 60Hz resolution, allowing it to deliver a high-quality video image to the connected display. The compact design of this adapter makes it perfect for BYOD (Bring Your Own Device) applications in education or corporate environments. This adapter is an ideal accessory for Apple® and other leading laptops and tablets.
|
|
Performance |
|
DVI output |
No |
|
HDMI output |
No |
|
DisplayPort output |
Yes |
|
Number of displays supported |
1 |
|
USB connector type |
USB Type-C |
|
USB connector gender |
Male |
|
USB connector form factor |
Straight |
|
DisplayPorts quantity |
1 |
|
Maximum resolution |
3840 x 2160 pixels |
|
Refresh rate at maximum resolution |
60 Hz |
|
Design |
|
Product colour |
White |
|
AWG wire size |
34 |
|
Weight & dimensions |
|
Width |
38 mm |
|
Depth |
41.9 mm |
|
Height |
15.4 mm |
|
Cable diameter |
4 mm |
|
USB cable length |
0.14152 m |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
15 - 85% |
|
Storage relative humidity (H-H) |
15 - 85% |
|
Technical details |
|
Compliance certificates |
CE, REACH, RoHS |
|
Sustainability compliance |
Yes |
