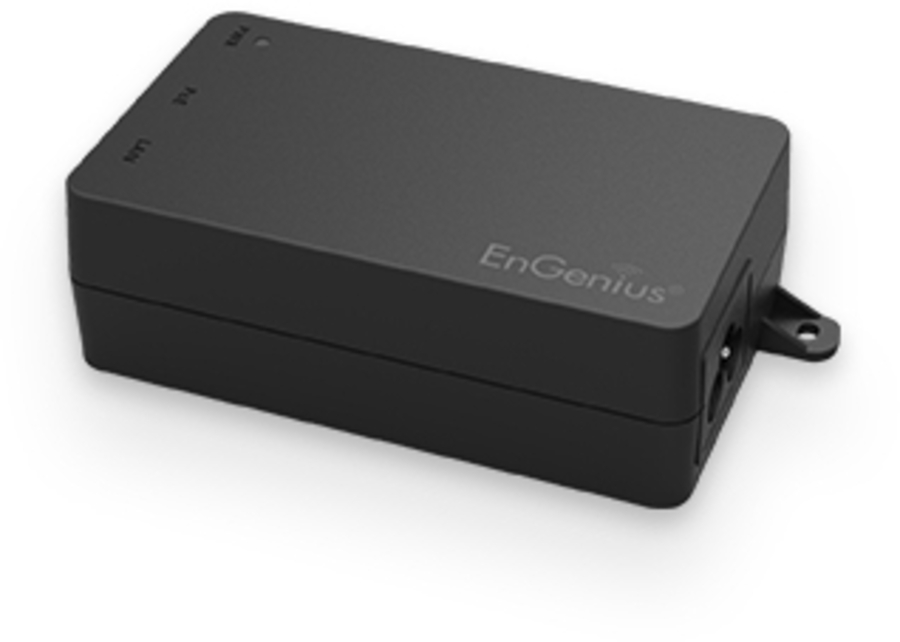

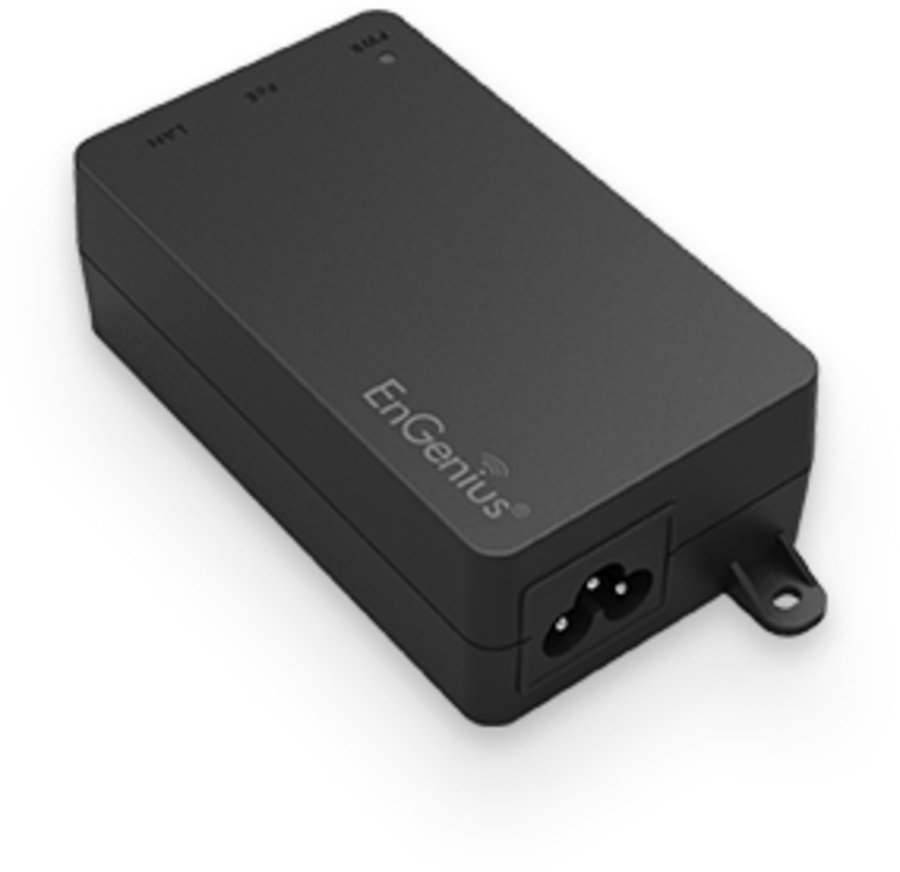

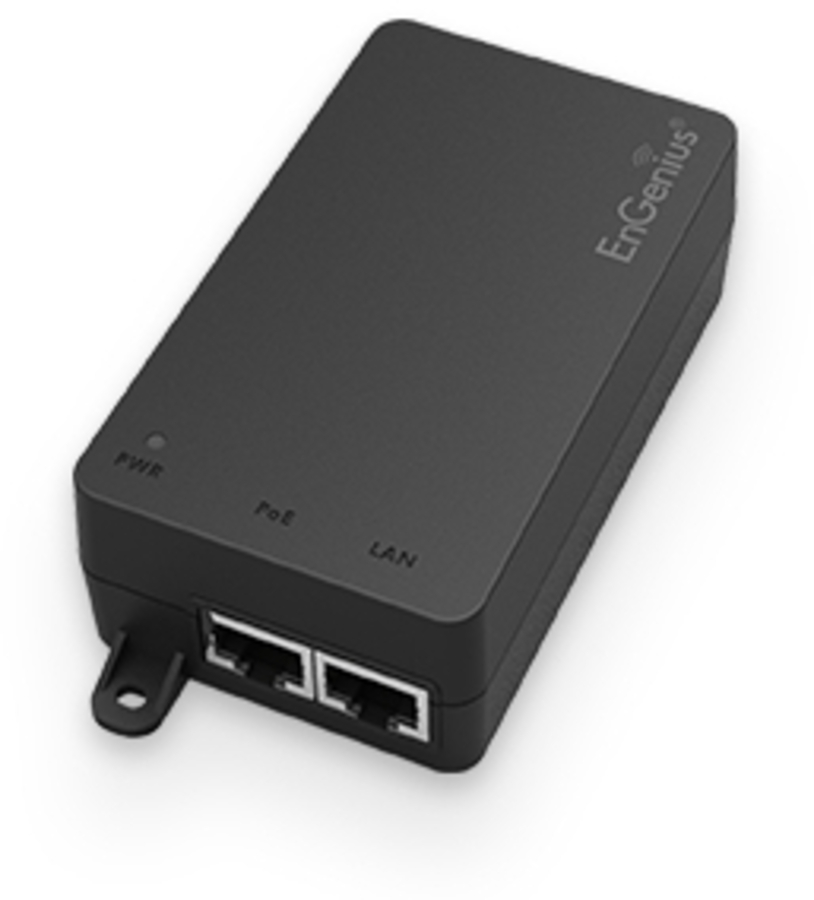

EnGenius 60W 802.3af/at/bt 2.5GbE Power over Ethernet Injector
|
|
Price: $57.00
Manufacturer:
EnGenius
54V, 2.5 Gigabit, 120-240 V, 60W, 100 x 58.4 x 33.4 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59668222
|
EPA5060HBT
|
655216010871 |
Active
|
Details
|
General Information |
|
Summary |
The EPA5060HBT 2.5 Gigabit Ethernet IEEE 802.3bt standard Power-over-Ethernet adapter supports high-speed data and up to 60 Watts/54V of power to compliant devices such as APs, IP cameras or VoIP phones to 100 meters away over a single cable. A compact, optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment. |
|
Network |
|
Ethernet interface type |
2.5 Gigabit Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
|
Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
|
Features |
|
Product colour |
Black |
|
Wall mountable |
Yes |
|
LED indicators |
Power |
|
Pin assignment & polarity |
Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-); Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-) |
|
Power protection features |
Over current, Over voltage, Short circuit |
|
Power |
|
Output power |
60 W |
|
Input voltage |
100 - 240 V |
|
Input frequency |
50 - 60 Hz |
|
Input current |
1.12A @ 120V AC, 0.75A @ 240V AC |
|
Surge protection voltage |
4 kV |
|
Certificates |
|
Compliance certificates |
CB, CE, Federal Communications Commission (FCC), UL |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Weight & dimensions |
|
Width |
100 mm |
|
Depth |
58.4 mm |
|
Height |
33.4 mm |
|
Weight |
198 g |
|
Logistics data |
|
Warranty period |
1 year(s) |
|
