General Information |
|
Summary |

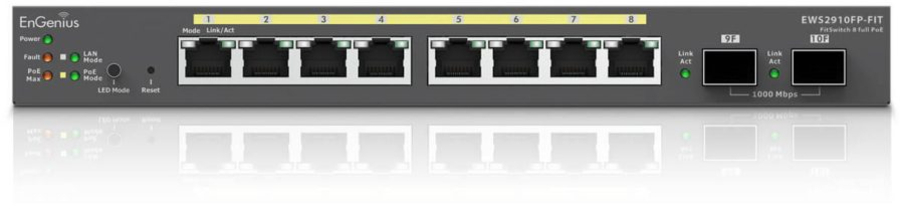

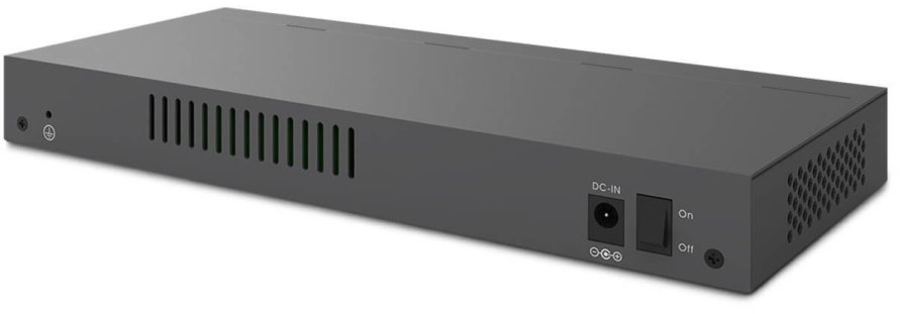

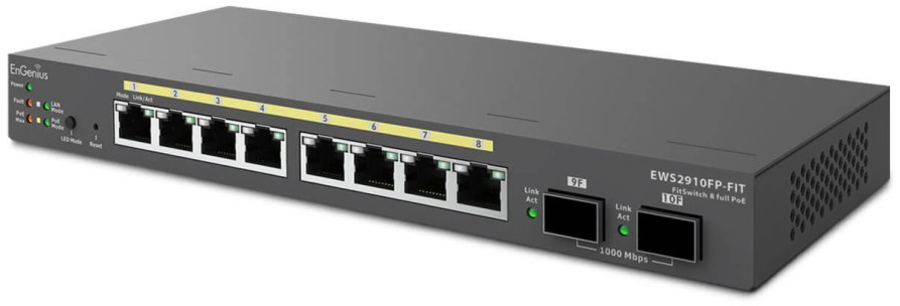

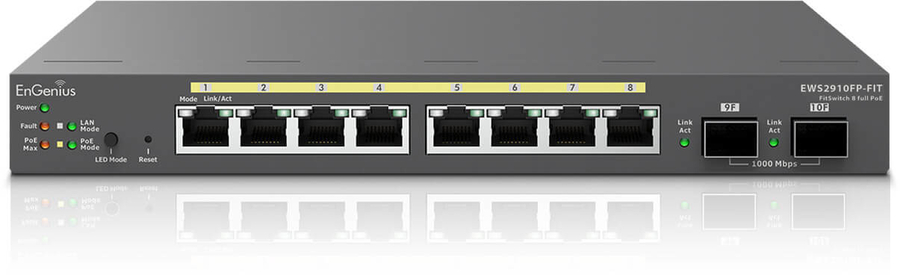

EnGenius Fit Gigabit 8-Port 110W PoE+ Switch with 2 SFP Ports
EnGenius Fit Layer 2+ Switch, EWS2910FP-FIT, offers 8 Gigabit PoE+ ports, 2 Gigabit SFP uplink ports, and a 110W budget. It provides zero-touch provisioning, centralized cloud management, and supports EnGenius FitXpress (cloud-managed), FitController (on-premises), or standalone management options. With advanced security features and Voice-VLAN, it maximizes network efficiency and reduces costs for SMBs..
|
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
ARP inspection |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
2 |
|
Installed SFP+ modules quantity |
0 |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|
Port mirroring |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Spanning tree protocol |
Yes |
|
VLAN support |
Yes |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
20 Gbit/s |
|
Static route |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Security |
|
DHCP features |
DHCP snooping, DHCP relay |
|
IGMP snooping |
Yes |
|
Loop protection |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Protocols |
|
Management protocols |
SNTP |
|
Design |
|
Product colour |
Grey |
|
Power |
|
Power source |
AC |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Total Power over Ethernet (PoE) budget |
110 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
105 mm |
|
Depth |
240 mm |
|
Height |
27 mm |
|
Weight |
620 g |
|
Packaging data |
|
Package width |
395 mm |
|
Package depth |
310 mm |
|
Package height |
102 mm |
|
Package weight |
2.75 kg |
|
Logistics data |
|
Master (outer) case net weight |
27.4 kg |
|
Master (outer) case width |
351 mm |
|
Master (outer) case length |
452 mm |
|
Master (outer) case height |
298 mm |
|
Harmonized System (HS) code |
85176990 |
|
Master (outer) case gross weight |
8.93 kg |
|
Products per master (outer) case |
10 pc(s) |
