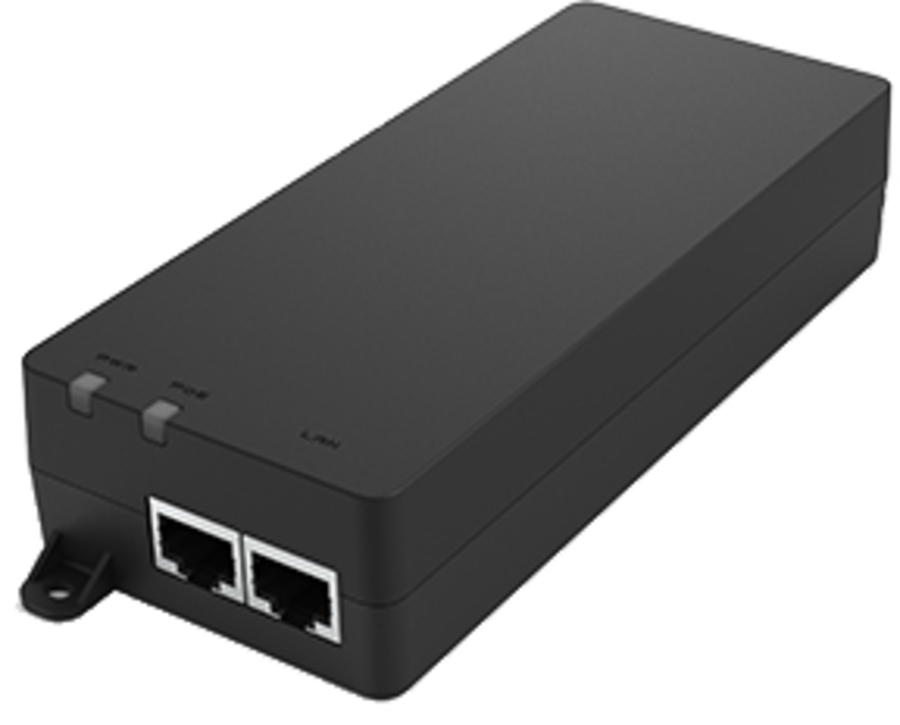

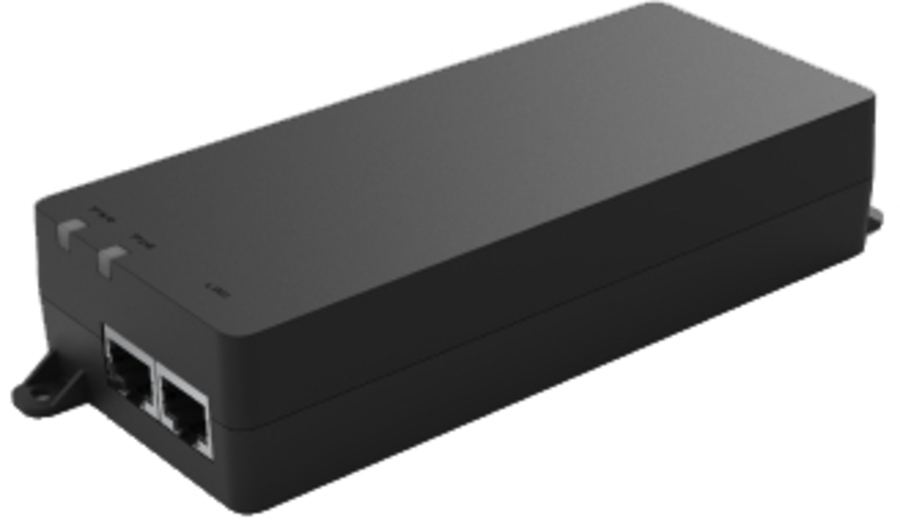

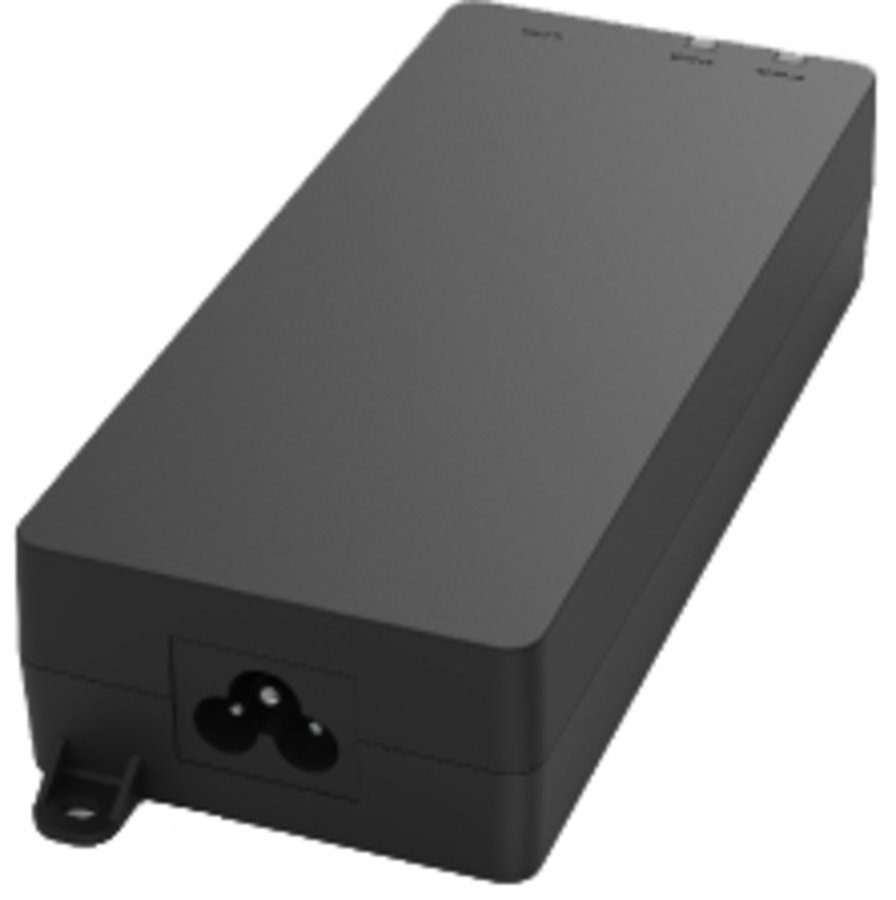

EnGenius 802.3af/at/bt 1GbE 90W PoE Injector
|
|
Price: $100.00
Manufacturer:
EnGenius
54V, Gigabit, 120-240 V, 90W, 150 x 65 x 34 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59668232
|
EPA5090GBT
|
655216010895 |
Active
|
Details
|
General Information |
|
Summary |
The EPA5090GBT IEEE 802.3bt standard Power-over-Ethernet adapter supports high-speed data and up to 90 Watts/54V of power to compliant devices such asnetwork devices that need a higher power to work normally to 100 meters away over a single cable. It is designed specifically to meet the demand for growing higher power required network equipment as big power AP, media server, thin client, POS system, health care, Lighting, PTZ speed dome camera, all-in-one touch PC, remote digital signage display. A compact, optimal port design provides easy, precise installation, while built-in power surge protection preserves valuable equipment. |
|
Network |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
|
Features |
|
Product colour |
Black |
|
Wall mountable |
Yes |
|
LED indicators |
Power |
|
Pin assignment & polarity |
Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-); Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-) |
|
Power protection features |
Over current, Over voltage, Short circuit |
|
Power |
|
Power over Ethernet (PoE) voltage |
54 V |
|
Output power |
90 W |
|
Input voltage |
100 - 240 V |
|
Input frequency |
50 - 60 Hz |
|
Input current |
0.95A @ 120V, AC 0.5A @ 240V AC |
|
Surge protection voltage |
4 kV |
|
Certificates |
|
Compliance certificates |
CB, CE, Federal Communications Commission (FCC), UL |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
65 mm |
|
Height |
34 mm |
|
Weight |
210 g |
|
Packaging data |
|
Package width |
178 mm |
|
Package depth |
90 mm |
|
Package height |
72 mm |
|
Package weight |
470 g |
|
Logistics data |
|
Warranty period |
1 year(s) |
|
Master (outer) case width |
200 mm |
|
Master (outer) case length |
380 mm |
|
Master (outer) case height |
400 mm |
|
Master (outer) case gross weight |
10 kg |
|
Products per master (outer) case |
20 pc(s) |
|
