General Information |
|
Summary |

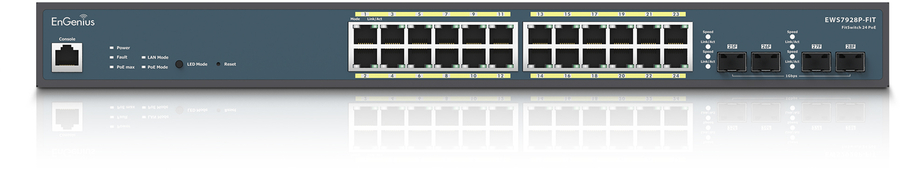

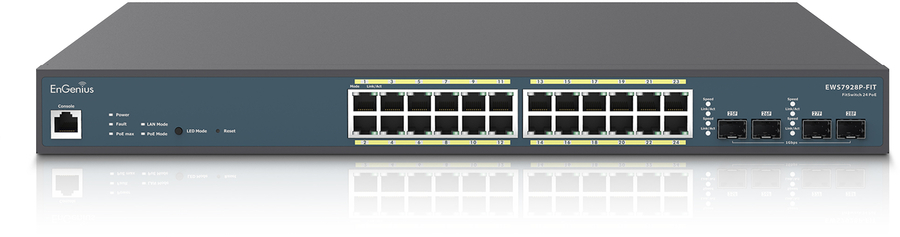

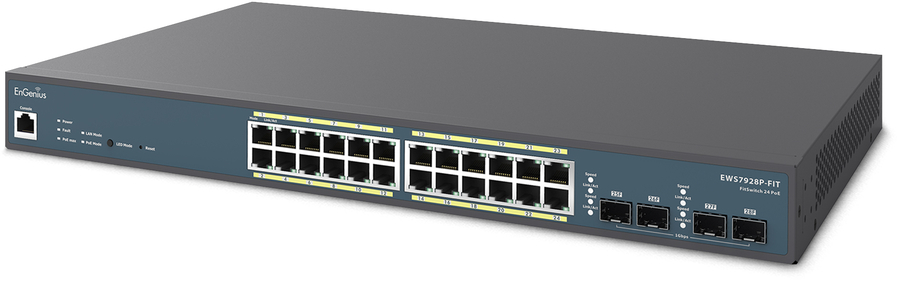

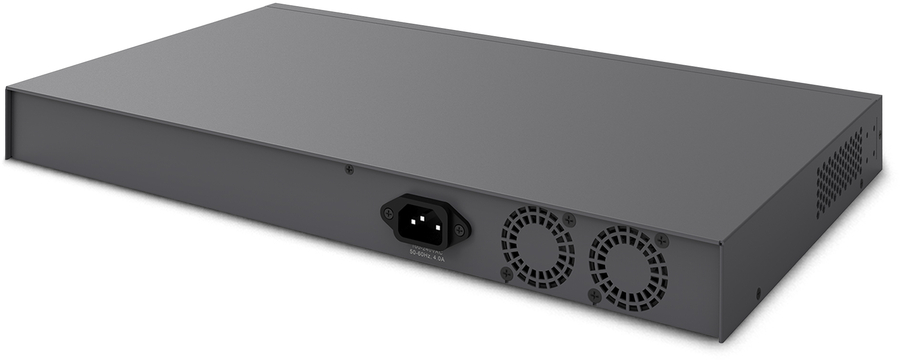

EnGenius Fit 24-Port Gigabit 240W PoE+ Switch with 4 SFP Ports
EnGenius Fit Layer 2+ Switch, EWS7928P-FIT, offers a powerful solution with 24 Gigabit PoE+ ports, 4 SFP uplink ports, and a 240W budget. It supports zero-touch provisioning and centralized cloud management and offers EnGenius FitXpress (cloud-managed), FitController (on-premises), or standalone management options. With robust security features and Voice-VLAN, it's optimized for network efficiency and is ideal for SMBs.
|
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
ARP inspection |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
24 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
4 |
|
Installed SFP+ modules quantity |
0 |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|
Port mirroring |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Spanning tree protocol |
No |
|
VLAN support |
Yes |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
56 Gbit/s |
|
Static route |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Security |
|
DHCP features |
DHCP snooping, DHCP relay |
|
IGMP snooping |
Yes |
|
Loop protection |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Protocols |
|
Management protocols |
SNTP |
|
Design |
|
Product colour |
Grey |
|
Power |
|
Power source |
PoE |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Total Power over Ethernet (PoE) budget |
240 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
440 mm |
|
Depth |
260 mm |
|
Height |
44 mm |
|
Packaging data |
|
Package width |
537 mm |
|
Package depth |
409 mm |
|
Package height |
105 mm |
|
Package weight |
4.21 kg |
|
Logistics data |
|
Master (outer) case net weight |
12.6 kg |
|
Master (outer) case width |
340 mm |
|
Master (outer) case length |
570 mm |
|
Master (outer) case height |
370 mm |
|
Harmonized System (HS) code |
85176990 |
|
Master (outer) case gross weight |
13.6 kg |
|
Products per master (outer) case |
3 pc(s) |
