General Information |
|
Summary |

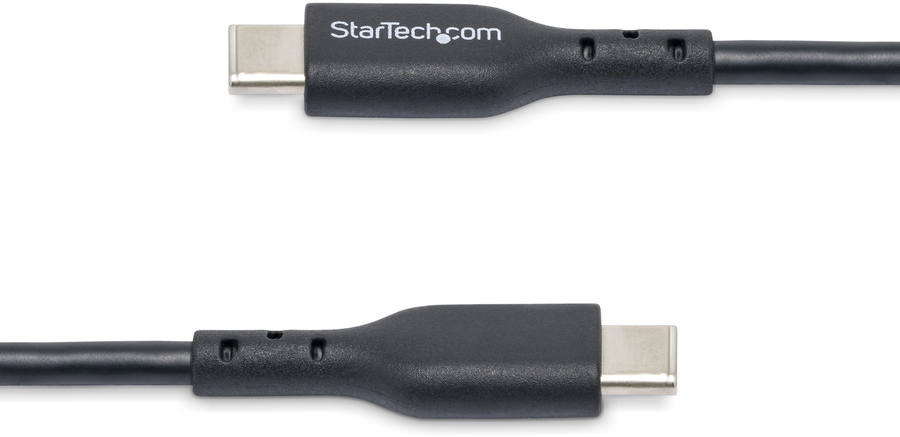

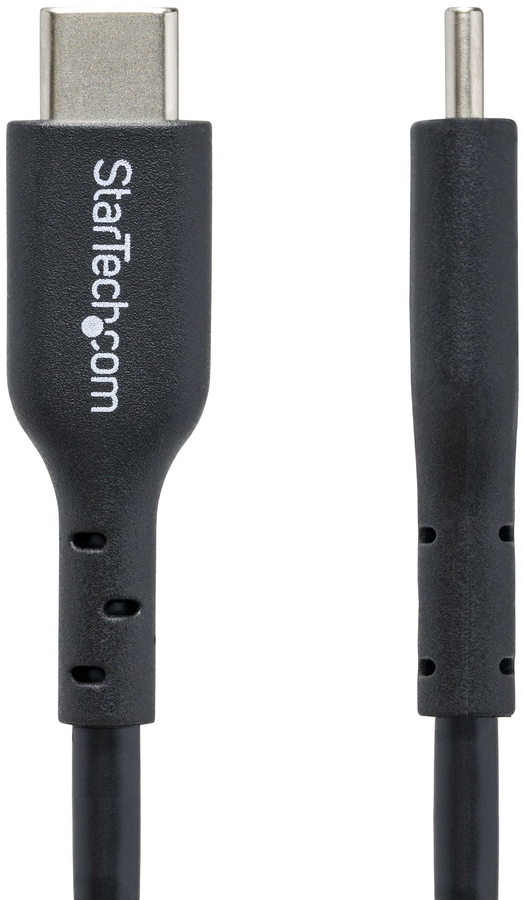

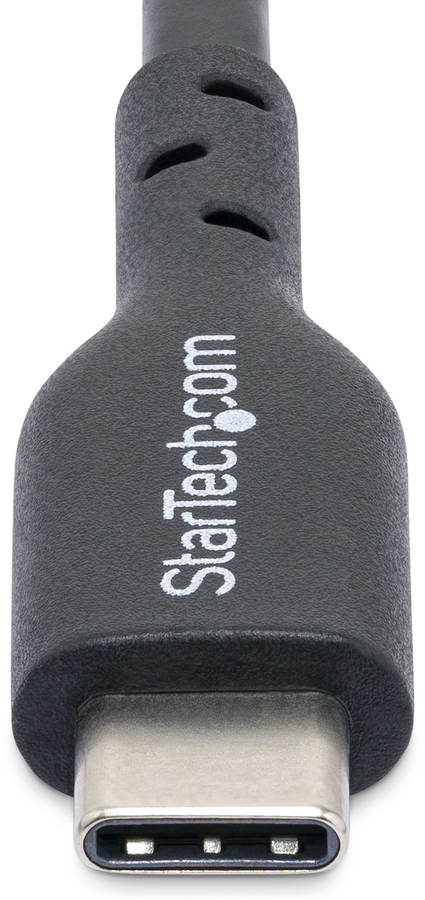

Connect a USB Type-C device to a USB-C wall charger or host computer

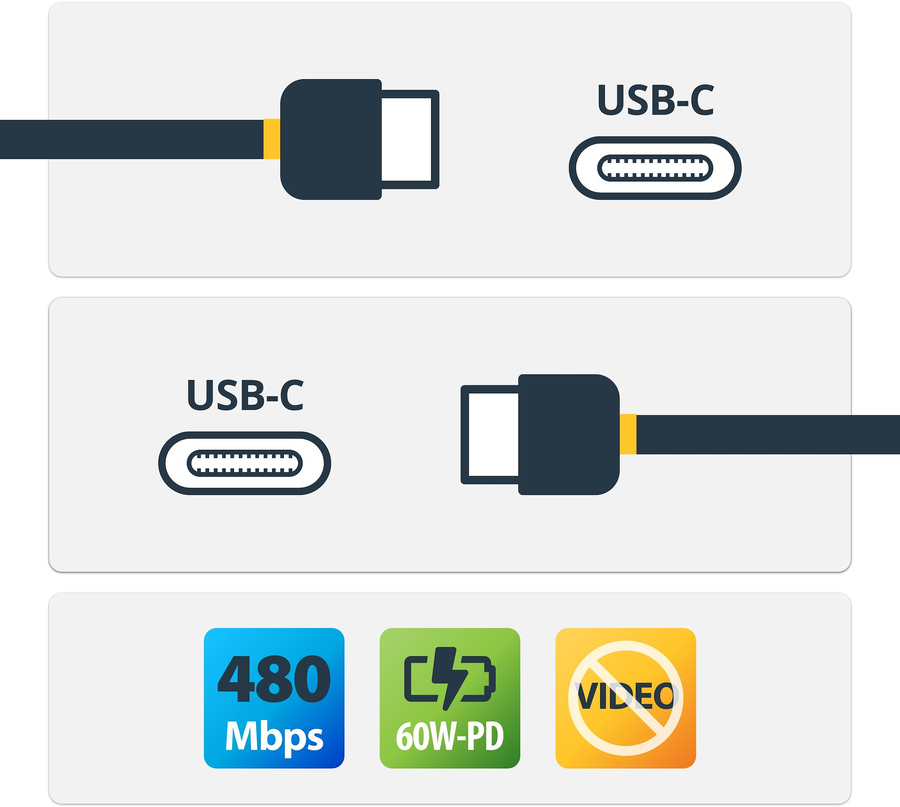

Seamlessly charge a USB Type-C mobile device or transfer files to a USB-C host computer with this high-quality USB-C cable. The USB-C charger cord facilitates up to 60W Power Delivery and 3A output for fast charging. It supports USB 2.0 (480Mbps) transfer rates and is suitable for general use.
Quality Construction
Designed for frequent charging, the USB-C Charger Cable features a rugged TPE outer jacket for increased wear resistance. Its flexible strain relief and nickel-plated connectors are designed to withstand over 10,000 insertion cycles, enhancing its durability and longevity.
Charge Mobile Devices On The Go
Charge a USB-C device with a USB-C wall charger, car charger, or power bank. The 1m (3.3ft) USB Type-C cable is the ideal length for desk workstations, commuters, in-car use or to reduce clutter when syncing with a USB-C laptop.
Power a Laptop
With up to 3A of output, the USB-C Charger Cord supports up to 60W of Power Delivery to charge a USB-C laptop, or fast charge a tablet or smartphone. To use, connect the cable from a USB-C laptop to a USB-C wall charger.
The StarTech.com Advantage
|
|
Features |
|
USB version |
USB 2.0 |
|
Connector 1 |
USB C |
|
Connector 2 |
USB C |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
Black |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
AWG wire size |
24/30 |
|
Connector contacts plating |
Nickel |
|
Cable jacket material |
Thermoplastic elastomer (TPE) |
|
Cable shielding |
Aluminum mylar foil |
|
Maximum data transfer rate |
0.48 Gbit/s |
|
Cable type |
Round cable |
|
USB Power Delivery (USB PD) |
Yes |
|
USB Power Delivery up to |
60 W |
|
USB Type-C DisplayPort Alternate Mode |
No |
|
Power |
|
Input voltage |
5 - 20 V |
|
Output current (max) |
3 A |
|
Weight & dimensions |
|
Cable length |
1 m |
|
Cable diameter |
3.5 mm |
|
Bend radius (min) |
8 mm |
|
Packaging data |
|
Package width |
225 mm |
|
Package depth |
125 mm |
|
Package height |
10 mm |
|
Package weight |
25 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Sustainability |
|
Doesn't contain |
Halogen |
|
Sustainability compliance |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 60 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Products per master (outer) case |
200 pc(s) |
|
Master (outer) case width |
320 mm |
|
Master (outer) case length |
500 mm |
|
Master (outer) case height |
210 mm |
