StarTech 1-Port 2.5Gbps NBASE-T PCIe Network Card
|
|
Regularly: $64.00
On Sale: $61.44
Sale Ends:
May 4th, 2025
Manufacturer:
StarTech
StarTech.com 1-Port 2.5Gbps PCIe Network Card, Computer Network Card, Intel® I225-V, Multi-Gigabit Ethernet Interface Card
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59686954
|
PR12GI-NETWORK-CARD
|
65030906203 |
Active
|
Details
|
General Information |
|
Summary |

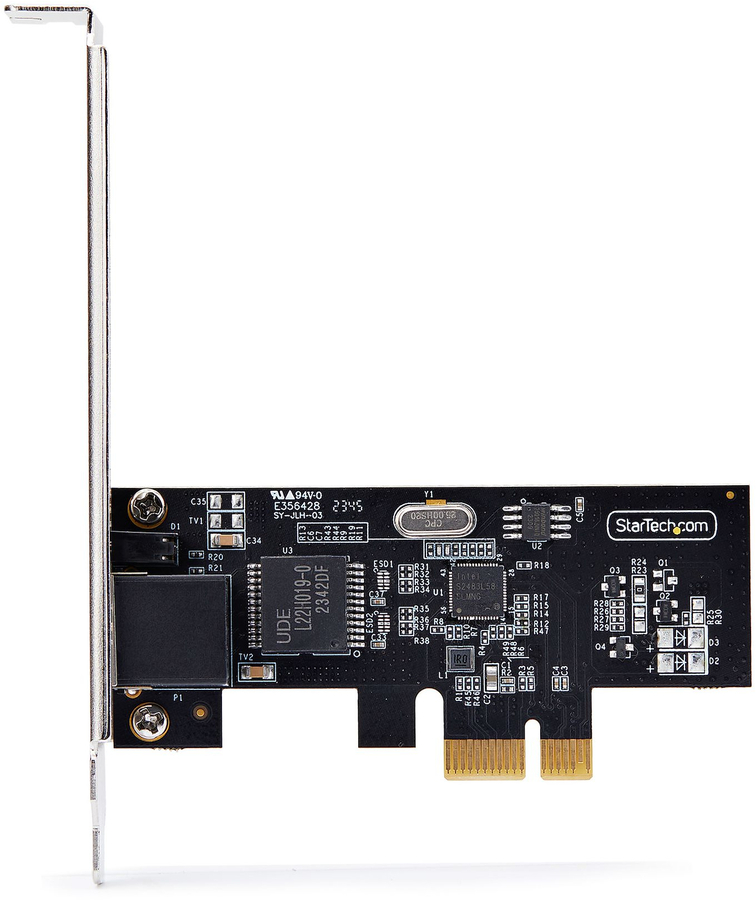

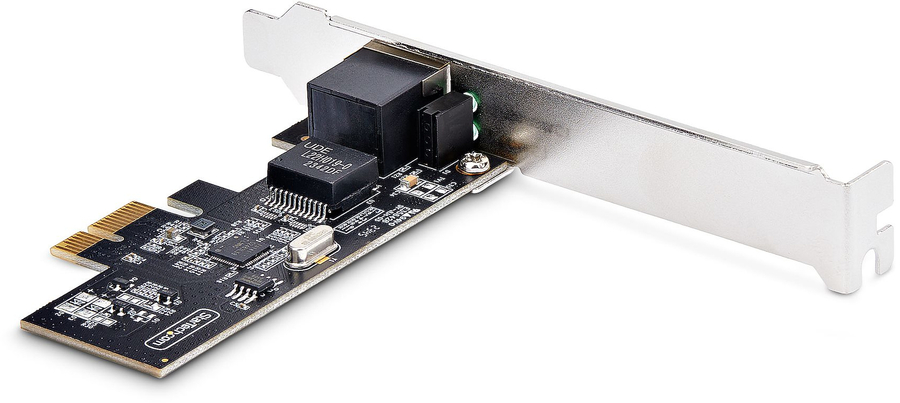

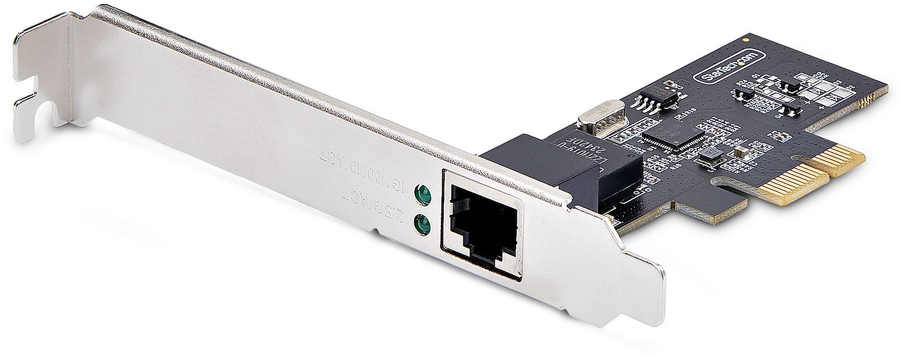

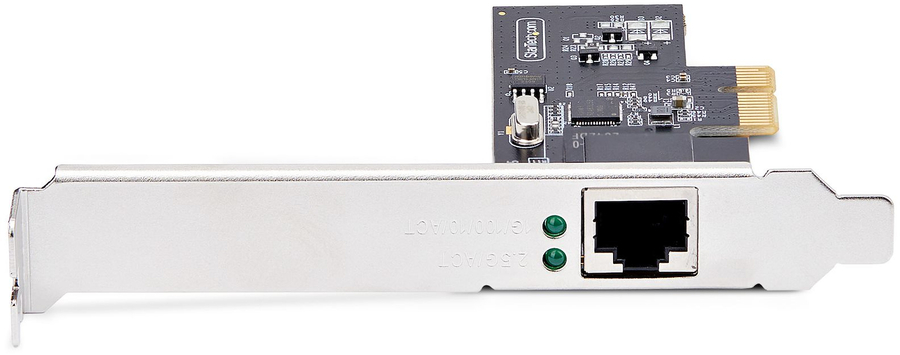

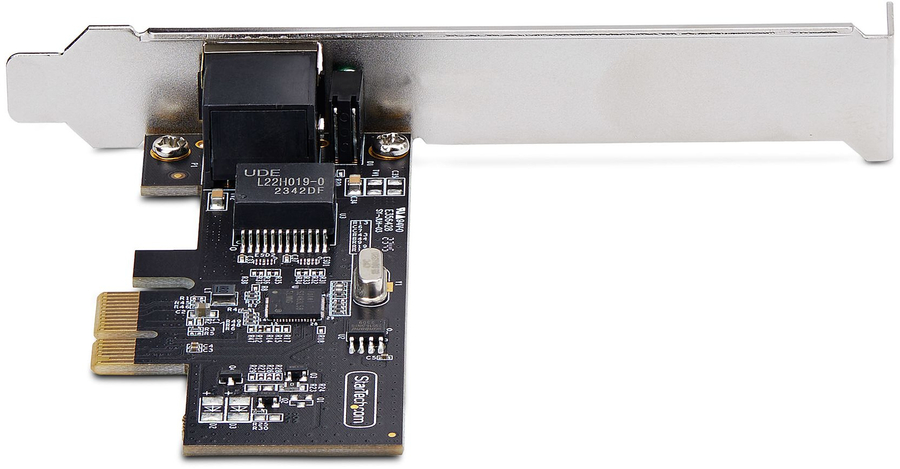

PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support
This 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTP, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds over Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware

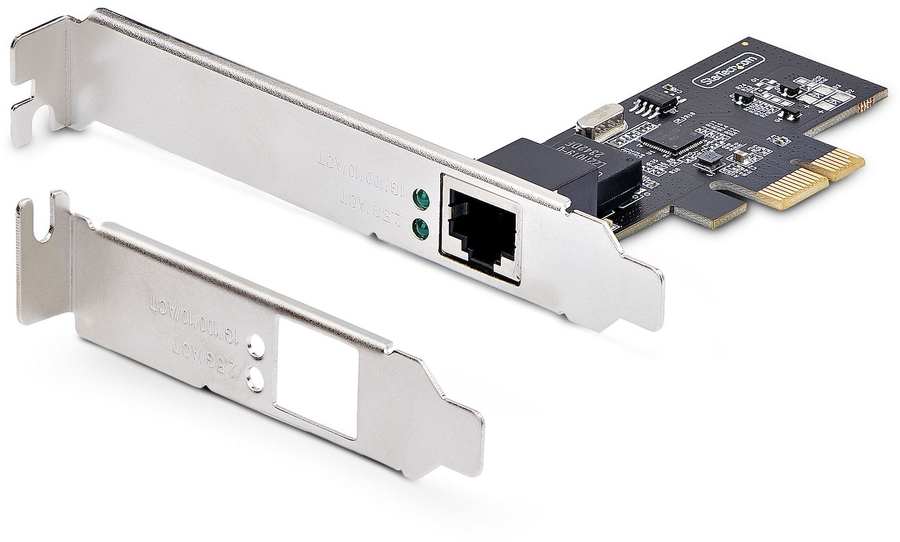

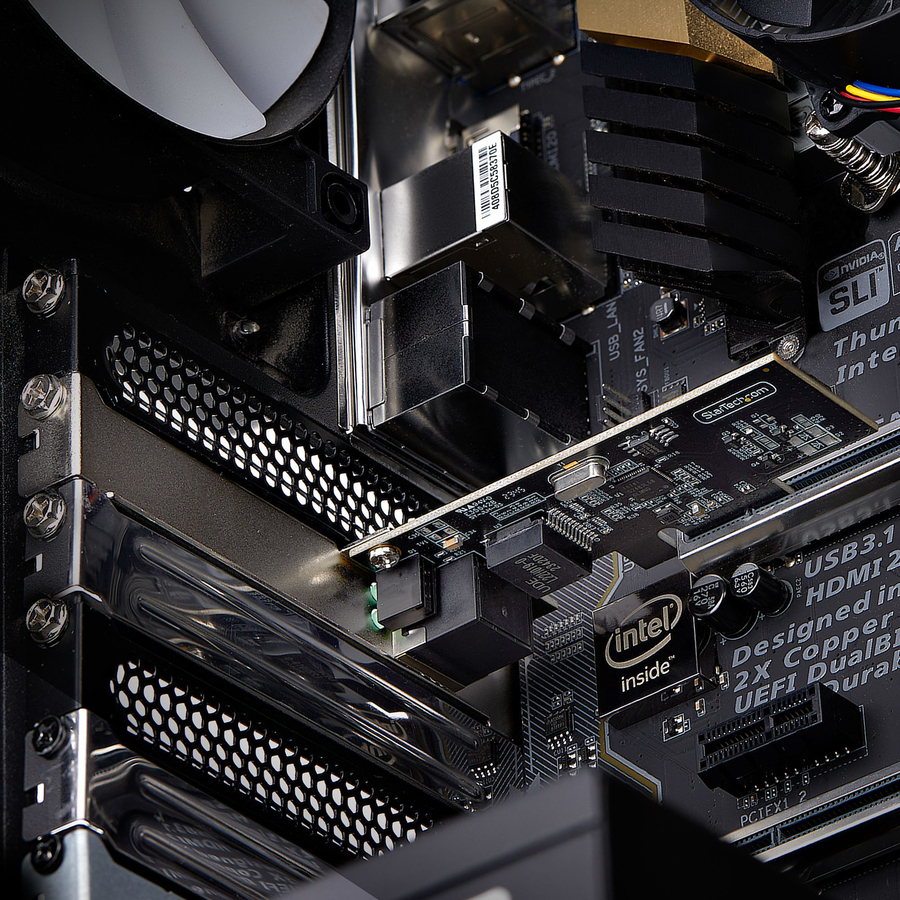

The network interface card connects via an available x1 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This Ethernet NIC card is compatible with Windows, Windows Server, and Linux.
This card supports the following advanced features: PXE boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.
The StarTech.com Advantage
|
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
PCI Express |
|
Interface |
Ethernet |
|
Ethernet LAN (RJ-45) ports |
1 |
|
PCI version |
2.0 |
|
Network |
|
Maximum data transfer rate |
2500 Mbit/s |
|
Networking standards |
IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
|
Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
|
Wake-on-LAN ready |
Yes |
|
Auto MDIX IEEE |
Yes |
|
Full duplex |
Yes |
|
Jumbo frames support |
Yes |
|
Auto-negotiation |
Yes |
|
Jumbo frames |
9000 |
|
Design |
|
Internal |
Yes |
|
Component for |
PC/Server |
|
Product colour |
Black |
|
Chipset |
Intel I225-V |
|
LED indicators |
Yes |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
|
Linux operating systems supported |
Yes |
|
Server operating systems supported |
Windows Server 2019, Windows Server 2022 |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 50 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Width |
89 mm |
|
Depth |
121 mm |
|
Height |
15 mm |
|
Weight |
100 g |
|
Packaging data |
|
Package width |
170 mm |
|
Package depth |
142 mm |
|
Package height |
30 mm |
|
Packaging content |
|
Mounting brackets included |
Yes |
|
Quick installation guide |
Yes |
|
Logistics data |
|
Master (outer) case width |
605 mm |
|
Master (outer) case length |
385 mm |
|
Master (outer) case height |
325 mm |
|
Products per master (outer) case |
80 pc(s) |
|
