General Information |
|
Summary |
Smaller, Faster, Better, AI Enabled
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape. |
|
Processor |
|
Built-in processor |
Yes |
|
Processor manufacturer |
Intel |
|
Processor family |
Intel Core Ultra 5 |
|
Processor generation |
Intel® Core™ Ultra (Series 1) |
|
Processor model |
125H |
|
Processor cores |
14 |
|
Processor threads |
18 |
|
Processor boost frequency |
4.5 GHz |
|
Performance cores |
4 |
|
Efficient cores |
8 |
|
Performance-core Max Turbo Frequency |
4.5 GHz |
|
Efficient-core Max Turbo Frequency |
3.6 GHz |
|
Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
|
Performance-core base frequency |
1.2 GHz |
|
Efficient-core base frequency |
0.7 GHz |
|
Processor cache |
18 MB |
|
Memory |
|
Memory slots type |
SO-DIMM |
|
Number of memory slots |
2 |
|
Supported memory clock speeds |
5600 MHz |
|
Supported memory types |
DDR5-SDRAM |
|
Storage |
|
Supported storage drive types |
SSD |
|
Storage drive sizes supported |
M.2 |
|
SSD form factor |
M.2 |
|
NVMe |
Yes |
|
Number of storage drives supported |
2 |
|
Graphics |
|
On-board graphics card |
Yes |
|
Graphics card family |
Intel |
|
On-board graphics card model |
Intel Arc Graphics |
|
Audio |
|
Built-in speaker(s) |
No |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
|
WLAN controller model |
Intel Wi-Fi 6E AX211 |
|
Copper ethernet cabling technology |
2.5GBASE-T |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|

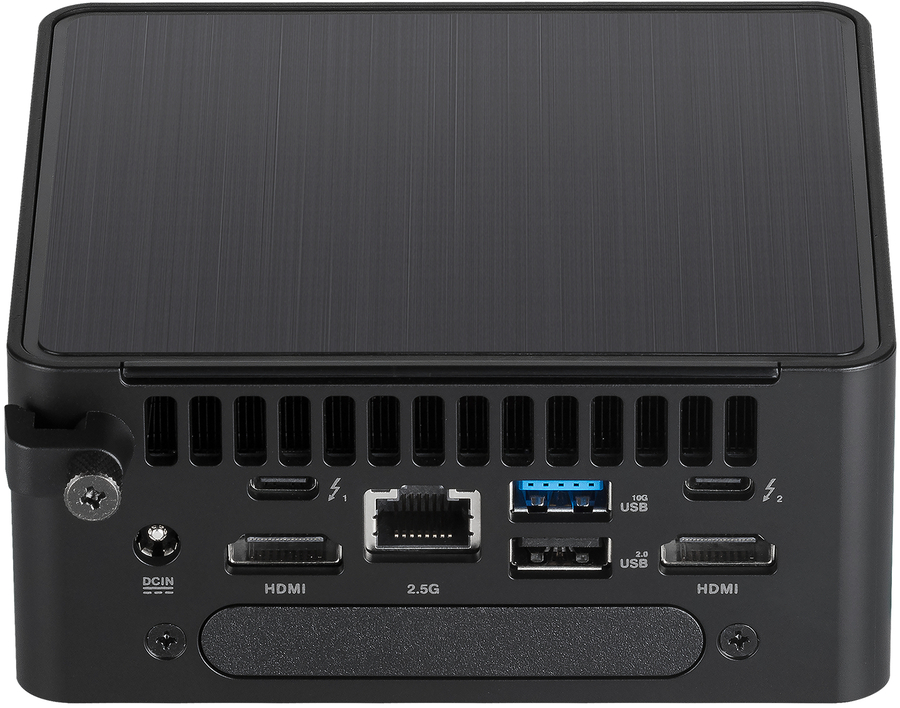

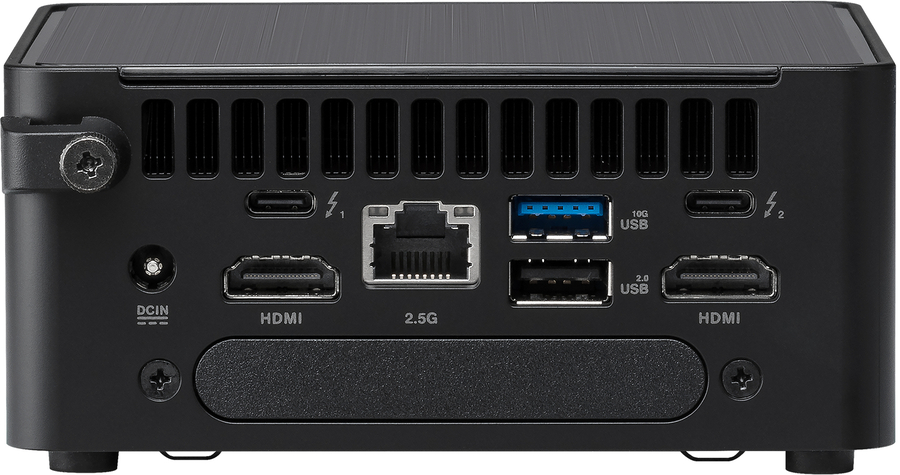

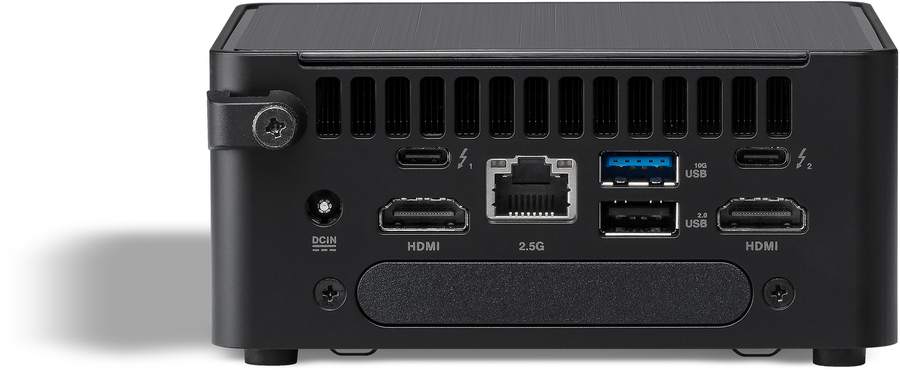

Ports & interfaces |
|
USB 2.0 ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
HDMI ports quantity |
2 |
|
VGA (D-Sub) ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
|
USB4 Gen 2x2 ports quantity |
1 |
|
HDMI version |
2.1 |
|
Thunderbolt 4 ports quantity |
2 |
|
DC-in jack |
Yes |
|
Design |
|
Product colour |
Black |
|
Product type |
Mini PC barebone |
|
On/off switch |
Yes |
|

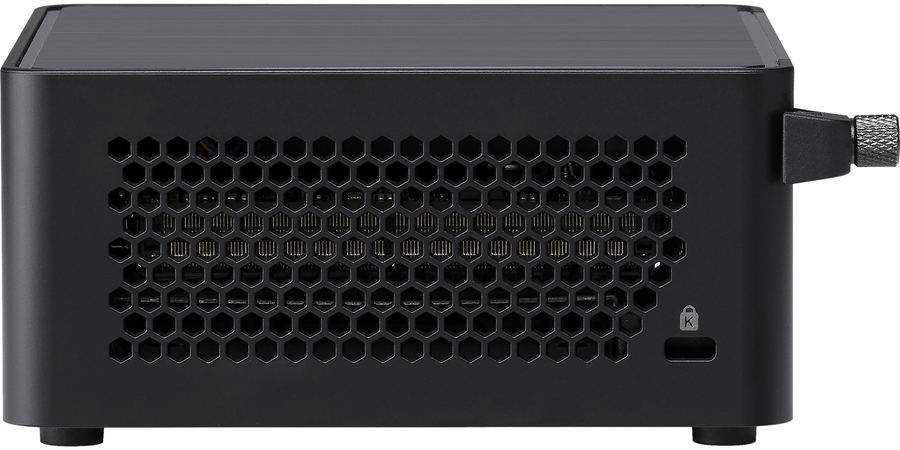

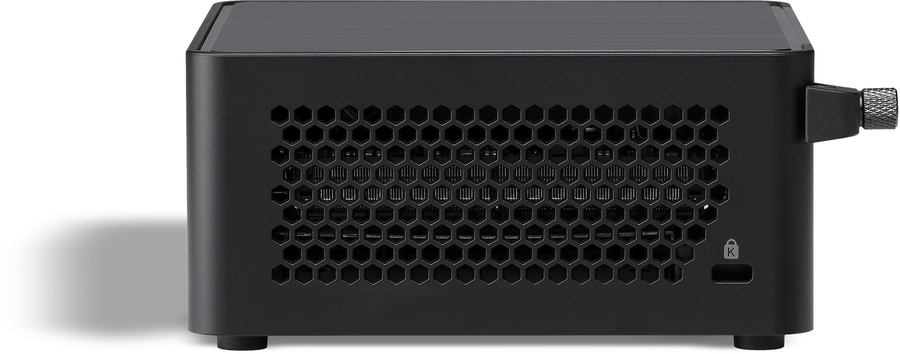

Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
VESA mounting |
Yes |
|
Power |
|
Power supply type |
External AC adapter |
|
Power supply |
120 W |
|
Weight & dimensions |
|
Width |
117 mm |
|
Depth |
112 mm |
|
Height |
54 mm |
|
Weight |
600 g |
