Gigabyte GP-UD750GM 750 Watt Gold Power Supply
|
|
Regularly: $134.00
On Sale: $128.64
Sale Ends:
May 10th, 2024
Manufacturer:
Gigabyte
Active PFC, 100-240 Vac, 12-6A, 60-50 Hz, 750W, 120mm Hydraulic Bearing(HYB)fan, 80 PLUS Gold, OVP/OPP/SCP/UVP/OCP/OTP
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59691970
|
GP-UD750GM
|
4719331552671 |
Active
|
Details
|
General Information |
|
Summary |
ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
ENHANCED THERMAL
SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

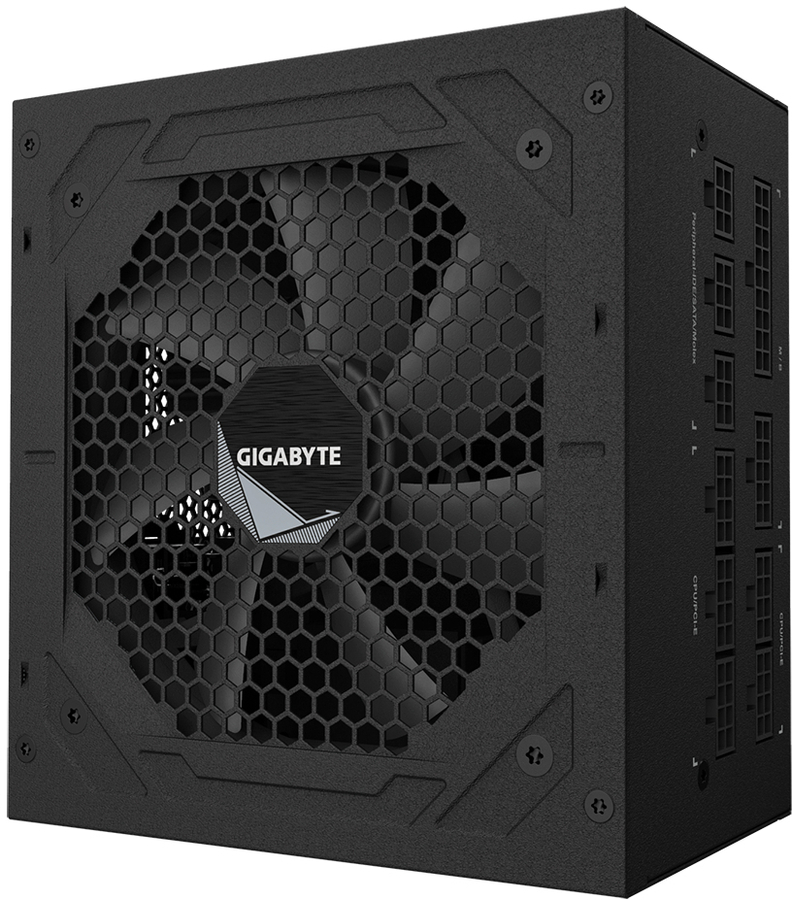

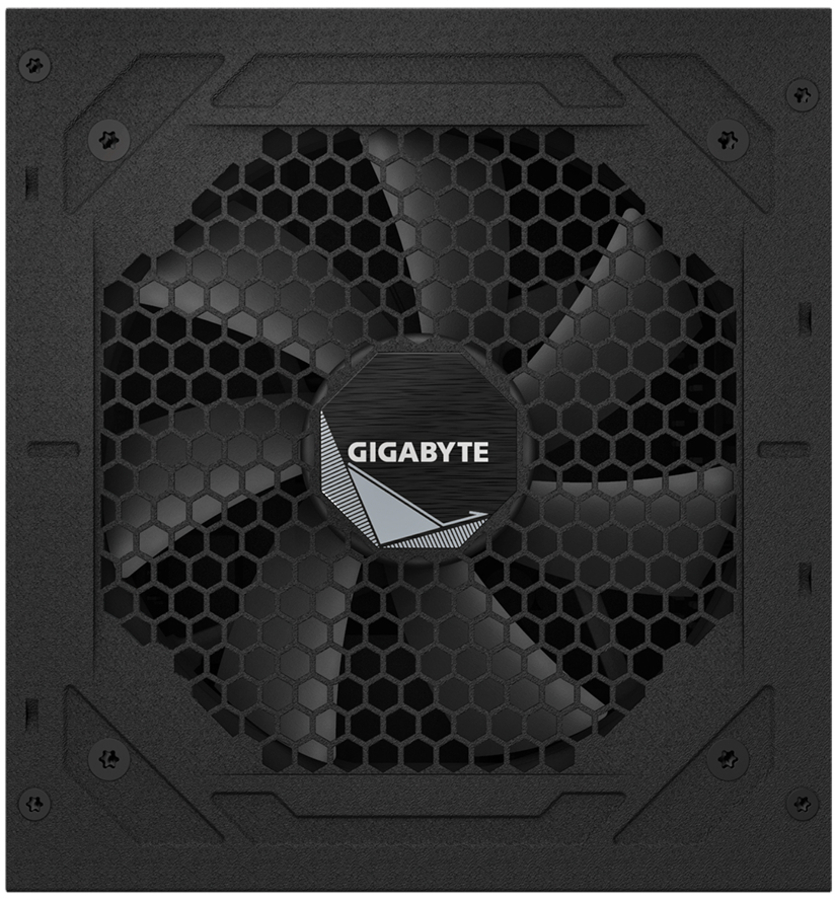

120MM SMART HYDRAULIC
BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

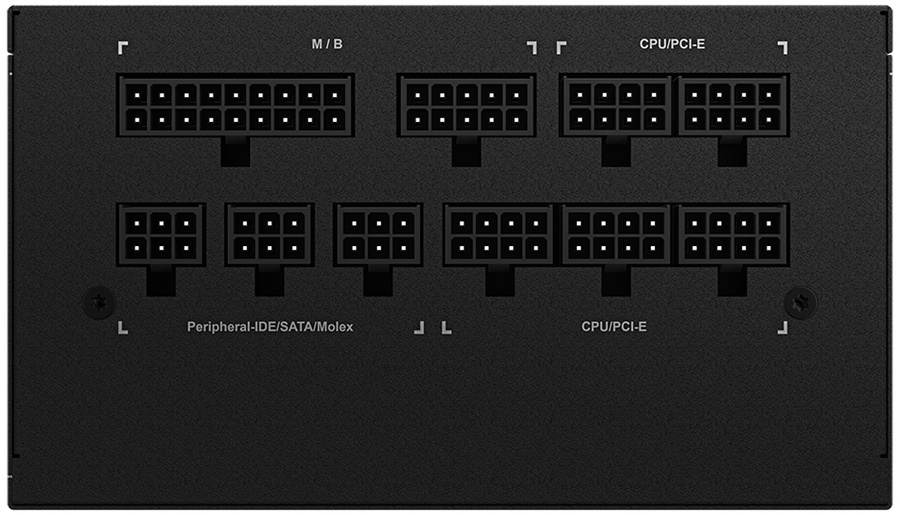

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
COMPACT DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints. |
|

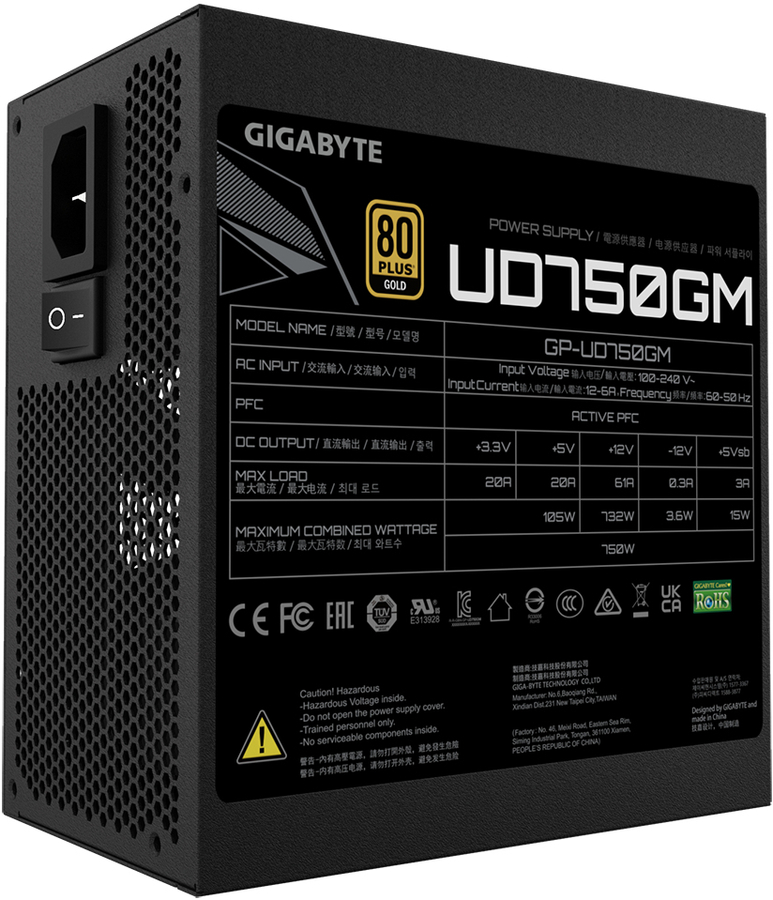

Power |
|
Total power |
750 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Input current |
12 A |
|
Power Factor Correction (PFC) type |
Active |
|
Combined power (+3.3V) |
105 W |
|
Combined power (+12V) |
732 W |
|
Combined power (+5V) |
105 W |
|
Combined power (-12V) |
3.6 W |
|
Combined power (+5Vsb) |
15 W |
|
Max output current (+3.3V) |
20 A |
|
Max output current (+12V) |
61 A |
|
Max output current (+5V) |
20 A |
|
Max output current (-12V) |
2.3 A |
|
Max output current (+5Vsb) |
3 A |
|
Hold time |
16 ms |
|
Efficiency |
90% |
|
Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
|
Ports & interfaces |
|
Motherboard power connector |
20+4 pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
3 |
|
Motherboard power cable length |
61 cm |
|
Number of SATA power connectors |
8 |
|
SATA power cable length |
150,300,450,600 mm |
|
Peripheral (Molex) power cable length |
120,500 mm |
|
EPS power connector (4+4 pin) |
Yes |
|
PCI Express power connectors (6+2 pin) |
4 |
|
PCI Express power cable length |
60 cm |
|
CPU power connector (4+4 pin) |
Yes |
|
CPU power cable length |
60 cm |
|
ATX power connector (20+4 pin) |
Yes |
|
Floppy drive power connector |
1 |
|
Floppy disk drive connector |
Yes |
|
Floppy disk drive cable length |
15 cm |
|
Cabling type |
Fully-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Gold |
|
ATX version |
2.31 |
|
Bearing technology |
HYB |
|
Mean time between failures (MTBF) |
100000 h |
|
Design |
|
Product colour |
Black |
|
Cooling type |
Active |
|
Fan diameter |
12 cm |
|
Number of fans |
1 fan(s) |
|
Fan location |
Top |
|
On/off switch |
Yes |
|
Packaging content |
|
Cables included |
CPU, PCIe, Peripheral (Molex), SATA |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
140 mm |
|
Height |
86 mm |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
