General Information |
|
Summary |
Solid reliability for your business

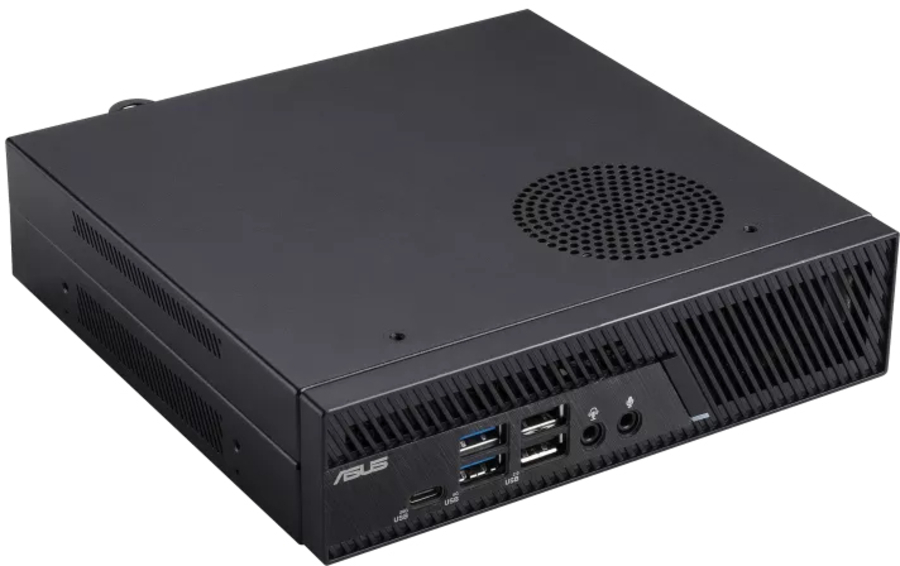

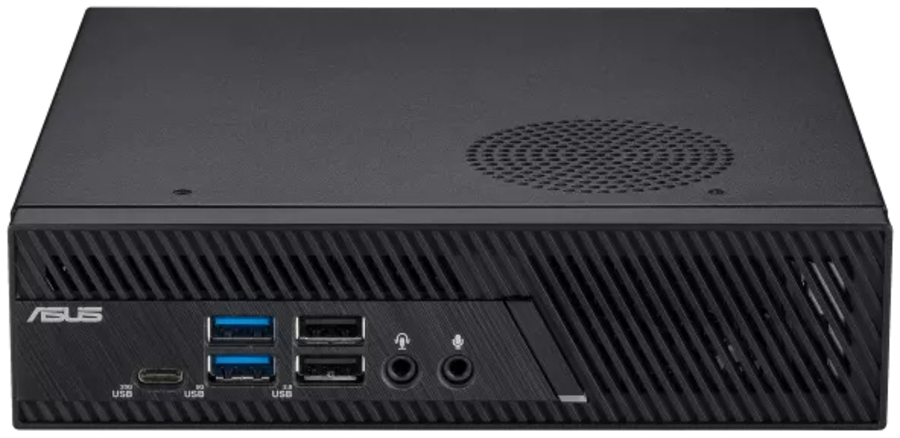

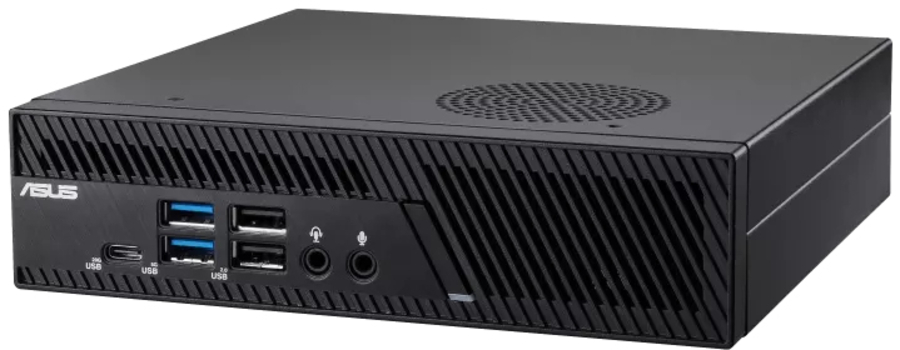

ASUS ExpertCenter PB63 is a durable, versatile and powerful PC suited to a range of business applications, including signage, point-of-sales (POS) systems, kiosks and intelligent vending machines. Powered by the latest Intel® 13th Generation Core™ with Intel® UHD Graphics processors, PB63 delivers desktop-grade performance in a compact size, with supports the next gen memory - DDR5. To cater to diverse demands, PB63 supports a 46 to 65 watt CPU – so it's easy to spec for supreme efficiency or maximum performance. Comprehensive connectivity with eight USB ports and support for up to three 4K UHD displays means PB63 is perfect for almost any business scenario. It's also tested to the latest MIL-STD-810H military standard to ensure it's ready for harsh environments. |
|
Processor |
|
Processor family |
Intel® Core™ i5 |
|
Processor manufacturer |
Intel |
|
Processor model |
i5-13500 |
|
Processor generation |
13th gen Intel® Core™ i5 |
|
Processor cores |
14 |
|
Processor threads |
20 |
|
Processor boost frequency |
4.8 GHz |
|
Performance cores |
6 |
|
Efficient cores |
8 |
|
Performance-core Max Turbo Frequency |
4.8 GHz |
|
Efficient-core Max Turbo Frequency |
3.5 GHz |
|
Performance-core base frequency |
2.5 GHz |
|
Efficient-core base frequency |
1.8 GHz |
|
Processor cache |
24 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
65 W |
|
Maximum turbo power |
154 W |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Storage |
|
Total storage capacity |
256 GB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Total SSDs capacity |
256 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
256 GB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel UHD Graphics 770 |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel® UHD Graphics |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Antenna type |
2x2 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.0 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
|
DisplayPorts quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Microphone in |
Yes |
|
Headphone outputs |
1 |
|
DC-in jack |
Yes |
|
Design |
|
Chassis type |
Mini PC |
|
Product colour |
Black |
|
Colour name |
Black |
|

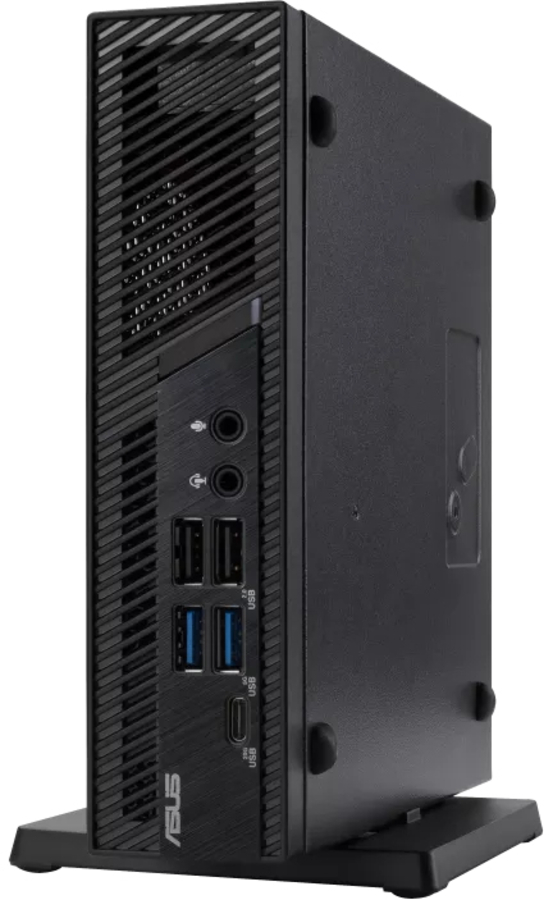

Placement supported |
Horizontal/Vertical |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Performance |
|
Product type |
Mini PC |
|
Trusted Platform Module (TPM) |
Yes |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Operating system architecture |
64-bit |
|
Power |
|
Power supply |
150 W |
|
Certificates |
|
Certification |
BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
|
Weight & dimensions |
|
Width |
175 mm |
|
Depth |
175 mm |
|
Height |
44.2 mm |
|
Weight |
1.18 kg |
|
Packaging content |
|
Display included |
No |
