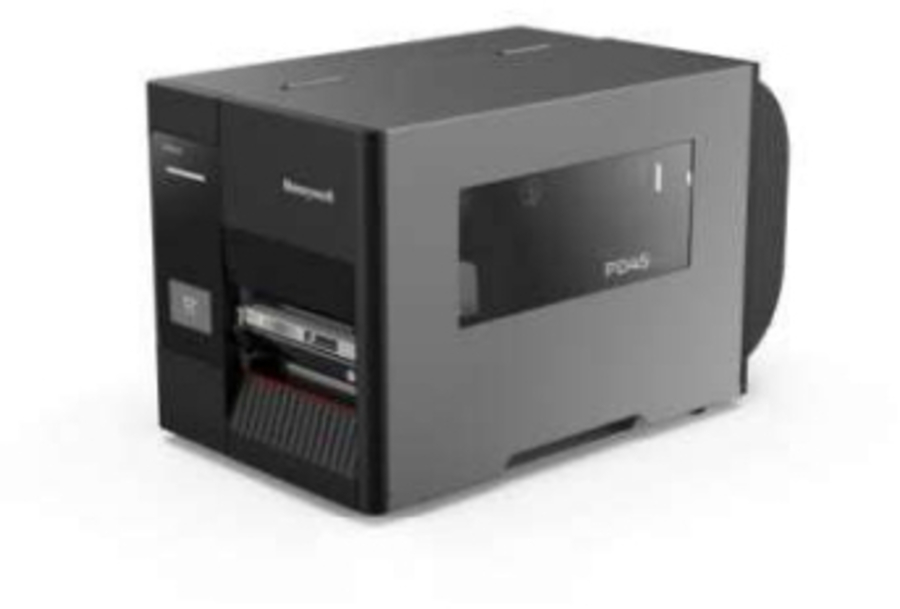

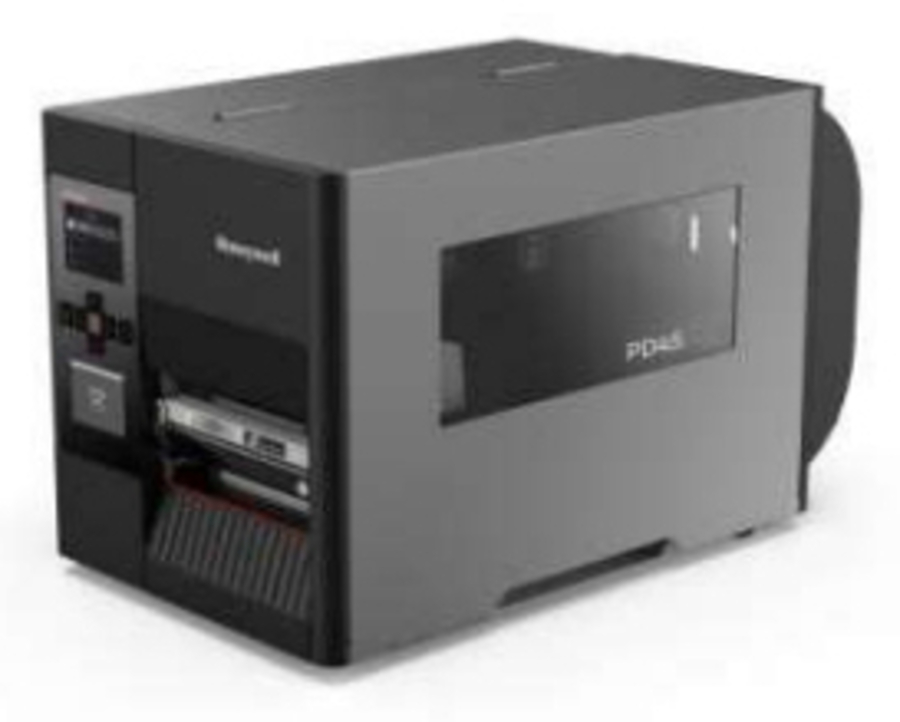

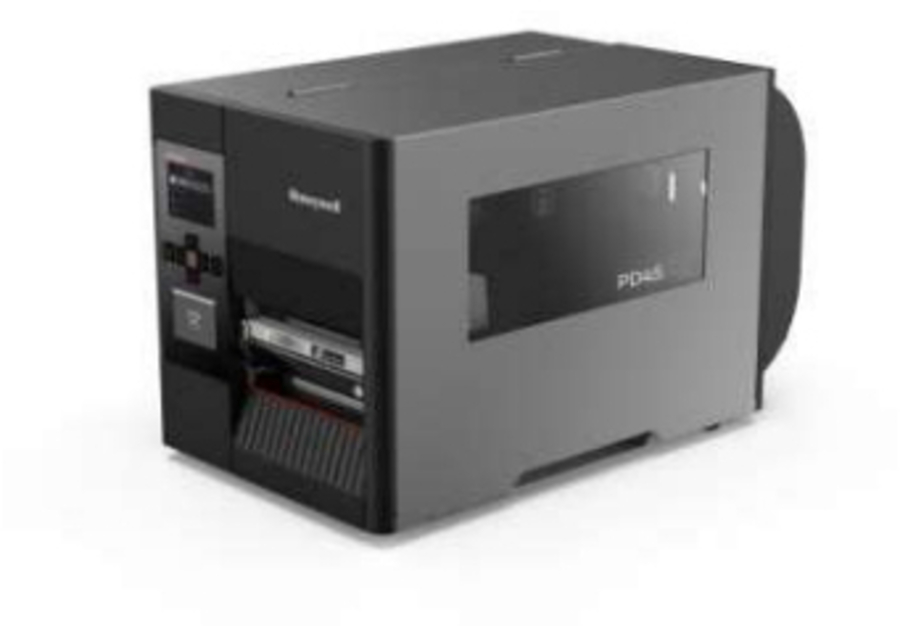

PD45 Barcode Label Printer
|
|
Regularly: $1286.00
On Sale: $1234.56
Sale Ends:
May 10th, 2024
Manufacturer:
Honeywell
PD45, 8 dots/mm (203 dpi), ZPLII, ZSim II, IPL, DPL, USB, USB Host, RS232
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59692721
|
PD4500B0030000200
|
5704174800910 |
Active
|
Details
|
General Information |
|
Summary |
The PD45 is Honeywell’s new commercial grade industrial printer, which is suited for manufacturing, retail, transportation and logistics, health care, and government applications. The PD45 is available with standard features such as smart printing capability, in which users can configure and finetune settings without the need for a host computer by running apps right inside the printer – minimizing the need to connect to a PC. With Honeywell print platform that supports multiple print languages, PD45 can be an effective alternative to the competing printers available in the market.
Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45 is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings and applications. A large glass window design allows users to easily monitor the status of the printer and its consumables. A side opening makes it convenient for ribbon and paper loading.
The PD45 runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell’s patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.75mm. Two sets of adjustable pressure bars and a double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles and printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45 supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, onekey installation of printer driver and easy windows configuration. |
|
Printing |
|
Print technology |
Direct thermal / Thermal transfer |
|
Colour |
No |
|
Maximum resolution |
203 x 203 DPI |
|
Print speed |
200 mm/sec |
|
Maximum printing width |
10.8 cm |
|
Minimum print length |
4.8 m |
|
Paper handling |
|
Ribbon width |
11 cm |
|
Ribbon length |
450 m |
|
Maximum roll diameter |
8 cm |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Ethernet LAN |
No |
|
USB port |
Yes |
|
RS-232 ports |
1 |
|
Design |
|
Product colour |
Black |
|
Display |
LED |
|
Display diagonal |
5.99 cm (2.36") |
|
Power |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Operational conditions |
|
Operating relative humidity (H-H) |
20 - 85% |
|
Storage relative humidity (H-H) |
20 - 85% |
|
Operating temperature (T-T) |
5 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Weight & dimensions |
|
Width |
249 mm |
|
Depth |
438 mm |
|
Height |
270 mm |
|
Weight |
9.25 kg |
|
Logistics data |
|
Harmonized System (HS) code |
84433210 |
|
