General Information |
|
Summary |

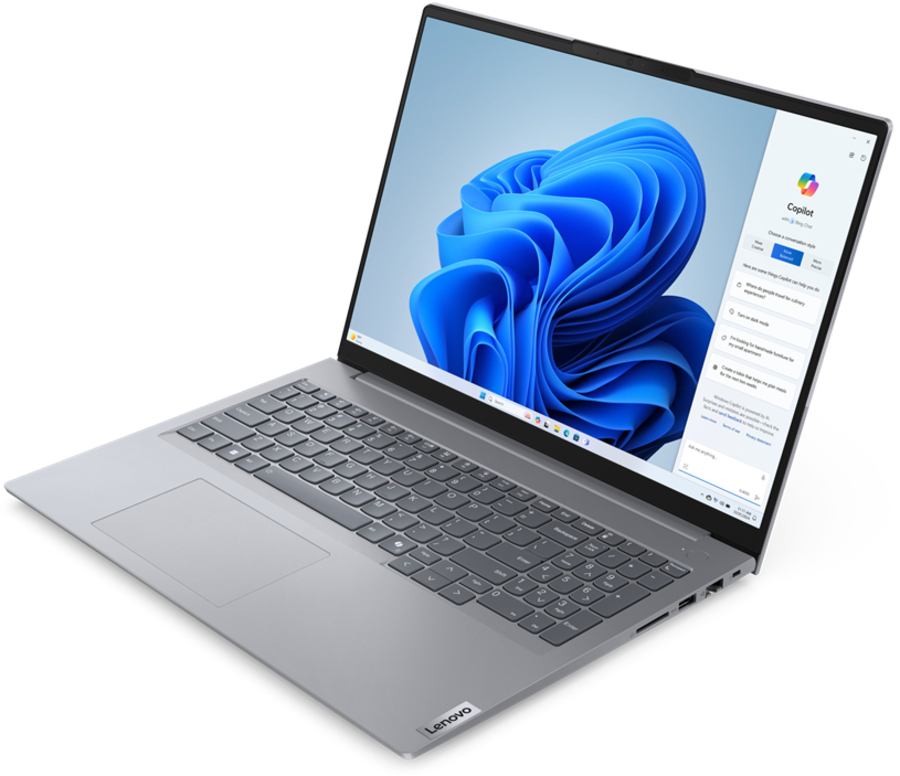

Redefined Mobility at Work — Peak Performance & Power
- Huge 16″ SMB laptop with AI-accelerated Intel® Core™ Ultra processors
- Speedy response time, all-day battery life, & instant wake with Intel Evo™ Edition
- Includes numeric pad for convenient data entry & number crunching
- Enables seamless video calls with rich visuals & noise-canceling audio
- Ideal for demanding tasks like data analysis, financial modeling, and video conferencing |
|
Design |
|
Product type |
Laptop |
|
Product colour |
Grey |
|
Form factor |
Clamshell |
|
Colour name |
Arctic grey |
|
Housing material |
Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS) |
|
Display |
|
Display diagonal |
40.6 cm (16") |
|
Display resolution |
1920 x 1200 pixels |
|
Touchscreen |
Yes |
|
HD type |
WUXGA |
|
Panel type |
IPS |
|
LED backlight |
Yes |
|
Native aspect ratio |
16:10 |
|
Anti-glare screen |
Yes |
|
Display brightness |
300 cd/m² |
|
RGB colour space |
NTSC |
|
Colour gamut |
45% |
|
Maximum refresh rate |
60 Hz |
|
Contrast ratio (typical) |
1000:1 |
|
Processor |
|
Processor family |
Intel Core Ultra 7 |
|
Processor manufacturer |
Intel |
|
Processor model |
155U |
|
Processor generation |
Intel® Core™ Ultra (Series 1) |
|
Processor cores |
12 |
|
Processor threads |
14 |
|
Processor boost frequency |
4.8 GHz |
|
Performance cores |
2 |
|
Efficient cores |
8 |
|
Low Power Efficient-cores |
2 |
|
Performance-core Max Turbo Frequency |
4.8 GHz |
|
Efficient-core Max Turbo Frequency |
3.8 GHz |
|
Low Power Efficient-core Max Turbo Frequency |
2.1 GHz |
|
Performance-core base frequency |
1.7 GHz |
|
Efficient-core base frequency |
1.2 GHz |
|
Low Power Efficient-core Base Frequency |
700 MHz |
|
Processor cache |
12 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
15 W |
|
Maximum turbo power |
57 W |
|
Neural processor unit (NPU) |
|
Neural processor unit (NPU) |
Intel AI Boost |
|
Maximum frequency NPU |
1.4 GHz |
|
Sparsity support |
Yes |
|
Windows Studio effects support |
Yes |
|
AI datatype support on NPU |
FP16, FP32, Int8 |
|
AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
|
Memory |
|
Internal memory |
16 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
LPDDR5-SDRAM |
|
Memory clock speed |
5600 MHz |
|
Memory form factor |
SO-DIMM |
|
Memory layout (slots x size) |
1 x 16 GB |
|
Memory slots |
2x SO-DIMM |
|
Memory channels |
Dual-channel |
|
Storage |
|
Total storage capacity |
512 GB |
|
Storage media |
SSD |
|
Optical drive type |
No |
|
Total SSDs capacity |
512 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
512 GB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Card reader integrated |
Yes |
|
Compatible memory cards |
SD |
|
Graphics |
|
On-board graphics card |
Yes |
|
Discrete graphics card |
No |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel® Graphics |
|
On-board GPU manufacturer |
Intel |
|
Audio |
|
Audio chip |
Realtek ALC3287 |
|
Audio system |
Dolby Audio |
|
Number of built-in speakers |
2 |
|
Speaker power |
2 W |
|
Built-in microphone |
Yes |
|
Number of microphones |
2 |
|
Camera |
|
Front camera |
Yes |
|
Front camera resolution |
1920 x 1080 pixels |
|
Front camera HD type |
Full HD |
|
Privacy camera |
Yes |
|
Privacy type |
Privacy shutter |
|
Network |
|
Mobile network connection |
No |
|
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
|
Antenna type |
2x2 |
|
WLAN controller model |
Intel Wi-Fi 6 AX203 |
|
WLAN controller manufacturer |
Intel |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
100,1000 Mbit/s |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.2 |
|
WWAN |
Not installed |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
HDMI version |
2.1 |
|
Thunderbolt 4 ports quantity |
1 |
|
Intel® Thunderbolt 4 |
Yes |
|
Combo headphone/mic port |
Yes |
|
USB Type-C DisplayPort Alternate Mode |
Yes |
|
USB Sleep-and-Charge |
Yes |
|
USB Sleep-and-Charge ports |
1 |
|
Performance |
|
Motherboard chipset |
Intel SoC |
|
Keyboard |
|
Numeric keypad |
Yes |
|
Pointing device |
Touchpad |
|
Keyboard backlit |
Yes |
|
Spill-resistant keyboard |
Yes |
|
Keyboard language |
US English |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Operating system architecture |
64-bit |
|
Operating system language |
English |
|
Trial software |
Office |
|
Bundled software |
Office Trial |
|
Battery |
|
Battery capacity |
45 Wh |
|
Battery technology |
Lithium Polymer (LiPo) |
|
Battery life (max) |
6.65 h |
|
Continuous video playback time |
16.73 h |
|
Fast charging |
Yes |
|
Power |
|
AC adapter power |
65 W |
|
AC adapter frequency |
50/60 Hz |
|
AC adapter input voltage |
100 - 240 V |
|
USB Power Delivery (USB PD) |
Yes |
|
Security |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Fingerprint reader |
Yes |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Password protection |
Yes |
|
Password protection type |
HDD, Power on, Supervisor |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 35 °C |
|
Storage temperature (T-T) |
5 - 43 °C |
|
Operating relative humidity (H-H) |
8 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Maximum shipping altitude |
3048 m |
|
Certificates |
|
Certification |
ErP Lot 6
ErP Lot 26
TCO Certified 9.0
MIL-STD-810H |
|
Weight & dimensions |
|
Weight |
1.7 kg |
|
Width |
356 mm |
|
Depth |
253.5 mm |
|
Height |
17.5 mm |
|
Sustainability |
|
Sustainability compliance |
Yes |
