Product Overview

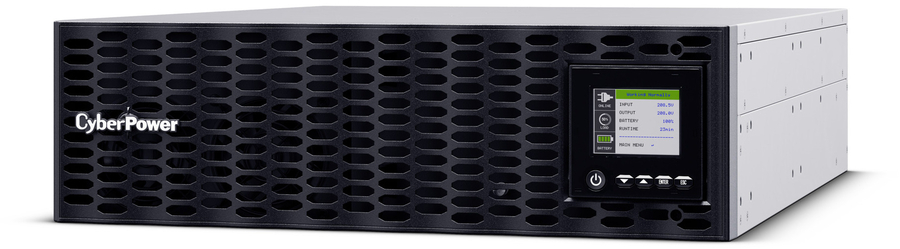

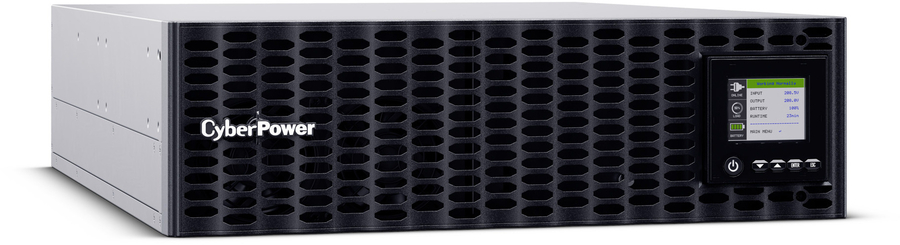

The CyberPower Smart App Online OL5KRTHDL high-density design offers more power and longer run times. The OL5KRTHDL features double-conversion topology for seamless power protection and a pre-installed RMCARD205.
For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL5KRTHDL ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.
The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power.
Double-Conversion Topology
Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
Sine Wave Output
Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

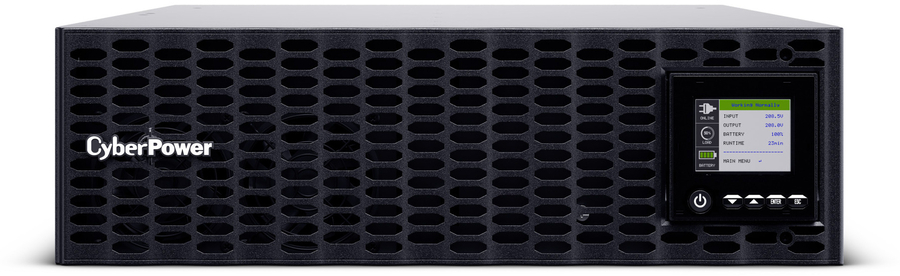

Full Matrix LCD Control Panel
Auto-rotating, multi-function color LCD screen clearly shows status of UPS and power (green for normal, yellow for warning, and red for power failure and fault notices). LCD provides UPS status, controls, most recent event logs, and diagnostics.
Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power maintenance.
Extended Battery Module (EBM)
Extends runtime by adding up to 10 EBMs.
Smart Battery Management (SBM)
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within four hours regardless of the number of EBMs.
PowerPanel® Business Software
Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

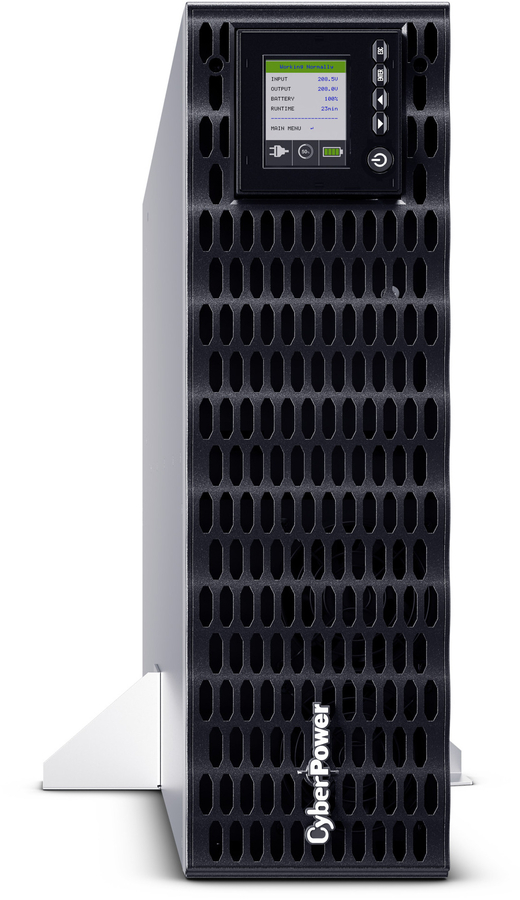

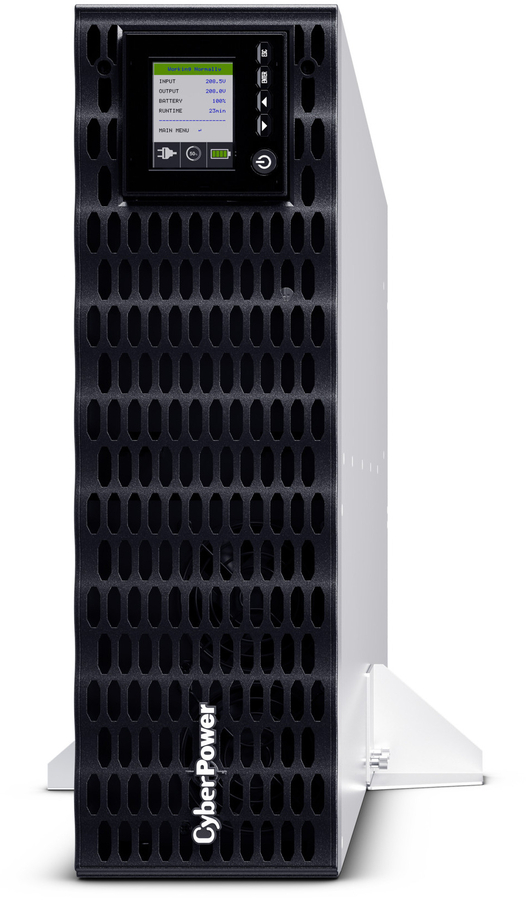

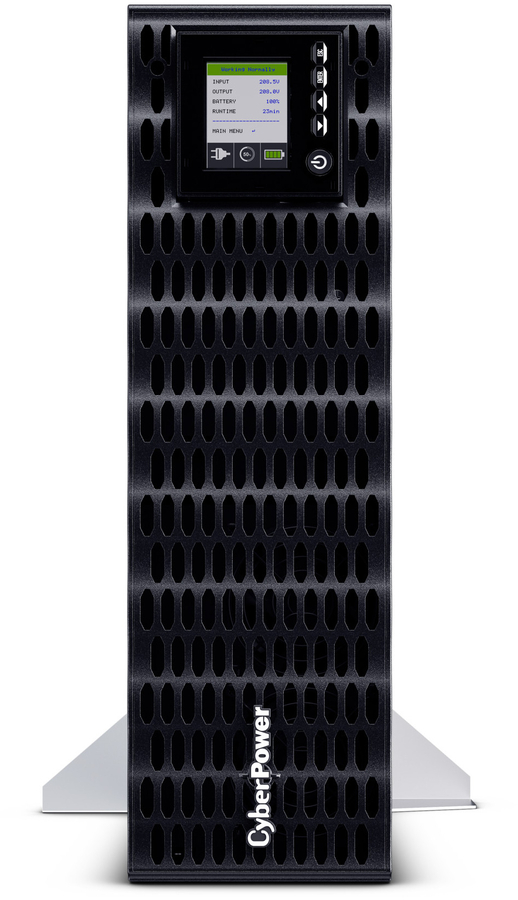

Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation.
Energy Star Certified & GreenPower UPS™ ECO Mode
Improves UPS efficiency up to 96% reducing electrical and cooling costs. |
|
Features |
|
UPS topology |
Double-conversion (Online) |
|
Output power capacity |
5 kVA |
|
Output power |
5000 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
120 V |
|
Input operation voltage (max) |
280 V |
|
Input frequency |
40 - 70 Hz |
|
Output operation voltage (min) |
200 V |
|
Output operation voltage (max) |
240 V |
|
Output frequency |
50/60 Hz |
|
Output voltage regulation |
±2% |
|
Surge energy rating |
2430 J |
|
Efficiency (ECO mode) |
96% |
|
Input power factor |
0.99 |
|
Output power factor |
1 |
|
Crest factor |
3:1 |
|
Emergency Power Off (EPO) |
Yes |
|
Surge protection |
Yes |
|
Power protection features |
Short circuit |
|
Audible alarm(s) |
Yes |
|
Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm, Fault |
|

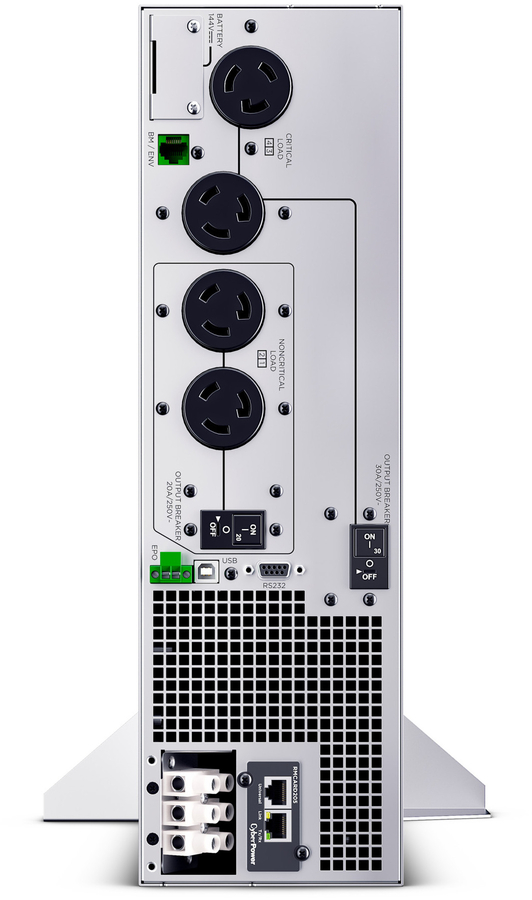

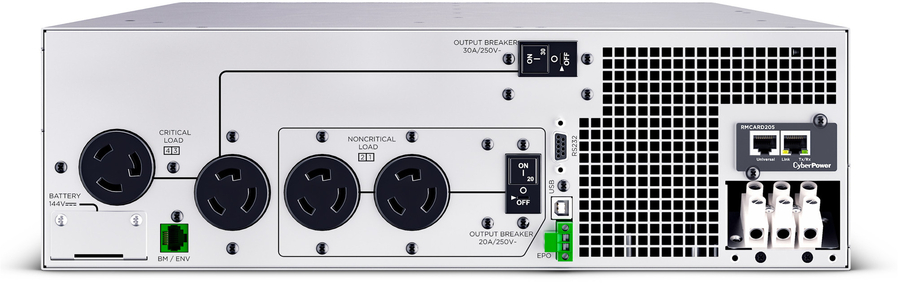

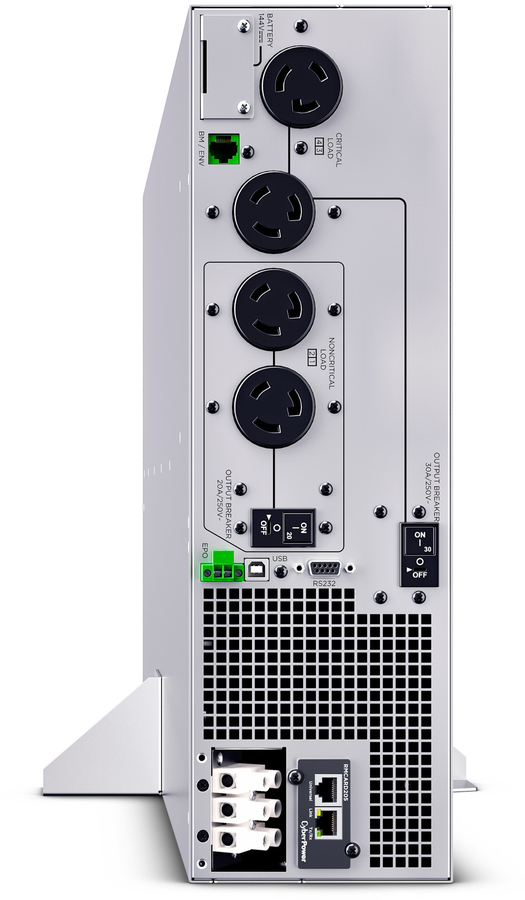

Ports & interfaces |
|

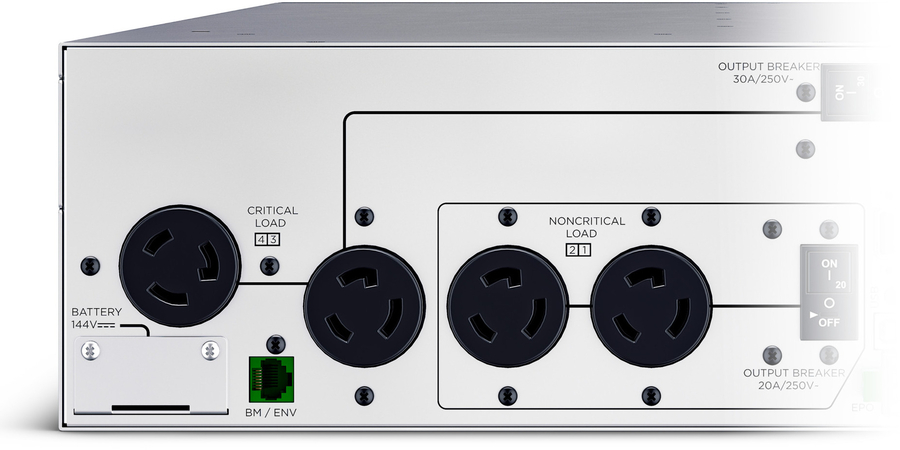

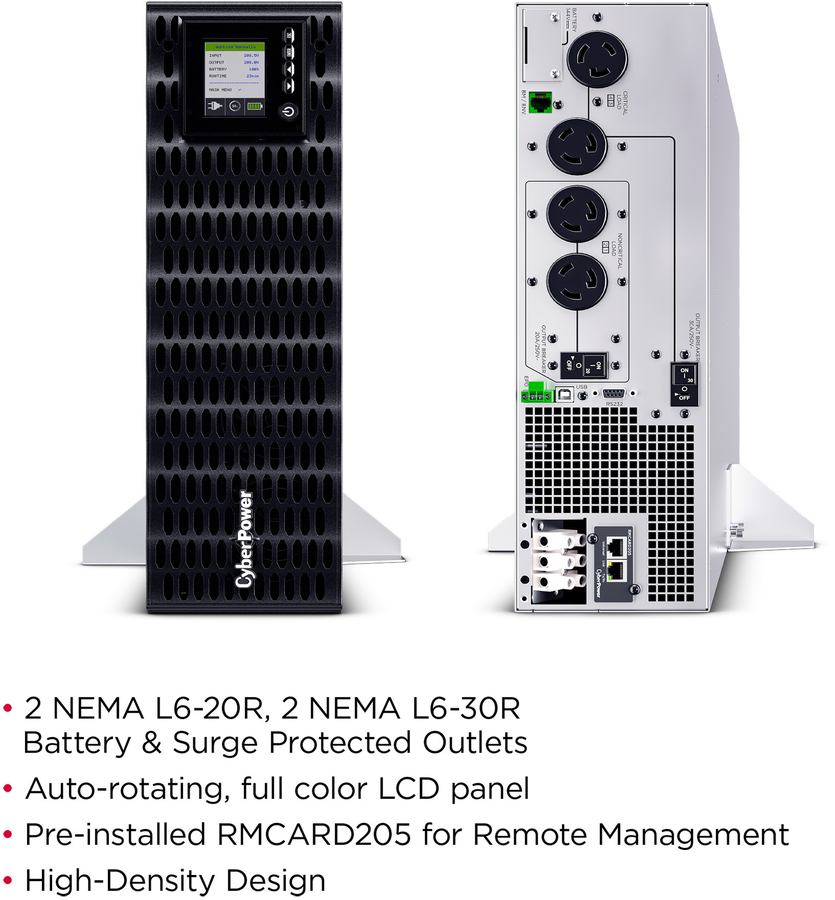

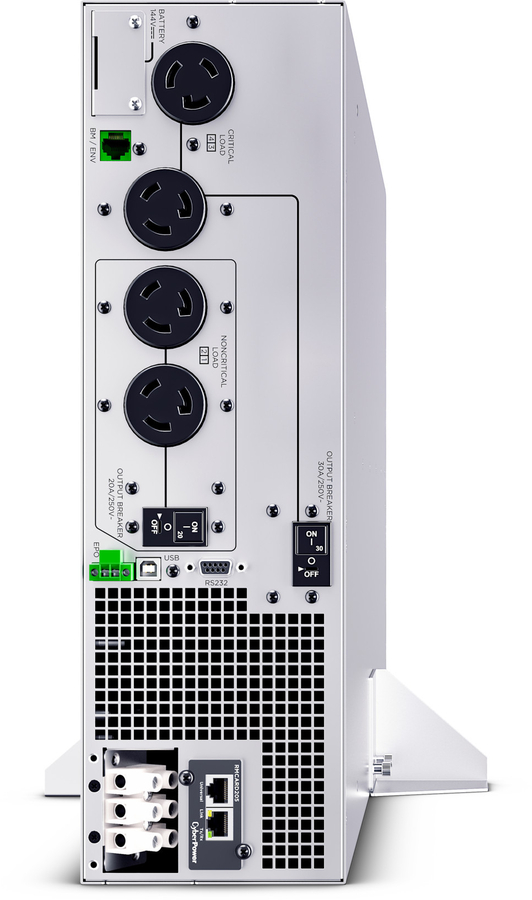

AC outlet types |
NEMA L6-20R, NEMA L6-30R |
|
Power plug |
NEMA L6-30P |
|
AC outlets quantity |
4 AC outlet(s) |
|
USB port |
Yes |
|

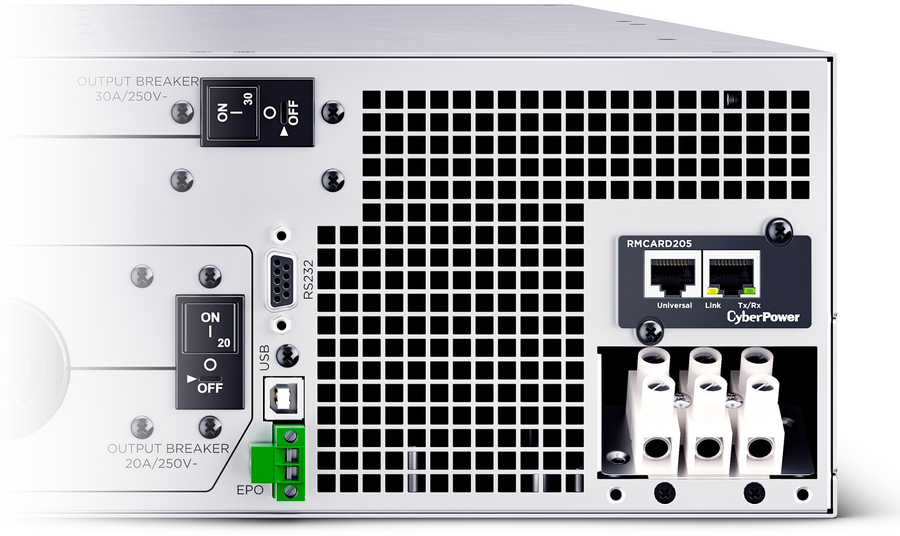

Serial interface |
Yes |
|
Emergency Power Off (EPO) connector |
Yes |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Battery capacity |
9 Ah |
|
Battery voltage |
12 V |
|
Number of batteries supported |
12 |
|
Typical backup time at full load |
4.9 min |
|
Typical backup time at half load |
14.3 min |
|
Battery recharge time |
4 h |
|
Hot-swap battery |
Yes |
|
Cold start |
Yes |
|
Design |
|
Form factor |
Rackmount/Tower |
|
Product colour |
Black |
|
Rack capacity |
3U |
|
Cable length |
3 m |
|
Cooling type |
Active |
|
Built-in fan |
Yes |
|
Control type |
Buttons |
|
Display type |
LCD |
|
LED indicators |
Power |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Operating altitude |
0 - 3048 m |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
UL1778; CSA C22.2 No.107.3; FCC Part 15 Class A |
|
Packaging content |
|
Cables included |
USB cable, Input power cable |
|

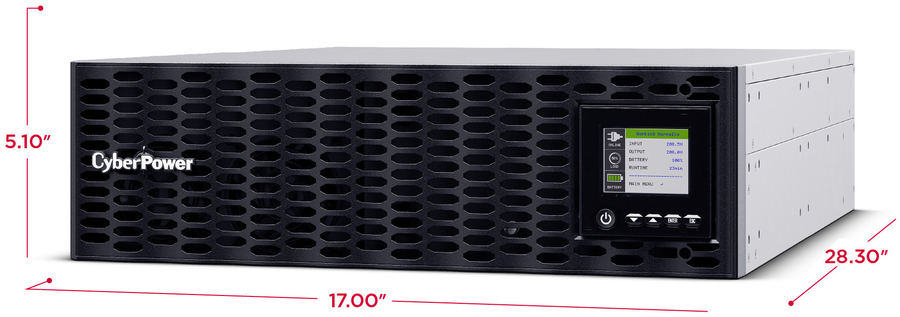

Weight & dimensions |
|
Width |
432 mm |
|
Depth |
719 mm |
|
Height |
130 mm |
|
Weight |
53.5 kg |
|
Packaging data |
|
Package width |
599.4 mm |
|
Package depth |
1099.8 mm |
|
Package height |
289.6 mm |
|
Package weight |
65.3 kg |
