StarTech VDSL2 Ethernet Extender Kit
|
|
Regularly: $778.00
On Sale: $746.88
Sale Ends:
May 10th, 2024
Manufacturer:
StarTech

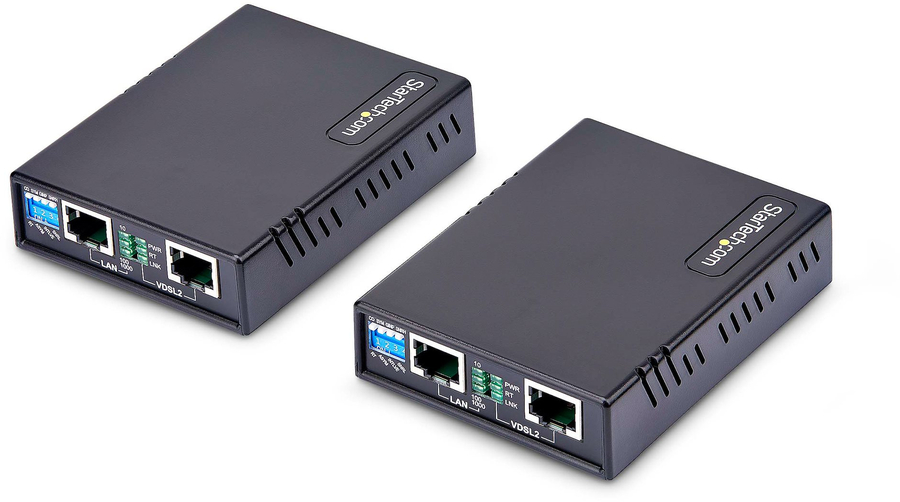

StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range Repeater, Replace for 110VDSLEXT
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59702717
|
VDSL-LAN-EXTENDER-1G
|
65030899925 |
Active
|
Details
|
General Information |
|
Summary |

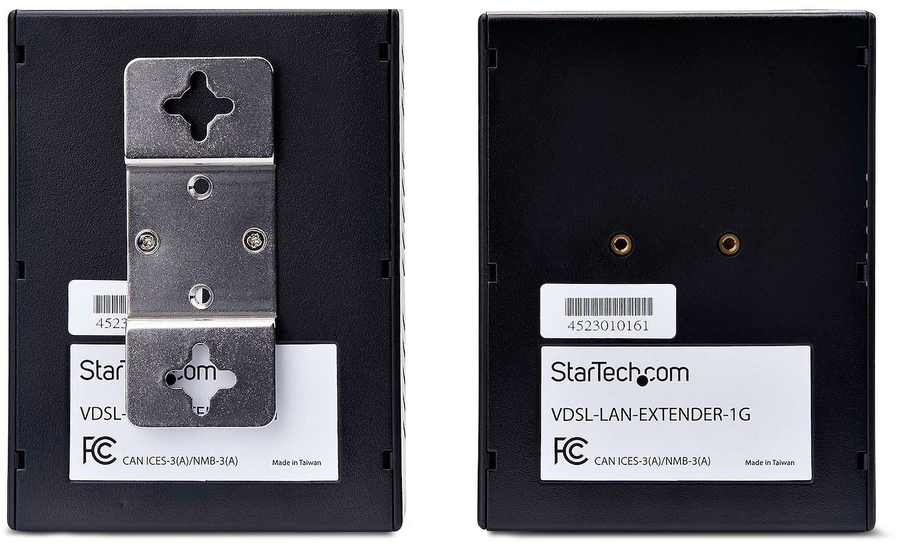

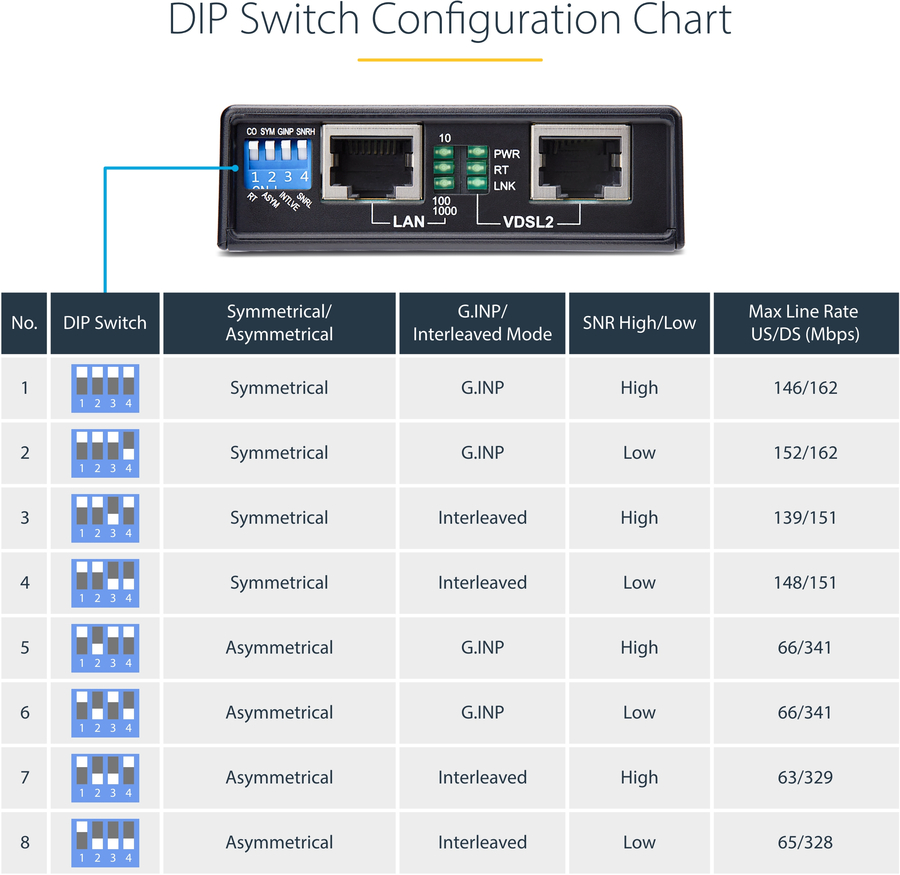

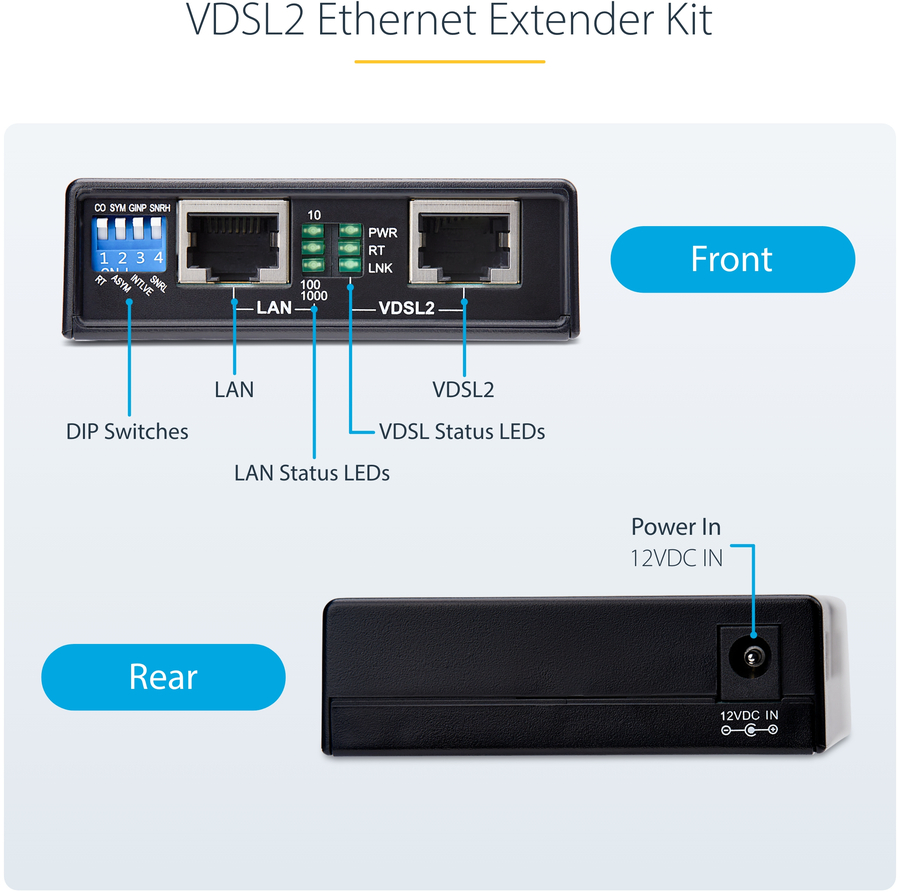

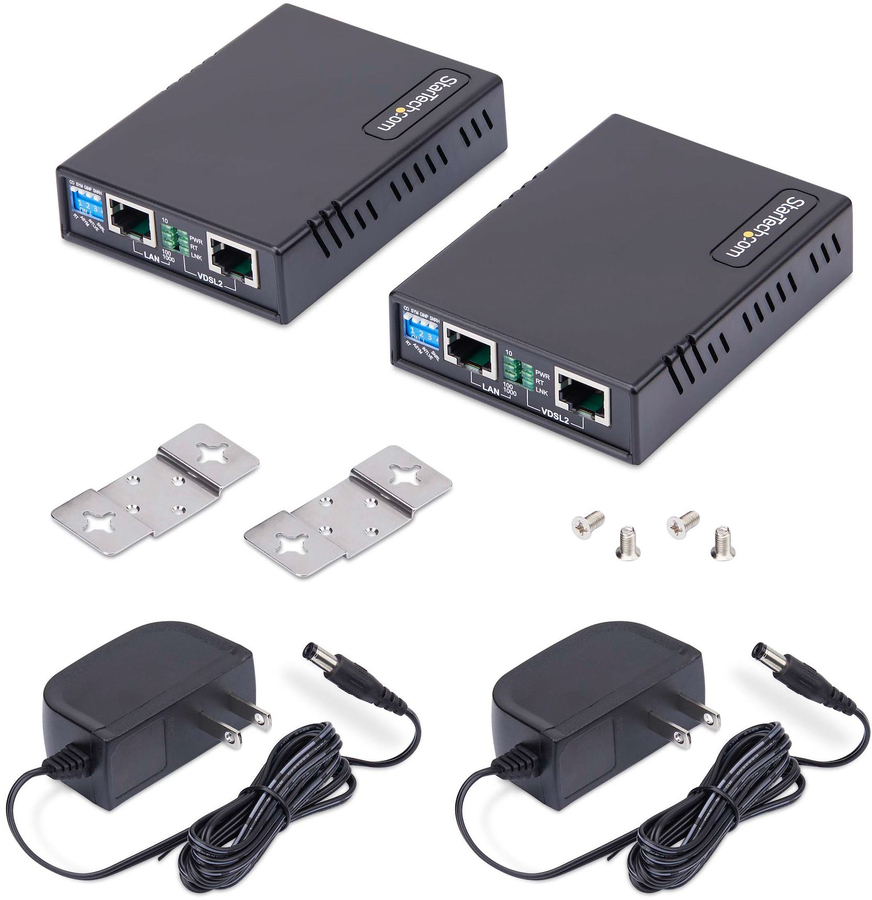

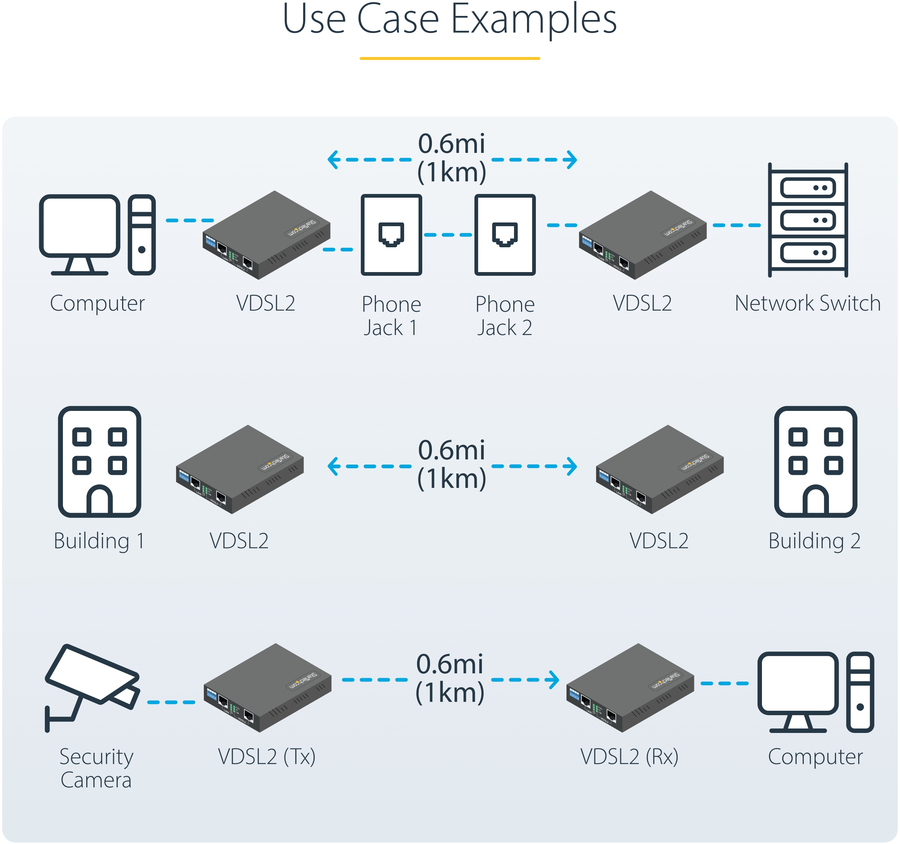

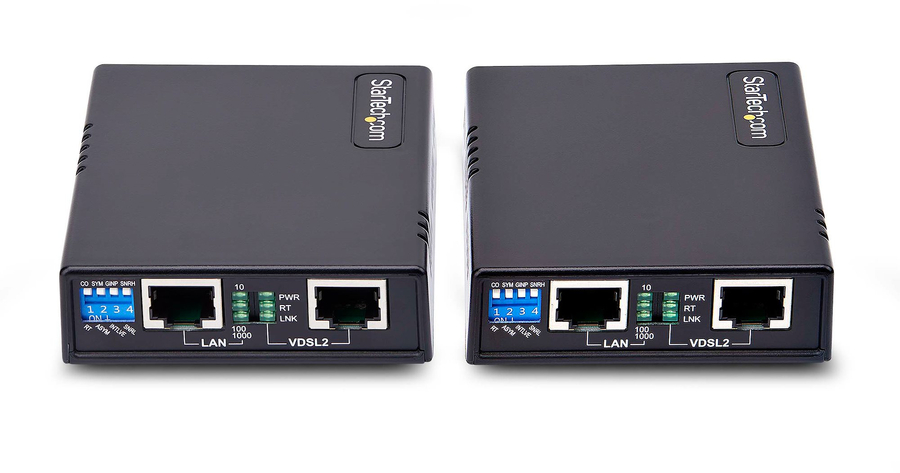

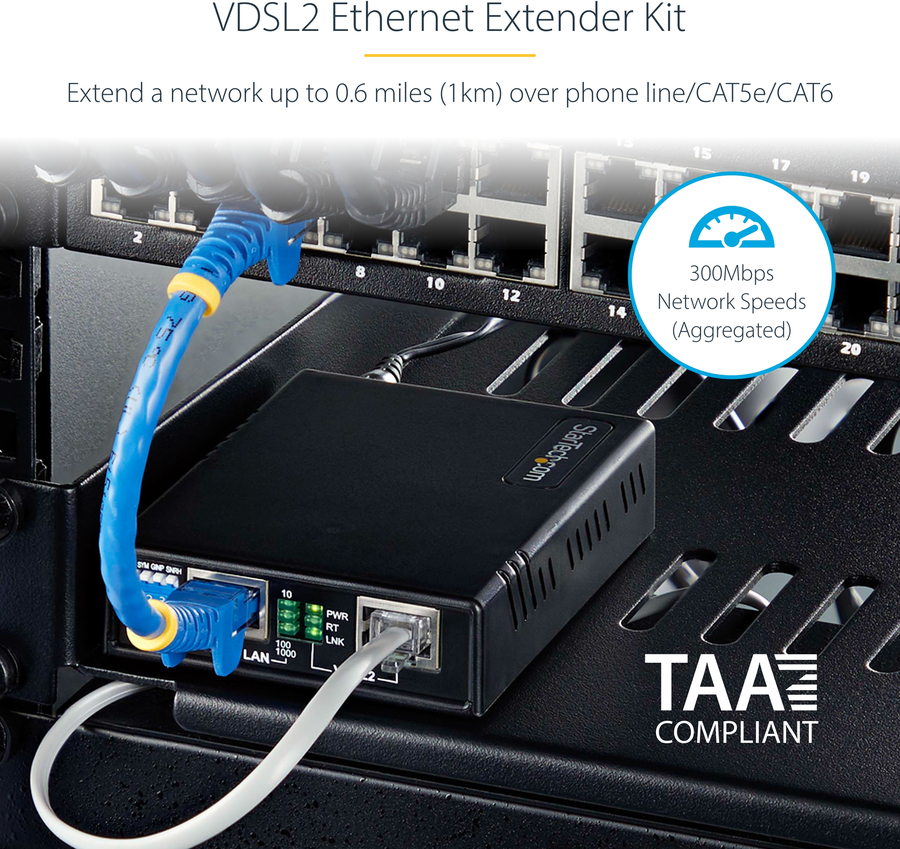

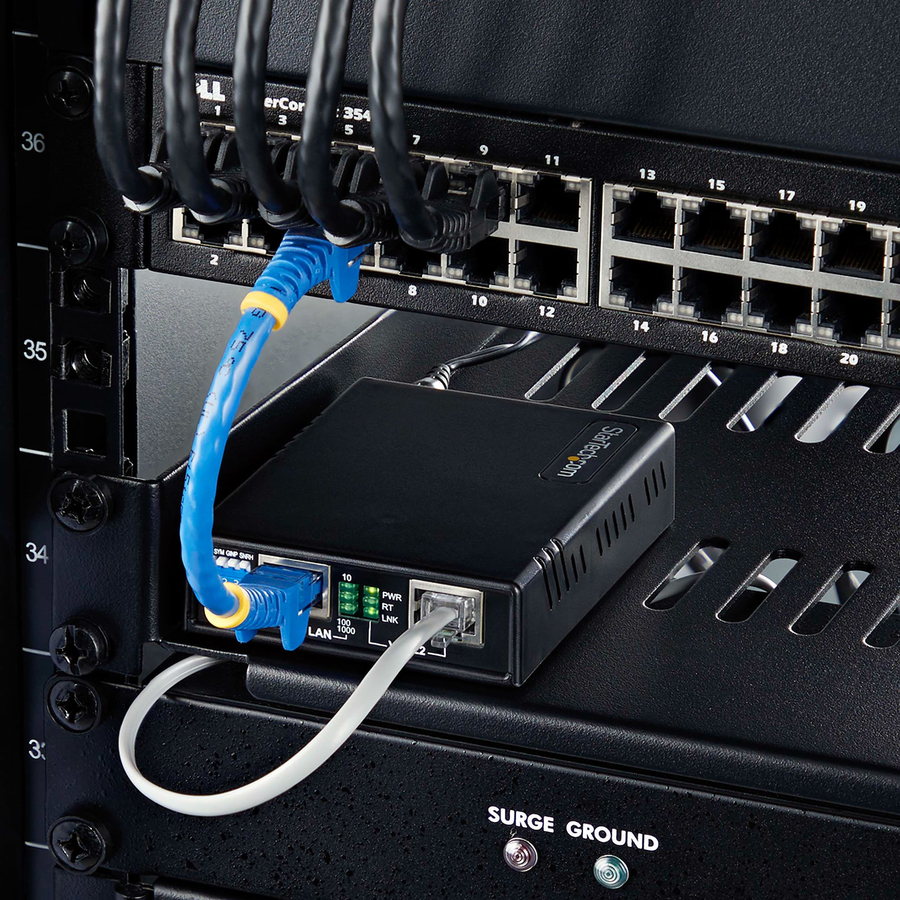

Extend a 10/100/1000Mbps network up to 0.6mi (1km) using RJ45 or RJ11 cablingExtend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km).Extend Network ConnectivityExtend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies.Thoughtful DesignThe installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.Versatile ApplicationsThe Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.The StarTech.com Advantage |
|
Performance |
|
Type |
Network repeater |
|
Maximum transfer distance |
1000 m |
|
Data transfer rate |
300 Mbit/s |
|
Cable types supported |
Cat5e, Cat6 |
|
Chipset |
RTL8685FB-CG |
|
VLAN tagging |
Yes |
|
Network |
|
Networking standards |
IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
|
Ports & interfaces |
|
DC-in jack |
Yes |
|
RJ-45 input ports |
2 |
|
RJ-45 output ports |
2 |
|
Design |
|
Product colour |
Black |
|
Rack mounting |
No |
|
LED indicators |
LAN, Power |
|
Quantity per pack |
2 pc(s) |
|
Power |
|
AC input voltage |
100 - 240 V |
|
Input current |
0.5 A |
|
Power consumption (typical) |
3.8 W |
|
External power adapter |
Yes |
|
Power plug type |
Type M |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|

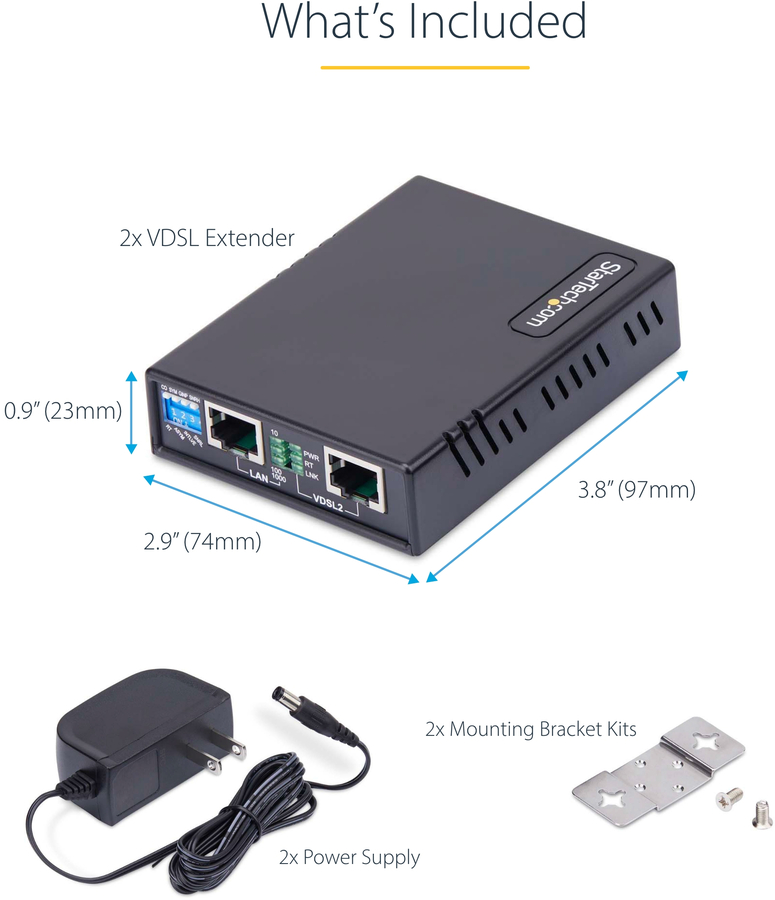

Weight & dimensions |
|
Width |
74 mm |
|
Depth |
97 mm |
|
Height |
23 mm |
|
Weight |
116 g |
|
Technical details |
|
Sustainability compliance |
Yes |
|
Sustainability certificates |
Trade Agreements Act (TAA) |
|
Packaging content |
|
Quick start guide |
Yes |
|
AC adapter included |
Yes |
|
Packaging data |
|
Package width |
150 mm |
|
Package depth |
180 mm |
|
Package height |
130 mm |
|
Package weight |
700 g |
|
Logistics data |
|
Master (outer) case width |
305 mm |
|
Master (outer) case length |
425 mm |
|
Master (outer) case height |
515 mm |
|
Products per master (outer) case |
15 pc(s) |
|
