StarTech 1-Port 2.5GbE M.2 2280 Network Card
|
|
Price: $106.00
Manufacturer:
StarTech
StarTech.com 1-Port 2.5GbE 2280 M.2 Network Card, NBASE-T PCIe Ethernet, Intel I225-V, Multi-Gigabit, SFF/Desktop PC LAN Card, TAA
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59702721
|
MR12GI-NETWORK-CARD
|
65030901611 |
Active
|
Details
|
General Information |
|
Summary |

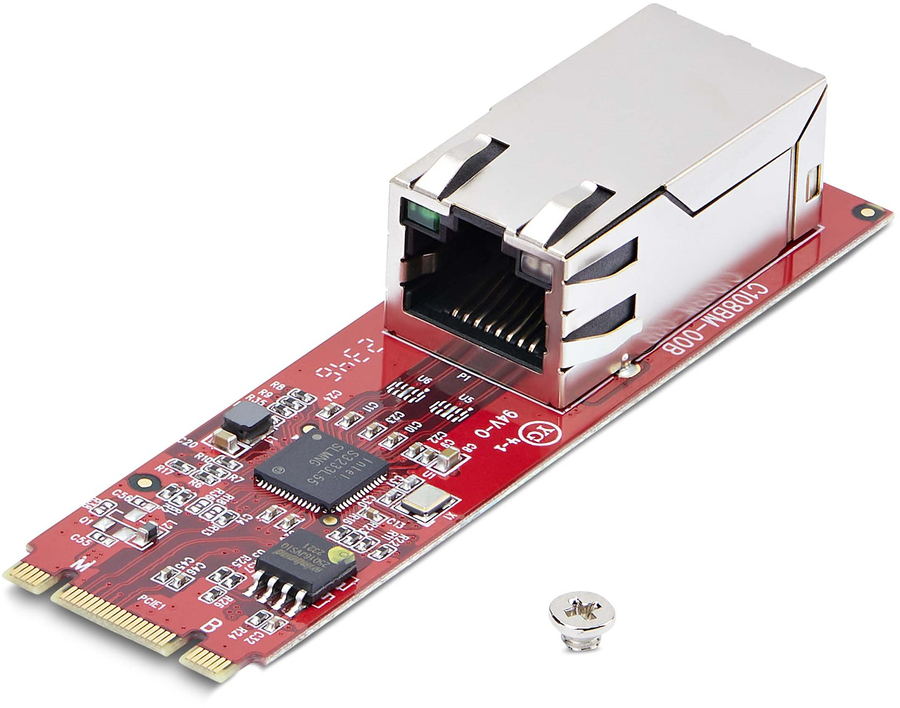

M.2 PCIe network card featuring the Intel® I225-V-chip, offering multi-gigabit speeds with support for NBASE-T
This 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vPro® technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card takes advantage of Intel vPro® technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware

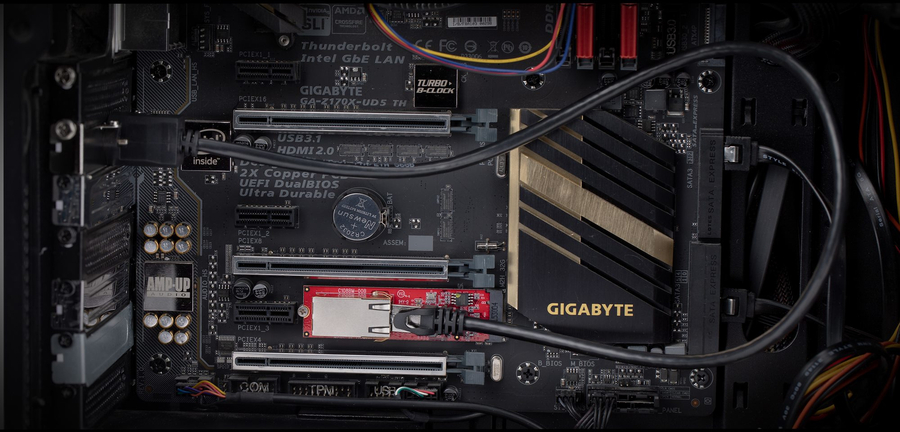

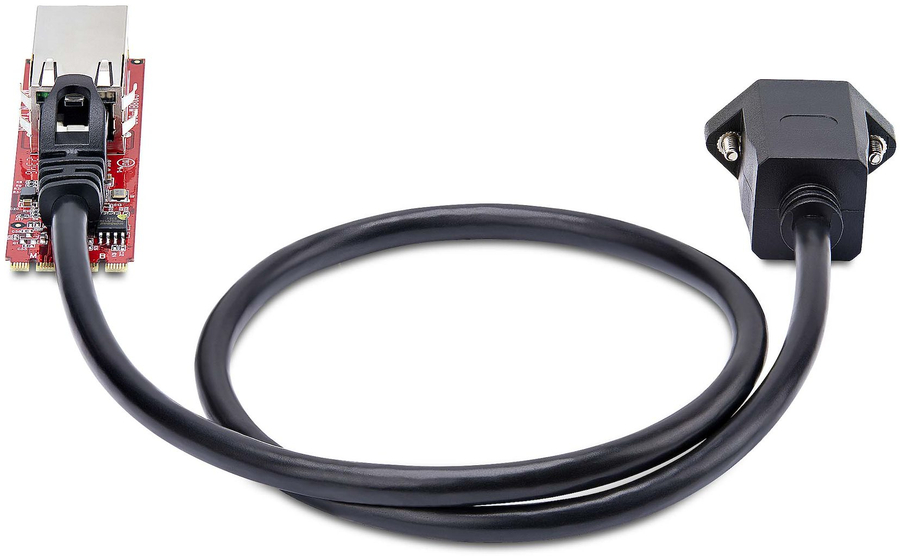

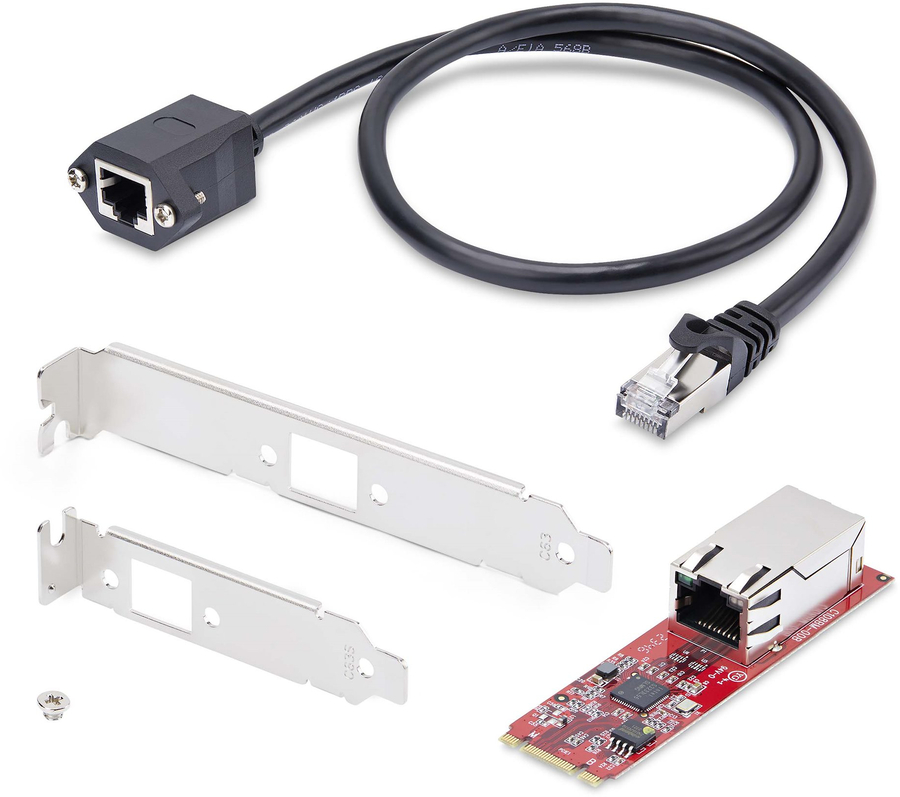

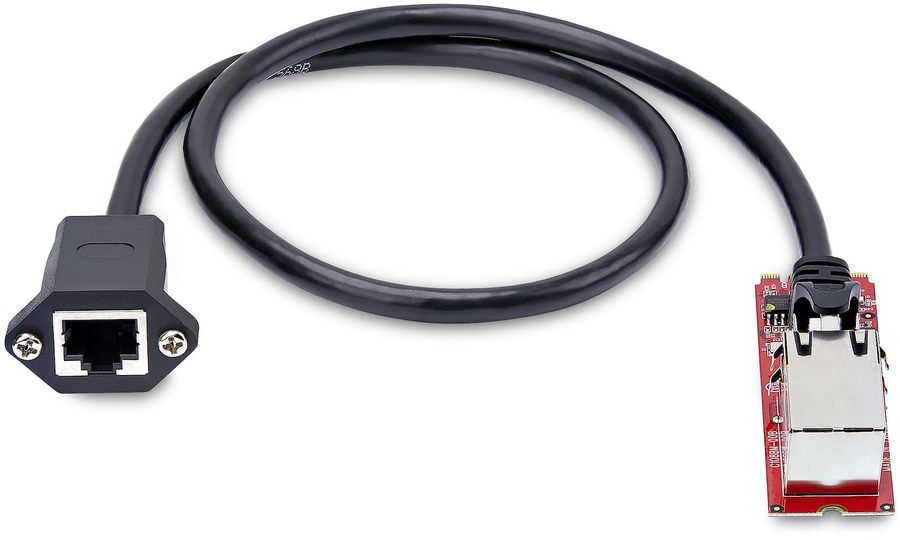

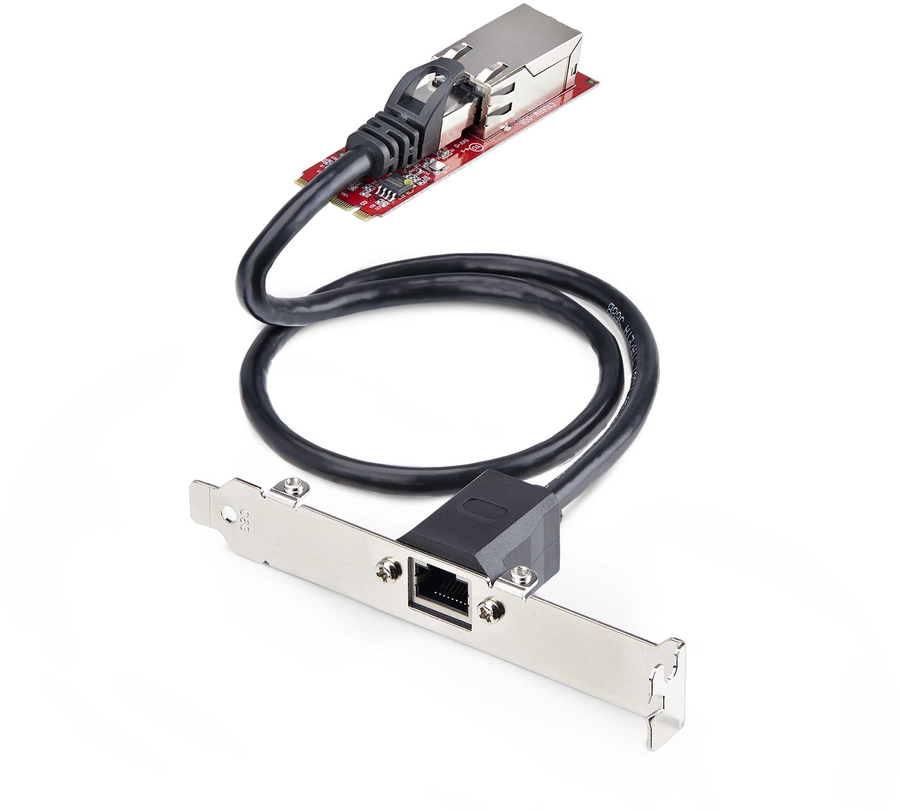

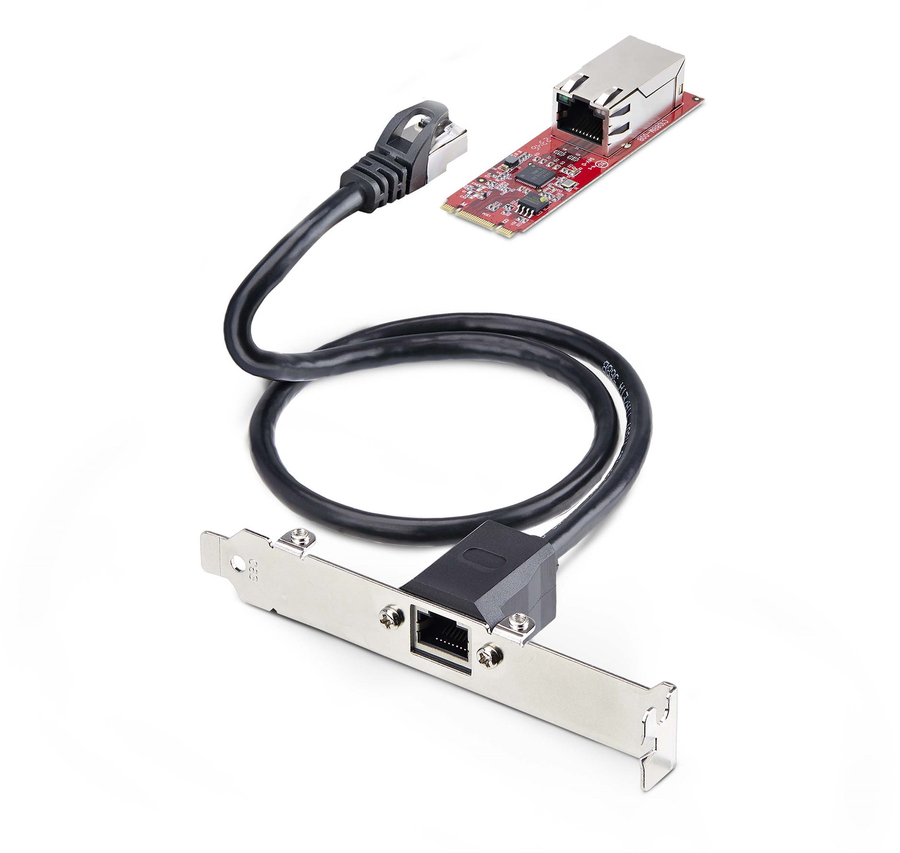

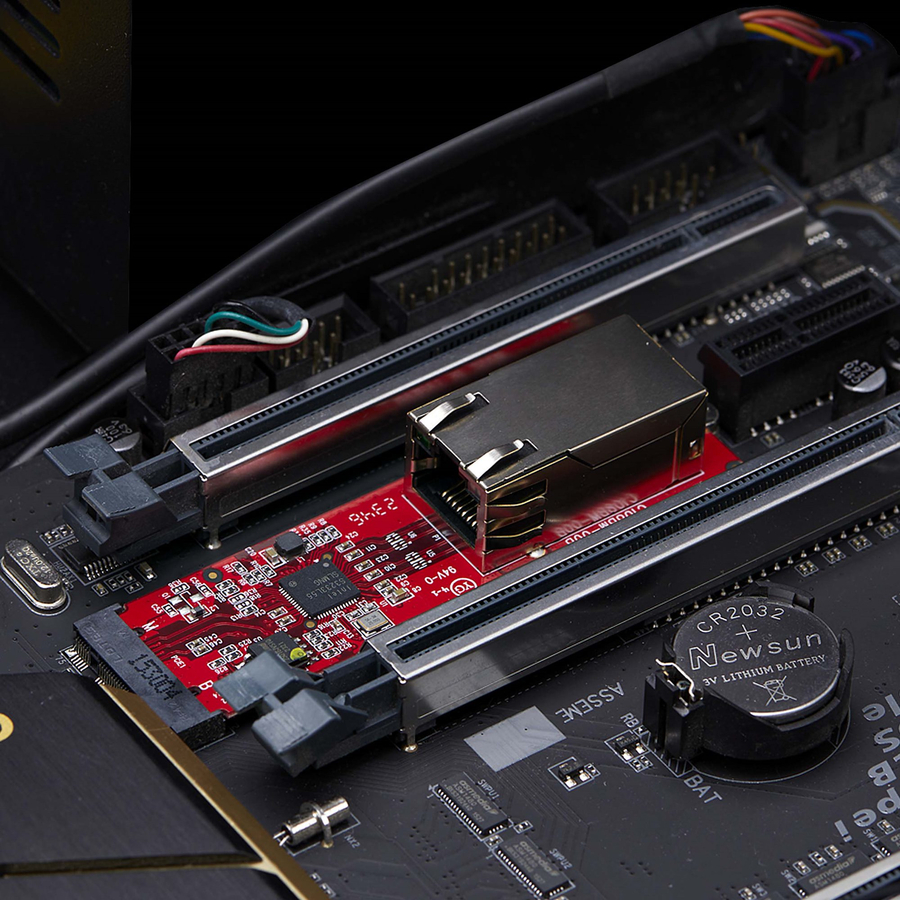

The network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, and Linux.
Advanced Features
This Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.
The StarTech.com Advantage
|
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
M.2 |
|
Interface |
Ethernet |
|
Ethernet LAN (RJ-45) ports |
1 |
|
PCI version |
2.0 |
|
Network |
|
Maximum data transfer rate |
2500 Mbit/s |
|
Networking standards |
IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
|
Cabling technology |
NBase-T |
|
Wake-on-LAN ready |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Design |
|
Internal |
Yes |
|
Component for |
PC/Server |
|
Product colour |
Red |
|
Chipset |
Intel I225-V |
|
LED indicators |
Yes |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
|
Weight & dimensions |
|
Width |
80 mm |
|
Depth |
22 mm |
|
Height |
15 mm |
|
Weight |
15 g |
|
Packaging data |
|
Package width |
142 mm |
|
Package depth |
170 mm |
|
Package height |
30 mm |
|
Package weight |
170 g |
|
Packaging content |
|
Mounting brackets included |
Yes |
|
Packaging content |
CAT6 Cable Adapter |
|
Technical details |
|
Compliance certificates |
Trade Agreements Act (TAA) |
|
Logistics data |
|
Master (outer) case width |
500 mm |
|
Master (outer) case length |
380 mm |
|
Master (outer) case height |
310 mm |
|
Products per master (outer) case |
60 pc(s) |
|
Other features |
|
Quick start guide |
Yes |
|
Sustainability |
|
Sustainability compliance |
Yes |
|
