General Information |
|
Summary |
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
|
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1700 |
|
Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold |
|
Supported processor sockets |
LGA 1700 |
|
Maximum internal memory supported by processor |
128 GB |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
128 GB |
|
Memory channels |
Dual-channel |
|
ECC сompatibility |
Non-ECC |
|
Supported memory clock speeds |
2133,2400,2666,2800,2933,3000,3200,3333,3466,3733,3866,4000,4266,4400,4533,4600,4800,5000,5066,5200,5333 MHz |
|
Supported memory clock speed (max) |
5333 MHz |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, PCI Express |
|
Supported storage drive types |
HDD & SSD |
|
Number of HDDs supported |
4 |
|
Number of storage drives supported |
7 |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
Parallel processing technology support |
Not supported |
|
On-board graphics card |
No |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
|
Number of SATA III connectors |
4 |
|
Number of SATA II connectors |
0 |
|
Number of SATA connectors |
0 |
|
Front panel audio connector |
Yes |
|
Front panel connector |
Yes |
|
TPM connector |
Yes |
|
RGB LED pin header |
Yes |
|

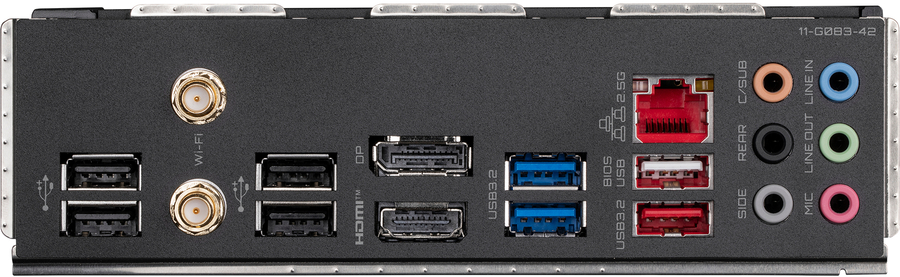

Rear panel I/O ports |
|
USB 2.0 ports quantity |
5 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
VGA (D-Sub) ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
S/PDIF out port |
Yes |
|
Network |
|
Wi-Fi |
Yes |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
2.5 Gigabit Ethernet |
|
Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.1 |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel Z790 |
|
Audio output channels |
7.1 channels |
|
Product colour |
Black |
|
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
|
Expansion slots |
|
PCI Express x16 (Gen 4.x) slots |
1 |
|
BIOS |
|
BIOS type |
EFI AMI |
|
BIOS memory size |
256 Mbit |
|
ACPI version |
5.0 |
|
Desktop Management Interface (DMI) version |
2.0 |
|
System Management BIOS (SMBIOS) version |
2.7 |
|
Weight & dimensions |
|
Width |
305 mm |
|
Depth |
244 mm |
|
Packaging content |
|
Cables included |
SATA |
|
Other features |
|
mSATA ports quantity |
0 |
