TP-Link Omada Gigabit WDM Media Converter
|
|
Price: $33.00
Manufacturer:
TP-Link
1x 10/100/1000 Mbps RJ45, 1x Gigabit SC, 1310 nm / 1550 nm RX, 94.5x73.0x27.0 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59710048
|
FC311B-20
|
6935364010591 |
Active
|
Details
|
General Information |
|
Summary |
What This Product Does

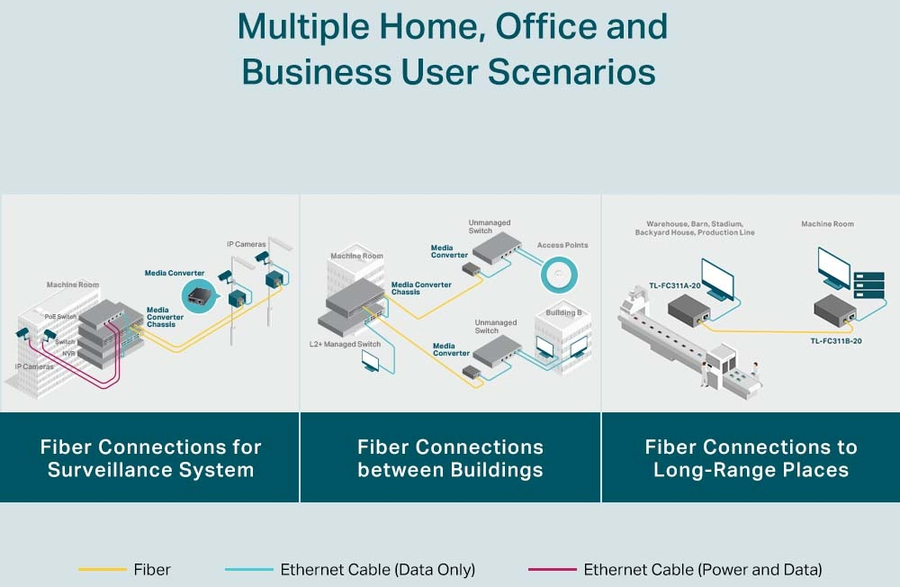

TL-FC311B-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works

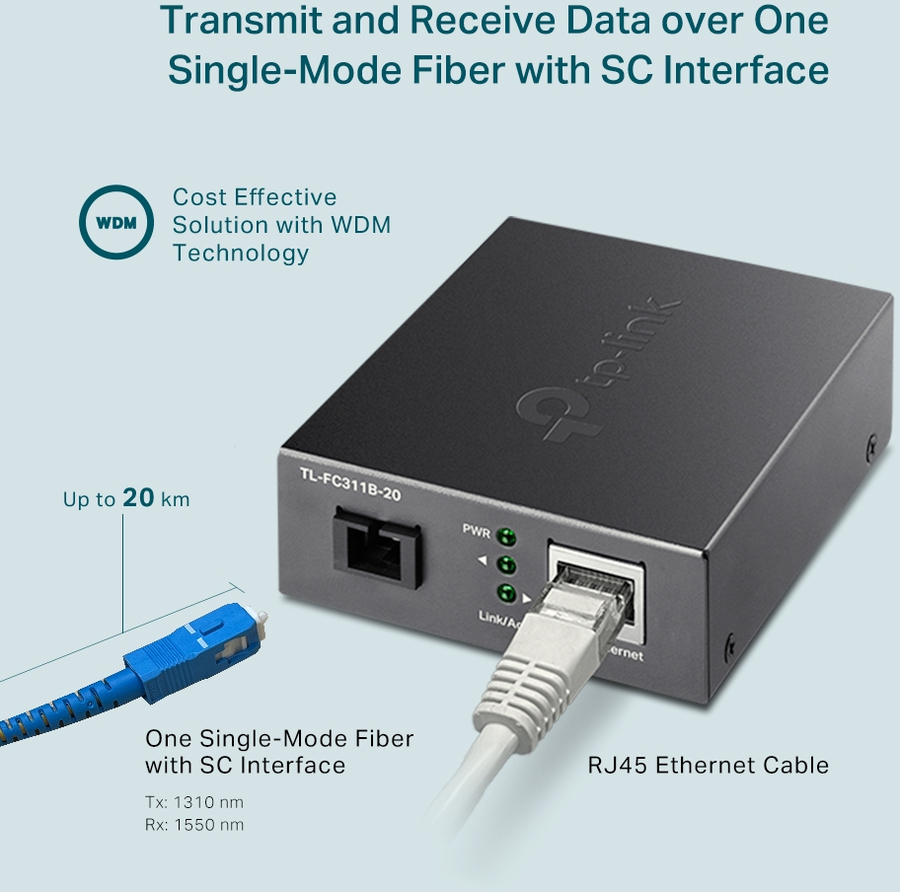

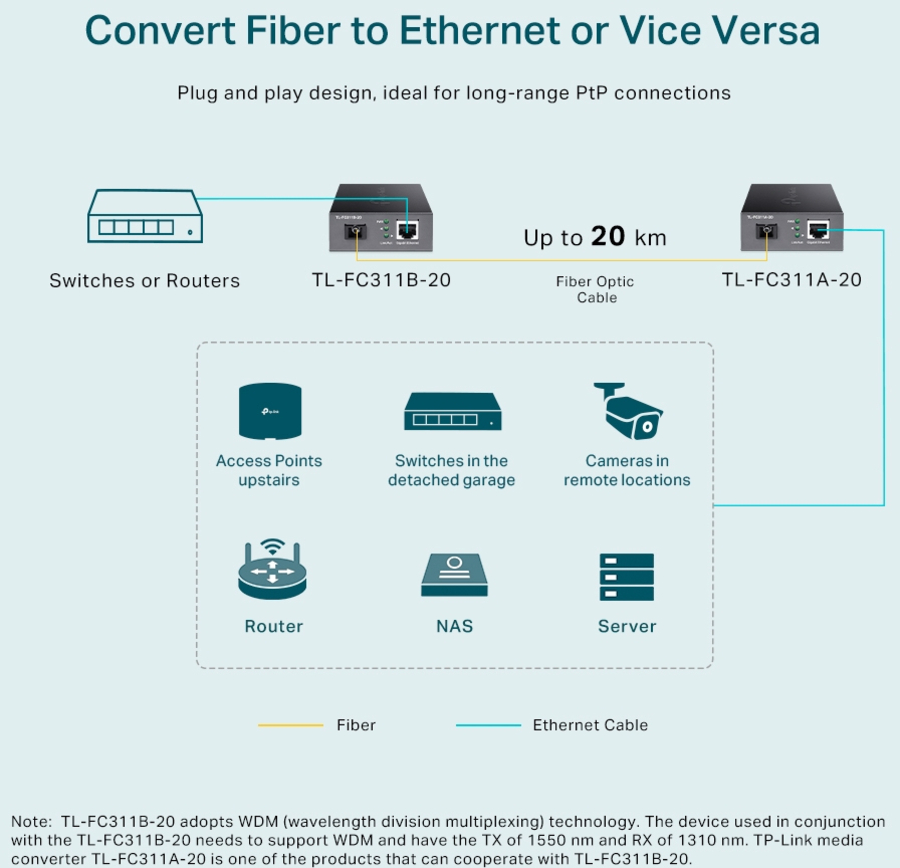

TL-FC311B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-20 is one of the products that can cooperate with TL-FC311B-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated. |
|
Network |
|
Maximum data transfer rate |
1000 Mbit/s |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Data transfer rate |
1000 Mbit/s |
|
Performance |
|
Maximum transfer distance |
2000 m |
|
Wavelength-division multiplexing (WDM) |
Yes |
|
Fiber mode structure |
Single-mode |
|
Fiber cable diameters supported (core/cladding) |
9/125 µm |
|
Features |
|
Internal |
No |
|
LED indicators |
Activity, Link, Power |
|
Product colour |
Black |
|
Ports & interfaces |
|
Fiber optic connector |
SC |
|
Connectivity technology |
Wired |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Fiber ports quantity |
1 |
|
DC-in jack |
Yes |
|
Power |
|
Output voltage |
5 V |
|
Output current |
0.6 A |
|
Weight & dimensions |
|
Width |
94.5 mm |
|
Depth |
73 mm |
|
Height |
27 mm |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Packaging content |
|
AC adapter included |
Yes |
|
Quick installation guide |
Yes |
|
Packaging data |
|
Package width |
165 mm |
|
Package depth |
204 mm |
|
Package height |
65 mm |
|
Package weight |
560 g |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
