General Information |
|
Summary |
Powering the Next Generation of Server Architecture and Energy Efficiency
The path to AMD's 5nm 'Zen 4' architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory. |
|
Processor |
|
Built-in processor |
No |
|
Motherboard chipset |
AMD SoC |
|
Processor socket |
LGA 6096 |
|
Number of processors supported |
1 |
|
Processor manufacturer |
AMD |
|
Processor family |
AMD EPYC |
|
Memory |
|
Number of DIMM slots |
16 |
|
Supported memory types |
DDR4-SDRAM |
|
Supported DIMM module capacities |
256GB |
|
Supported RDIMM clock speeds |
4800 MHz |
|
Memory channels |
Octa-channel |
|
Storage |
|
Number of storage drives supported |
4 |
|
Hot-swap HDD bays |
Yes |
|
Number of 2.5" bays |
4 |
|
Number of 3.5" bays |
4 |
|
Storage drive sizes supported |
2.5,3.5,M.2 |
|
Graphics |
|
On-board graphics card model |
Aspeed AST2500 |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
VGA (D-Sub) ports quantity |
1 |
|
Expansion slots |
|
PCI Express x16 slots |
1 |
|
Number of M.2 (M) slots |
1 |
|
Features |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Backplanes support |
Yes |
|
Compatible operating systems |
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later |
|
Logistics data |
|
Harmonized System (HS) code |
84714100 |
|
Design |
|
Chassis type |
Rack (1U) |
|
LED indicators |
HDD, LAN, Power, Status |
|
On/off switch |
Yes |
|
Reset button |
Yes |
|
Number of fans |
8 fan(s) |
|
Fan diameter |
8 cm |
|
Power |
|
Power supply |
800 W |
|
Number of main power supplies |
2 |
|
AC input voltage |
100 - 240 V |
|
Input current |
10 - 4 A |
|
DC output current (+12 V) |
66 A |
|
Operational conditions |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Storage temperature (T-T) |
-40 - 60 °C |
|
Operating relative humidity (H-H) |
8 - 80% |
|
Storage relative humidity (H-H) |
20 - 95% |
|
Weight & dimensions |
|
Width |
438 mm |
|
Depth |
730 mm |
|
Height |
43.5 mm |
|
Packaging data |
|
Packaging content |

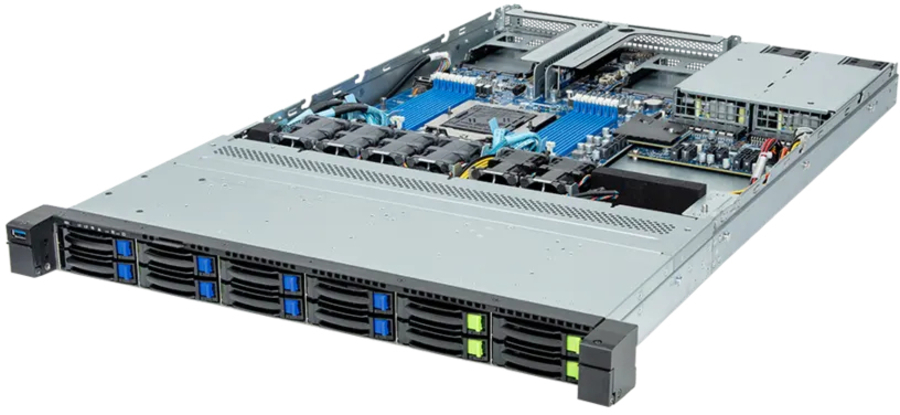

1 x R162-ZA1
1 x CPU heatsink
1 x Rail kit |
