StarTech M.2 NVMe SSD Drive Tray for use in PCIe Expansion Product Series - Drive Tray for an Additional Hot Swappable Drive
|
|
Price: $50.00
Manufacturer:
StarTech
StarTech.com M.2 NVMe SSD Drive Tray for use in PCIe Expansion Product Series - Drive Tray for an Additional Hot Swappable Drive
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59719183
|
TR-M2-REMOVABLE-PCIE
|
65030900393 |
Active
|
Details
|
General Information |
|
Summary |
A spare drive tray to add and/or swap a 2230, 2242, 2260, or 2280 M-Key NVMe M.2 SSD

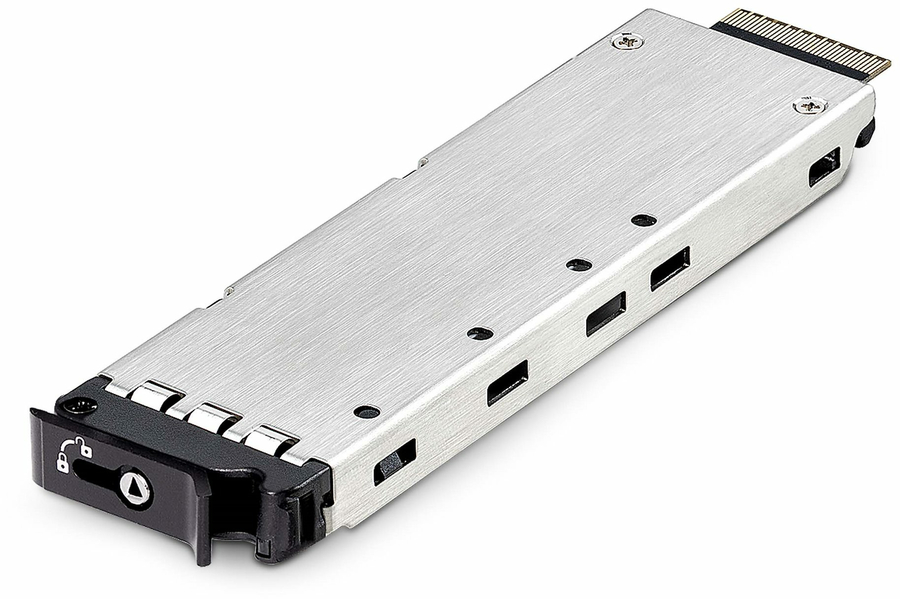

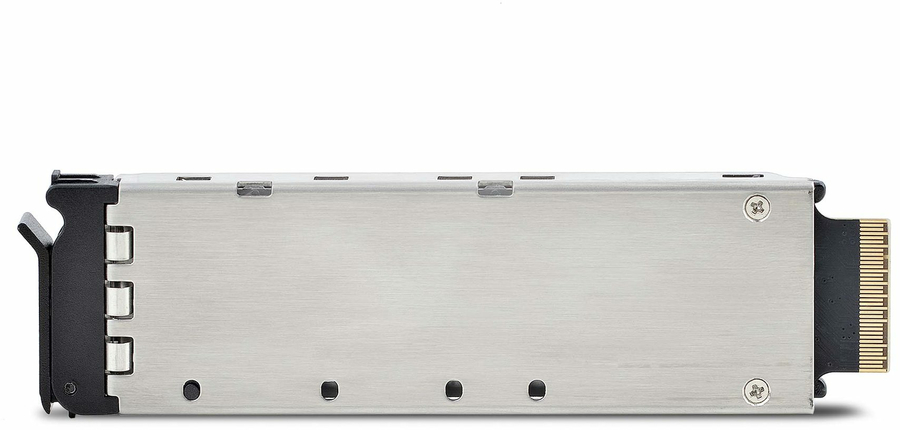

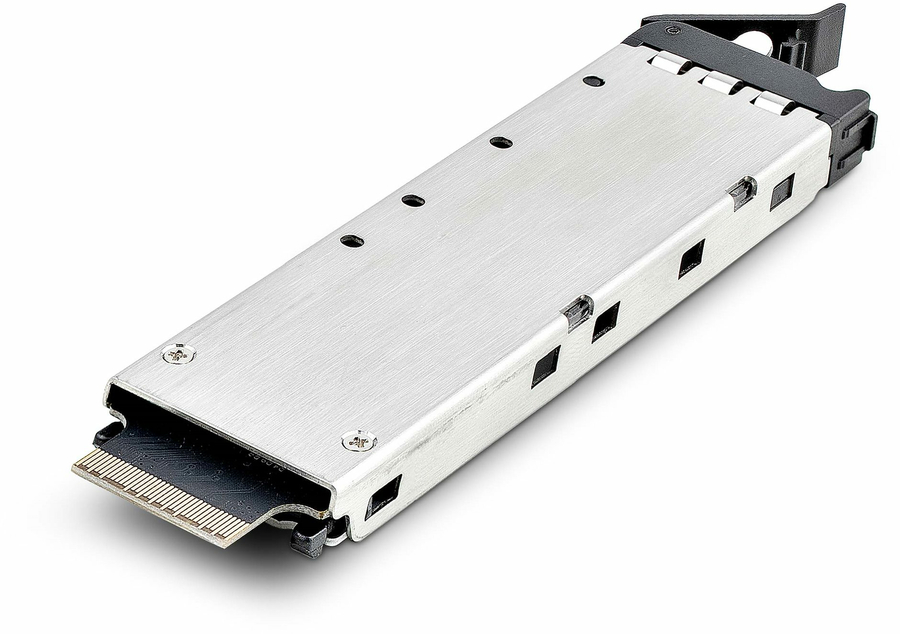

A spare drive tray for M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE, to add or swap a compatible drive. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.

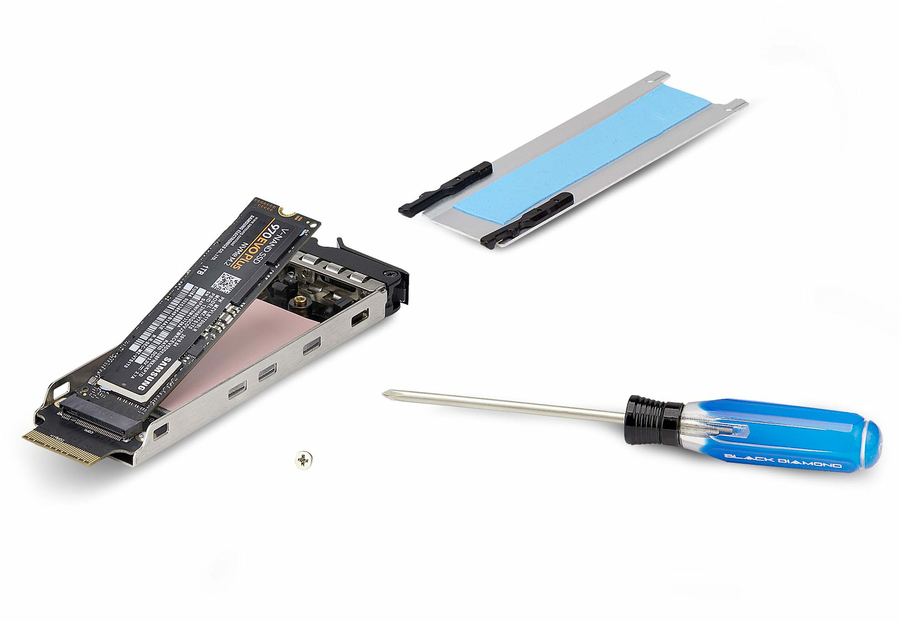

Toolless Installation

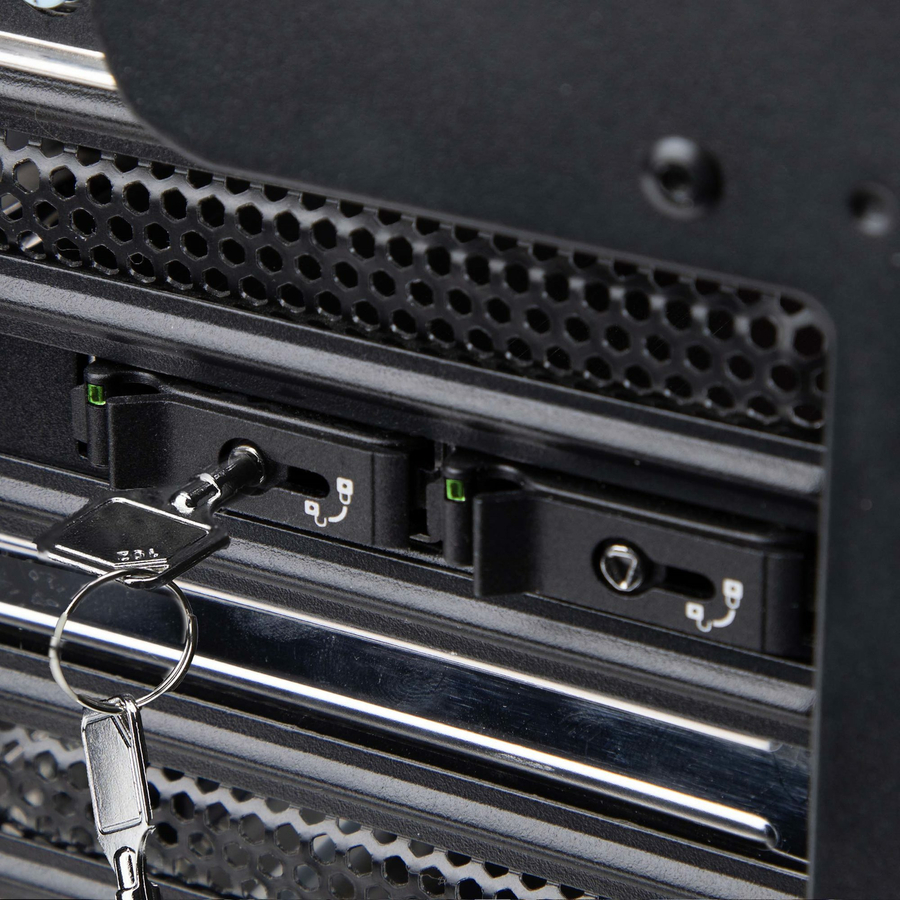

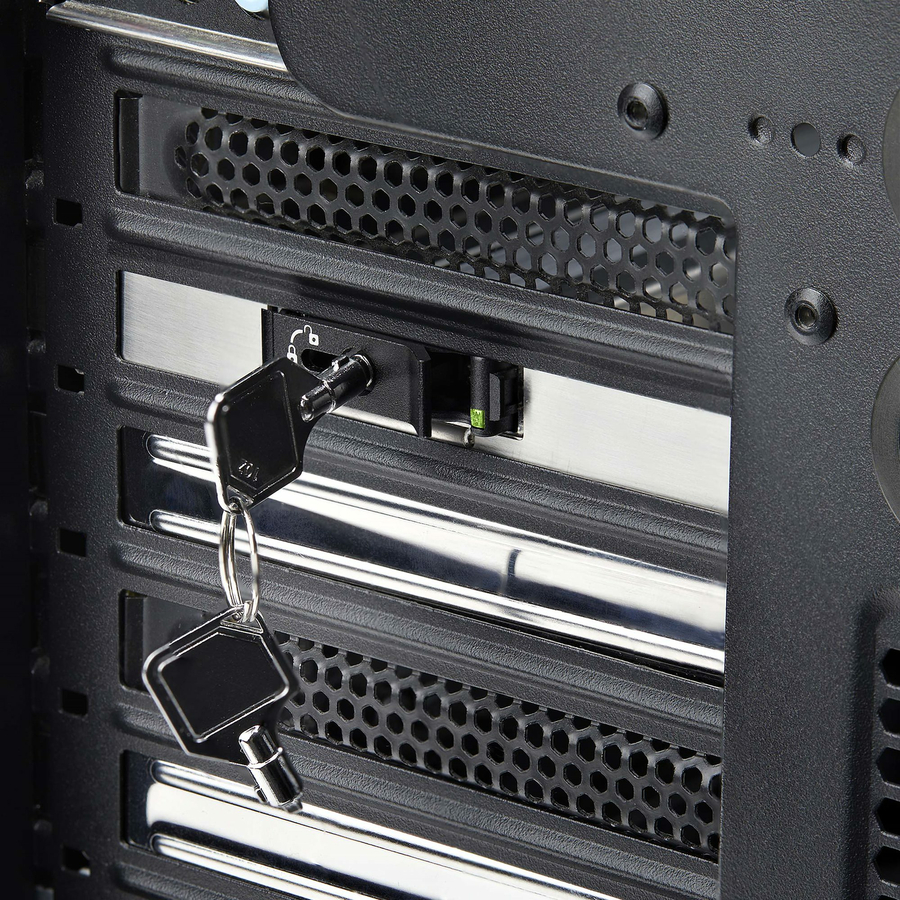

Install an M.2 drive into the drive tray without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.
Optimal Performance

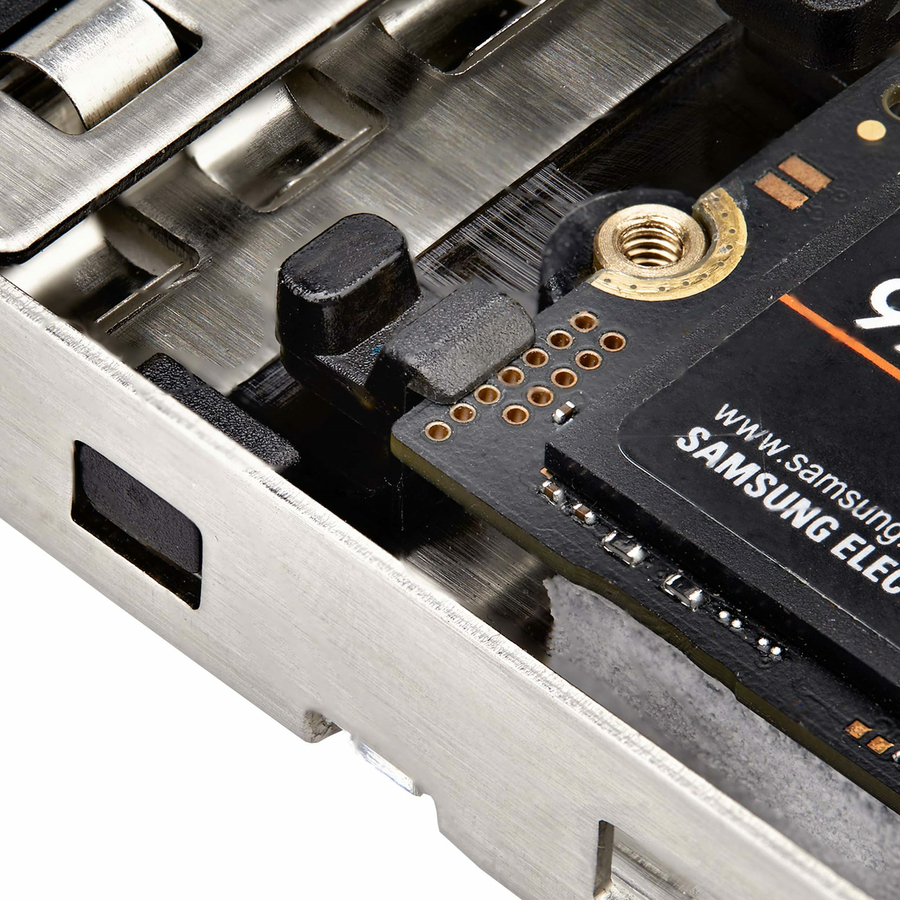

The tray features thermal pads which aid heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive.
Hot-Swappable
When used with products from the PCIe Expansion Product Series, it provides flexibility and convenience for managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard and for instructions regarding how to enable this feature.
The StarTech.com Advantage
|
|
Features |
|
Type |
Storage drive tray |
|
Product colour |
Black, Silver |
|
Number of SSDs supported |
1 |
|
SSD interface |
PCI Express 4.0 |
|
SSD form factor |
M.2 |
|
Hot-swap |
Yes |
|
Data transfer rate |
64 Gbit/s |
|
LED indicators |
Yes |
|
RAID support |
No |
|
S.M.A.R.T. support |
Yes |
|
TRIM support |
Yes |
|
Weight & dimensions |
|
Width |
34 mm |
|
Depth |
124 mm |
|
Height |
12 mm |
|
Weight |
36 g |
|
Packaging data |
|
Package width |
145 mm |
|
Package depth |
75 mm |
|
Package height |
20 mm |
|
Package weight |
79.2 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Quick start guide |
Yes |
|
Number of lock keys included |
2 pc(s) |
|
Logistics data |
|
Products per master (outer) case |
100 pc(s) |
|
Master (outer) case width |
485 mm |
|
Master (outer) case length |
325 mm |
|
Master (outer) case height |
270 mm |
|
