StarTech 3-foot Cat8 Ethernet Cable Snagless (RJ45 M/M) White

Home :: Cables :: Cables - Networking :: Network Patch Cables ::


Regularly: $23.00
On Sale: $22.08    Sale Ends: May 26th, 2024

Manufacturer: StarTech

StarTech.com 3ft White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W PoE++, S/FTP, 26AWG Pure Bare Copper, LSZH

Availability
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
Product # Manufacturer # UPC # Status
59720989 NLWH-3F-CAT8-PATCH 65030898584 Active

Details

General Information

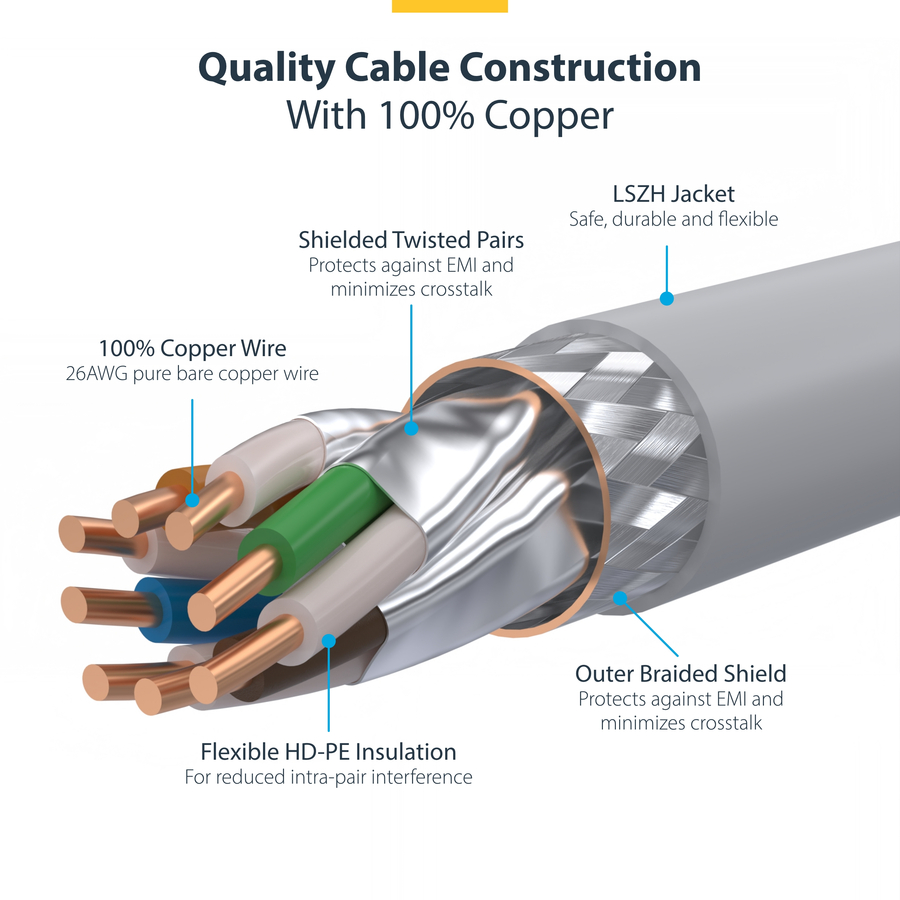

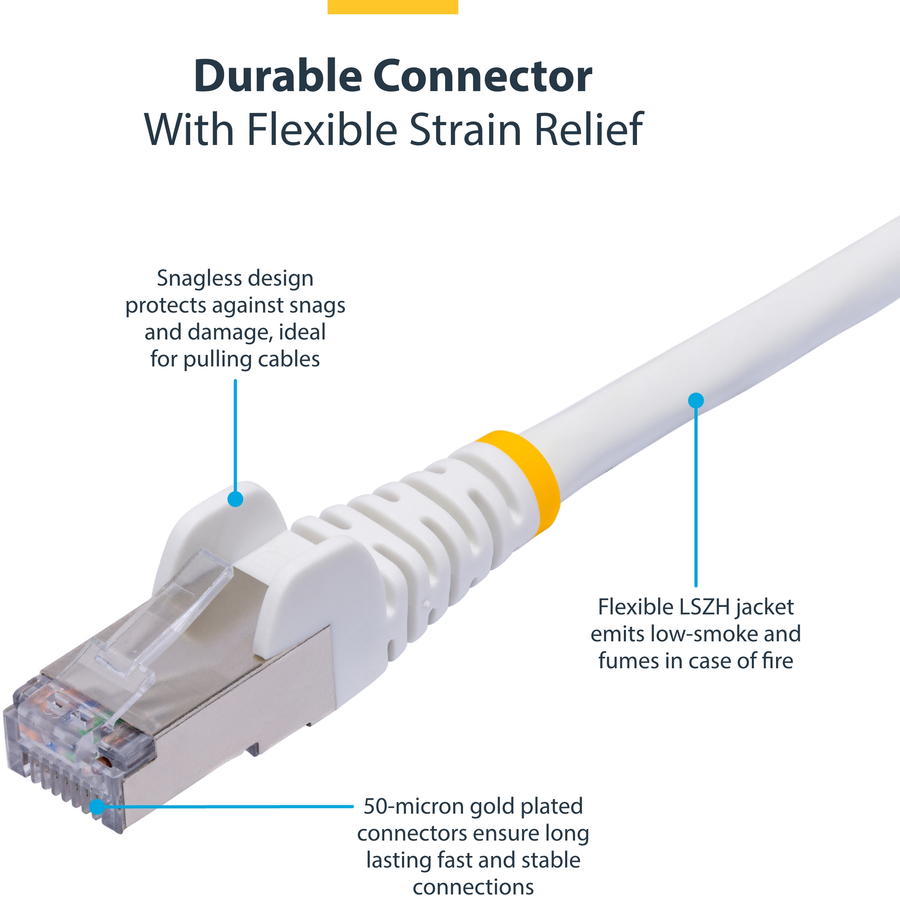

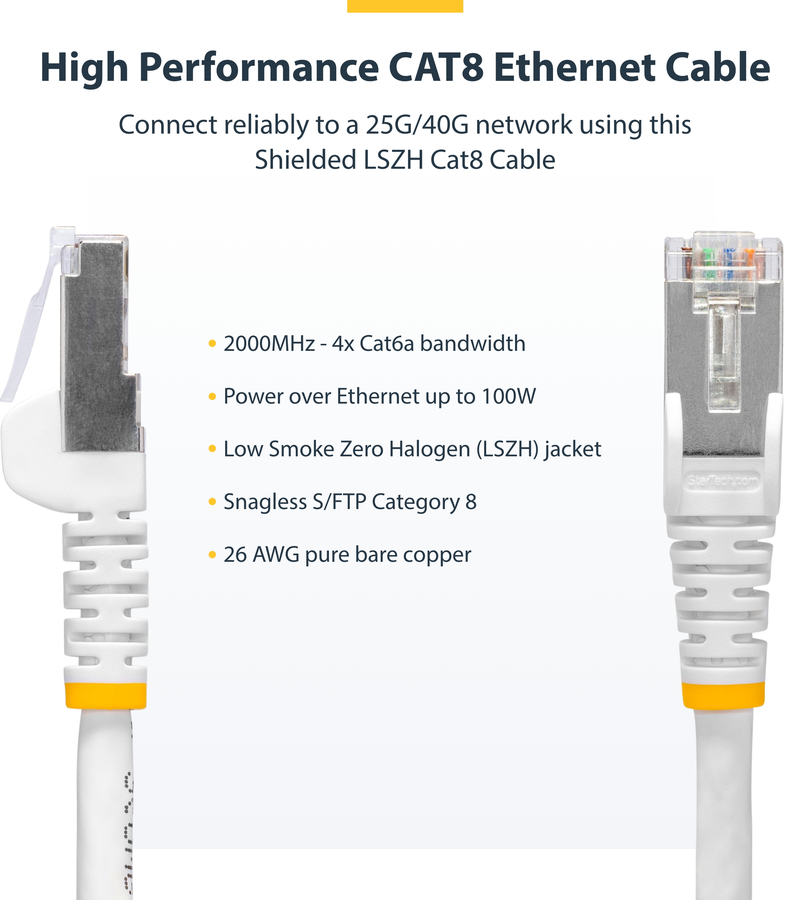

Summary Connect reliably to a 25G/40G network using this Shielded LSZH Cat8 CableConnect to a 25/40Gbps switch or networking device using this Snagless S/FTP Category 8 Ethernet Cable. The 2000MHz maximum frequency enables up to four times higher throughput than Cat6a.Pure Bare Copper WireOur Snagless Cat8 Cables are designed for long-lasting performance. The 4-Pair Shielded and Foiled Twisted Pair (S/FTP) construction utilizes 26AWG pure bare copper wire for improved conductivity and low resistance, ensuring reliable transmission and minimal signal loss.Pure bare copper wiring offers consistent performance characteristics across different environments. Each pair is shielded in aluminum-mylar foil and tinned copper braid for enhanced EMI protection.Durable ConstructionThe Cat8 Ethernet Cable features snagless 50-micro gold-plated connectors that enable a precise fit to minimize wear and are rated beyond 750 connector mating cycles. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.The cable is rated to withstand -/+90-degree bends and routes well in confined spaces.Versatile DependabilityThe Shielded Cat8 Patch Cord is ideal for high-density 25/40GBASE-T networks and supports up to 100W output to Power over Ethernet (PoE++) devices. Establish connectivity to 25G/40G switches, Network Attached Storage (NAS), Storage Area Networks (SANs), and SFP modules. It facilitates reliable throughput and power to low-latency and critical PoE devices, including PoE switches, access points, and IP cameras.Backward compatibility with Cat 6/6a and Cat 5/5e standards ensure seamless integration into existing network environments. Our Snagless Cat8 cables are Fluke channel tested for guaranteed Cat8 performance.The StarTech.com Advantage
Features
Cable length 0.91 m
Cable standard Cat8
Cable shielding S/FTP (S-STP)
Connector 1 RJ-45
Connector 2 RJ-45
Product colour White
Connector 1 gender Male
Connector 2 gender Male
Connector 1 form factor Straight
Connector 2 form factor Straight
Connector contacts plating Gold
Connector shielding Yes
Jacket material Low smoke zero halogen (LSZH)
Cable shape Round
Conductor type Solid
Conductor material Copper
Cabling technology 40GBase-T
Ethernet interface type 25 Gigabit Ethernet, 40 Gigabit Ethernet
Networking standards IEEE 802.3ba
AWG wire size 26
Data transfer rate 40000 Mbit/s
Frequency 2000 MHz
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE++ (4PPoE)
Total Power over Ethernet (PoE) budget 100 W
Snagless cable boot Yes
Certification TIA/EIA-T568B
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 85%
Weight & dimensions
Outer diameter 5.6 mm
Packaging data
Quantity per pack 1 pc(s)
Package width 195 mm
Package depth 220 mm
Package height 10 mm
Package weight 52 g
Logistics data
Master (outer) case width 380 mm
Master (outer) case length 430 mm
Master (outer) case height 290 mm
Products per master (outer) case 120 pc(s)

Multimedia

Multimedia Items
leaflet (leaflet)
