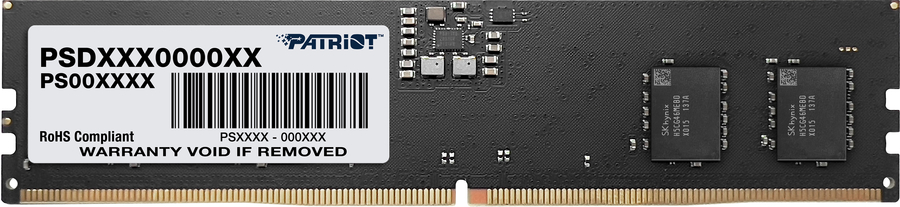

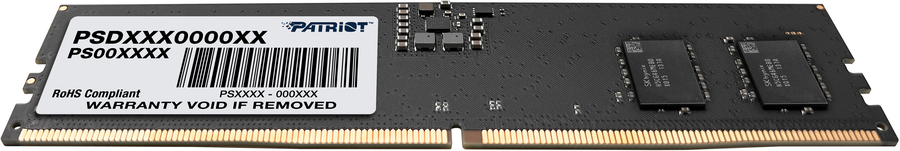

Patriot Signature Series 16GB 5200 CL42 DDR5 Memory Module
|
|
Price: $53.00
Manufacturer:
Patriot
16 GB, DDR5, 5200 MHz, 288-pin, U-DIMM, 1.1 V
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59722576
|
PSD516G520081
|
4711378422306 |
Active
|
Details
|
General Information |
|
Summary |
Patriot's Signature Line DDR5 memory modules are designed to deliver an immense performance improvement for next generation Intel platforms. Requiring only 1.1V of power, Signature DDR5 modules consume less power and emit less heat despite the increased frequency and speed. Enhanced power improvements include an onboard Power Management IC (PMIC), which provides better control of local voltage regulation while delivering increased threshold protection, simultaneous monitoring, intelligent voltage, and power management. The Signature Line DDR5 series includes onboard thermal sensors to monitor and protect against thermal issues and better overall reporting. In addition, the latest on-die ECC (Error-Correcting Code) further enhances the accuracy of data-processing and your overall system's stability. |
|
Features |
|
Internal memory |
16 GB |
|
Memory layout (modules x size) |
1 x 16 GB |
|
Internal memory type |
DDR5 |
|
Memory clock speed |
5200 MHz |
|
Component for |
PC |
|
Memory form factor |
288-pin DIMM |
|
ECC |
No |
|
Buffered memory type |
Unregistered (unbuffered) |
|
On-Die ECC |
Yes |
|
CAS latency |
42 |
|
Memory voltage |
1.1 V |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 85 °C |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Weight & dimensions |
|
Width |
133 mm |
|
Depth |
2 mm |
|
Height |
32 mm |
|
Weight |
17 g |
|
Packaging data |
|
Package width |
61 mm |
|
Package depth |
12 mm |
|
Package height |
170 mm |
|
Package weight |
29 g |
|
Package type |
Blister |
|
