Performance |
|
Video input channels |
16 channels |
|
Maximum resolution |
3840 x 2160 pixels |
|
Number of simultaneously playbacked channels |
16 channels |
|
Video recording modes |
720p, 1080p |
|
Supported resolutions |
HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz
VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz |
|
Video motion detection |
Yes |
|
Audio formats supported |
G.711 A-law, G.711 μ-law, G.726 |
|
Video formats supported |
H.264, H.264+, H.265, H.265+ |
|
Playback modes |
Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
|
Playback controls |
Yes |
|
Maximum frame rate |
30 fps |
|
Input bandwidth |
80 Mbit/s |
|
Output bandwidth |
60 Mbit/s |
|
Recording modes |
Manual, Schedule |
|
Wireless LAN features |
|
Wi-Fi |
No |
|
Hard drive |
|
Number of HDDs installed |
0 |
|
HDD capacity |
0 GB |
|
Maximum storage capacity |
10 TB |
|
HDD interface |
SATA |
|
Number of HDDs supported |
2 |
|

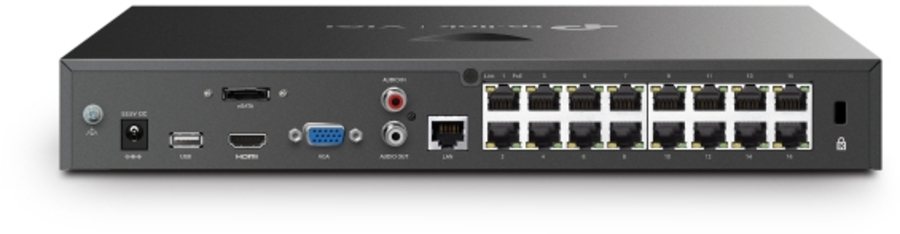

Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Power over Ethernet (PoE) |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Power over Ethernet (PoE) ports quantity |
16 |
|
HDMI ports quantity |
1 |
|
VGA (D-Sub) output ports |
1 |
|
USB 2.0 ports quantity |
2 |
|
eSATA ports quantity |
1 |
|
Internal SATA ports quantity |
2 |
|
eSATA |
Yes |
|
Line-in |
Yes |
|
Audio output |
1 |
|
DC-in jack |
Yes |
|
Networking standards |
IEEE 802.3af, IEEE 802.3at |
|
Supported network protocols |
UPnP (Plug and Play), NTP (Network Timing) |
|
Features |
|
Reset button |
Yes |
|
Product colour |
Black |
|
Certification |
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
|
Power |
|
Power consumption (max) |
40 W |
|
Output current |
2.43 A |
|
Output voltage |
53.5 V |
|
Total Power over Ethernet (PoE) budget |
140 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 55 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Weight & dimensions |
|
Width |
330 mm |
|
Depth |
285 mm |
|
Height |
45 mm |
|
Weight |
2.1 kg |
|
Package weight |
4.1 kg |
|
Packaging content |
|
Cables included |
AC |
|
AC adapter included |
Yes |
|
Quick installation guide |
Yes |
|
