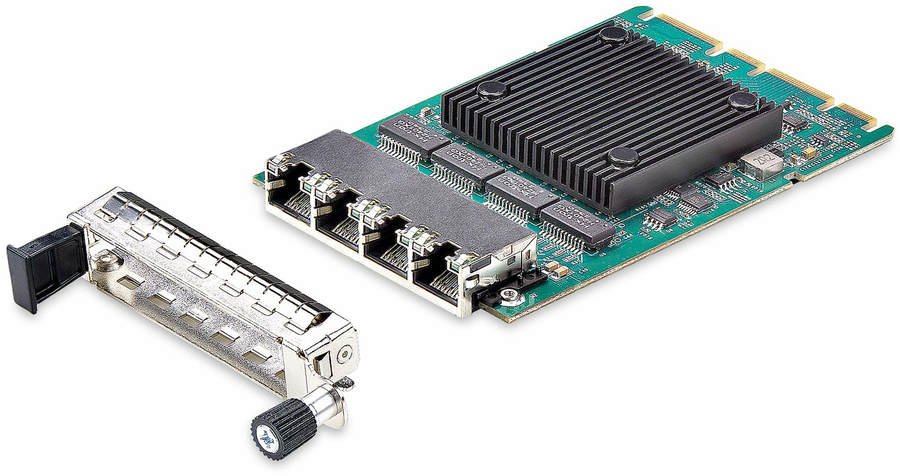

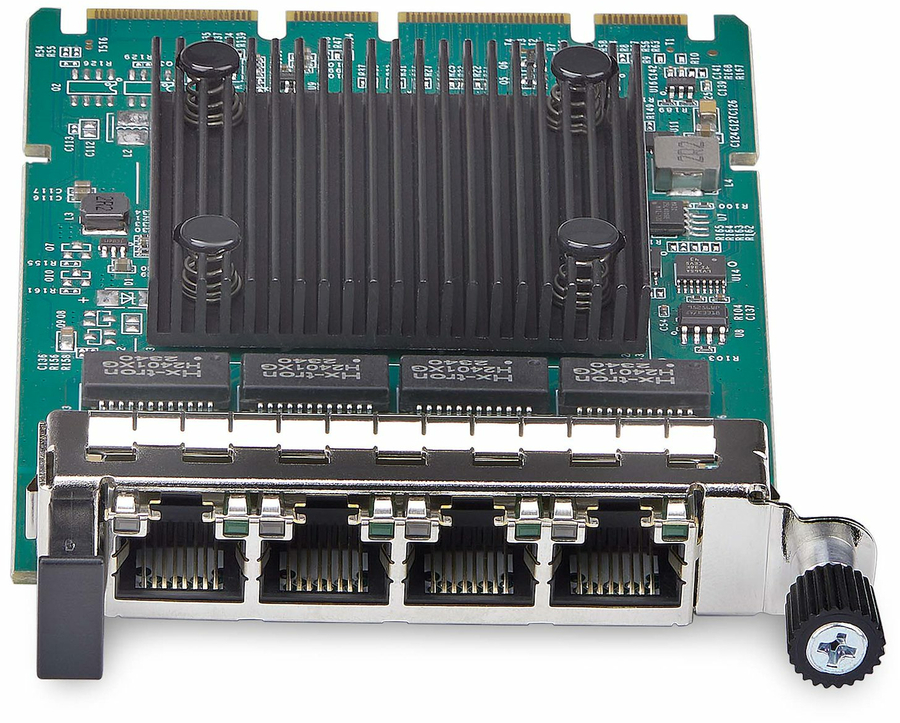

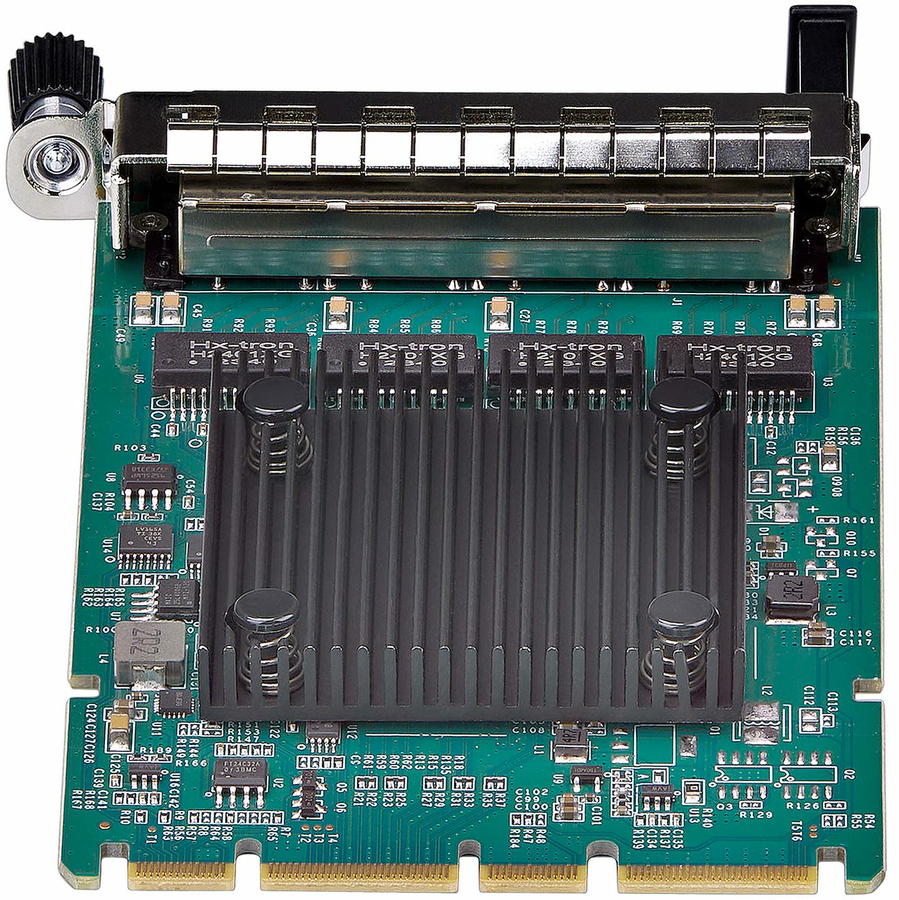

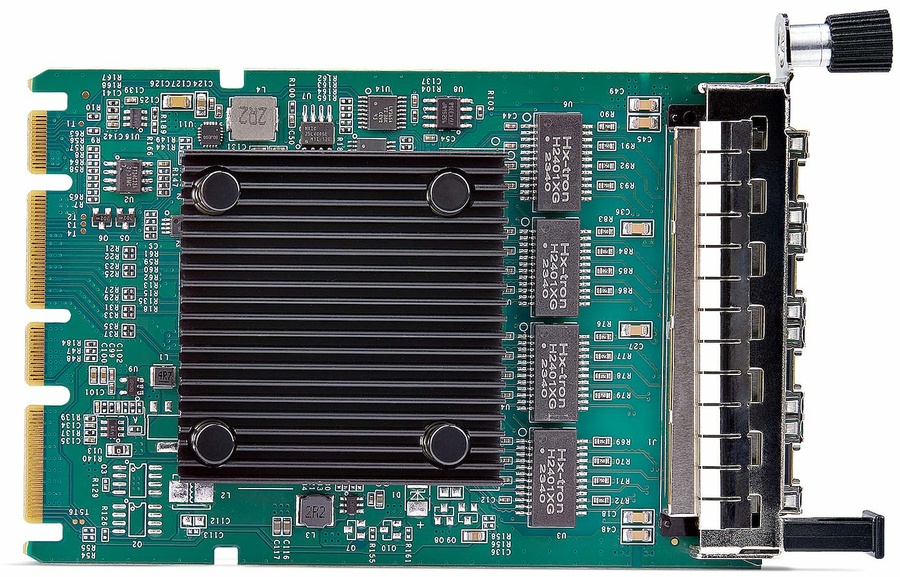

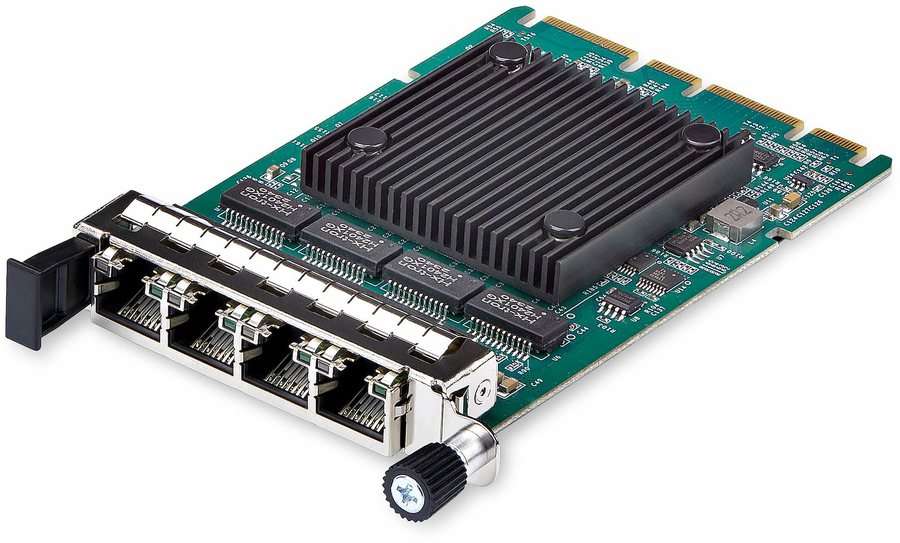

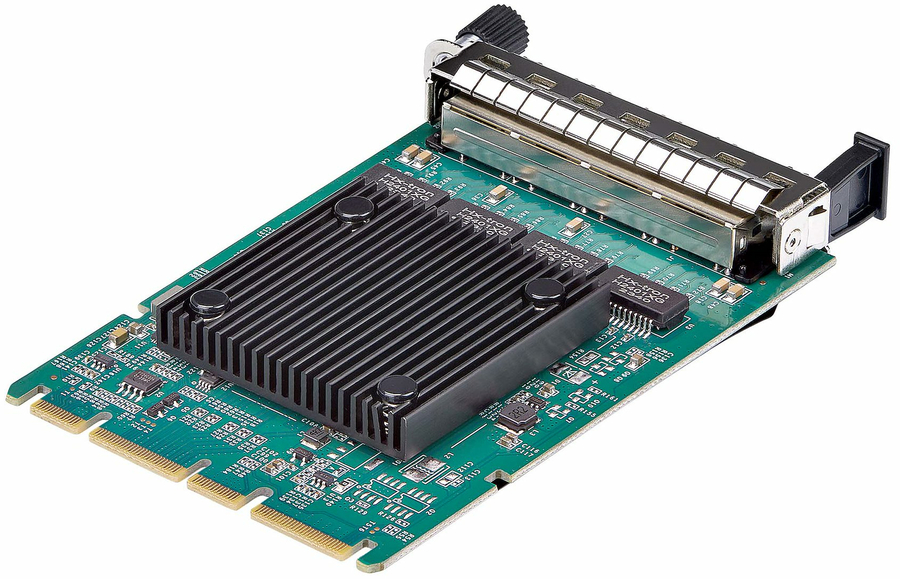

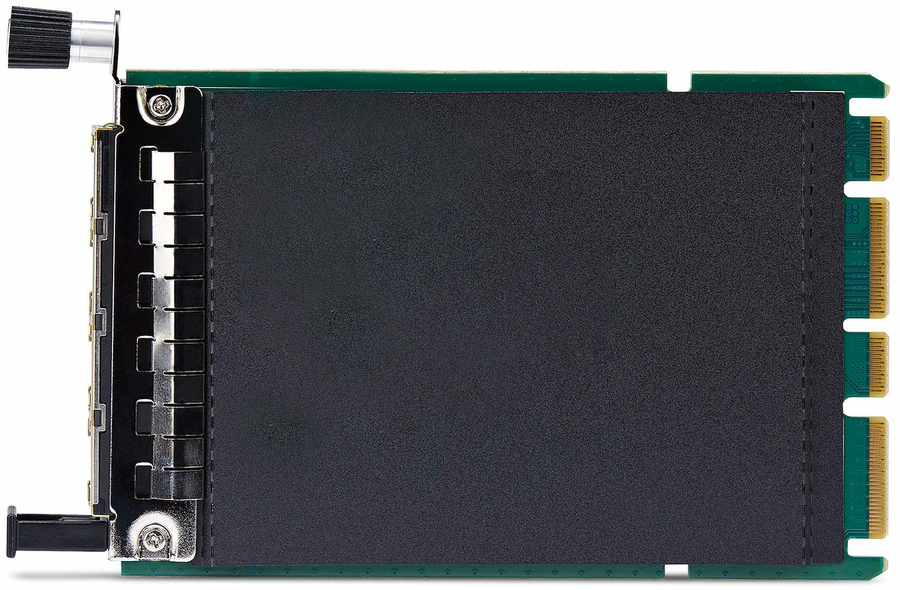

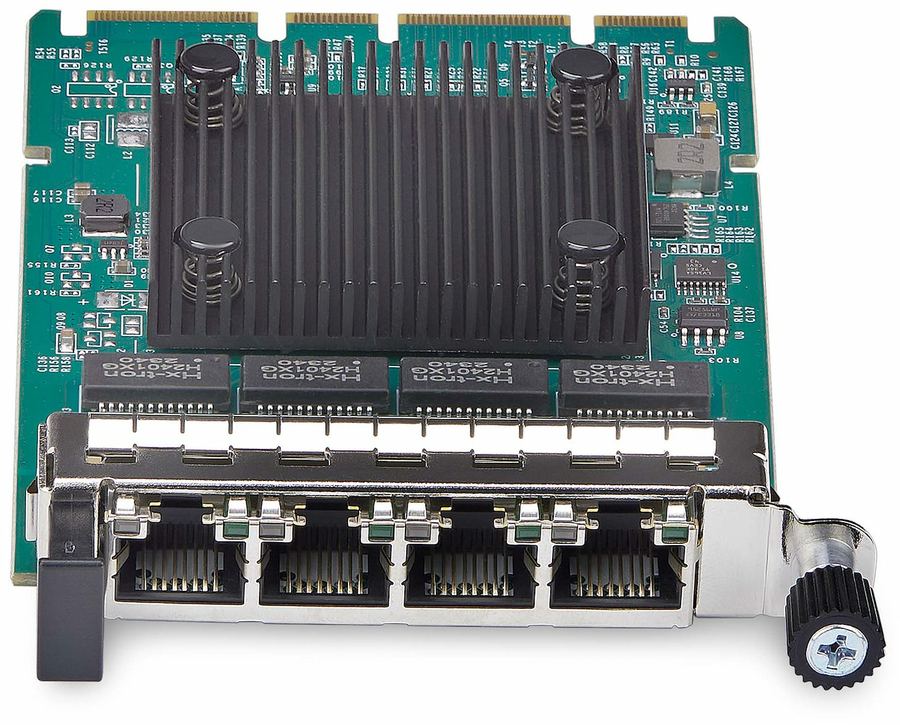

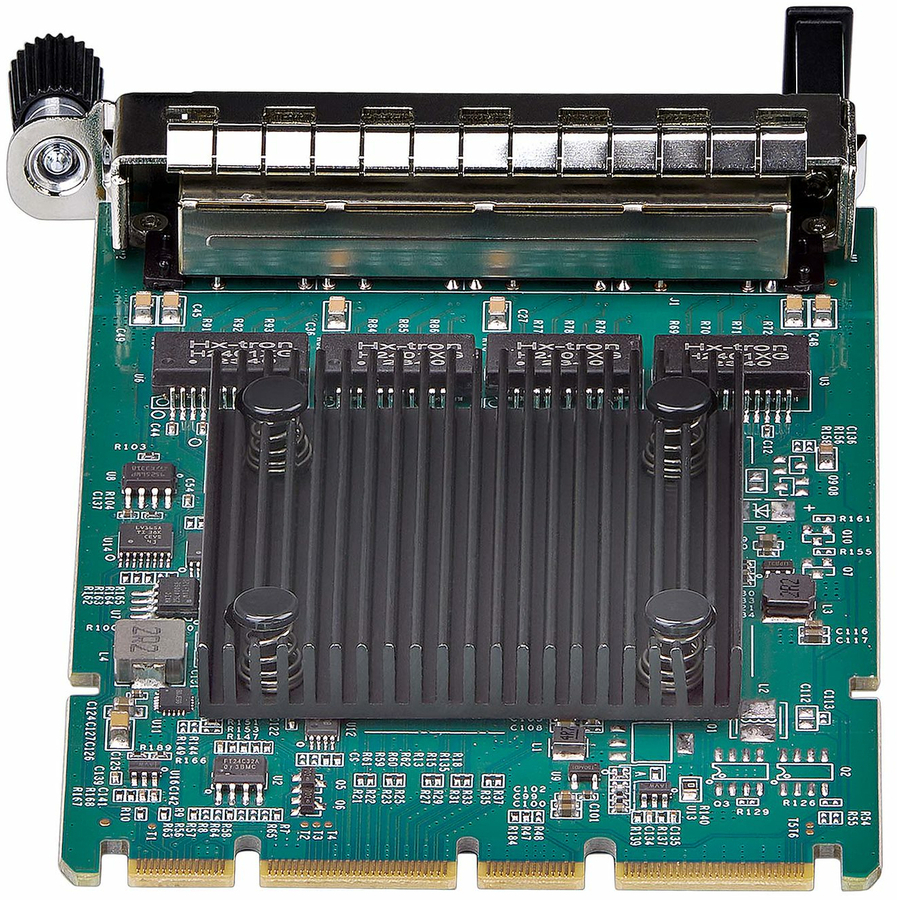

StarTech 4-Port RJ45 Gigabit OCP 3.0 Server Network Card w/Intel I350-AM4, SFF 4C+ Compatible, Multi-Speed Ethernet, PCIe 3.0, LAN Transformer, NIC w/PXE/9K
|
|
Regularly: $483.00
On Sale: $463.68
Sale Ends:
May 10th, 2024
Manufacturer:
StarTech
StarTech.com 4-Port RJ45 Gigabit OCP 3.0 Server Network Card w/Intel® I350, SFF 4C+/PCIe 3.0/PXE/VLAN, 3-Speed Ethernet NIC
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59734990
|
OR41GI-NETWORK-CARD
|
65030908146 |
Active
|
Details
|
General Information |
|
Summary |
Enhance a server's connectivity with this OCP 3.0 quad-port network adapter card featuring Intel® I350 chipThis 4-port RJ45 1Gbps OCP 3.0 Network Interface Card (NIC) features an Intel® i350-AM4 Ethernet Controller, enhancing performance and data integrity. The Ethernet card adheres to OCP 3.0 standards and ensures broad compatibility, making it an ideal solution for reliable network connectivity and robust data transfer capabilities.Optimized Network EfficiencyLeverage existing Cat5e/Cat6 cabling (or better) up to 100m to maximize existing networks and equipment. The NIC supports variable speed options (10/100/1000 Mbps) with auto-negotiation and 9K jumbo frames to reduce packet overhead, reducing network slowdowns.Enhanced HardwareThis network adapter leverages the OCP 3.0 standard, a server-specific innovation, that optimizes size and port density while enabling simplified installation, maintenance, and upgrades of Field Replaceable Units (FRUs) through hot swapping. It's designed for the SFF form factor, aligning with W1 4C+ standards. The network adapter is compatible with both TSFF and SFF systems expanding compatibility with different server types.Advanced FeaturesThe Ethernet card supports Intel® vPro™ for remote management and troubleshooting, PXE boot for expedited deployment or updates, and VLAN support for improved traffic management and reduced network congestion. The NIC is compatible with Windows Server, VMware, and Linux and supports Single Root I/O Virtualization (SR-IOV) to enhance virtual machines' performance with minimal overhead. LAN transformers are included to maintain signal quality and reduce EMI, ensuring reliable communication up to 100m even when using Cat5e.The StarTech.com Advantage |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
OCP 3.0 |
|
Interface |
Ethernet |
|
Ethernet LAN (RJ-45) ports |
4 |
|
PCI version |
3.0 |
|
Network |
|
Maximum data transfer rate |
1000 Mbit/s |
|
Networking standards |
IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Cabling technology |
10/100/1000BaseT(X) |
|
Wake-on-LAN ready |
Yes |
|
Auto MDIX IEEE |
Yes |
|
Full duplex |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Quality of Service (QoS) support |
Yes |
|
VLAN support |
Yes |
|
Link aggregation |
Yes |
|
Design |
|
Internal |
Yes |
|
Component for |
Server |
|
Product colour |
Black, Green |
|
Chipset |
Intel® I350-AM4 |
|
LED indicators |
Activity |
|
Power |
|
Power consumption (typical) |
4.65 W |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
|
Linux operating systems supported |
Yes |
|
Server operating systems supported |
Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 50 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Sustainability |
|
Sustainability compliance |
Yes |
|
Sustainability certificates |
RoHS |
|
Weight & dimensions |
|
Width |
132 mm |
|
Depth |
85 mm |
|
Height |
15 mm |
|
Weight |
100 g |
|
Packaging data |
|
Package width |
144 mm |
|
Package depth |
207 mm |
|
Package height |
38 mm |
|
Package weight |
110 g |
|
Packaging content |
|
Quick installation guide |
Yes |
|
Logistics data |
|
Master (outer) case width |
420 mm |
|
Master (outer) case length |
440 mm |
|
Master (outer) case height |
320 mm |
|
Products per master (outer) case |
40 pc(s) |
|
Other features |
|
Flow control support |
Yes |
|
