General Information |
|
Summary |

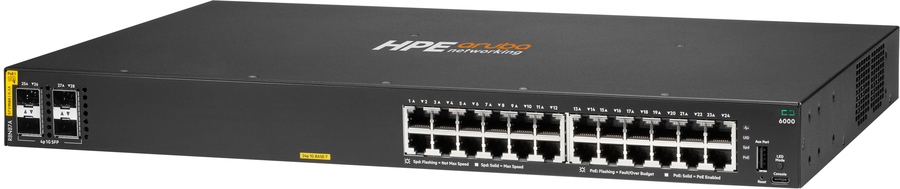

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) to deliver a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The CX 6000 Series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.
What is new supporting point:
Compact and fanless 12-port PoE model for space-constrained deployments.
Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
Ready for software defined networking with REST APIs.
Simplify IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
Convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Cloud-managed |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
24 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
SFP module slots quantity |
4 |
|
Console port |
USB |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Spanning tree protocol |
Yes |
|
VLAN support |
Yes |
|
Data transmission |
|
MAC address table |
8192 entries |
|
Switching capacity |
56 Gbit/s |
|
Throughput |
41.6 Mpps |
|
Latency (1 Gbps) |
1.5 µs |
|
Static route |
Yes |
|
Jumbo frames support |
Yes |
|
Security |
|
DHCP features |
DHCP client |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
Authentication |
MAC-based authentication |
|
Multicast features |
|
Multicast support |
Yes |
|
Protocols |
|
IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
|
IPv4 FIB entries |
256 |
|
IPv6 FIB entries |
128 |
|
Design |
|
Rack mounting |
Yes |
|
Stackable |
No |
|
Form factor |
1U |
|
Performance |
|
Built-in processor |
Yes |
|
Processor model |
ARM Cortex-A9 |
|
Processor frequency |
1016 MHz |
|
Memory type |
DDR3-SDRAM |
|
Internal memory |
8000 MB |
|
Flash memory |
16384 MB |
|
Power |
|
Power source |
AC |
|
Power supply included |
Yes |
|
AC input voltage |
200 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Power consumption (max) |
32.7 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Total Power over Ethernet (PoE) budget |
370 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
15 - 95% |
|
Storage relative humidity (H-H) |
15 - 90% |
|
Weight & dimensions |
|
Width |
44 mm |
|
Depth |
442 mm |
|
Height |
268 mm |
|
Weight |
4.2 kg |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
